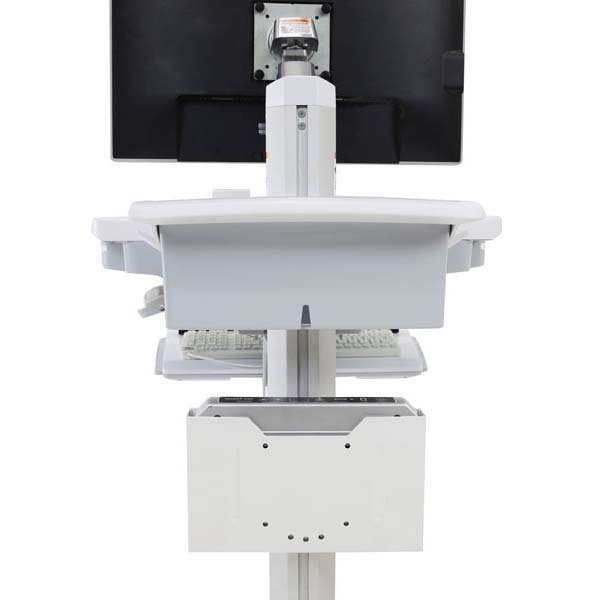

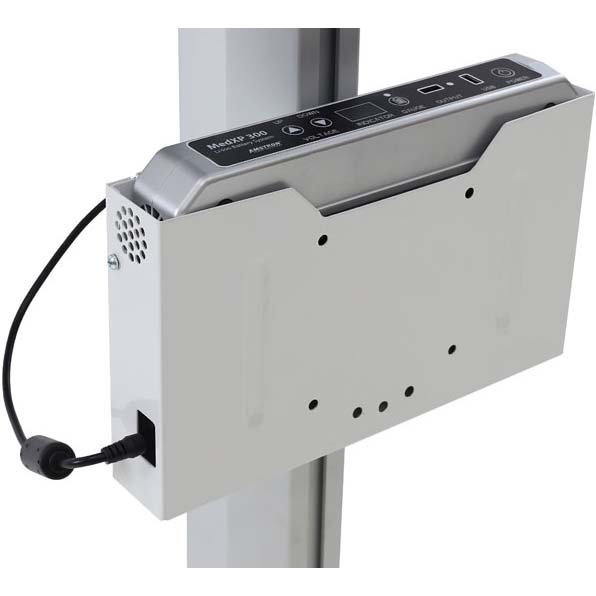

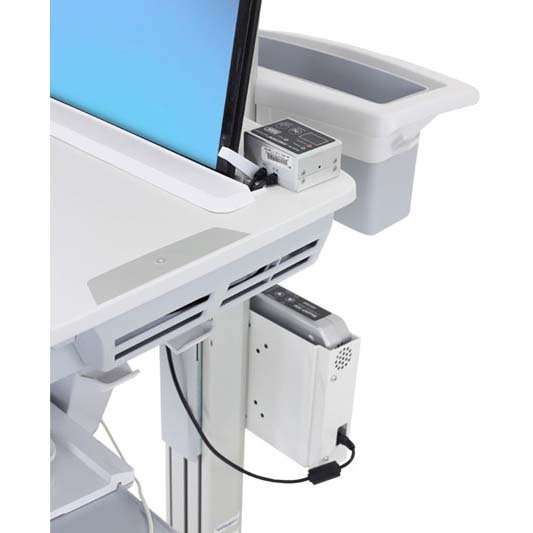

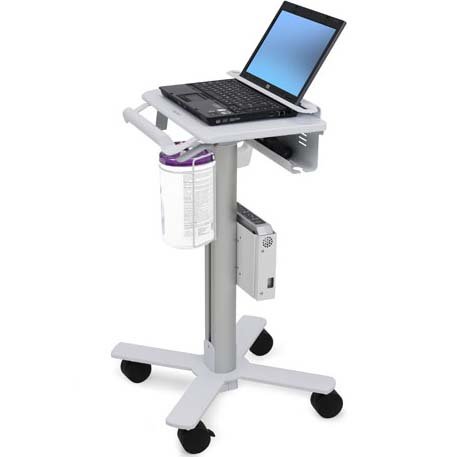

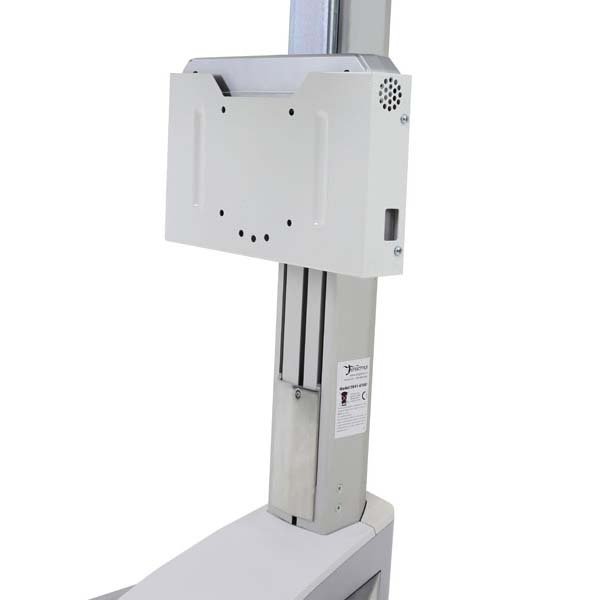

Amstron installed
Amstron installed
Ergotron StyleView SV DC Power System
Amstron installed

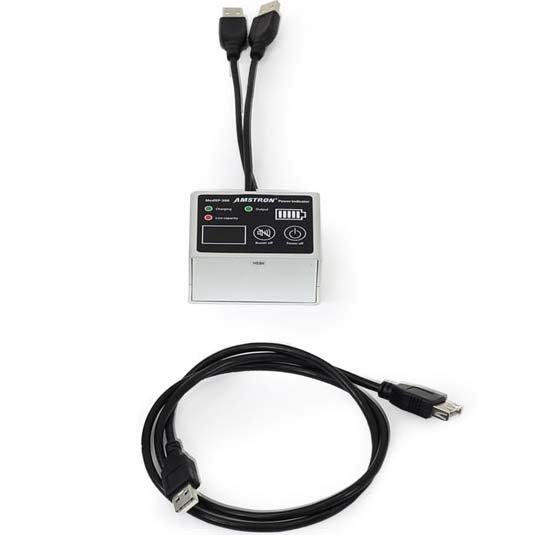

Amstron indicator
Ergotron StyleView SV DC Power System
StyleView SV DC Power System
Amstron installed
Amstron installed
Ergotron StyleView SV DC Power System
Amstron installed
Amstron indicator

Description

From Amstron Power Solutions, ergotron SV DC Power System is a low-cost way to add power capability to an Ergotron non-powered cart.
The medical-grade battery provides maximum power between charges, with run-times of 10–15 hours depending on the application. Order the system appropriate to your hardware needs.



Product Information

Description

StyleView SV DC Power System (Amstron MedXP-300)

For a complete SV DC Power System, order the following part numbers appropriate to your configuration

  • 97-942 Power System, LCD+CPU

  • 97-943 Power System, Laptop

  • 97-953 User Interface (optional)

  • Cart-specific mounting bracket

  • If outside North America, country-specific power cord

Mounting Brackets

  • For StyleView SV10/40/41/43 carts, order mounting bracket 97-947

  • For StyleView SV31 carts, order mounting bracket 60-587-207 (two brackets are recommended)

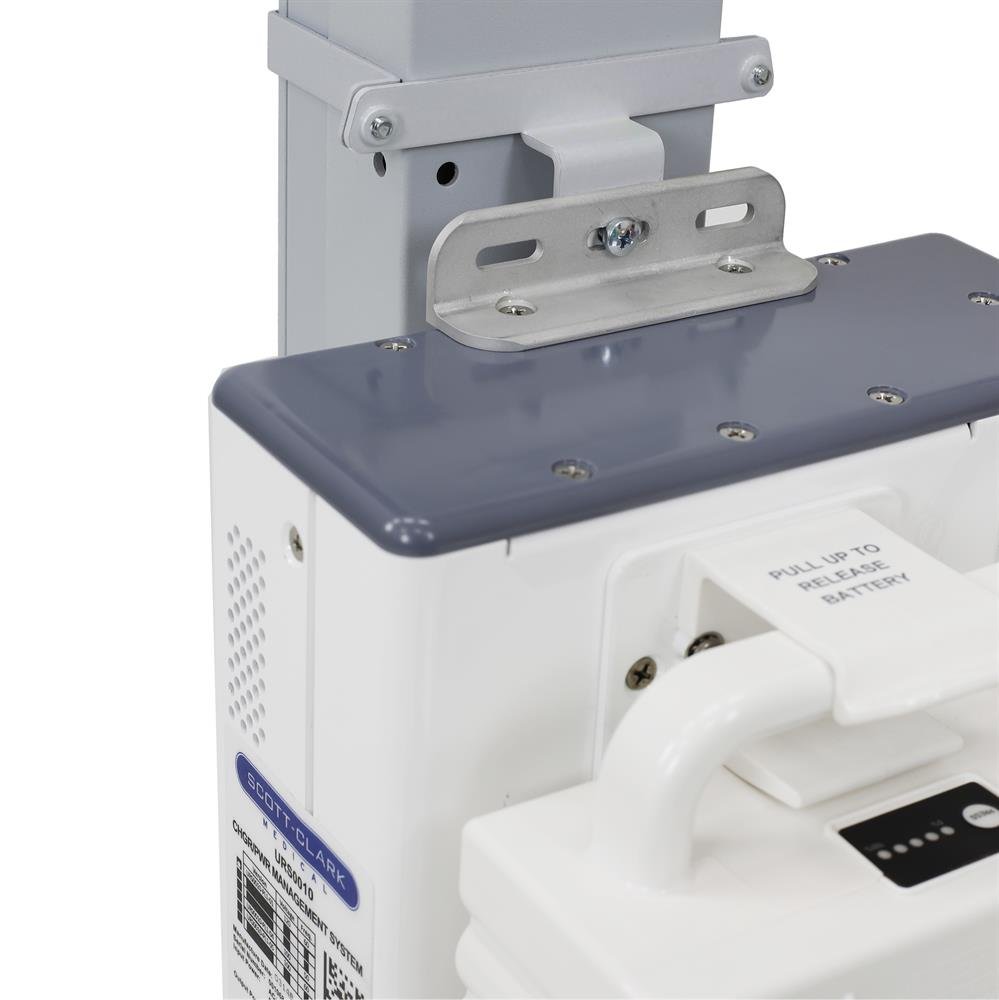

  • For Neo-Flex Carts (24-205-214 & 24-206-214) that are not fitted with a t-slot channel, order mounting bracket 97-818

  • For Neo-Flex WideView Carts (24-189-055 & 24-194-055) or WorkFit-C Mobile Workstation (24-198-055), order mounting bracket 60-587-207 (two brackets are recommended)

Power Cords

  • Japan = 97-914

  • China = 97-916

  • Europe & Saudi Arabia (EU) = 97-917

  • United Kingdom, Ireland & Saudi Arabia (UK) = 97-918

  • Hong Kong, Malaysia & Singapore = 97-918

  • Australia & New Zealand = 97-919

  • North American power cord is included in base configuration

SV DC Power System, LCD+CPU 97-942

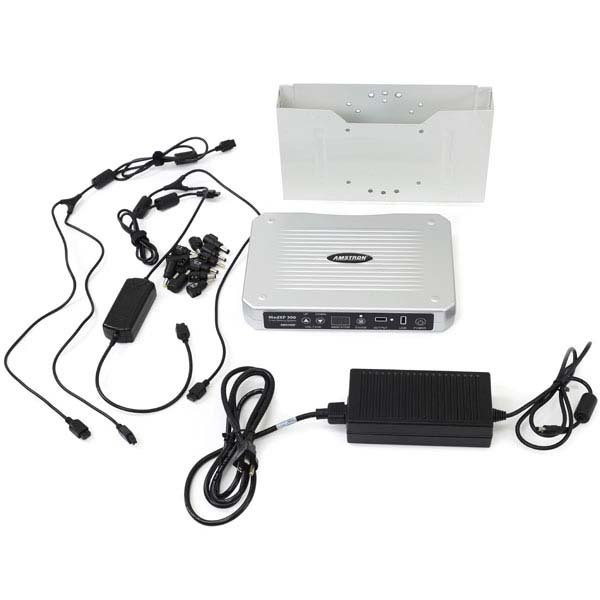

Includes

  • Amstron MedXP-300 DC power unit with charging brick

  • North American power cord

  • Fuel gauge with USB extender cable

  • Battery holster

  • Interchangeable M-tips

  • Output 12V/19V Y-cable adapter

  • Output Y-cable without adapter

Onboard Power

300Wh DC

Maximum Output Power

130W; maximum during charging and use is 120W

Charge Time

6 hours

Runtime

Up to 15 hours depending on load

Selectable Output Voltage

12V, 16V, 19V, 24V and 5V (USB) for fuel gauge or charging devices like phones

Fuel Gauge

With three-digit display on the unit or on User Interface accessory (97-953)

Power Adapter

19V, 90W AC

M-Tips

Included for the 13 most popular devices (see cross-reference list below)

UL & IEC 60601-1

Certified as a component

Installation of System

On front of a StyleView Cart will limit cart’s lift engine travel to 16" (40.6 cm)

Product Dimensions

10.6" x 7.1" x 1.6" (27 x 18 x 4 cm)

Product Weight

6 lbs (2.7 kg)

Shipping Dimensions

18" x 10.75" x 10.25" (45.7 x 27.3 x 26 cm)

Shipping Weight

13.5 lbs (6.1 kg)

Warranty

One (1) year

SV DC Power System, Laptop 97-943

Includes

  • Amstron MedXP-300 DC power unit with charging brick
  • North American power cord
  • Fuel gauge with USB extender cable
  • Output cable
  • Battery holster
  • Interchangeable M-tips

Onboard Power

300Wh DC

Maximum Output Power

130W; maximum during charging and use is 120W

Charge Time

6 hours

Runtime

Up to 15 hours depending on load

Selectable Output Voltage

12V, 16V, 19V, 24V and 5V (USB) for fuel gauge or charging devices like phones

Fuel Gauge

With three-digit display on the unit or on User Interface accessory (97-953)

Power Adapter

19V, 90W AC

M-Tips

Included for the 13 most popular devices (see cross-reference list below)

UL & IEC 60601-1

Certified as a component

Installation of System

On front of a StyleView Cart will limit cart’s lift engine travel to 16" (40.6 cm)

Product Dimensions

10.6" x 7.1" x 1.6" (27 x 18 x 4 cm)

Product Weight

6 lbs (2.7 kg)

Shipping Dimensions

18" x 10.75" x 10.25" (45.7 x 27.3 x 26 cm)

Shipping Weight

13.5 lbs (6.1 kg)

Warranty

One (1) year

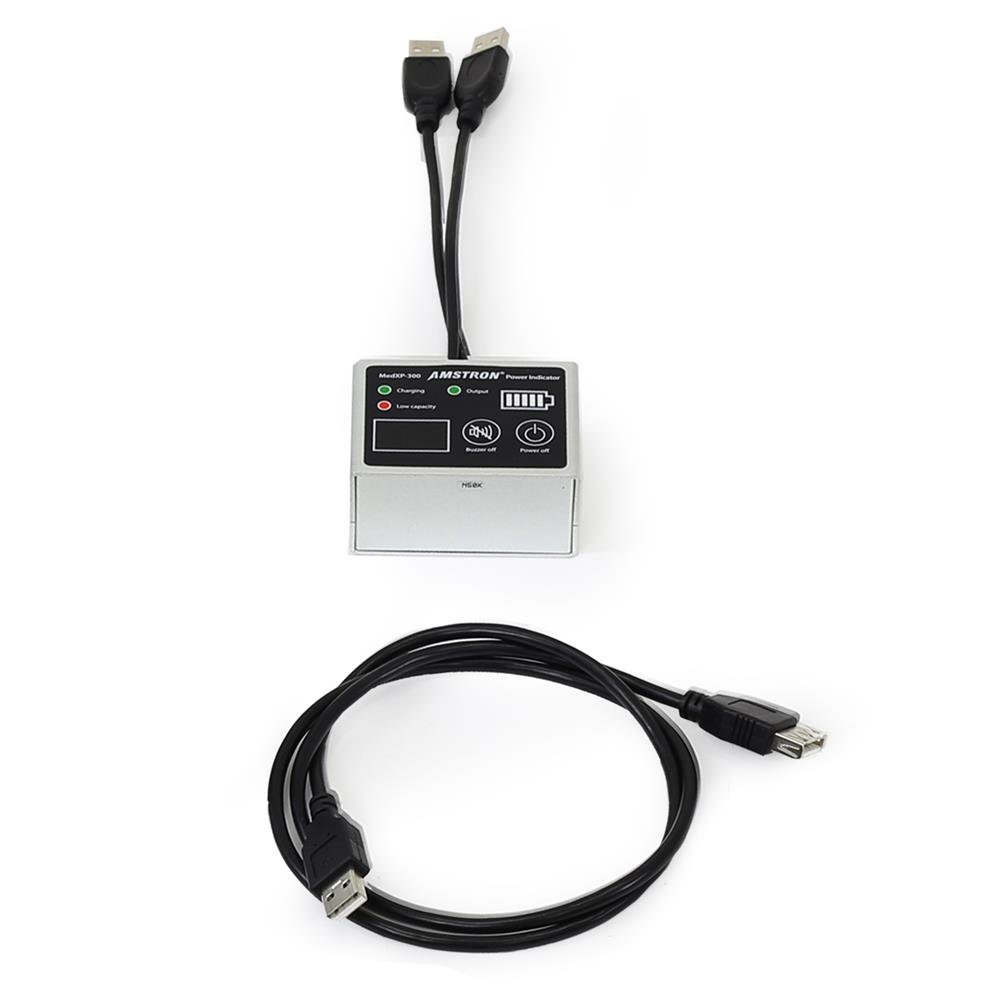

SV DC Power System User Interface 97-953

Includes

Remote user interface and 3' (91.4 cm) USB extender cable

Shipping Dimensions

8" x 6" x 4" (20.3 x 15.2 x 10.2 cm)

Shipping Weight

0.6 lbs (.3 kg)

Warranty

One (1) year



Benefits

  • Up to 130 watts of output; output voltage is selectable

  • Slim profile and durable casing in an extremely lightweight form factor

  • Use all day - up to 15 hours of use on a single charge

  • Charges while onboard - use and charge simultaneously

  • Medical-grade lithium-ion battery technology

  • Attaches to the front or back of StyleView Carts, depending on configuration preference

  • When installed on front of a StyleView Cart, the system’s height will adjust with the cart’s head-unit assembly





Model 97-942, 97-943, 97-953
Manufacturer Ergotron
Part Number 97-942, 97-943, 97-953
UPC 698833051773
Power Maximum output power 130W; maximum during charging and use is 120W
Charge Time 6 hrs
Power Adapter 19V, 90W AC
Dimensions 97-942 and 97-943: 10.6" x 7.1" x 1.6" (27 x 18 x 4 cm).
Weight 97-942 and 97-943: 6 lbs (2.7 kg)
Shipping Dimensions 97-942 and 97-943: 18" x 10.75" x 10.25" (45.7 x 27.3 x 26 cm). 97-953: 8" x 6" x 4" (20.3 x 15.2 x 10.2 cm)
Shipping Weight 97-942 and 97-943: 13.5 lbs (6.1 kg). 97-953: 0.6 lbs (0.3 kg)
Warranty One (1) year
