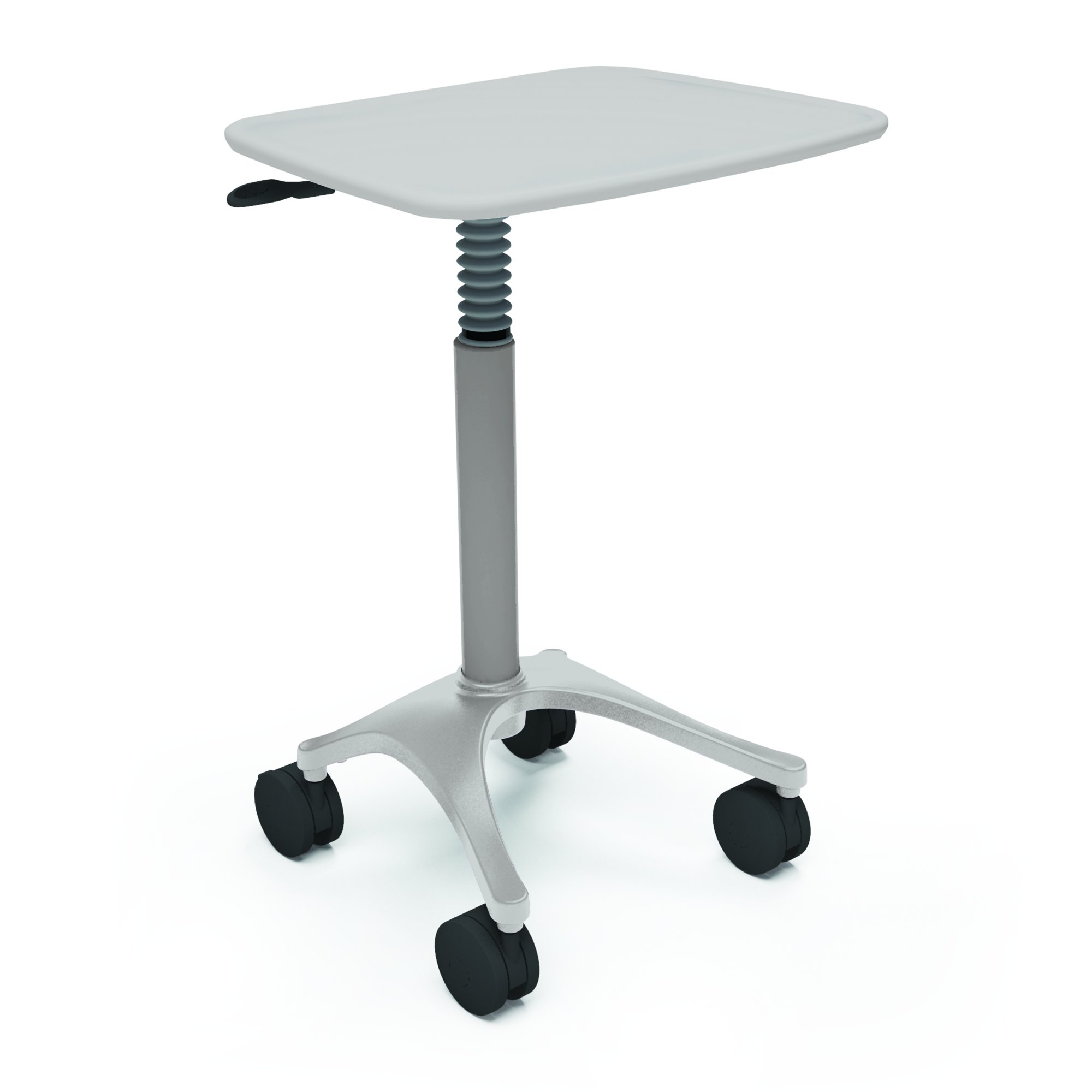

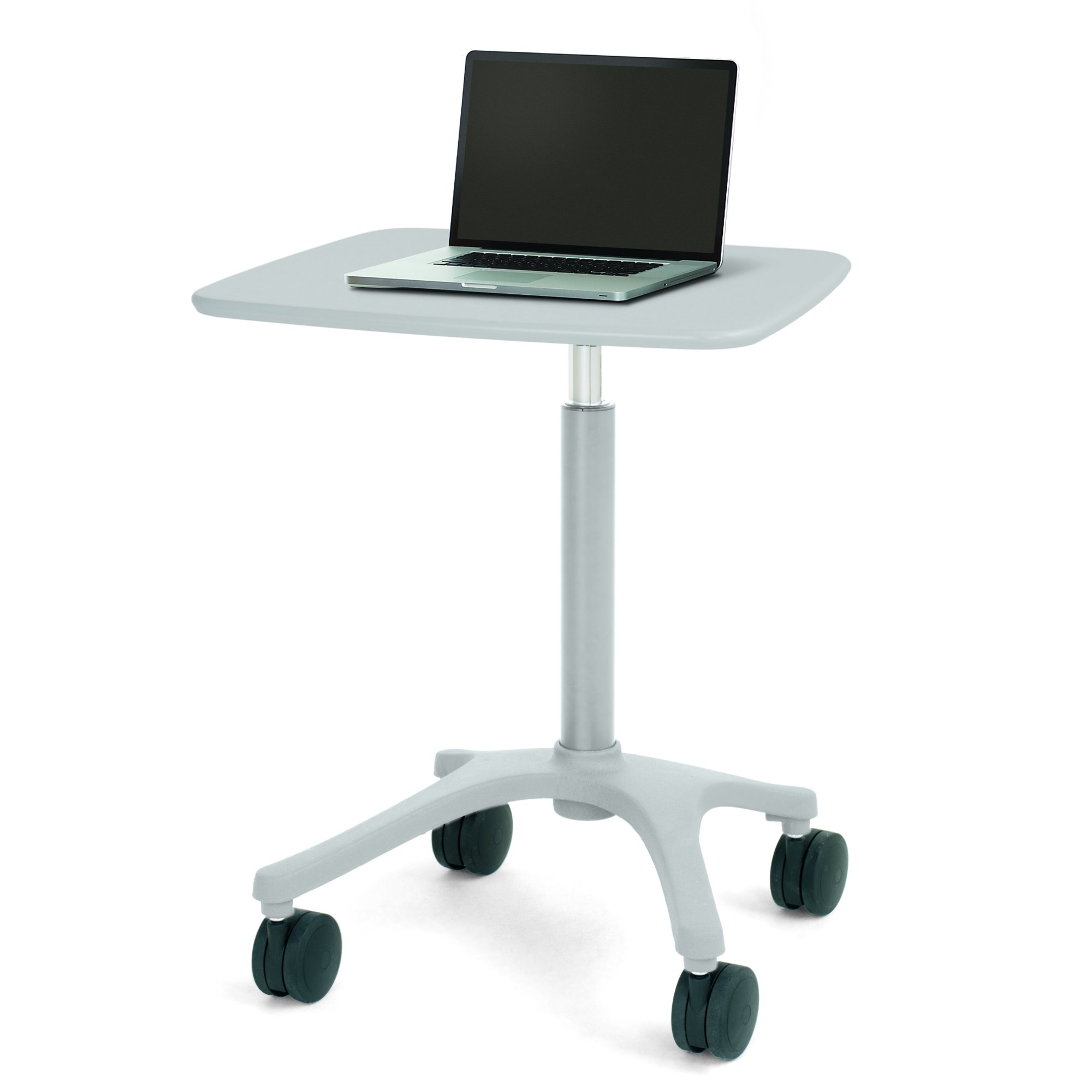

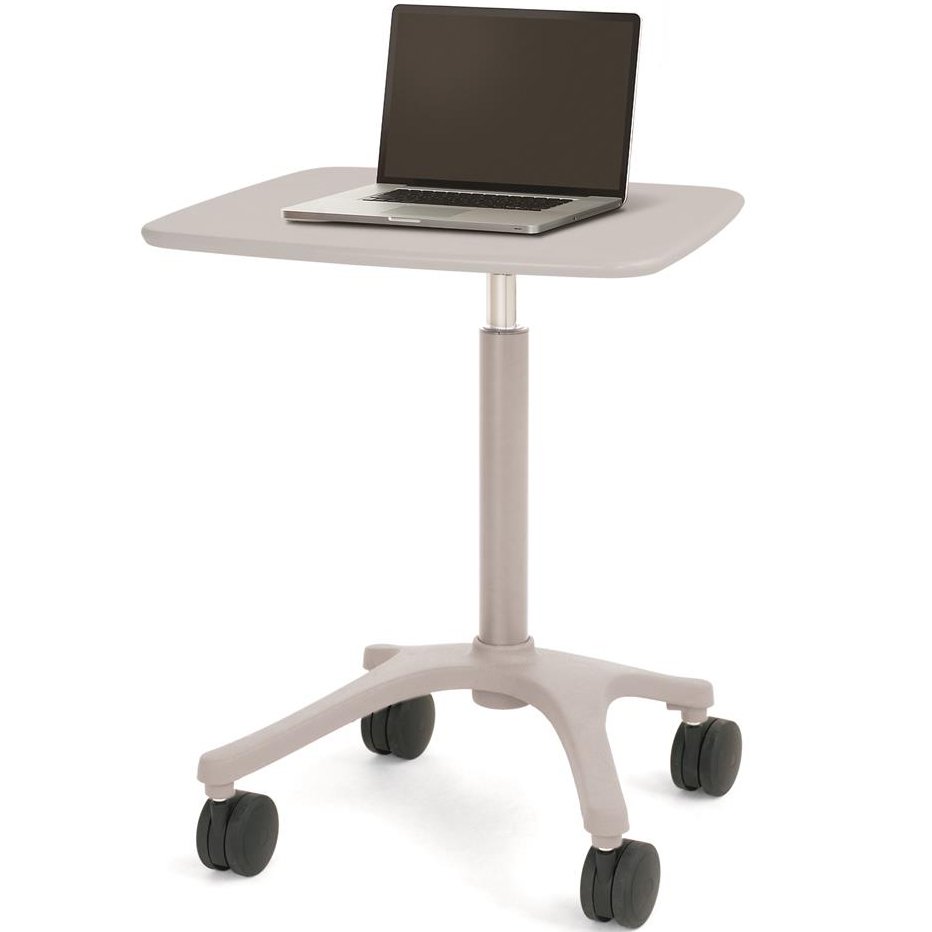

Ergotron ZAL22CG/CG4 is perfect for laptop applications. Versatile, easy-to-customize Zido carts have all the flexibility you need. Choose from dozens of accessories and outfit your Zido cart to hold a computer system, a laptop, or small devices and supplies. The adjustable-height column moves the surface between 30" and 40" (76–102 cm) high so you can position it at the right height for you. This model’s surface-width is 22" (56 cm). The ZAL22CG/CG4 was formerly manufactured by Anthro.

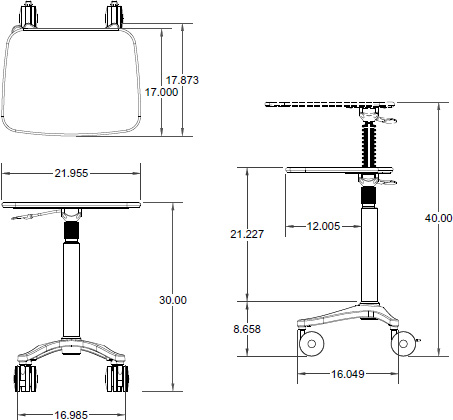

Technical Drawing
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
- |
Up to 150 lbs 68.0 kg |
10" 25.4 cm |
- | - | - | - |
Part Number | ZAL22CG/CG4 |
Description | Zido 22, Adjustable-Height Cart (cool grey) |
Includes |
|
Weight Capacity | 150 lbs (68.2 kg) in total; 50 lbs (22.7 kg) on worksurface. Note: Optimal load on adjustable-height worksurface = 16–30 lbs (7.3–13.6 kg); loads lighter than 16 lbs (7.3 kg) will be harder to push down and loads heavier than 30 lbs (13.6 kg) will be harder to pull up |
Load | When calculating the load being applied to the cart’s column and worksurface, also factor the weight of any accessory options that are being installed |
Zido's Column | Zido’s column is offset to the back of the cart base, leaving room in front of the column for you to stand or sit comfortably. The offset column also leaves space to install deeper accessories |

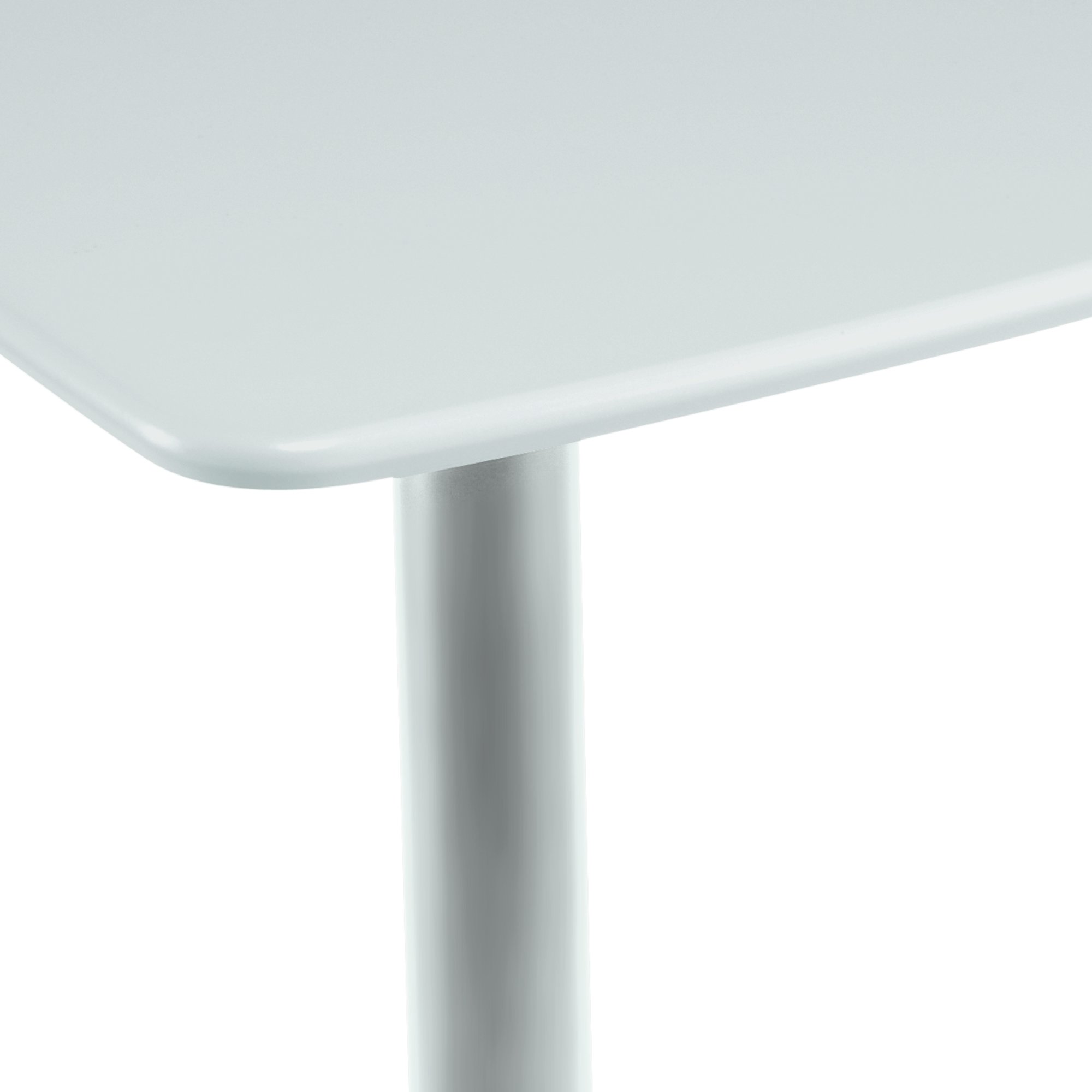

Worksurface | Worksurface is medium-density fiberboard wrapped in highly durable thermoplastic laminate that resists cracking and chipping and stands up to a wide range of chemicals. Metal surfaces have a baked-on powder coat finish |
Worksurface Dimensions | 22" x 17" (56 x 43 cm) |
Shipping Dimensions | 35" x 29" x 7" (18 x 89 x 74 cm) |
Shipping Weight | 50 lbs (22.7 kg) |
Warranty | Limited lifetime; five (5) years for pneumatic cylinder |
Built with Anthro-DNA
The 30-year legacy of Anthro Corporation lives on in its world-class factory, award-winning designs and market-leading personal customer service
This product is Built with Anthro‑DNA.

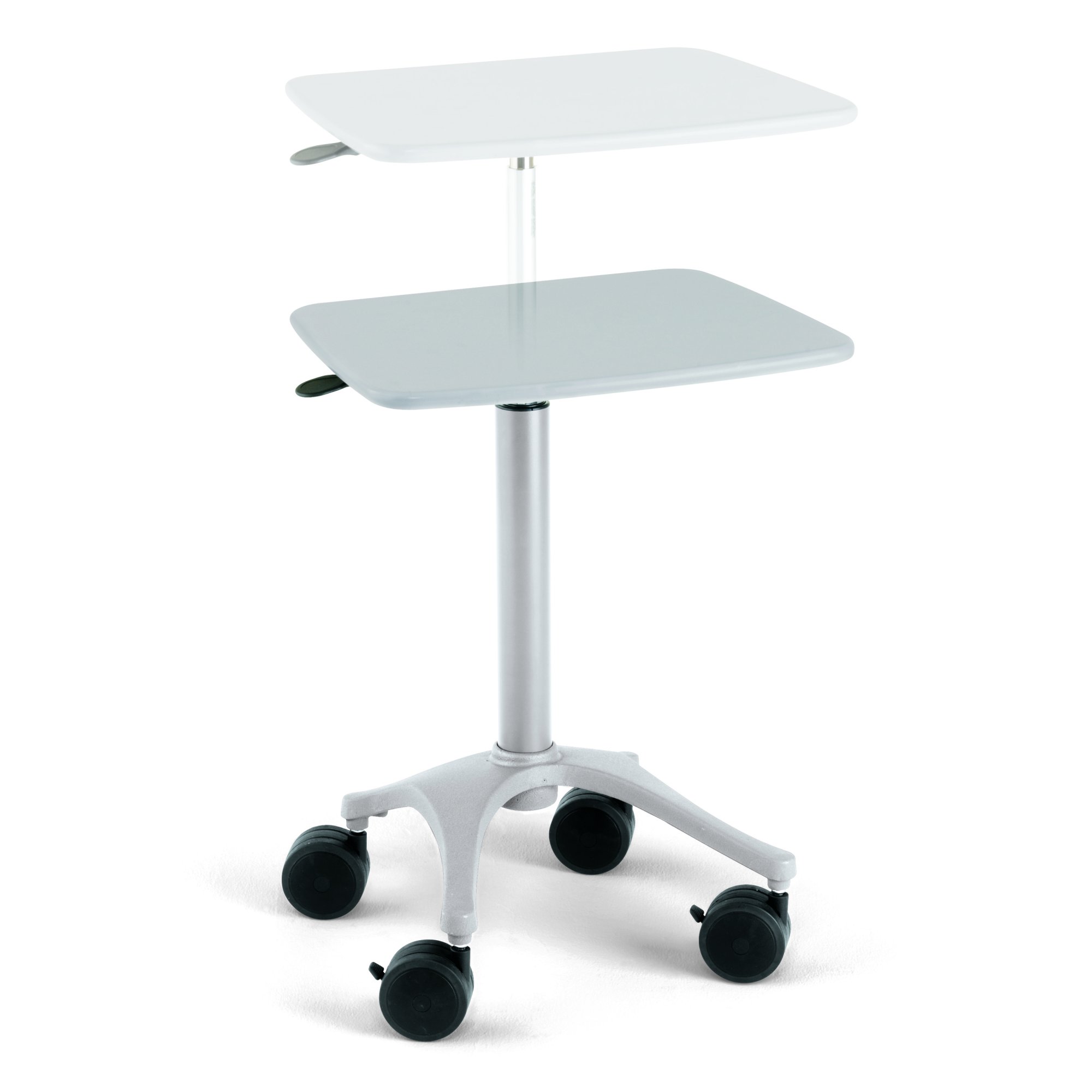

Height Adjustable
Find a comfortable height whether sitting or standing
Squeeze the lever and a pneumatic cylinder moves the surface to any height between 30" and 40" (76–102 cm)
A Strong Foundation
Zido’s heavy cast-metal base provides a very stable foundation
Even though it’s small to fit tight spaces, this cart holds up to 150 lbs (68.2 kg) total, and up to 30 lbs (13.6 kg) on the height-adjustable platform

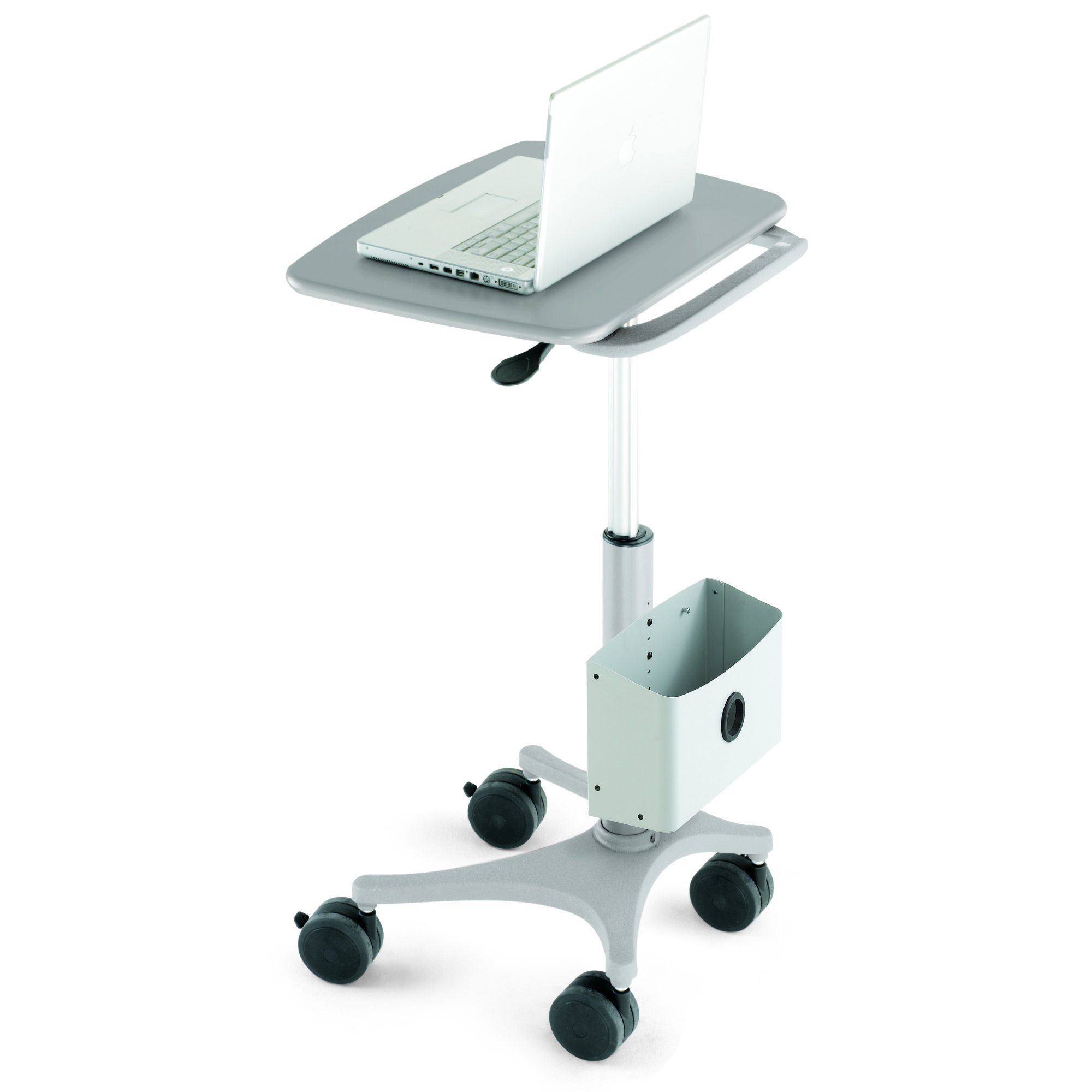

Load It Up
Different Zido accessories install on the front or the back of the column to maximize your space
Add storage, a power strip, or keyboard and monitor mounts
The column has holes in 1" (2.5 cm) increments to install shelves, bins and other accessories at exactly the right height
Cable Management and On-Board Power
Model | ZAL22CG/CG4 |
Manufacturer | Ergotron |
Part Number | ZAL22CG/CG4 |
UPC | 766212222370 |
Color | Cool grey |
Weight Capacity | Up to 150 lbs (68 kg) |
Lift | (25.4 cm) 10 in |
Shipping Dimensions | 35" x 29" x 7" (18 x 89 x 74 cm) |
Shipping Weight | 50 lbs (22.7 kg) |
Warranty | Limited lifetime; five (5) years for pneumatic cylinder |
Height Adjustment | Between 30" and 40" (76–102 cm) |
Worksurface Dimensions | 22" x 17" (56 x 43 cm) |
Power Type | Non-powered |
All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and
limitations as set forth below.
Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014
Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)
Ten-year warranty on LearnFit Sit-Stand Desks
Three-year warranty on all Neo-Flex Ergotron Products
Two-year warranty on WorkFit-Z Mini
Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted
The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder
One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)
Two-year warranty on Power Modules by Ergotron
Sealed Lead-Acid (SLA) Power Systems, SLA Batteries
Two-year warranty on all SLA power system components by Ergotron
Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)
Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law
Lithium Iron (LiFe) Power Systems, LiFe Batteries
LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)
Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)
Service Programs - 30-day warranty
Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies
Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer
SLA Batteries
In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void
Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void
Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law
StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations
SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history
SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history
LiFe Batteries
LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)
The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.
These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.
Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.
Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.
Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.
You may upgrade to a newer, functionally equivalent product at a normal MSR list price
Ergotron will return the product to you
You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law
Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.
Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.
Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.
This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
