Chief XVAUB Height Adjustable Video Conferencing Cart (37"-70")
Description

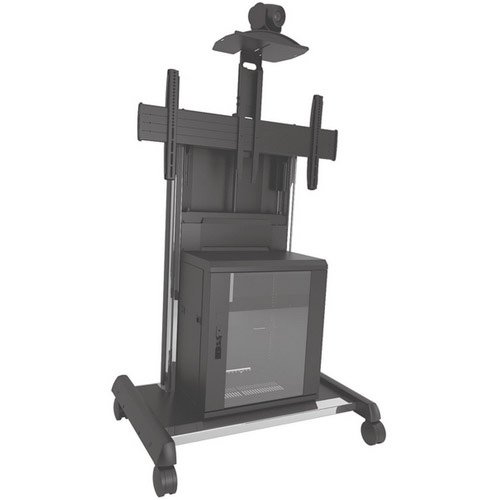

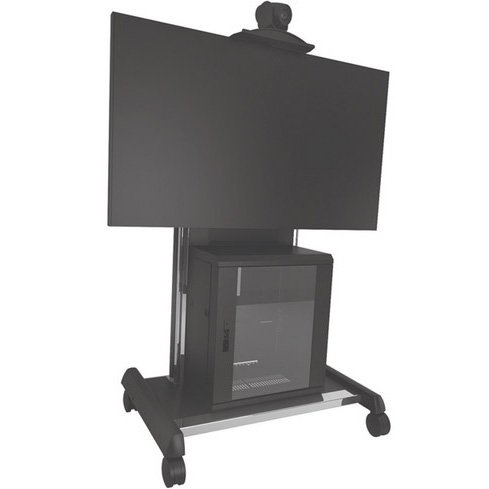

Chief XVAUB mobile FUSION AV Cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

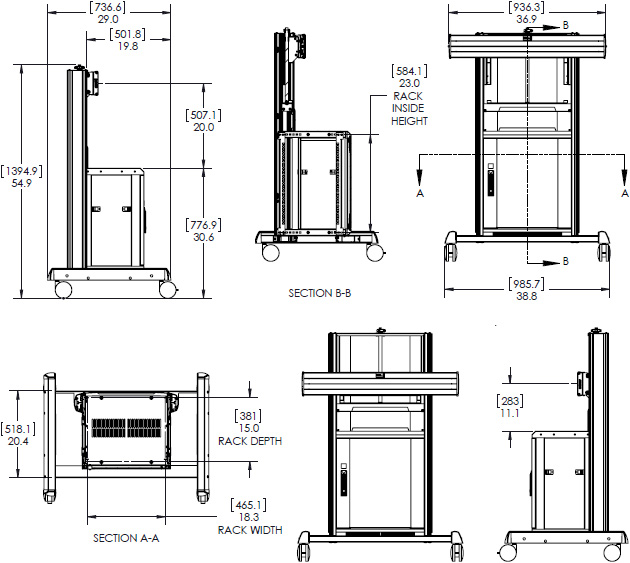

Technical Drawing
Specifications
| Assembly Required | None - ships fully assembled |
| Center of Display to Floor Table Range | 41.9 - 50.4" (106.4 - 128.0 cm) |
| Certifications | TAA Compliant |
| Color | Black |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200 - 800 x 400 mm |
| Number of Monitors | 1 |
| Shipping Weight | 196 lbs (88.9 kg) |
| Tilt | +/- 2.5° |
| Typical Screen Sizes | 55 - 70" |
| Weight Capacity | 250 lbs (113.4 kg) |
| Orientation | Landscape |
Features
Sleek, two-toned look suitable for multiple environments including education, corporate and digital signage
Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 41.9 to 50.4" (106.4 to 128.0 cm)
Internal storage rack mountable (pre-installed rack rail) and non-rack mountable AV components
Includes hardware to vertically mount 11 RUs of AV gear (inside dimension H x W x D: 24 x 19 x 15" (60.9 x 48.2 x 38.1 cm)
Removable side, rear and front panels for easy component access and cable routing
Reversible front door with smoked glass for access to IR controlled components.
Includes hooks in back for cable bundling during transport
Includes 14" wide above component shelf (FCA501)

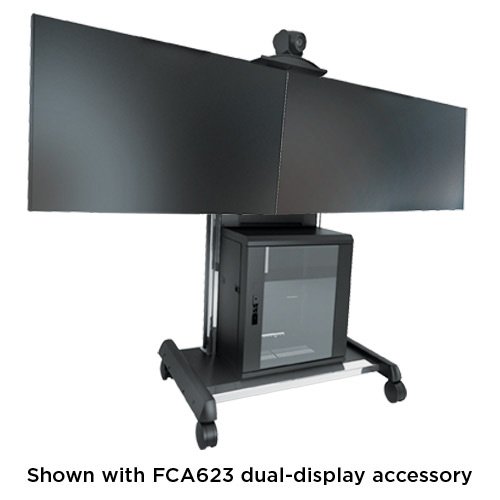

For dual display applications add the Dual-Display accessory - FCA623
Ships fully assembled, on a pallet, with heavy-duty casters (front two casters are lockable)
Product Options/Accessories
| Model | XVAUB |
| Manufacturer | Chief Mounts |
| Part Number | XVAUB |
| UPC | 841872159928 |
| Color | Black |
| Center of Display to Floor/Table Range | 41.9 - 50.4" (106.4 - 128.0 cm) |
| Mounting Pattern | 200 x 200 - 800 x 400 mm |
| Overall Dimensions | 54.9 x 38.8 x 29.0" (139.5 x 98.6 x 73.7 cm) |
| Shipping Weight | 196 lbs (88.9 kg) |
| Tilt | +/- 2.5 degree |
| Monitor Size | 55 - 70" |
| Weight Capacity | 250 lbs (113.4 kg) |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
