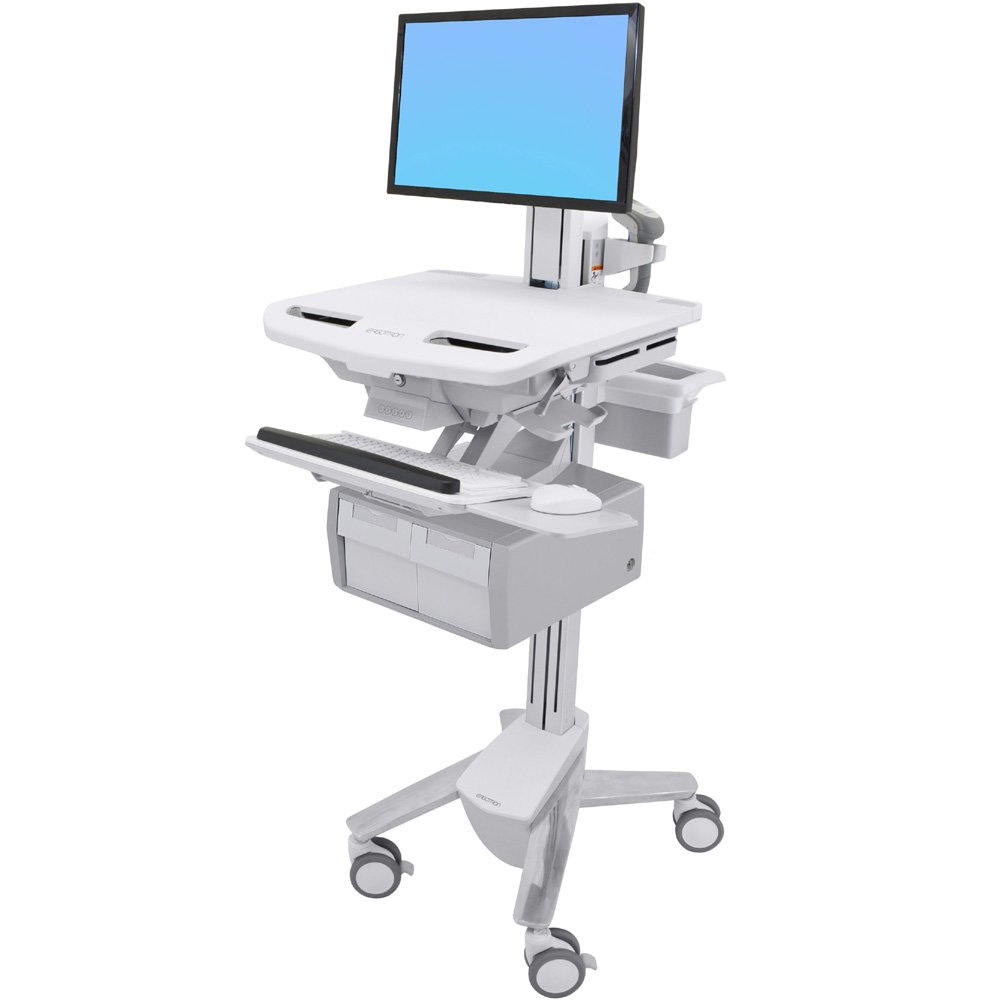

Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers

SV43-13C0-0 is non-returnable/non-cancelable.

Product ID 18488
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers
Brake
Scanner
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers
Ergotron SV43-13C0-0 SV Cart with LCD Pivot, (2x1) Tall Drawers

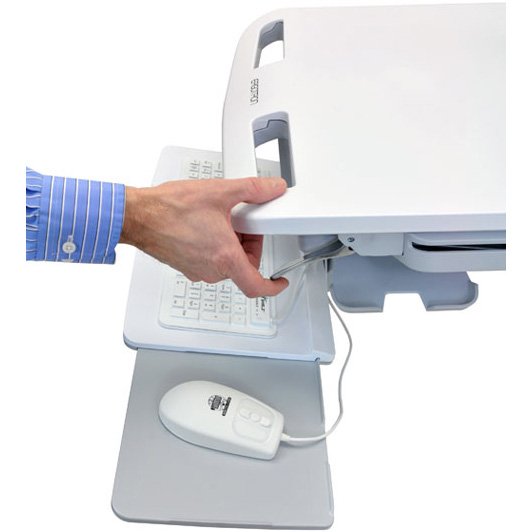

Brake

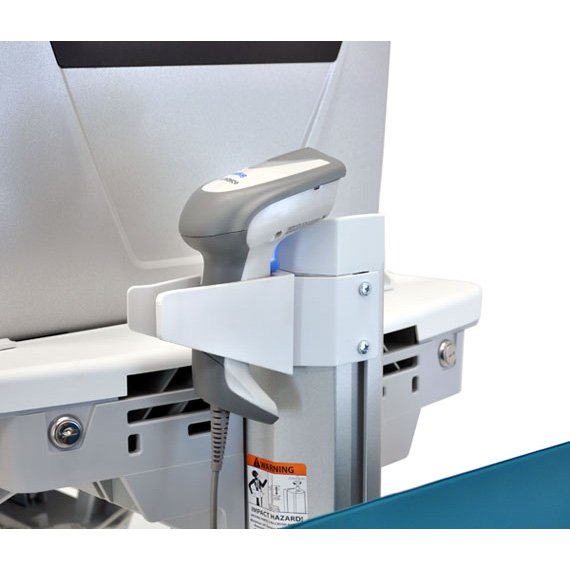

Scanner
Shipping:
$0.00

More shipping >

Our Price:
Qty:

Description

Ergotron SV43-13C0-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.



Technical Drawing

Technical drawing for Ergotron SV43-13C0-0 StyleView Cart with LCD Pivot, (2x1) Tall Drawers



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

Up to 37 lbs

16.8 kg

25"

63 cm

25°

24°

90°

MIS-D



Product Information

Part Number

SV43-13C0-0

Description

StyleView Cart with LCD Pivot, non-powered, 2 Tall Drawers (2 medium tall drawers x 1 row)

Includes

  • LCD pivot
  • Primary double tall drawer
  • Drawer dividers
  • Worksurface
  • CPU lock
  • Secure CPU compartment
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)
  • StyleLink software

Total Maximum Load on Height-Adjustment Assembly

37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); medium drawer ≤ 1 lbs (.5 kg)

Note

  • Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers - contact Ergotron for details
  • If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface

Adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

Cart

  • Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)
  • Cart may be fitted with up to three rows of tall drawers

True Ergonomics

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • Actual cart weight is just 79 lbs (35.8 kg), making system relocation easy

Safe

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • Large, smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Covered by Global Service Program - 24/7 coverage
  • Includes free StyleLink software with enterprise capabilities for drawer management reporting

All the Details Covered

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Rear basket keeps task-related items where they can be quickly accessed
  • Universal mounting slot for accessories and equipment
  • Ships fully assembled
  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
  • Four-port USB hub

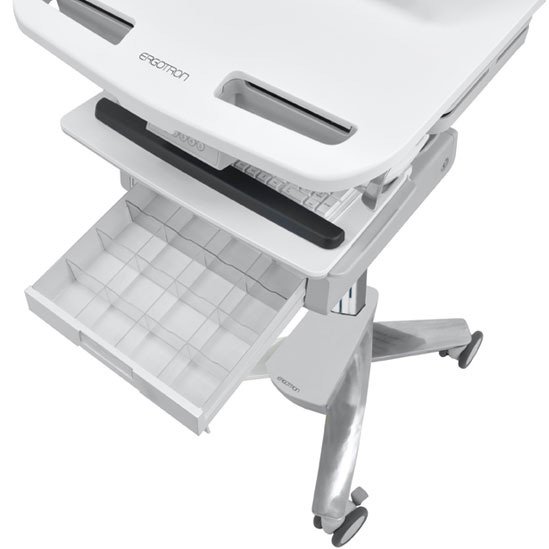

  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

  • Internal Dimensions: medium tall drawer = 6"H x 12"W x 10.5"D (150 x 305 x 267 mm) - includes dividers to configure up to 4 compartments
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

Compact Wheel-to-Wheel Base Dimensions

17" x 21" (430 x 533 mm)

Worksurface Dimensions

22.4"W x 19.75"D (567 x 502 mm)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions

53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight

105 lbs (47.6 kg); actual cart weight = 79 lbs (35.8 kg)

Warranty

Five (5) years



Benefits

  • Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)

  • Drawer system supports "Pharmacy mode," allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication

  • Extra rows of drawers may be added - up to a maximum of 5 rows

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Keyboard pans fully side-to-side for closer access while interacting with clients

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment



Product Options/Accessories

Model SV43-13C0-0
Manufacturer Ergotron
Part Number SV43-13C0-0
UPC 698833055313
Weight lb(s)
Monitor Size Up to 24"
Weight Capacity Up to 37 lbs (16.8 kg)
Lift (63 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Dimensions Internal: medium tall drawer = 6"H x 12"W x 10.5"D (150 x 305 x 267 mm) - includes dividers to configure up to 4 compartments
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 105 lbs (47.6 kg)
Cart Weight 79 lbs (35.8 kg)
Warranty Five (5) years
Power Type Non-powered
Display Type 1 Monitor
Lift Technology Constant Force
Screen Size 24"-30" in
TAA Compliant No
