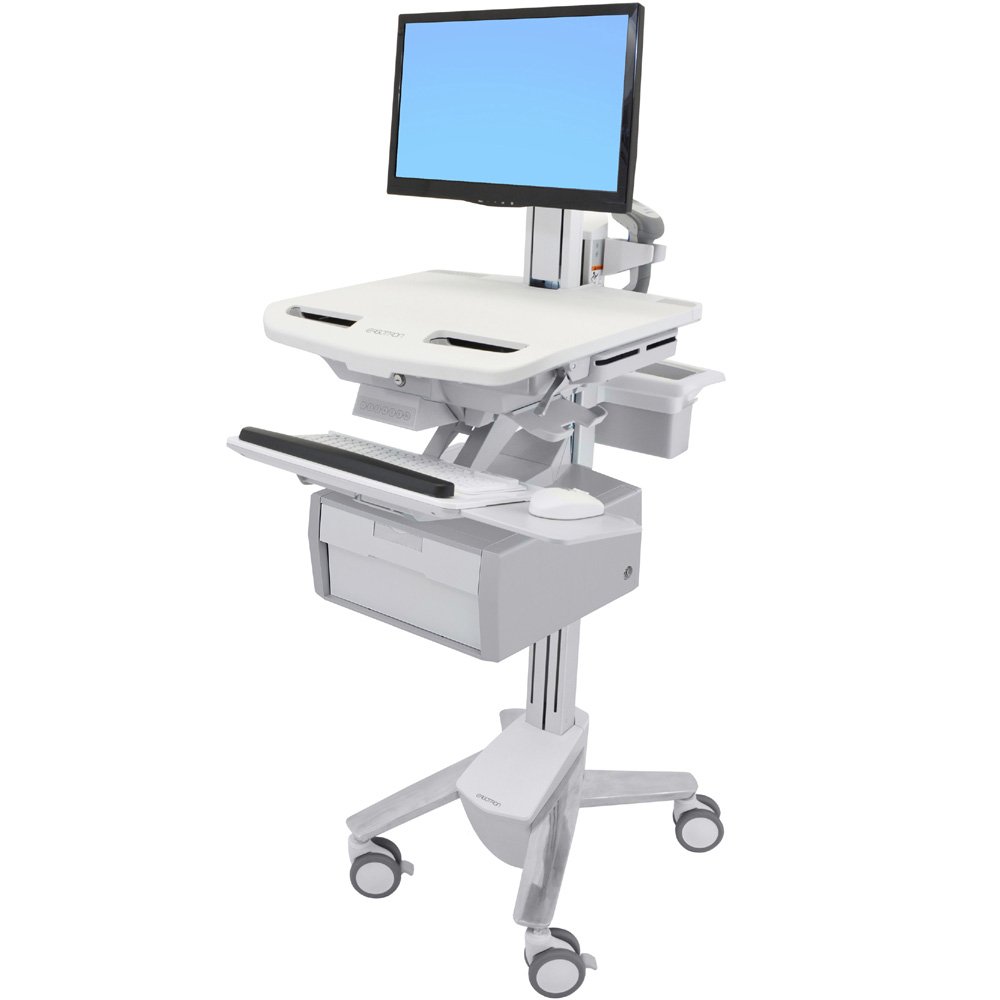

Ergotron SV43-13B0-0 StyleView Cart with LCD Pivot, 1 Tall Drawer
SV43-13B0-0 is non-returnable/non-cancelable.
Description
Ergotron SV43-13B0-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.
Technical Drawing
Technical Specifications
|
|
|
|
|
|
|
Screen |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
Up to 24" |
Up to 37 lbs 16.8 kg |
25" 63 cm |
25° |
24° |
90° |
MIS-D |
Product Information
Part Number |
SV43-13B0-0 |
Description |
StyleView Cart with LCD Pivot, non-powered, 1 Tall Drawer (1 large tall drawer x 1 row) |
Includes |
|
Total Maximum Load on Height-Adjustment Assembly |
37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg) |
Note |
|
LCD and Worksurface |
Adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm) |
Portrait Screen Orientation |
May be incompatible with widescreen displays > 19" |
Cart |
|
True Ergonomics |
|
Safe |
|
Service |
|
All the Details Covered |
|
Compatibility and Dimensions |
|
Compact Wheel-to-Wheel Base Dimensions |
17" x 21" (430 x 533 mm) |
Worksurface Dimensions |
22.4"W x 19.75"D (567 x 502 mm) |
Mounting Standards |
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Shipping Dimensions |
53"D x 34"W x 36"H (135 x 89 x 91 cm) |
Shipping Weight |
105 lbs (47.6 kg); actual cart weight = 79 lbs (35.8 kg) |
Warranty |
Five (5) years |
Benefits
Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
Drawer system supports “Pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
Extra rows of drawers may be added - up to a maximum of 5 rows
Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

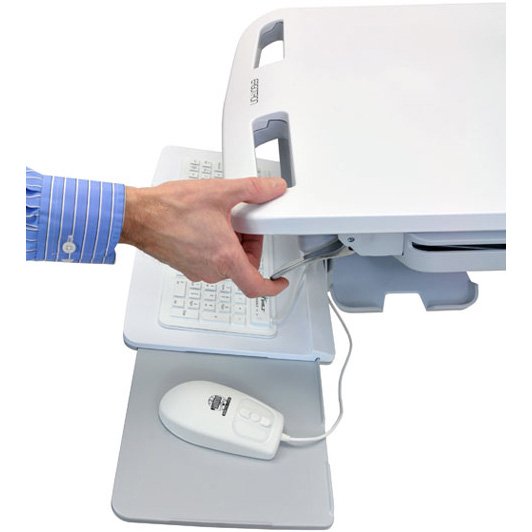

Keyboard pans fully side-to-side for closer access while interacting with clients
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment
Product Options/Accessories
Model | SV43-13B0-0 |
Manufacturer | Ergotron |
Part Number | SV43-13B0-0 |
UPC | 698833055306 |
Weight | lb(s) |
Monitor Size | Up to 24" |
Weight Capacity | Up to 37 lbs (16.8 kg) |
Lift | (63 cm) 25 in |
Tilt | 25 degree |
Pan | 24 degree |
Rotation | 90 degree |
Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |

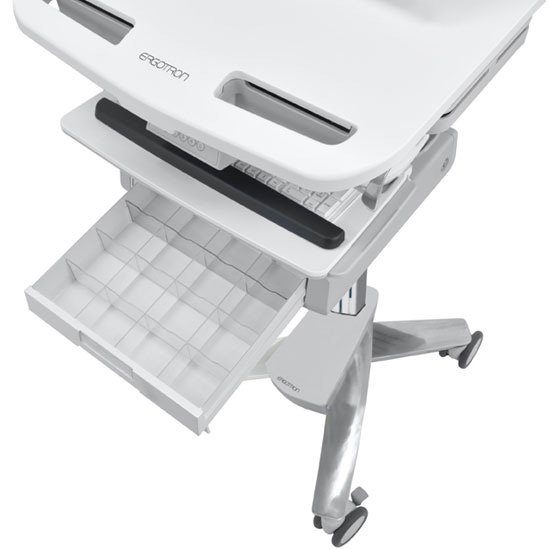

Dimensions | Internal: large tall drawer = 6"H x 12"W x 10.5"D (150 x 305 x 267 mm) - includes dividers to configure up to 9 compartments |
Compact Wheel to Wheel Base Dimensions | 17" x 21" (430 x 533 mm) |
Worksurface Dimensions | 22.4"W x 19.75"D (567 x 502 mm) |
Shipping Dimensions | 53"D x 34"W x 36"H (135 x 89 x 91 cm) |
Shipping Weight | 105 lbs (47.6 kg) |
Cart Weight | 79 lbs (35.8 kg) |
Warranty | Five (5) years |
Power Type | Non-powered |
Display Type | 1 Monitor |
Lift Technology | Constant Force |
Screen Size | 24"-30" in |
TAA Compliant | No |
