$3,490.00

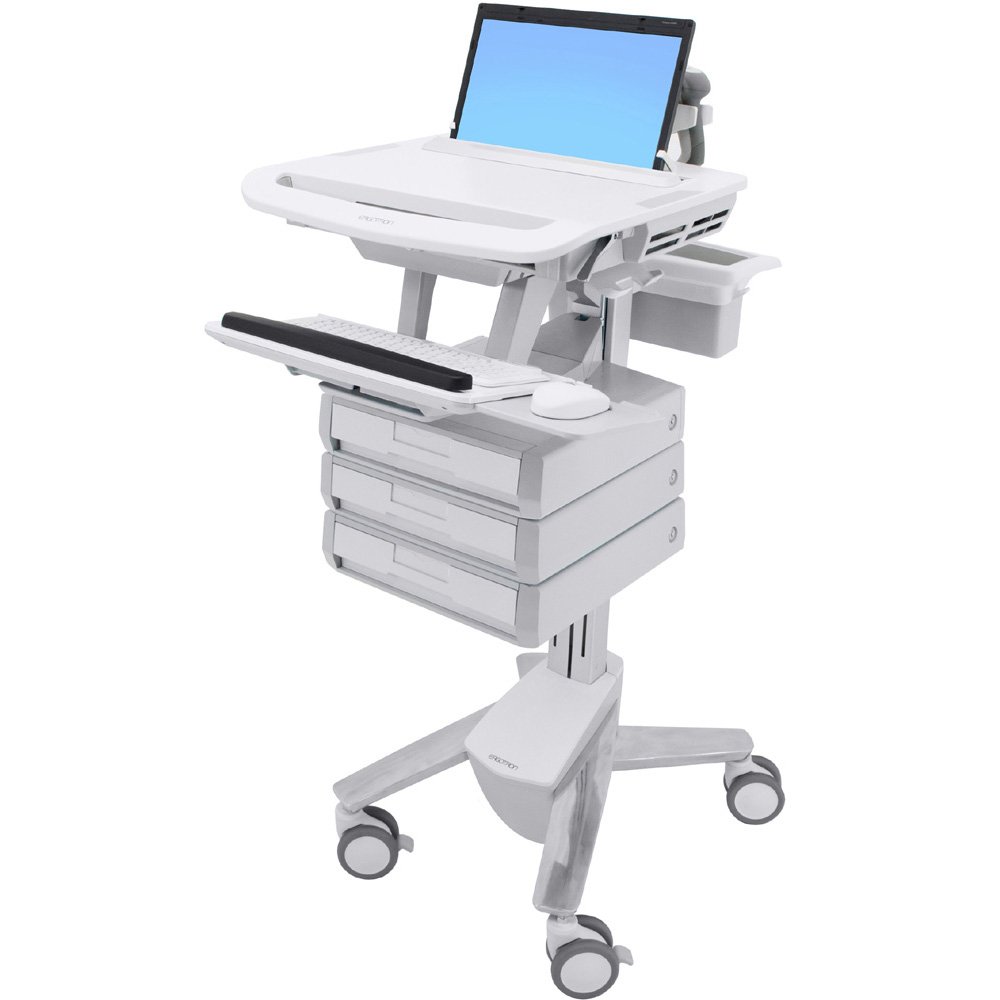

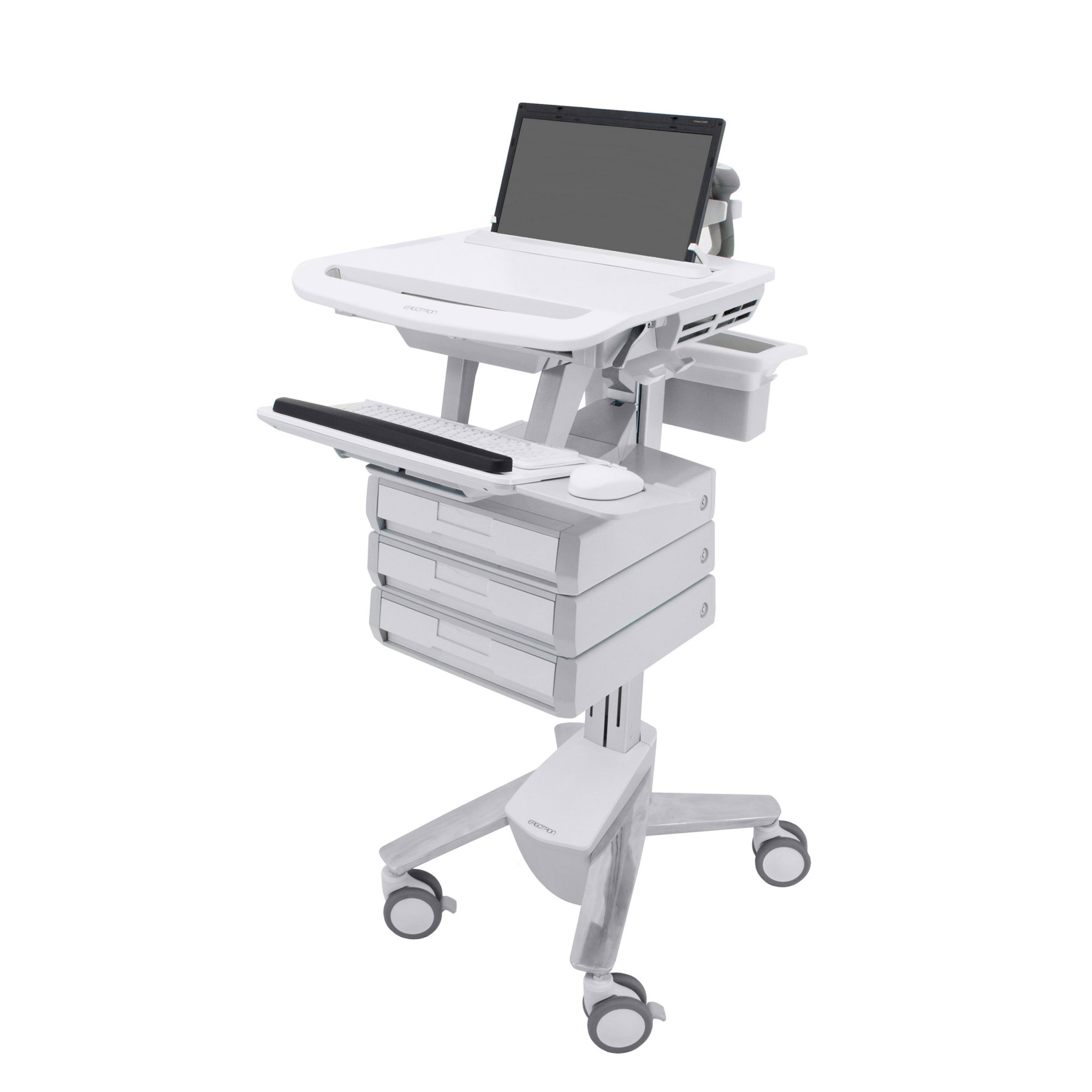

Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)

p>SV43-1130-0 is non-returnable/non-cancelable.
Product ID 18478
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Brake
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)

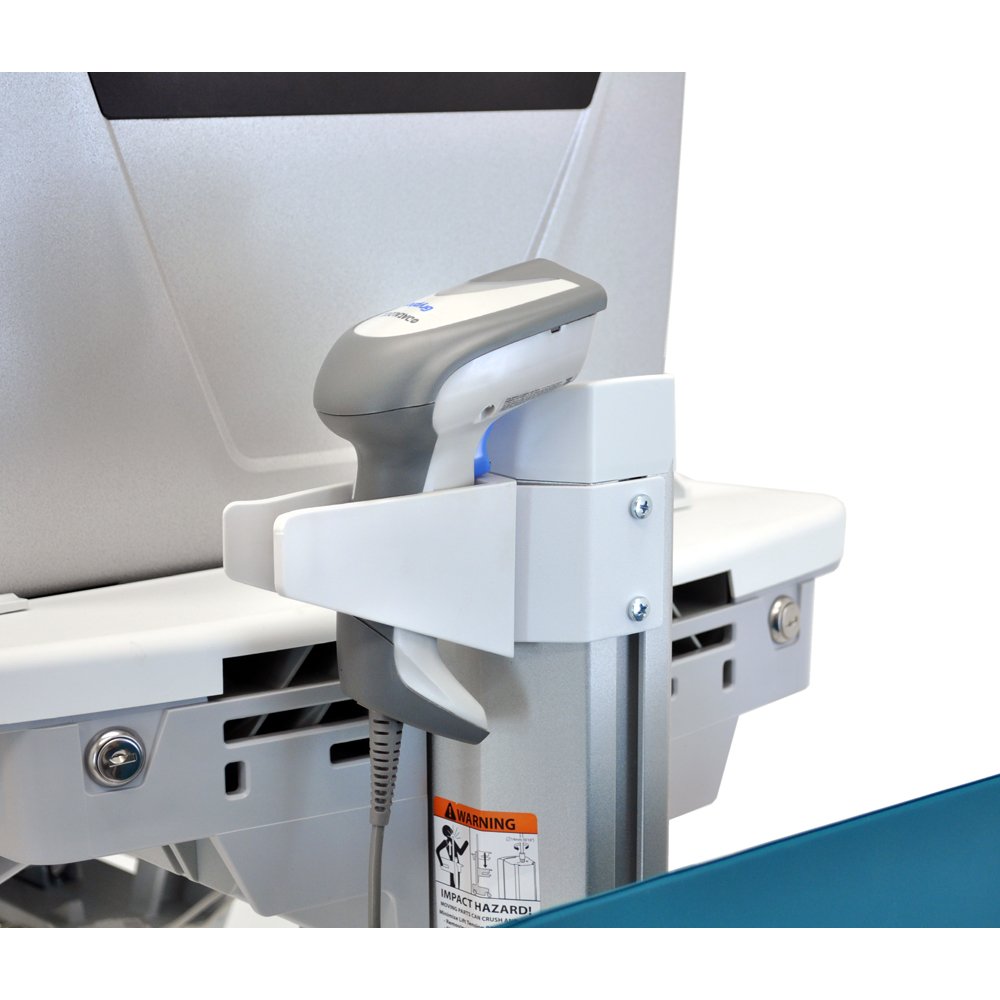

Scanner
Ergotron StyleView: Your cart. Your way.
This Is Your StyleView Cart from Ergotron
Ergotron StyleView: A Cart for Every Need
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Brake
Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)
Scanner
Ergotron StyleView: Your cart. Your way.
This Is Your StyleView Cart from Ergotron
Ergotron StyleView: A Cart for Every Need

Description

Ergotron SV43-1130-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.

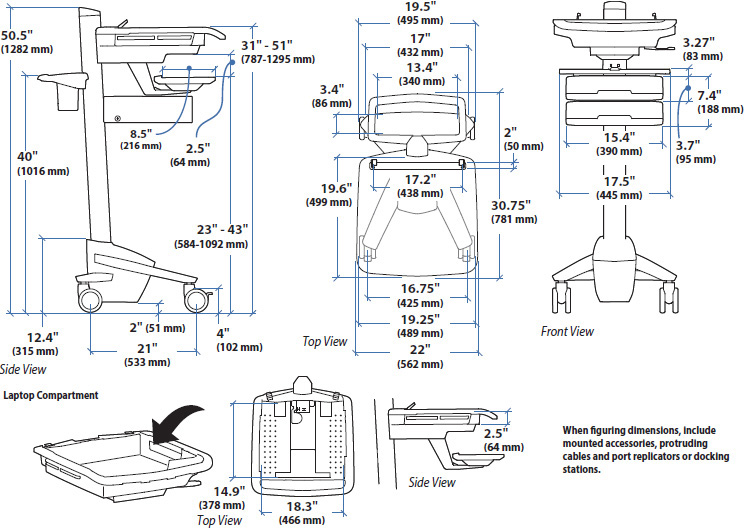

Technical Drawing

Technical drawing for Ergotron SV43-1130-0 SV Laptop Cart, non-powered, 3 Drawers (1x3)



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 20 lbs

9.1 kg

16"

41 cm

-

-

-

-



Product Information

Part Number

SV43-1130-0

Description

StyleView Laptop Cart, non-powered, 3 Drawers (1 large drawer x 3 rows)

Includes

  • Worksurface
  • CPU lock
  • Secure laptop compartment
  • Primary single drawer

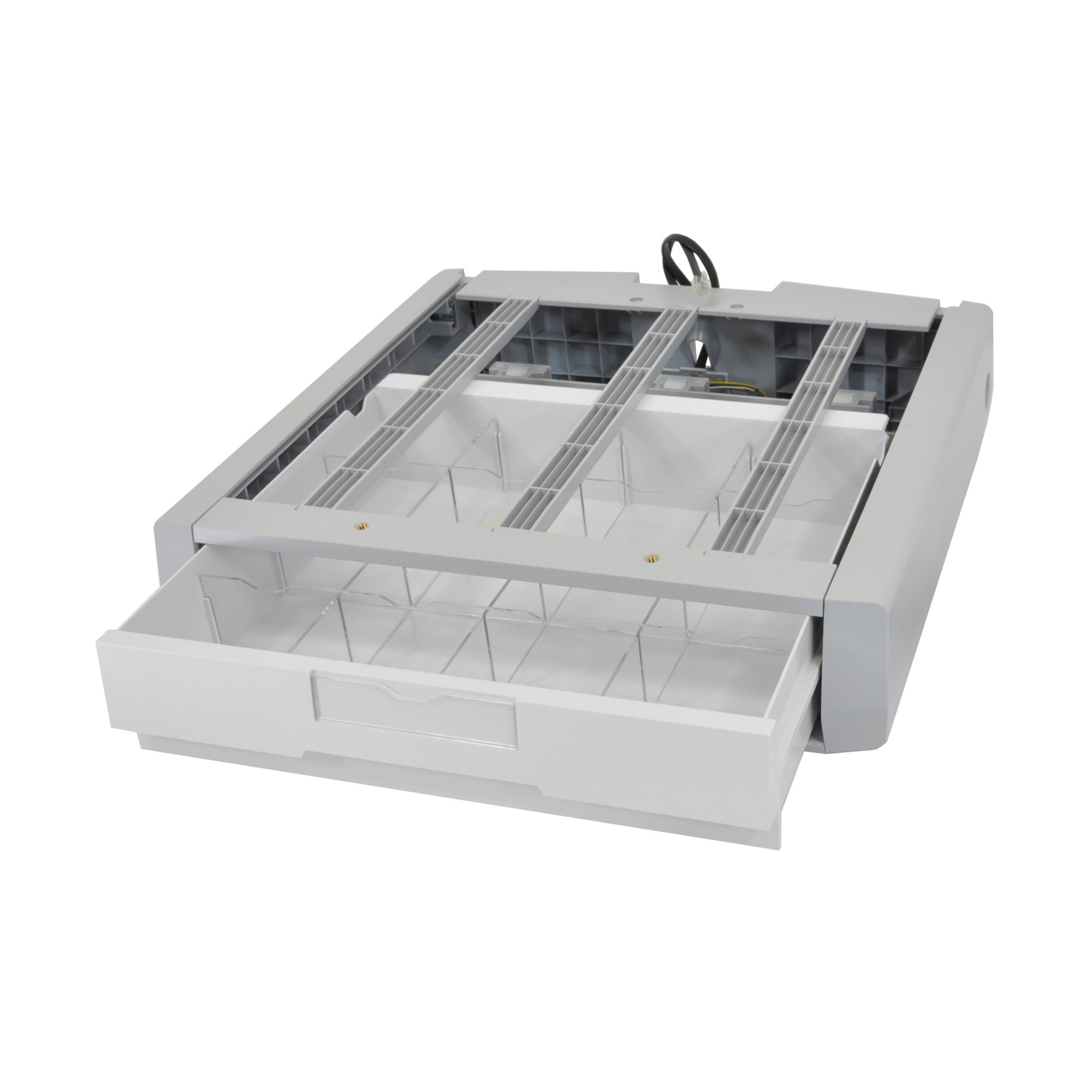

  • Two supplemental single drawers
  • Drawer dividers
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)
  • StyleLink software

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 20 lbs (9.1 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)

Laptop and Worksurface

Adjust 16" (41 cm) in tandem

Cart

  • Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)

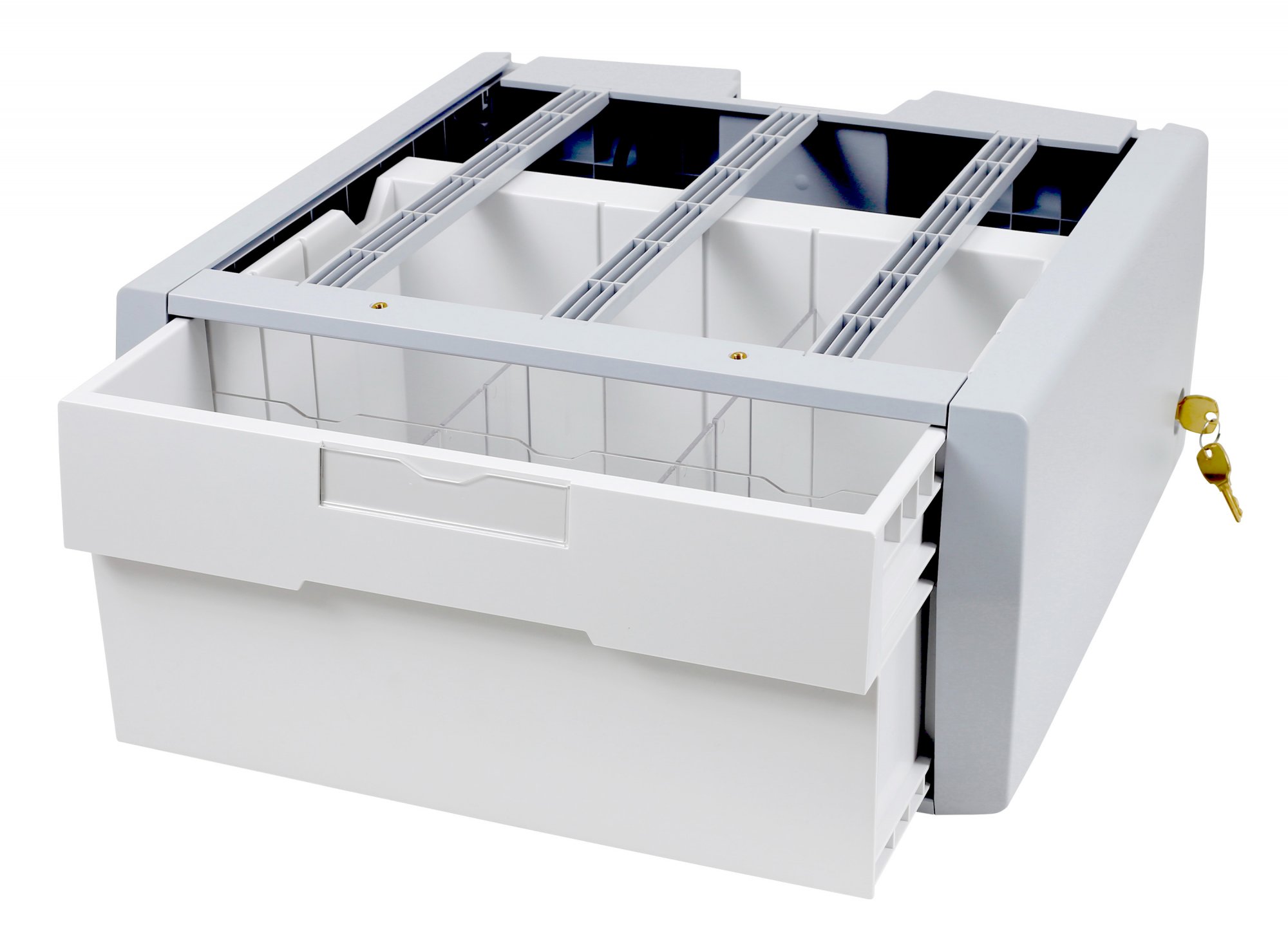

  • Cart may be fitted with up to three rows of tall drawers

True Ergonomics

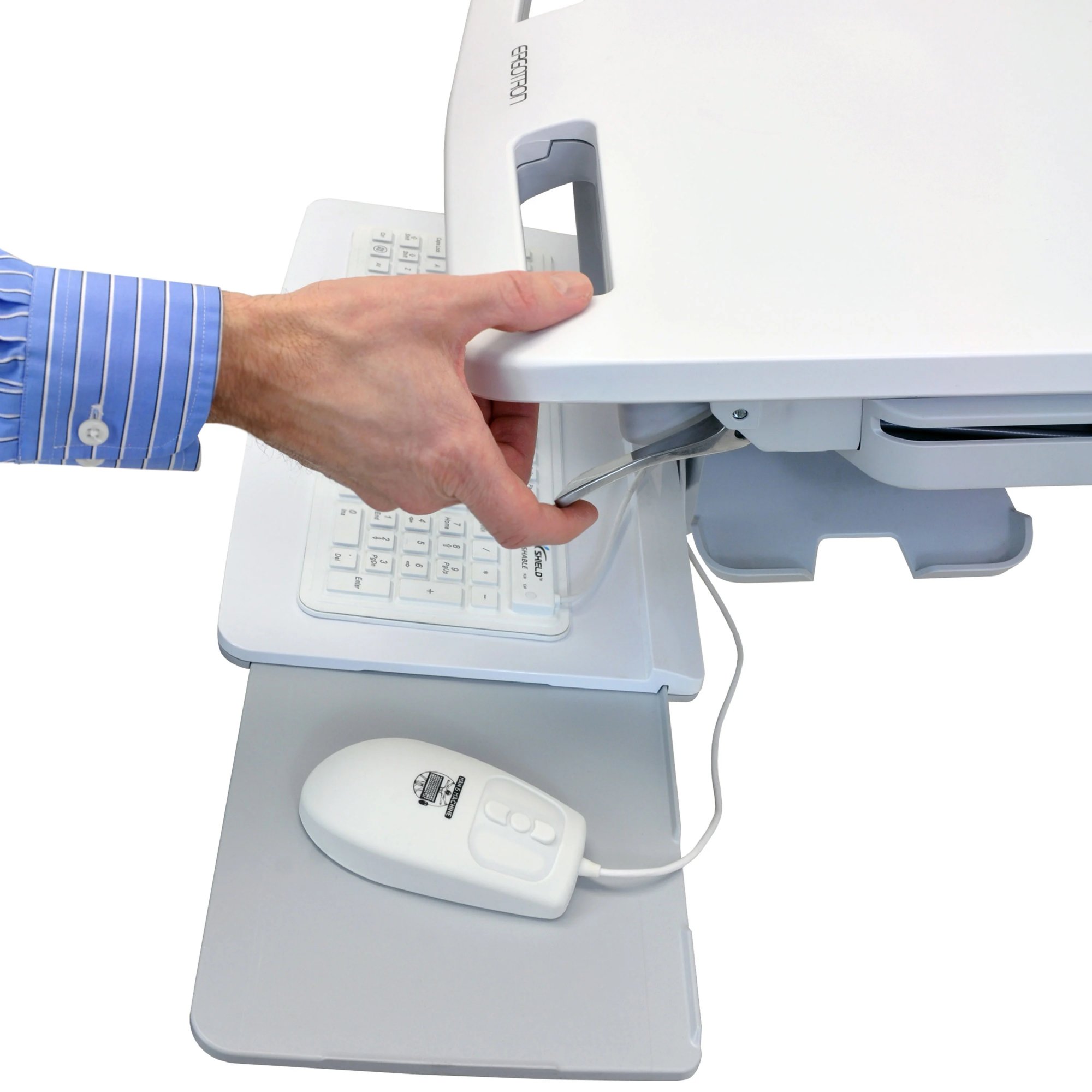

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
  • Actual cart weight is just 87 lbs (39.5 kg), making system relocation easy

Safe

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Covered by Global Service Program - 24/7 coverage
  • Includes free StyleLink software with enterprise capabilities for drawer management reporting

All the Details Covered

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Universal mounting slot for accessories and equipment
  • Ships fully assembled
  • Four-port USB hub
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
  • Laptop screen slot cover: Protection from large spills on the worksurface while retaining easy access to the laptop’s power button

Compatibility and Dimensions

  • Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades

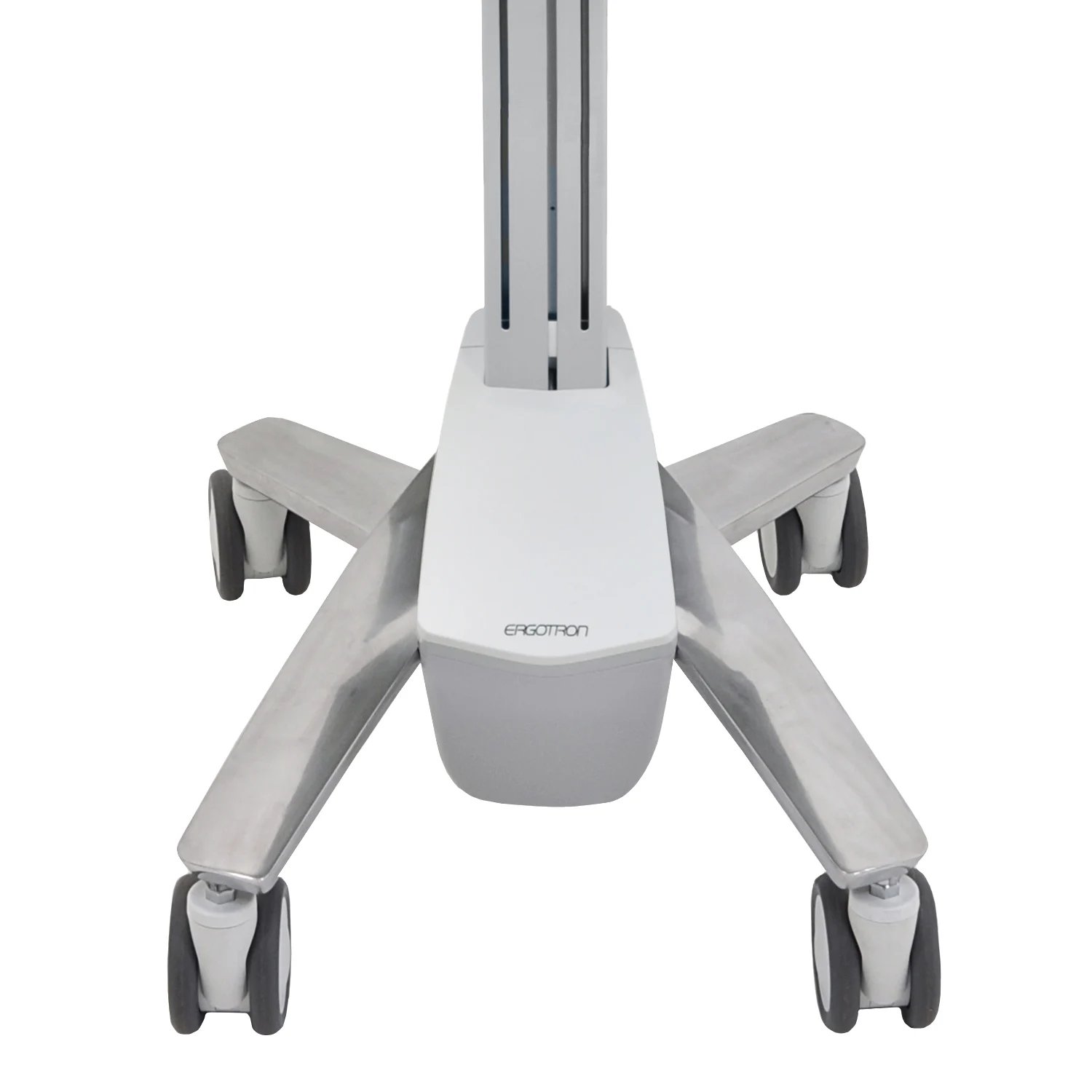

Compact Wheel-to-Wheel Base Dimensions

17" x 21" (430 x 533 mm)s

Worksurface Dimensions

22"W x 19.6"D (562 x 498 mm)

Shipping Dimensions

53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight

122 lbs (55.5 kg); actual cart weight = 87 lbs (39.5 kg)

Warranty

Five (5) years



Benefits

  • Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)

  • Drawer system supports "Pharmacy mode," allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication

  • Extra rows of drawers may be added - up to a maximum of 5 rows

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment

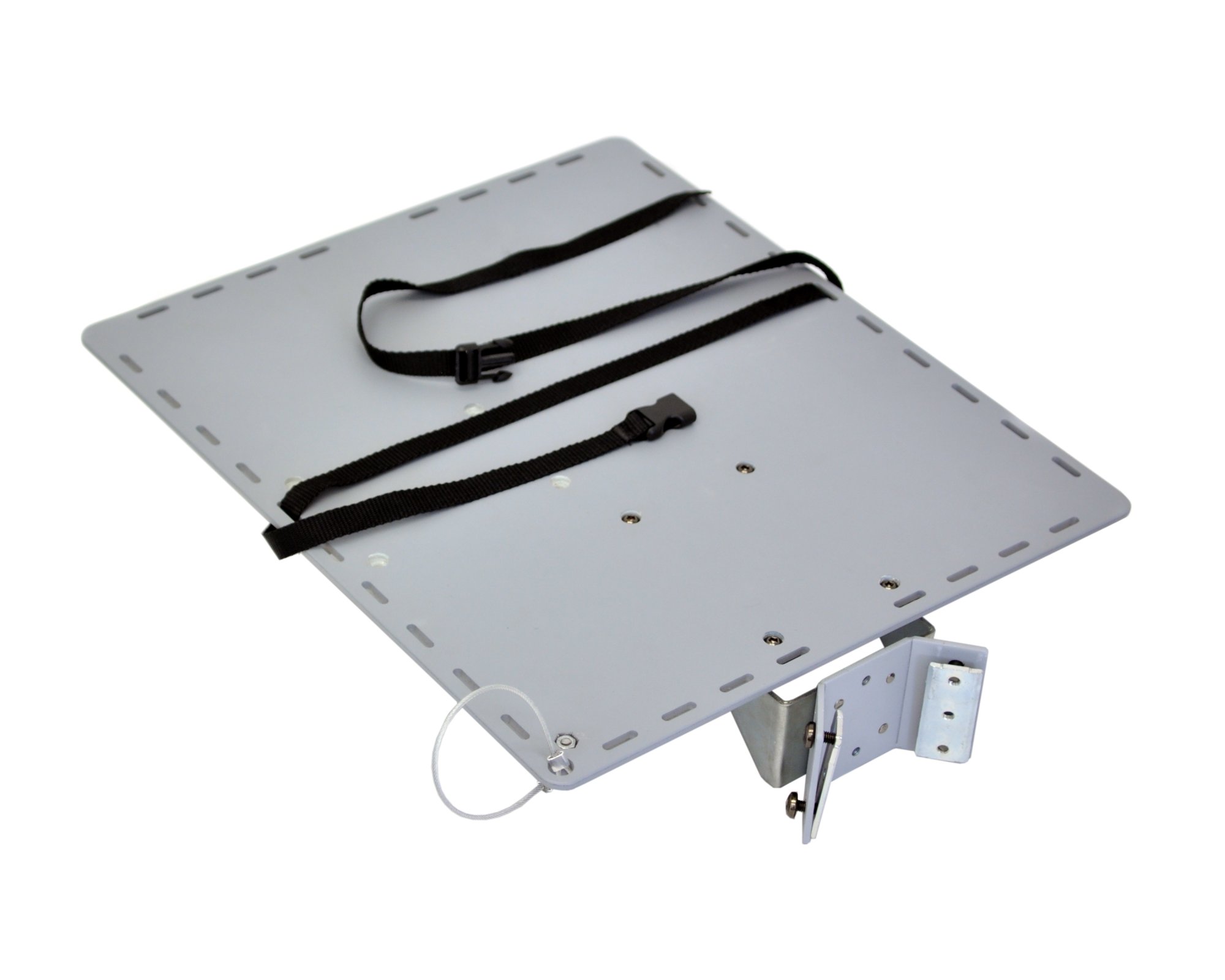

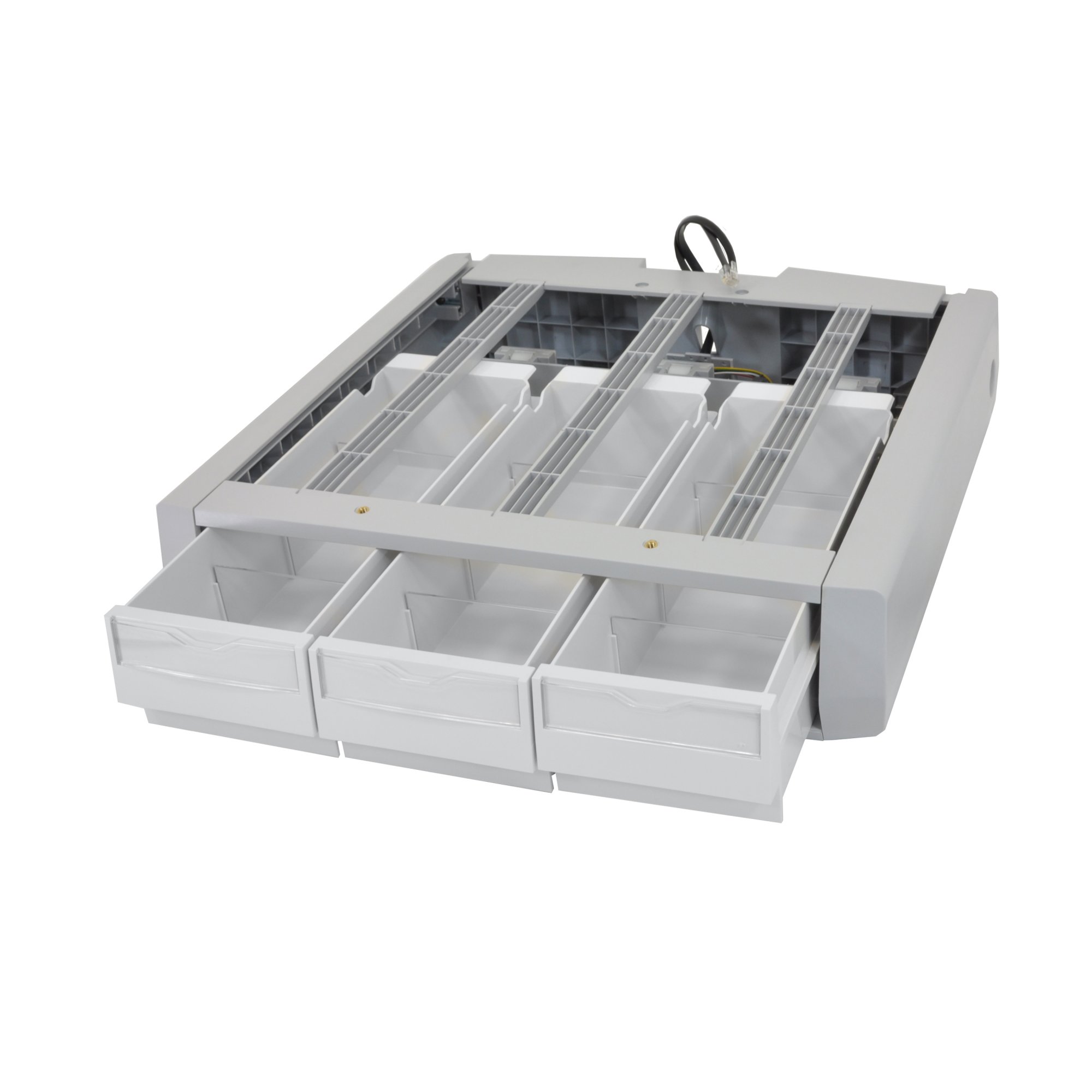

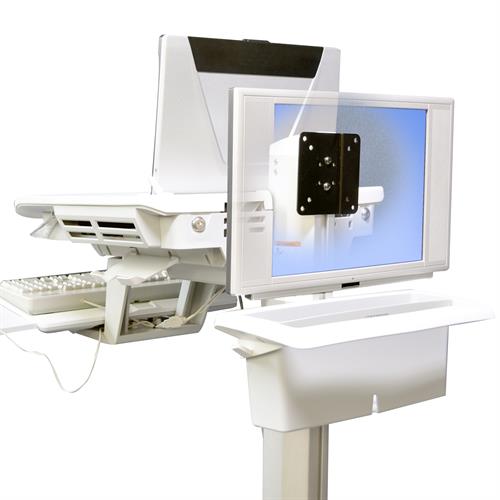

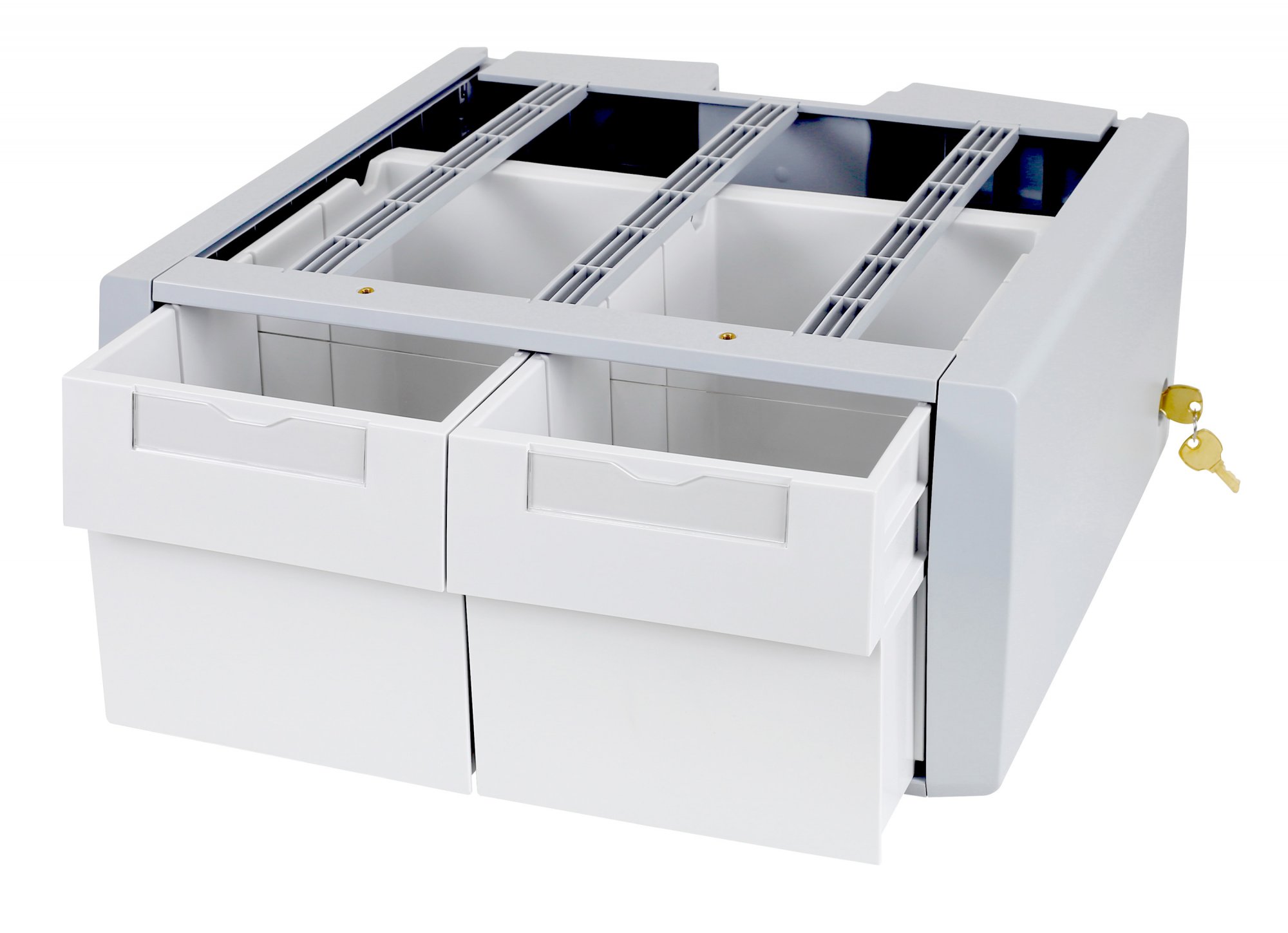

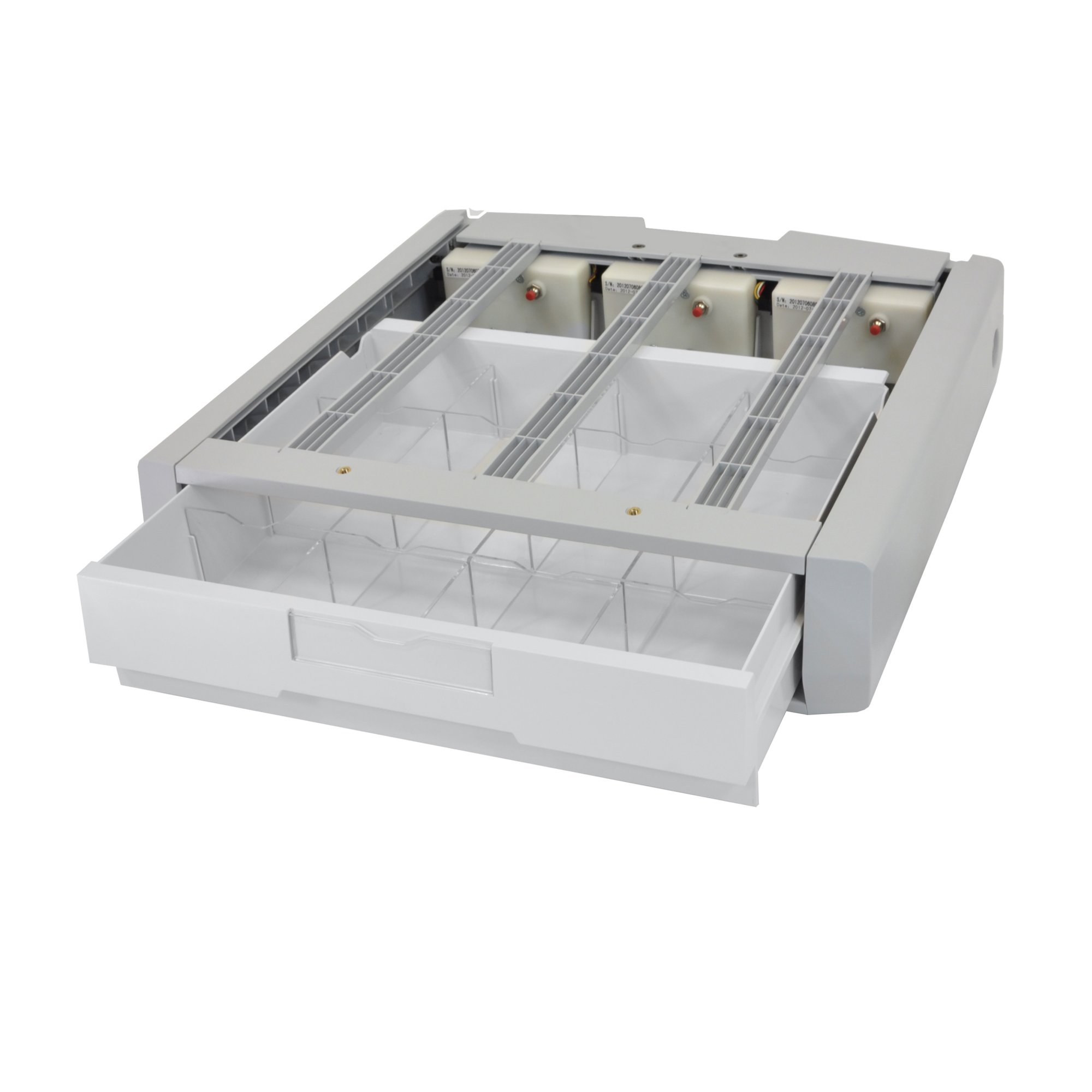

Product Options/Accessories

Model SV43-1130-0
Manufacturer Ergotron
Part Number SV43-1130-0
UPC 698833055207
Weight lb(s)
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Weight Capacity Up to 20 lbs (9.1 kg)
Lift (41 cm) 16 in
Dimensions Internal: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 122 lbs (55.5 kg)
Cart Weight 87 lbs (39.5 kg)
Warranty Five (5) years
Power Type Non-powered
Display Type Laptop
Lift Technology Constant Force
Screen Size 17"-23" in
TAA Compliant No
