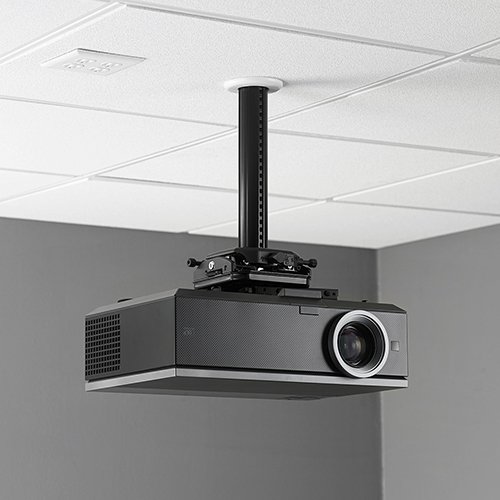

Chief SYSAUB or SYSAUW Suspended Ceiling Projector System
Description
Chief SYSAUB is designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
Technical Drawing
Specifications
|
Color |
Black and White |
|
Roll |
3° |
|
Pitch |
10° |
|
Yaw |
360° |
|
Certifications |
UL Listed |
|
Extension |
0 - 12" (0 - 304.8 mm) |
|
Overall Dimensions (H x W x D) |
19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
|
Shipping Weight |
19.60 lbs |
|
Solution Type |
Universal |
|
Weight Capacity |
35 lbs (15.9 kg) |
Features

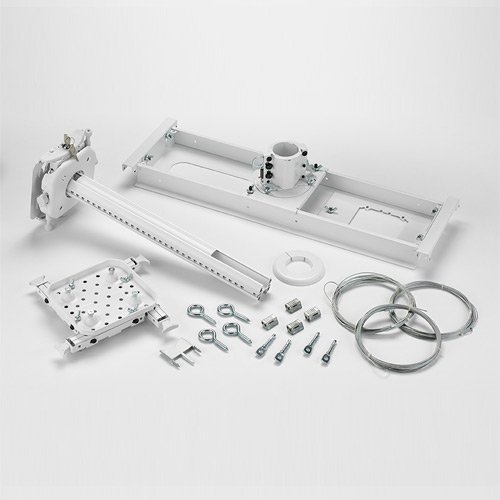

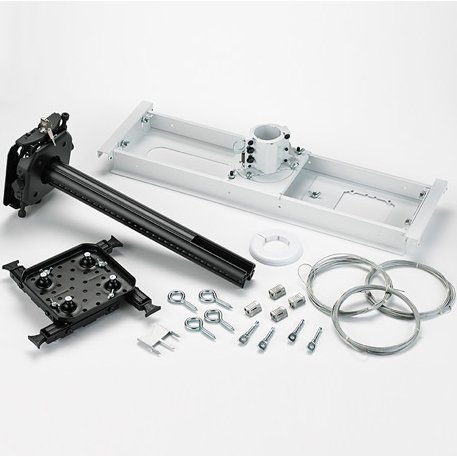

System comes out of box in the order needed with mount and column preassembled

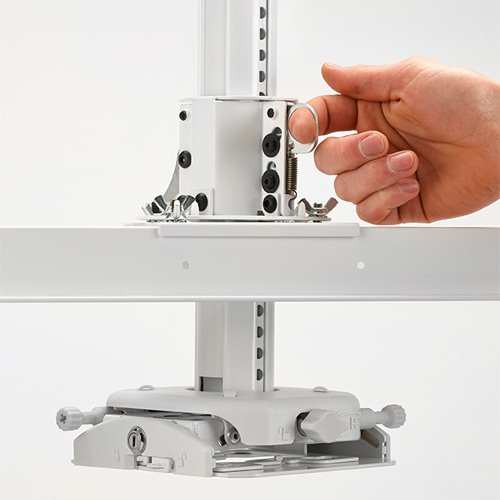

Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring
Compatible with popular 2 gang adjustable mud rings
Tool-Free Microzone adjustment eliminates the need for set screws

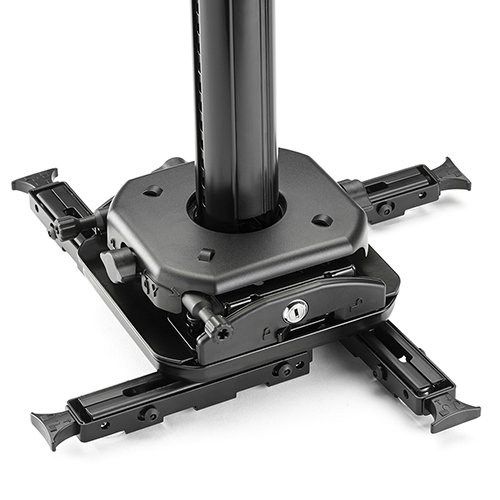

Centris Technology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection

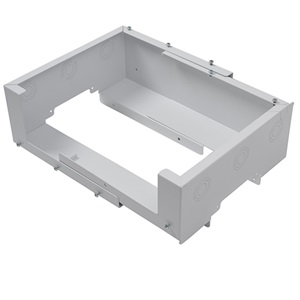

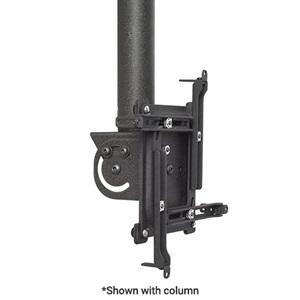

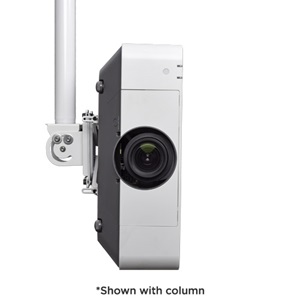

Product Options/Accessories
| Model | SYSAUB, SYSAUW |
| Manufacturer | Chief Mounts |
| Part Number | SYSAUB, SYSAUW |
| UPC | 841872166186 |
| Color | Black and White |
| Roll | 3° |
| Pitch | 10° |
| Yaw | 360° |
| Extension | 0 - 12" (0 - 304.8 mm) |
| Overall Dimensions | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Shipping Weight | 19.60 lbs |
| Weight Capacity | 35 lbs (15.9 kg) |
