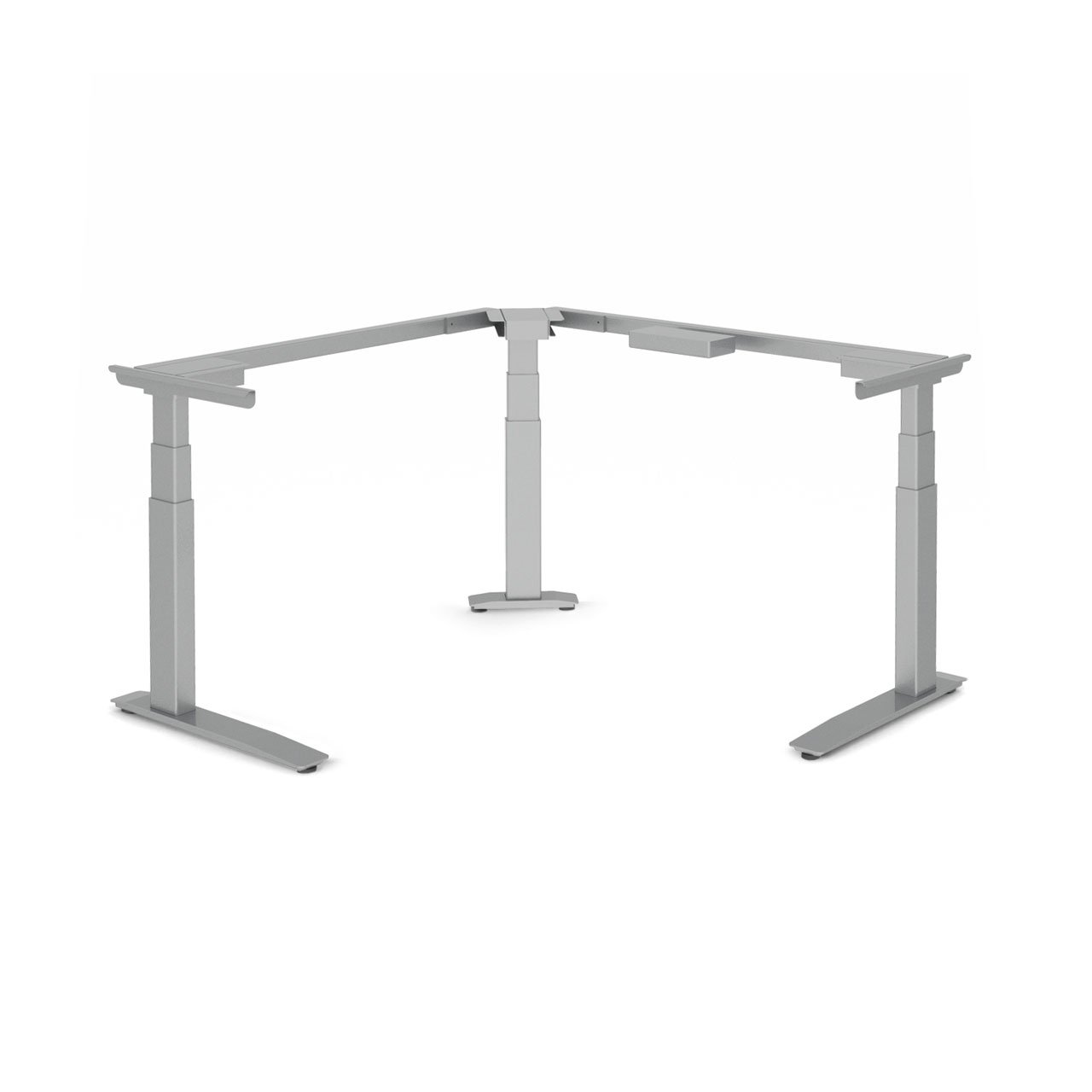

HAT Collective S-Collection SXV3 Electric 3 Leg 120° Frame Only - 3 Stage
22.1" - 48.6" sit-to-stand height range
Description
The SX series offers the maximum sit-to-stand workstation adjustment in the S collection from 22.1"- 48.6". It meets the ANSI/BIFMA recommended range - fitting the 5th percentile female and 95th percentile male - so more people can work more comfortably and productively.
The SE series incorporates the design, weight capacity and quality of SX with a modified sit-to-stand range of 27"-46.5".
Specifications
|
SXV3 |
SEV3 |
|
|
Height Range (with 1" worksurface) |
22.1"-48.6" |
27"-46.5" |
|
Weight Load (per leg) |
525 lbs |
525 lbs |
|
Adjustment Speed (per inch) |
1.5" per second |
1.5" per second |
|
Work-surface Leg Configuration |
1-4 legs |
1-4 legs |
|
Standard Color Options |
Silver, Black & |
Silver, Black & |
|
National Electric Code Compliant |
Yes |
Yes |
|
ETL Listed to UL 962 |
Yes |
Yes |
Optional Features Eligibility
|
SX |
SE |
|
|
Bluetooth Upgrade Eligibility |
Yes |
Yes |
|
Anti-collision Upgrade |
Yes |
Yes |
|
Height Range Lockout |
Yes |
Yes |
|
Battery Operation Converter |
Yes |
Yes |
|
Software Programmability |
Yes |
Yes |
|
Up/Down Switch |
Yes |
Yes |
|
Non-digital Memory Switch |
Yes |
Yes |
|
Digital Memory Switch |
Yes |
Yes |
Option 1: Surface Dimensions
|
Worksurface 60" x 24" SXV3-602 and Frame Set SXV3-BB-MM-C |
|
Worksurface 66" x 24" SXV3-662 and Frame Set SXV3-BB-MM-C |
|
Worksurface 72" x 24" SXV3-722 and Frame Set SXV3-BB-MM-C |
|
Worksurface 60" x 30" SXV3-603 and Frame Set SXV3-BB-LL-C |
|
Worksurface 66" x 30" SXV3-663 and Frame Set SXV3-BB-LL-C |
|
Worksurface 72" x 30" SXV3-723 and Frame Set SXV3-BB-LL-C |
Option 2: Switch Type
|
UD - Up/Down Control Switch |
MS - Upgradeable Non-digital |
DS - Upgradeable Digital Control |
UD - This switch is the default switch
MS - Programmable switch with 3 memory presets
DS - Programmable switch with 3 memory presets and a digital height display
Option 3: Base Frame Colors
Colors and patterns are representative only. Actual colors and patterns may vary slightly
|
B - Black |
W - White |
S - Silver |
Option 4: Laminate Top Colors
Colors and patterns are representative only. Actual colors and patterns may vary slightly
|
CZ Canyon Zephyr |
DZ Desert Zephyr |
TZ Twilight Zephyr |
WN White Nebula |
WT White Tigris |
NE Nickel EV |
|
CE Carbon EV |
SE Silicon EV |
BM Birch Matrix |
DW Designer White |
FG Fashion Grey |
NS North Sea |
|
KM Kensington |
RC River Cherry |
WC Wild Cherry |
NO New Age Oak |
Option 5: Edge Treatments
Colors and patterns are representative only. Actual colors and patterns may vary slightly
|
CH Charcoal |
LG Light Grey |
DW Designer White |
GH Graphite |
NS North Sea |
FM Fusion Maple |
|
ST Storm |
Option 6: Power Strip
|
ED-PS6-UD |
SECL-3-USB-GW72 |
ED-PS6-UD - Mountable Power Strip, 6-Outlet Surge Suppressant, Wall Mount or Under Desk Mount
SECL-3-USB-GW72 - 3 power outlets and 2 USB ports, clamp mount for tables ranging in thickness between 0.75"-1.75", white
Option 7: Casters
|
8997 - 2" Ergo Casters |
8999 - 3" Ergo Casters |
8028 - 3" Casters |
R015139 - Glide Spacers |
- 8997 - Set of 4 casters, locking, hard wheel, 110 lbs per caster, available for all table frames
- 8999 - Set of 4 casters, locking, hard wheel, 165 lbs per caster, available for all table frames
- 8028 - Set of 4 casters, locking/nonlocking, soft wheel, 165 lbs per caster, available for all table frames
- R015139 - Set of 2, 1" diameter, 0.5" height
Option 8: Conversion Kit
|
6699 - Cantilever Conversion Kit |
6699 - Maximizes undersurface clearance for mounted accessories like keyboard tracks
Option 9: Wire Management
|
990103-8 - Wire Management 22.4" length |
990102-8 - Wire Management 43.7" |
990101-8 - Wire Management 55.5" |
990103-8 - Wire Management 22.4" (570 mm) length
990102-8 - Wire Management 43.7" (1,100 mm) length
990101-8 - Wire Management 55.5" (1,470 mm) length
Product Options/Accessories
| Model | SXV3 3 Leg 120° |
| Manufacturer | SIS |
| Part Number | SXV3 3 Leg 120° |
| Desk Type | Enhanced Electric |
| Desktop Shape | 3 Leg 120° |
| Weight Capacity | 525 lbs |
| Height Range | 22.1"-48.6" |
