Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface

Product ID 18320
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Inused image
Keyboard

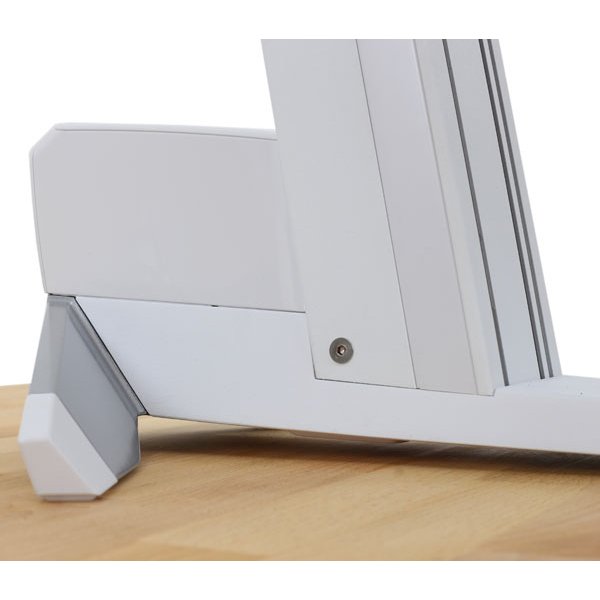

Base
Base
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface
Inused image
Keyboard
Base
Base

Description

Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods - stand up whenever you want.

Ergotron 33-349-211 sit-stand workstation is extraordinarily simple to use. With the push or pull of a hand, you can instantly raise or lower your keyboard and display in one easy motion, yet all the while the system will remain stable throughout your work routine. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

Technical Drawing

Technical Drawing for Ergotron 33-349-211 WorkFit-S, Dual Monitor with Worksurface

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 25 lbs

11.3 kg

22.8"

57.9 cm

- - 360° MIS-D

Product Information

Part Number 33-349-211
Description WorkFit-S Sit-Stand Workstation for Dual Displays, with Worksurface and Large Keyboard Tray (white)
Includes
  • Height-adjustment column

  • Desk clamp

  • Crossbar

  • Two (2) LCD pivots

  • Worksurface

  • Large keyboard tray

Note
  • Extra-long cables may be required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Maximum Outside Width of Display 24.5" (62 cm) when display is 2" (5 cm) thick. Accommodates most displays with screen-size up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness
Weight Capacity Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 6–12 lbs (2.7–5.5 kg) each, worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 25 lbs (11.4 kg)
Lift Range LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm)
Install Displays at 3° or 8° upward angle for optimized viewing conditions

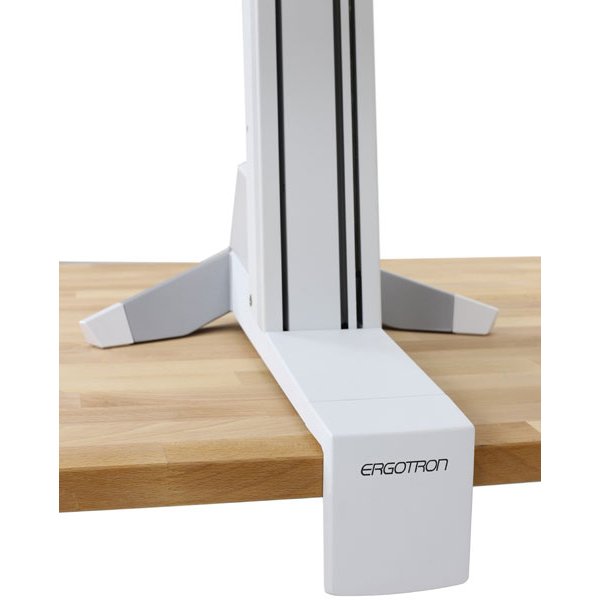

Desk Clamp Attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick

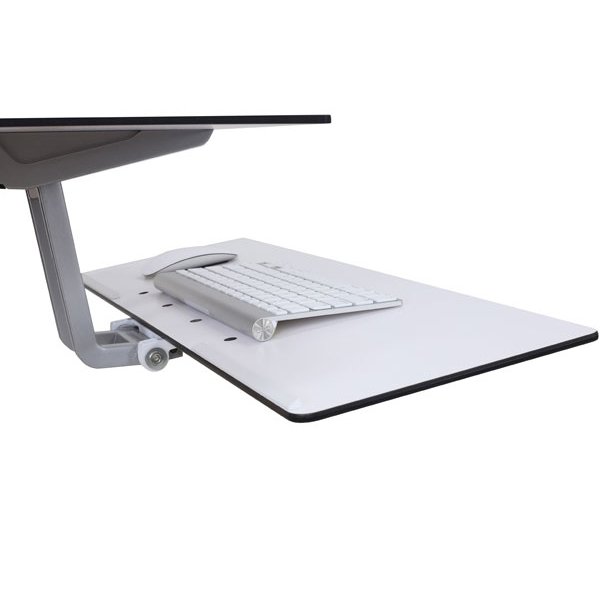

Keyboard Tray
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Keyboard tray can be installed in nine potential locations relative to the monitor: centered or off-set to left or right; at standard focal distance or 2.2" (5.6 cm) or 4.4" (11.2 cm) farther away

Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Exterior Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years

Benefits

Premium Ergonomics

  • Install keyboard tray at focal distance that is right for you: closer or farther; left, right or centered

  • When sitting, lower your keyboard below desktop height to proper ergonomic position

  • Independent monitor screen adjustment

  • Easily and simultaneously lift keyboard and monitor to your height for unsurpassed comfort

  • Counterbalanced adjustment points using patented Constant Force technology allow instantaneous, tool-free re-positioning while you work


For Computer Users

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day

  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation

  • Double your view - and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs

  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary workstyle


For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes

  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • Flexible, open-architecture design is scalable for future computer equipment


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies show an average productivity increase of 20–30% when using two displays instead of one

  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q I have a Dell S2340L monitor and a laptop. I want to know if I can fit them on this WorkFit-S without buying any additional accessories.
a

The WorkFit-S 33-349-211 is not compatible with your Dell Monitor as your monitor is not VESA compliant, that is, your monitor does not have holes (VESA pattern) on the back of the monitor. In situation like yours, we recommend the WorkFit-TL. There is no installation, compatibility restrictions involved in WorkFit-TL. Just place your monitors on top of the WorkFit-TL's worksurface, connect your computer and start working.

Model 33-349-211
Manufacturer Ergotron
Part Number 33-349-211
UPC 698833050370
Monitor Size Up to 24"
Weight Capacity Up to 25 lbs (11.3 kg)
Lift (58 cm) 22.8 in
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Color White
Desktop Thickness Range 0.47" to 2.4" (1.2 to 6 cm) thick
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years
Price $500 - $599

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 1
(5 out of 1)
The unit was very easy to assemble, the directions were right. The unit is very well built.

by Jim H, Maryland, Apr 04, 2016

Our emlopyee was completely satisfied and is enjoying being able to stand and do her work. We plan to order another unit in the near future.

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
