Description

Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods - stand up whenever you want.

Ergotron 33-351-211 sit-stand workstation is extraordinarily simple to use. With the push or pull of a hand, you can instantly raise or lower your keyboard and display in one easy motion, yet all the while the system will remain stable throughout your work routine. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

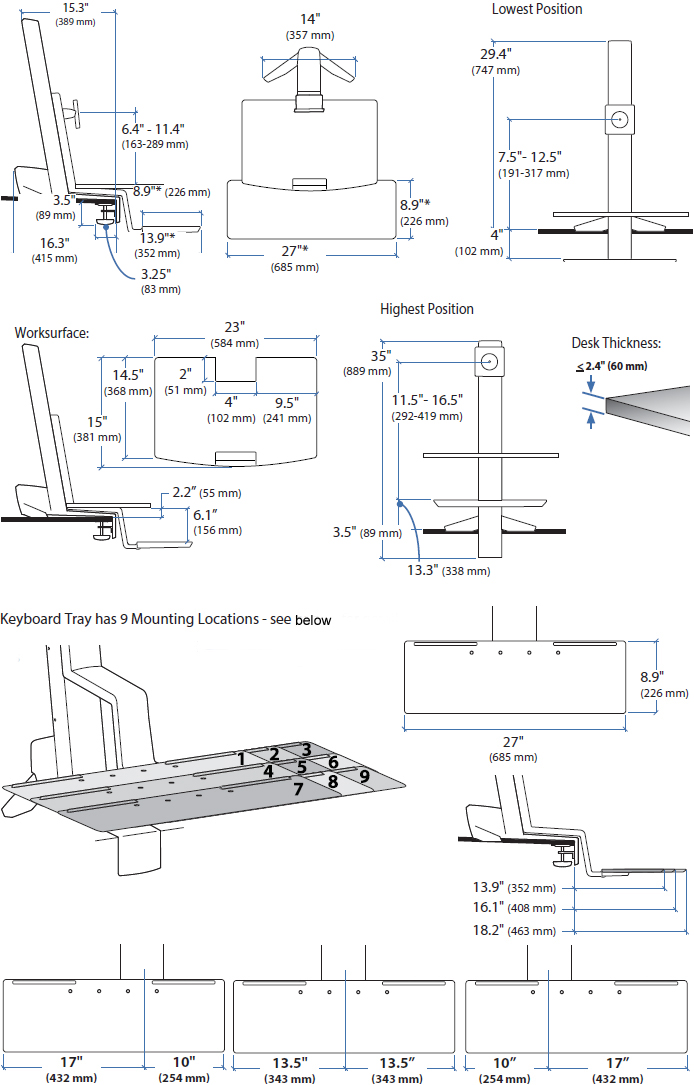

Technical Drawing

Technical Drawing for Ergotron 33-351-211 WorkFit-S, Single HD with Worksurface

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 30"

16 - 29 lbs

7.3 - 13.2 kg

22.8"

57.9 cm

30° - 360° MIS-D

Product Information

Part Number 33-351-211
Description WorkFit-S Sit-Stand Workstation for Mid-Size Monitor, HD, with Worksurface and Large Keyboard Tray (white)
Includes
  • Height-adjustment column

  • Desk clamp

  • LCD pivot

  • Worksurface

  • Large keyboard tray

Note
  • Extra-long cables may be required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Weight Capacity Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 16–28 lbs (7.3–12.7 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 29 lbs (13.2 kg)
Lift Range LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm)
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Desk Clamp Attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick

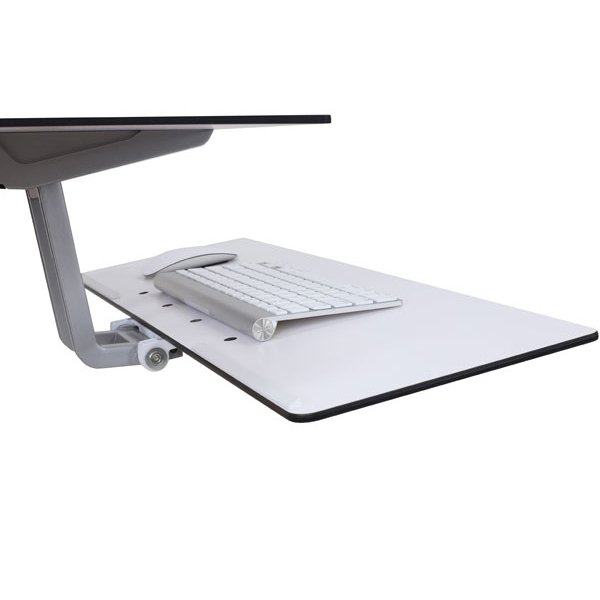

Keyboard Tray
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Keyboard tray can be installed in nine potential locations relative to the monitor: centered or off-set to left or right; at standard focal distance or 2.2" (5.6 cm) or 4.4" (11.2 cm) farther away

Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Exterior Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years

Benefits

Premium Ergonomics

  • Install keyboard tray at focal distance that is right for you: closer or farther; left, right or centered

  • When sitting, lower your keyboard below desktop height to proper ergonomic position

  • Independent monitor screen adjustment

  • Easily and simultaneously lift keyboard and monitor to your height for unsurpassed comfort

  • Counterbalanced adjustment points using patented Constant Force technology allow instantaneous, tool-free re-positioning while you work


For Computer Users

  • Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day

  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation

  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night. WorkFit-S counteracts an increasingly sedentary workstyle


For IT and Facilities Staff

  • IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes

  • Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • Flexible, open-architecture design is scalable for future computer equipment


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Model 33-351-211
Manufacturer Ergotron
Part Number 33-351-211
UPC 698833050394
Color White
Monitor Size Up to 30"
Weight Capacity 16 - 29 lbs (7.3 - 13.2 kg)
Lift (57.9 cm) 22.8 in
Tilt 30 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Desktop Thickness Range 0.47" to 2.4" (1.2 to 6 cm) thick
Worksurface Dimensions 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Shipping Dimensions 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight 44 lbs (20 kg)
Warranty Five (5) years
Price $500 - $599
Price $500 - $599
