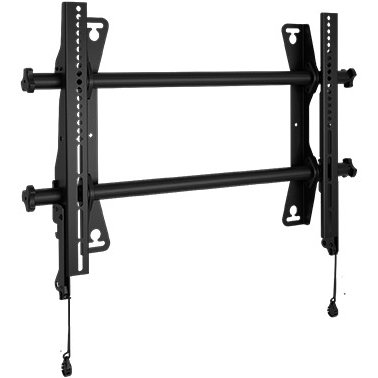

Chief MSA1U Medium Fusion Fixed Wall Display Mount
Description
Chief MSA1U upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

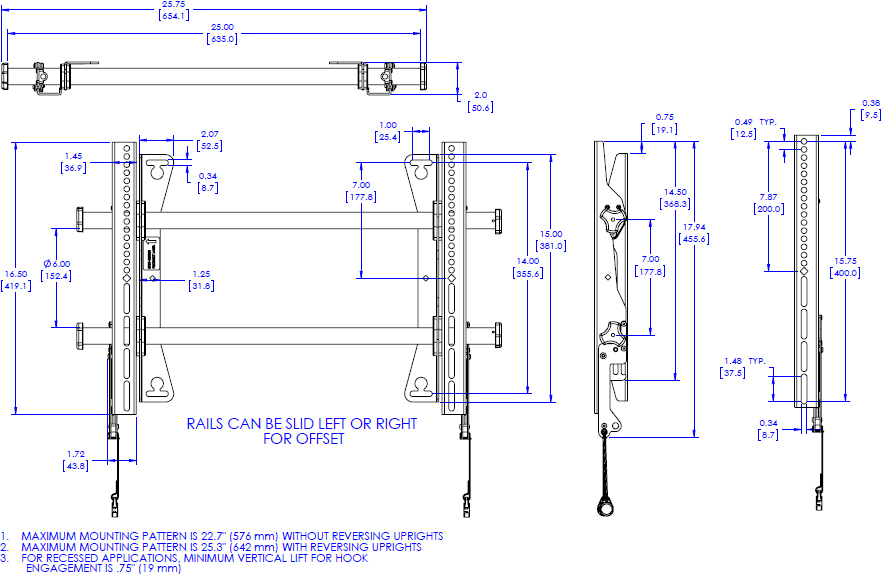

Technical Drawing
Specifications
| Certifications | UL Listed, OSHPD Approved, TÜV Certified |
| Color | Black |
| Lateral Shift | 12.9" (327 mm) |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100 mm - 642 x 400 mm |
| Overall Dimensions (H x W x D) | 17.93 x 25.75 x 2" (455 x 654 x 51 mm) |
| Shipping Weight | 13.87 lbs (6 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | 16" - 24" (406 mm - 610 mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
Product Options/Accessories
| Model | MSA1U |
| Manufacturer | Chief Mounts |
| Part Number | MSA1U |
| UPC | 841872163734 |
| Color | Black |
| Lateral Shift | 12.9" (327 mm) |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern | 100 x 100 mm - 642 x 400 mm |
| Overall Dimensions | 17.93 x 25.75 x 2" (455 x 654 x 51 mm) |
| Shipping Weight | 13.87 lbs (6 kg) |
| Monitor Size | 32 - 65" |
| Wall Stud | 16" - 24" (406 mm - 610 mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Mounting Options | Fixed Wall |
| Orientation | Landscape |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
