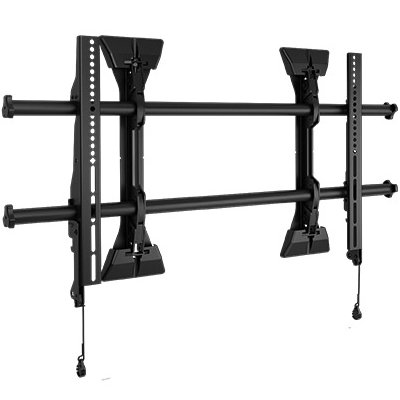

Chief LSM1U Large Fusion Micro-Adjustable Fixed Wall Display Mount
Description
Chief LSM1U upgraded fixed wall mounts based on installer feedback
and direct observations of installers in the field. Many new features
join Fusion favorites like Centerless shift, ControlZone leveling
adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved
lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion fixed mount solves top flat panel installation
problems, offering flexible adjustments for large displays with a
low-profile display mounting solution.

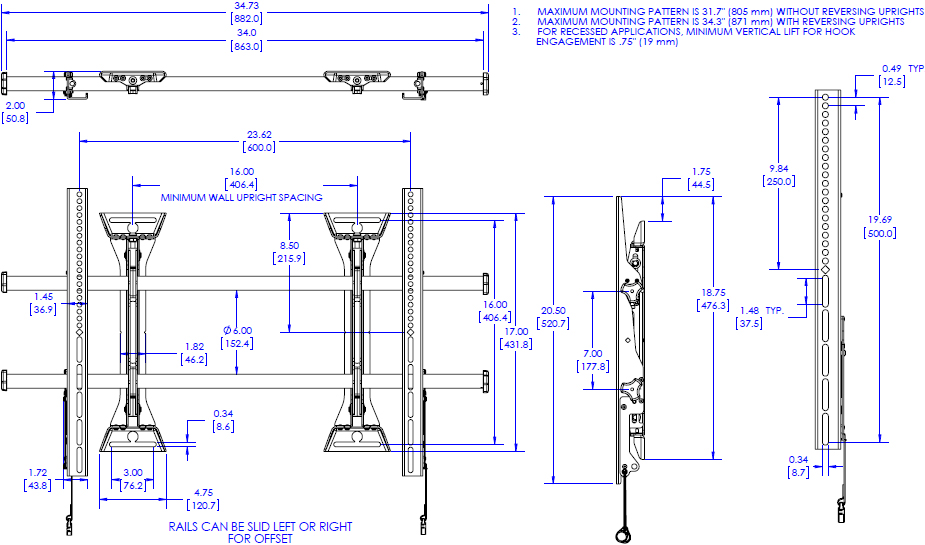

Technical Drawing
Specifications
| Certifications | UL Listed, OSHPD Approved, TÜV Certified |
| Color | Black |
| Lateral Shift | 17.4" (441 mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100 - 800 x 500 mm |
| Overall Dimensions (H x W x D) | 18.25 x 34.75 x 2" (464 x 883 x 51 mm) |
| Shipping Weight | 19.37 lbs (9 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 42 - 86" |
| Wall Stud Compatibility In | 16" - 32" (406 mm - 813 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Orientation | Landscape |
Features
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
ControlZone Leveling for post-installation fine tuning of height and leveling
Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
Product Options/Accessories
| Model | LSM1U |
| Manufacturer | Chief Mounts |
| Part Number | LSM1U |
| UPC | 841872163260 |
| Color | Black |
| Lateral Shift | 17.4" (441 mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern | 100 x 100 - 800 x 500 mm |
| Overall Dimensions | 18.25 x 34.75 x 2" (464 x 883 x 51 mm) |
| Shipping Weight | 19.37 lbs (9 kg) |
| Monitor Size | 42 - 86" |
| Wall Stud | 16" - 32" (406 mm - 813 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Mounting Options | Fixed Wall |
| Orientation | Landscape |
