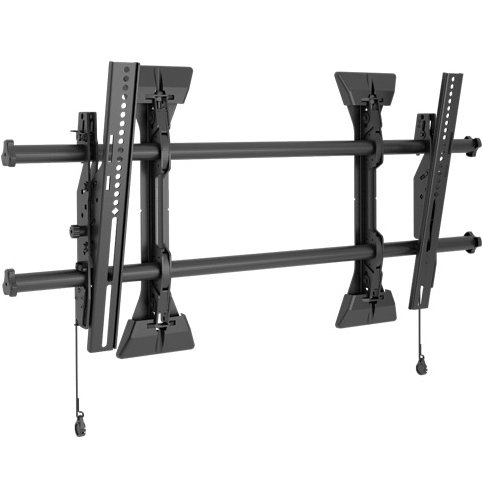

Chief LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount (42-86")
Description
Chief LTM1U is a tilting wall mount for TVs and displays weighing up to 200 lbs and screen size of 42"- 86". A part of the Fusion series of display mounts, LTM1U is the updated version of LTMU. These updates and feature improvements to the Fusion series of fixed and tilting wall mounts were carried out after extensive feedback and observations of the audio visual (AV) installers.
Keeping in mind the convenience of installers, the LTM1U has been
designed by allowing pre-installation of the bolts to the wall. Plus it
has all the earlier features of Fusion mounts like
1) Centerless Shift - Provides 17.5" - 8.75" left or right -
post-installation shift
2) Centris Low-profile Tilt - Allows for balancing the screen while
maintaining a close profile to the wall
3) ControlZone Leveling - Micro adjustment of height and leveling is
possible post-installation. 1" height adjustment and minimum depth is 2"
4) ClickConnect - Gives out an audible click once the display has been
successfully installed on the mount
The new features of LTM1U include built-in cable stand for access under
the screen, multiple installation options for various stud distances,
any depth achievable with exclusive nesting spacers, a custom hardware
kit that can hang on the rails in order to avoid loss, especially if the
installation is taking place in stages.
Last but not the least, the LTM1U has customer friendly packaging that
opens the box easily and reduces wastage.

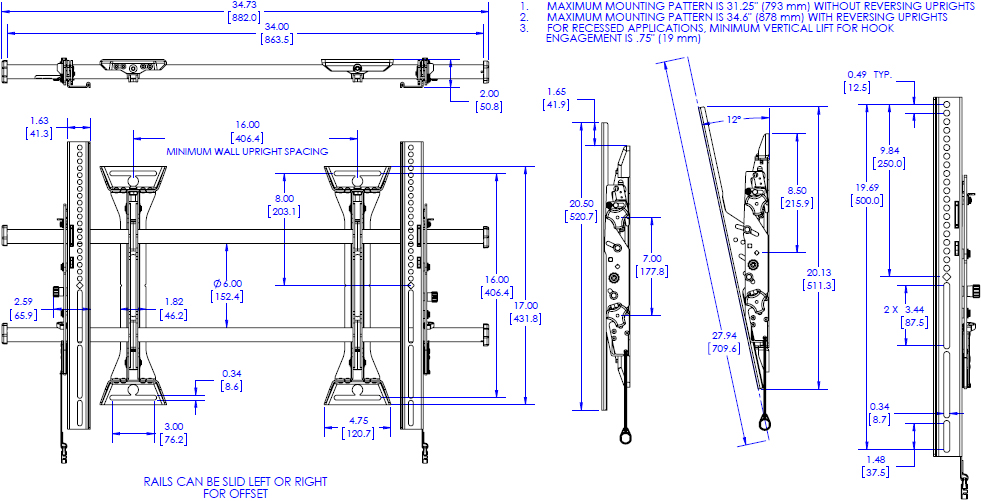

Technical Drawing
Specifications
| Certifications | UL Listed, OSHPD Approved |
| Color | Black |
| Lateral Shift | 17.4" (441 mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100 - 878 x 500 mm |
| Number of Monitors | 1 |
| Overall Dimensions (H x W x D) | 17 x 34.75 x 2" (432 x 883 x 51 mm) |
| Shipping Weight | 22.01 lbs (9.98 kg) |
| Solution Type | Universal |
| Tilt | +2°, -12° |
| Typical Screen Sizes | 42 - 86" |
| Wall Stud Compatibility In | 16" - 32" (406 mm - 813 mm) |
| Weight Capacity |
200 lbs (90.7 kg) |
| Orientation | Landscape |
Features
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
ControlZone Leveling for post-installation fine tuning of height and leveling
Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
Product Options/Accessories
| Model | LTM1U |
| Manufacturer | Chief Mounts |
| Part Number | LTM1U |
| UPC | 841872163277 |
| Color | Black |
| Lateral Shift | 17.4" (441 mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 2" (51 mm) |
| Mounting Pattern | 100 x 100 - 878 x 500 mm |
| Overall Dimensions | 17 x 34.75 x 2" (432 x 883 x 51 mm) |
| Shipping Weight | 22.01 lbs (9.98 kg) |
| Tilt | +2 degree, -12 degree |
| Monitor Size | 42 - 86" |
| Wall Stud | 16" - 32" (406 mm - 813 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Mounting Options | Tilting Wall |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape |
