Office Master AF529 (OM Seating) Affirm High-Back Executive Chair with Headrest
AF529 is custom-made and non-returnable. All fabric colors shown on your computer screen are approximate depending on resolution of your monitor.
NOTE: All chair/arm animations shown are approximate representations; your actual chair/arm may vary significantly in features and appearance. The above video demonstrates general adjustment capabilities which vary depending on the model of the chair. The actual functions & appearance of your chair/arm may differ significantly from the video & illustration shown above. For a list of actual capabilities, please see the features list below or call and ask one of our knowledgeable customer service representatives at 1-888-456-3746. (Some options are available as an upgrade option and must be selected at time of purchase).
Description
OM Seating (formerly Office Master) AF529 is an executive High Back with Head Rest Night
show in Nightfall Black Mesh, JR-69, standard polished aluminum package,
and dual color soft casters (additional charges may apply).
Office Master Affirm’s modern, sleek, frameless mesh design evinces the confidence to
fit in to any workspace - whether a tech start-up, a healthcare
environment, an educational facility, an architectural firm or a more
traditional office place it’s the perfect combination of class and
comfort.

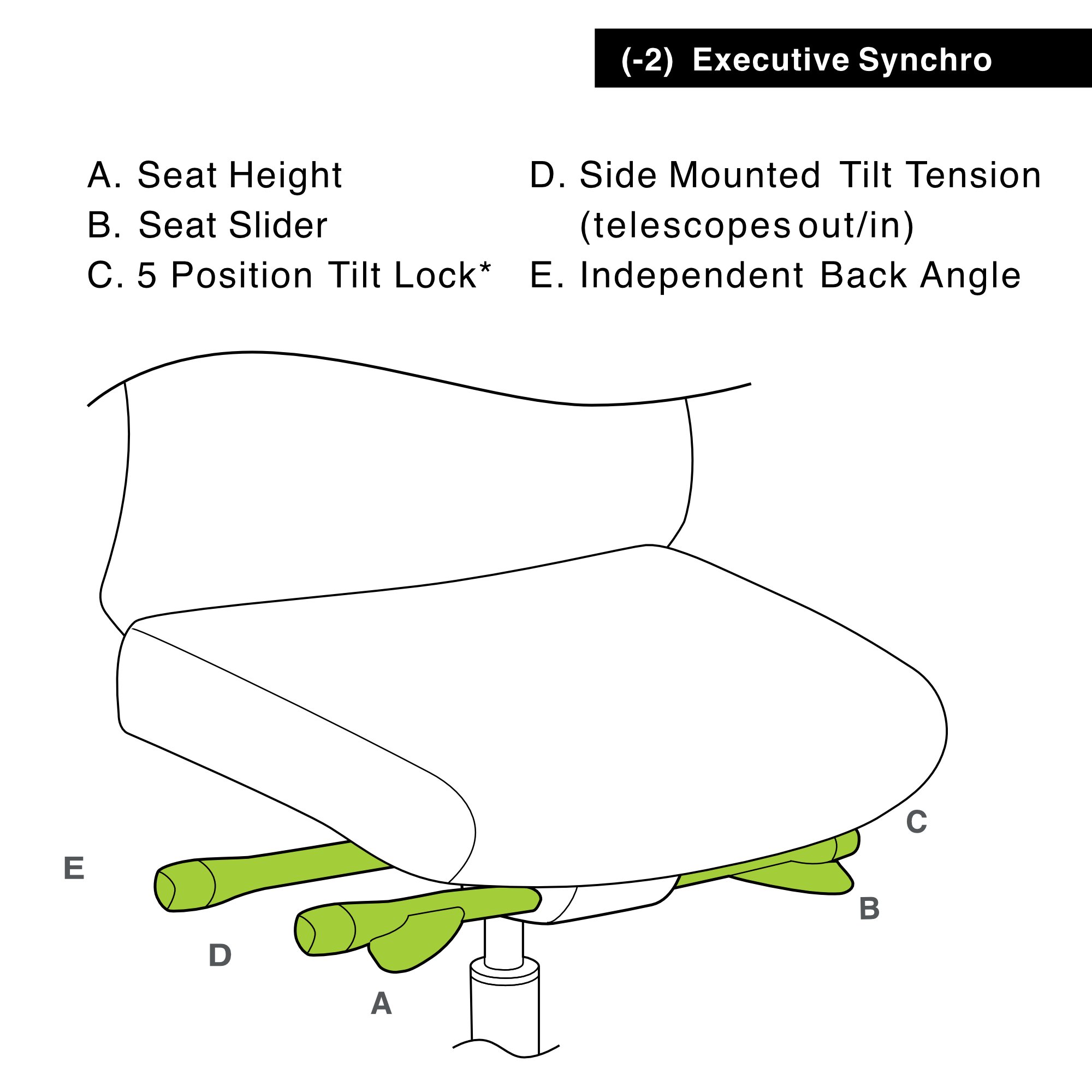

One of the salient features of this chair is its synchronous tilt mechanism. This mechanism reduces the seat rise when you lean back in the chair. This means, that when the back is reclined 2 inches, the seat is raised by only 1 inch. This gives a 2:1 back to seat ratio. So with the synchronous tilt mechanism, the movement of the backrest is larger than the movement of the seat. With the standard swivel-tilt mechanism, the back and the seat are fixed together, so when you lean back the seat is raised at the same rate the back is being reclined. When this happens, the back is reclined 2 inches, and the seat is raised 2 inches. This give a 1:1 back to seat ratio.
With synchronous tilt mechanism, you have the ability to rock in the chair, while keeping your feet on the ground. With standard swivel-tilt mechanism, when you lean all the way back in the chair, you can prop your feet on the desk or ottoman!
Specifications
| Overall Width | 27" |
| Overall Height | 47" - 58" |
| Back | 21" W x 24" H plus 6" Headrest |
| Seat | 20.5" W x 17.5-20" D |
| Petite Seat Height - 4" cylinder Standard Seat Height - 5" cylinder Tall Seat Height - 6" cylinder |
15.5" - 19.5" 17" - 22" 19.5" - 26" |
| COM | 1 yard |
| Carton Weight | 59 pounds |
| UPS Weight | 101 pounds |
| Arms | Groups AR, 1 and 4 |
| Weight Capacity | 300 lbs |
| Warranty | 12 years Limited |
Features
- Executive high back & mesh headrest
- Pneumatic lift
- Easy back height adjustment
- 5-stage locking tilt
- Synchronous seat/back tilt
- "Frameless" mesh back design
- Seat depth adjustment
- Dual-tone oversized soft casters
- Independent back tilt
- Side-mounted tension knob
- Nightfall black mesh is default
Product Options/Accessories
| Model | AF529 |
| Manufacturer | OM Seating Chairs |
| Part Number | AF529 |
| Overall Width | 27" |
| Overall Height | 47 - 58" |
| Back | 21"w x 24"h plus 6" Headrest |
| Seat | 20.5"w x 17.5 - 20"d |
| Seat Height | 15.5" - 19.5", 17" - 22", 19.5" - 26" |
| COM | 1 yard |
| Arms | Groups AR, 1 and 4 |
| Warranty | 12 year limited |
| Carton Weight | 59 lbs |
| UPS Weight | 101 lbs |
| Weight Capacity | 300 lbs |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Limited Warranty
Office Master, Inc. (OM) warrants to the original purchaser that its products are free from defects in materials and workmanship for the applicable warranty period, as indicated below.
Should any item fail, OM will at its sole discretion repair or replace, with a comparable product or part, any item found to be defective as a result of normal commercial use (i.e., a single 8-hour shift, 5 days per week).
This warranty does not apply to items subjected to abuse, misuse, neglect, alteration, or damage caused by shipment, storage, accident, fire, flood, or act of God.
Lifetime Limited Warranty - The OM5 Series (including the OM5 Active sub-series), Truly. Series, and Ginny are covered by a lifetime limited warranty on all structural components as defined below.
12-Year Limited Warranty - Unless otherwise specified, all models not classified as budget or 24/7 or heavy-duty are covered under a 12-year limited warranty on all structural components as defined below.
7-Year Limited Warranty - Unless otherwise specified, all models classified as budget or 24/7 or heavy-duty are covered under a 7-year limited warranty on all structural components as defined below. Budget series include: BC, SG, ST, and WS.
Warranty Terms - Within a given model’s applicable warranty period, all
structural components, including gas cylinders, wood, metal and plastic parts
(i.e., chair frames, bases and control handles) are guaranteed against
structural failure when under normal commercial use. All OM seating comes with a
default 275 lbs. weight capacity limit unless otherwise specified by OM.
For all models, consumable items (i.e., casters, glides, etc.) are covered by a 5-year normal commercial use warranty.
Fabrics and Foam - OM in-stock upholstery & foam cushions are covered by a 5-year normal commercial use warranty. Normal wear and tear on fabrics such as wrinkling, dirt accumulation or gathering is not covered. This includes Truly. Series “Jackets” and “Wraps”. Natural, minor variations may exist in color, surface, grain or texture of upholstery materials. As a result, any such variations are not warranted. COM/COL and graded-in fabrics are not covered.
Claims Procedure - Should any item fail, contact the Dealer from whom it was purchased. A photograph of the damage(s)/issue(s) and of the “born-on” label underneath the seat will be required to help OM determine the cause and extent of any issues. If it is determined that a return is necessary, return that item and its product proof of purchase to the Dealer, whereupon that Dealer will send both to OM, freight prepaid. OM will repair or replace the defective part at its sole discretion and return it to the Dealer, freight prepaid. Please email related photos and details for any warranty claims to [email protected].
Returns - Written authorization from OM is required prior to a Dealer returning any failed or defective parts to OM. Any returned defective part(s) will NOT be accepted without this prior written authorization, or a “Returned Materials Authorization” (RMA) # assigned to it.
Warranty Labor - This warranty exclusively covers the repair or replacement of OM parts as determined by OM and does NOT cover any portion of field labor or service and does NOT cover any portion of field labor or service. For information regarding OM’s non-warranty shop time and related charges, please reference a current copy of OM’s pricebook, in the Terms and Conditions section.
Office Master Affirm Executive Synchrotilt Chair Comparison Chart
 |
 |
This item: Affirm AF529 High-Back Executive Chair with Headrest
|
|
|---|---|---|---|
| Overall Height | 38.25 - 45.75" | 41.5 - 49" | 47 - 58" |
| Overall Width | 27" | 27" | 27" |
| Back | 19.75" W x 20.5" H | 21"w x 24"h | 21"w x 24"h plus 6" Headrest |
| Seat | 19" W x 17.5-20" D | 20.5"w x 17.5 - 20"d | 20.5"w x 17.5 - 20"d |
| Seat Height | 15.5" - 19.5", 17" - 22", 19.5" - 26" | 15.5" - 19.5" (petite), 17" - 22" (standard), 19.5" - 26" (tall) | 15.5" - 19.5", 17" - 22", 19.5" - 26" |
| Details | Details |
