Ergotron DM12-1012-1 Zip12 Charging Desktop Cabinet
Up to 12 devices with 1.1" wide (28 mm) slot; up to 8 devices with 1.9" wide (48 mm) slot.
Description
Ergotron DM12-1012-1 Zip12 secures, protects and charges the wide variety of devices being used today - most tablet, Chromebook, Ultrabook, MacBook and laptop devices with up to a 14.0" screen. The universal and flexible design ensures the charging cabinet you purchase today will work for all future devices, too.

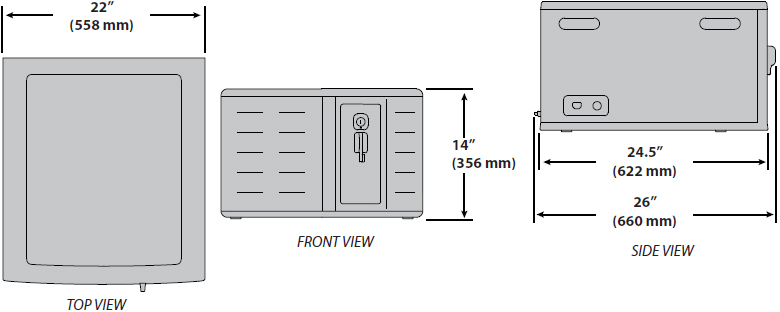

Technical Drawing
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 14" |
Up to 5.1 lbs 2.3 kg |
- | - | - | - | - |
Product Information
Part Number |
|
Description | Zip12 Charging Desktop Cabinet (black/silver) |
Includes |
|
Ships | Fully assembled |
Total Capacity | Up to 12 devices with 1.1" wide (28 mm) slot; up to 8 devices with 1.9" wide (48 mm) slot |
Maximum Device Dimensions | 15.3" W x 9.7" H (38.9 x 24.6 cm) including case and cord |
Maximum Adapter Dimensions | Brick-style AC adapter = 7" H x 3" W x 2.2" D (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2ʺW x 4.7ʺL x 3.9ʺD (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm |
Compatible | Compatible with Apple’s eighth-generation iPad |
Weight Capacity | Maximum individual device weight = 5.1 lbs (2.3 kg); top worksurface = 25 lbs (11.3 kg) |
Receptacle Outlet Strip | Country-specific 12-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters |
Uses | Uses the AC adapters that come with each device. AC adapters are not included |
Cabinet | Cabinet can be securely attached to a surface up to 1.0" (25 mm) thick. Security hardware is provided |

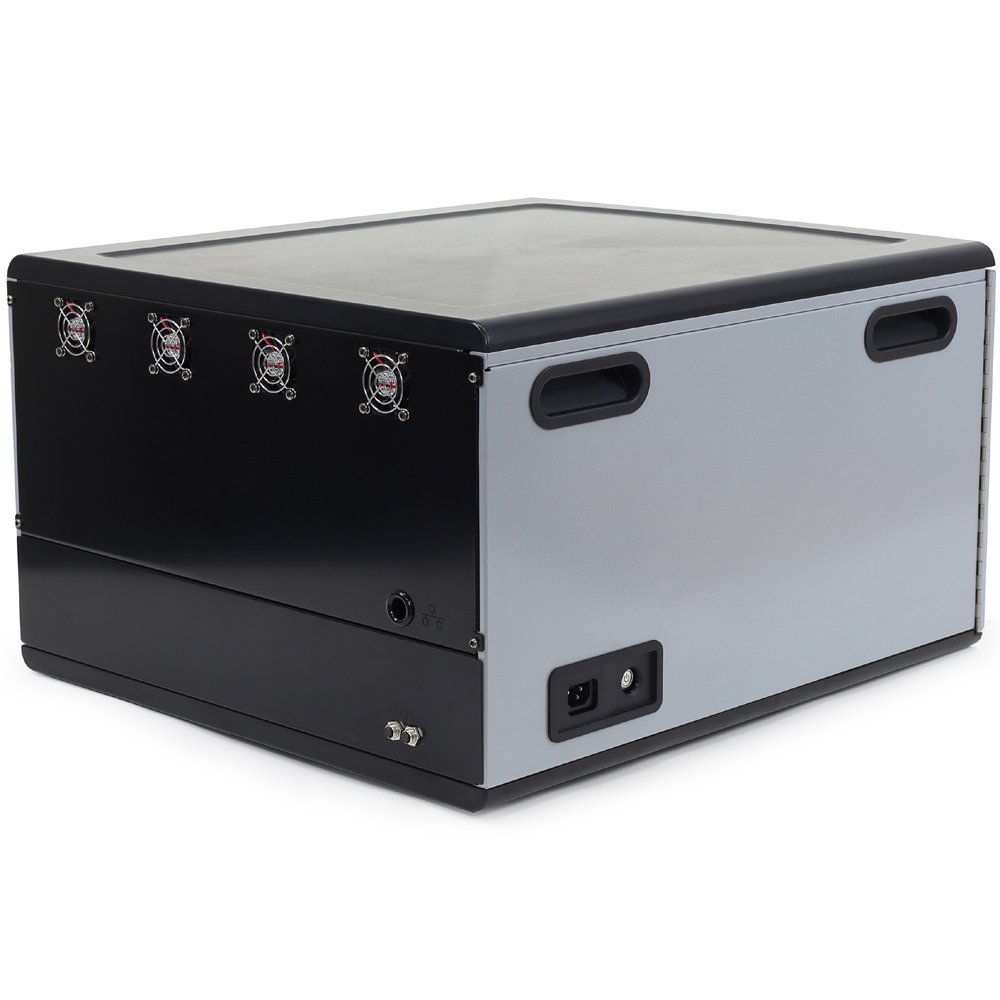

Cooling/Ventilation | Four 5V DC continuous operation fans keep equipment cool |

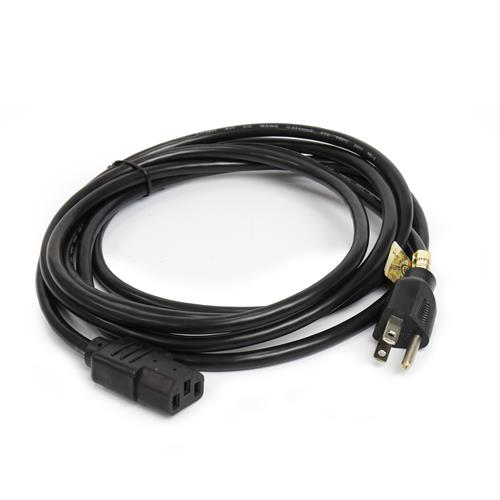

Country-Specific Power Cord | 6ʹ (1.8 m) long |
Environmentally Clean | RoHS, REACH, WEEE and EU (94/620EC) packaging compliant |
Power System | Input/output = 100-240V~, 12-10A, 50/60 Hz |
Temperature Range | Operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F) |
Relative Humidity | Maximum: operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing) |
Altitude | Maximum: 2000 m (6,562') |
Certification |
|
Product Dimensions | 22"W x 24.5"D x 14"H (56 x 62 x 35.6 cm) |
Product Weight | 51.0 lbs |
Shipping Dimensions | 27.2"W x 25.2"D x 17.2"H (69 x 64 x 44 cm) |
Shipping Weight | 59.2 lbs |
Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
Benefits

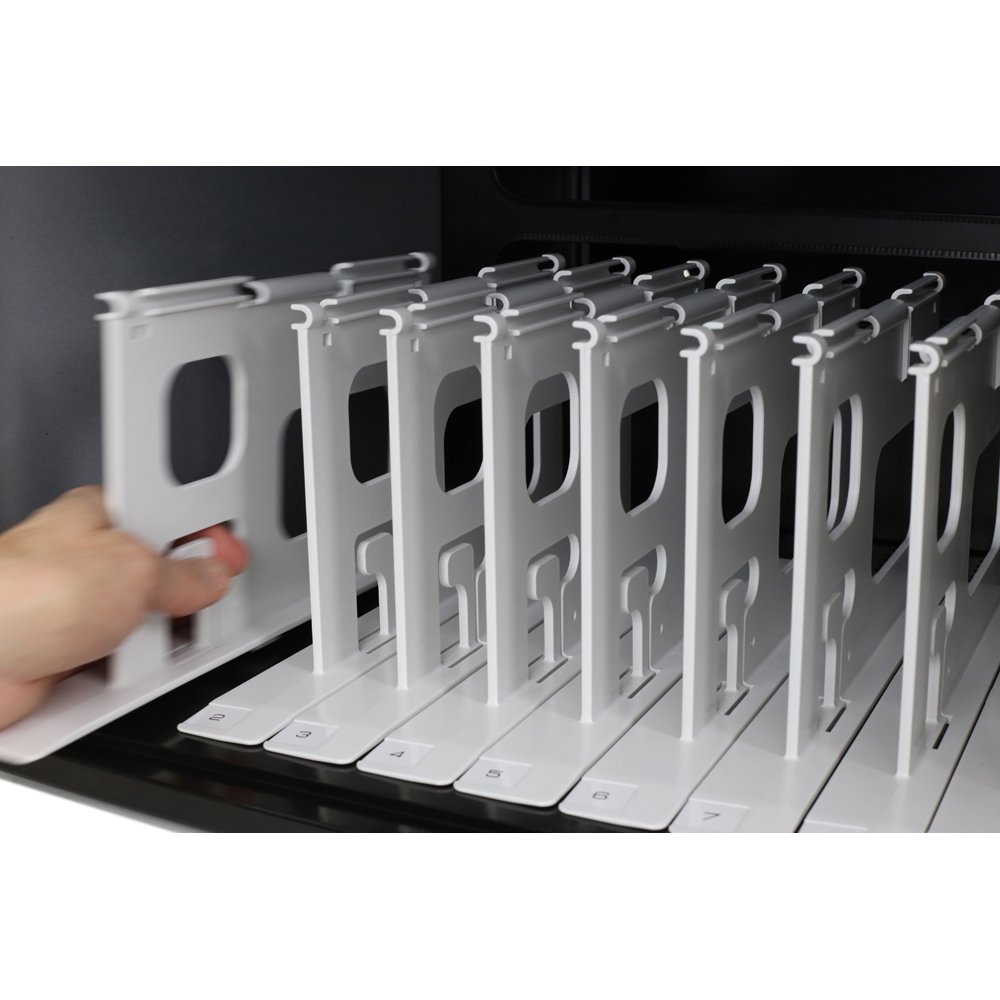

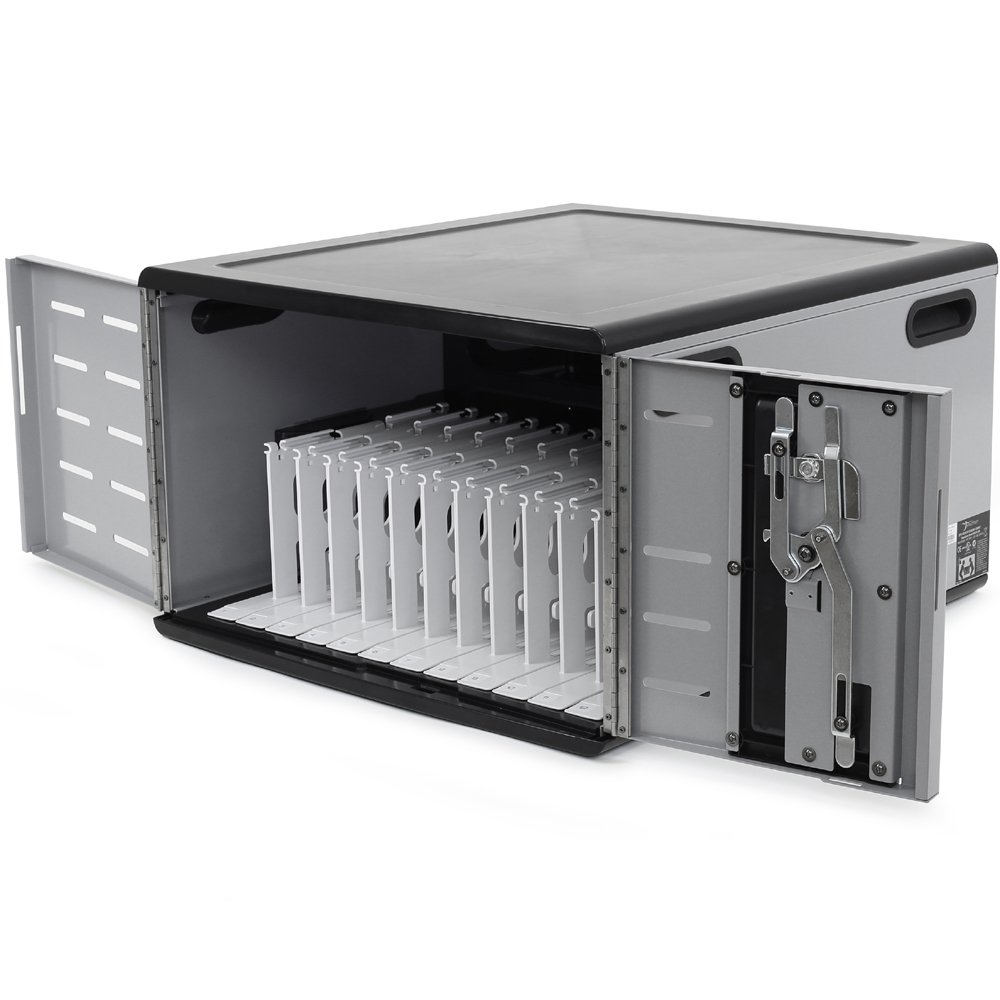

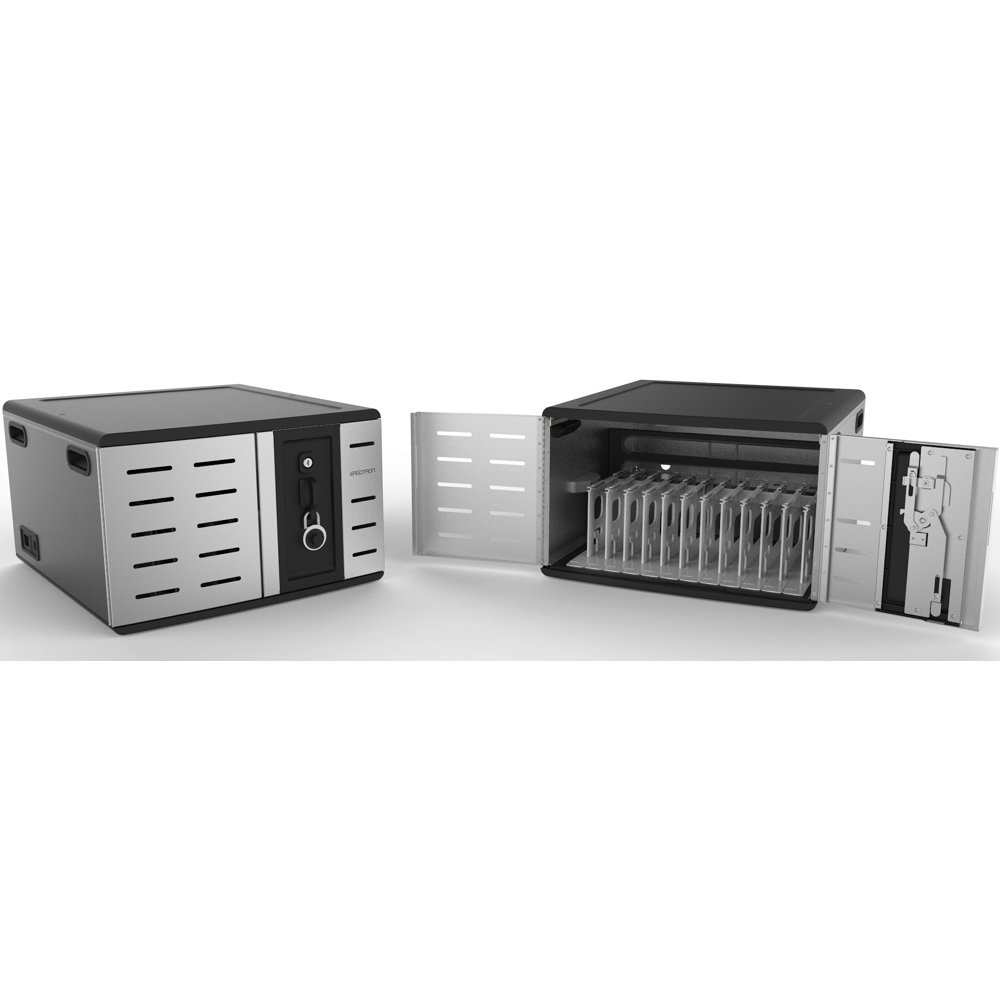

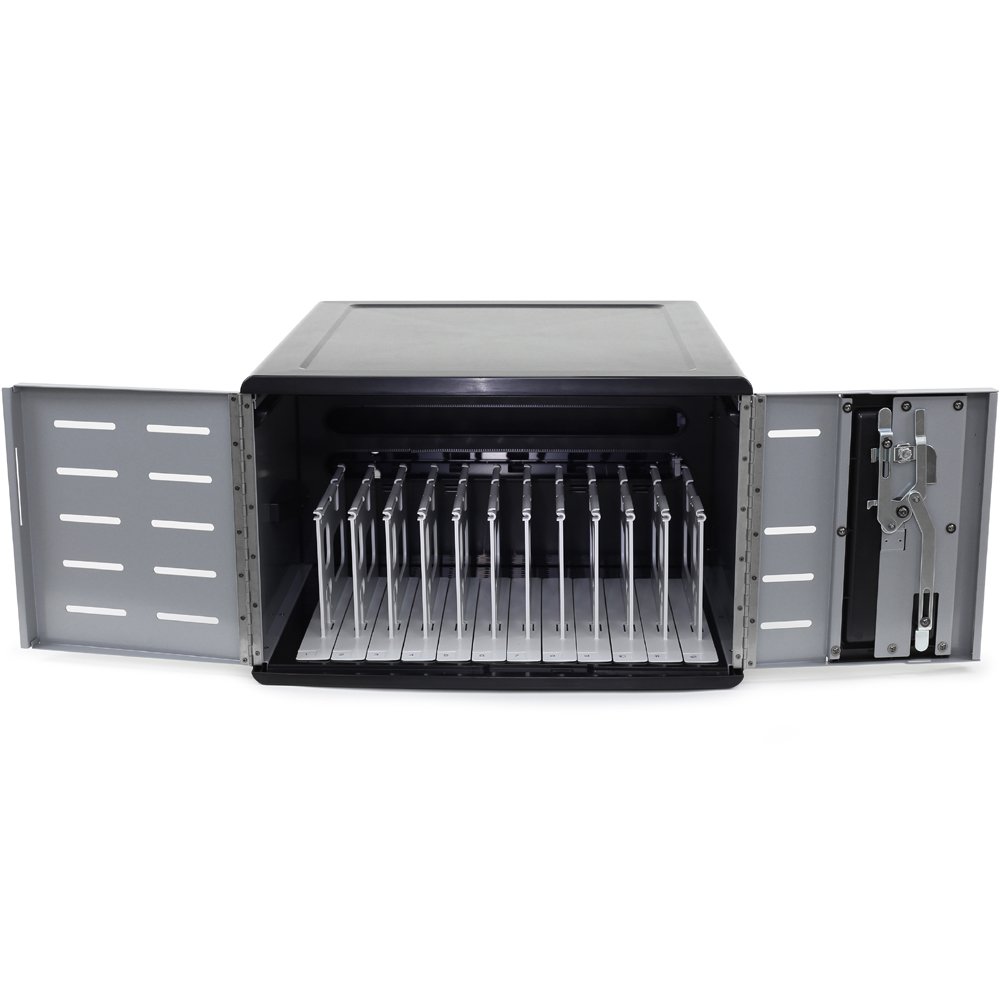

Adjustable dividers - Fit up to 12 tablets and Chromebooks or 8 thicker laptops
Fast charging - Uses patented PowerShuttle Technology to support safe and fast charging
Extend battery life - Built-in fans keep batteries cool so they last longer

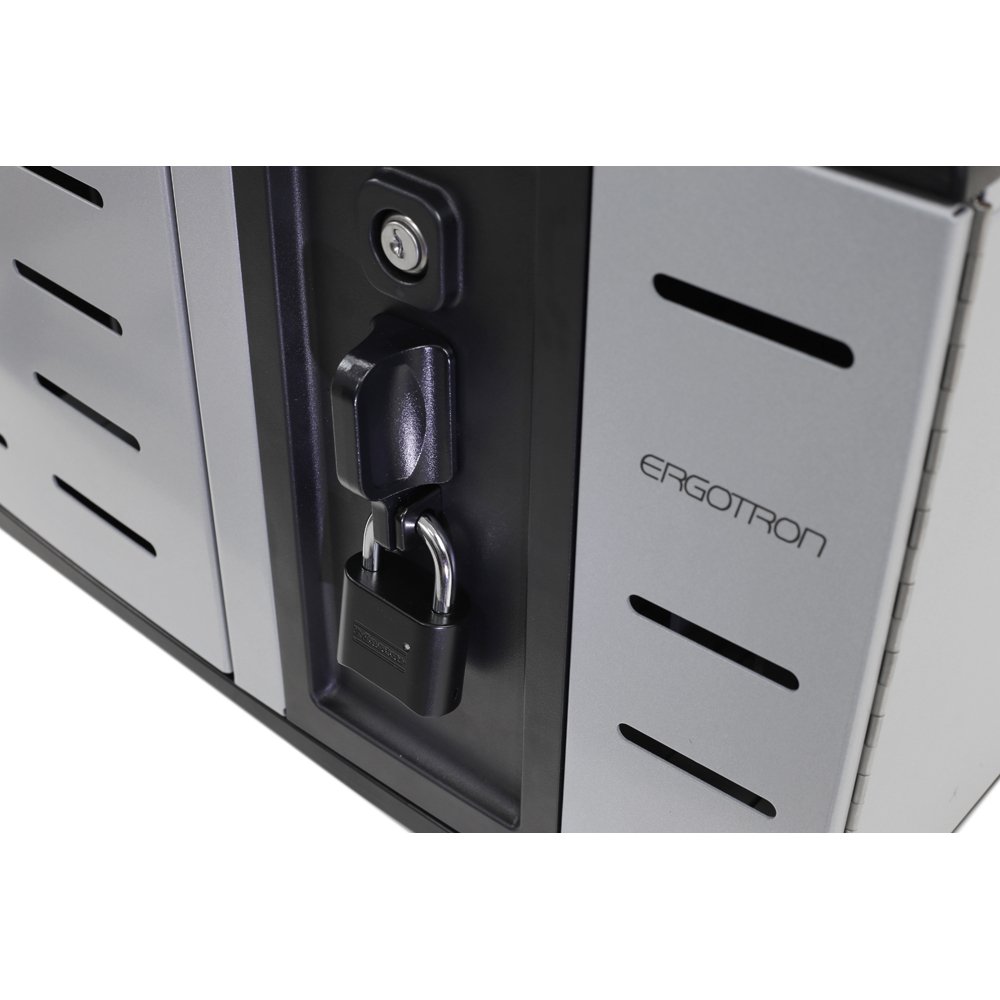

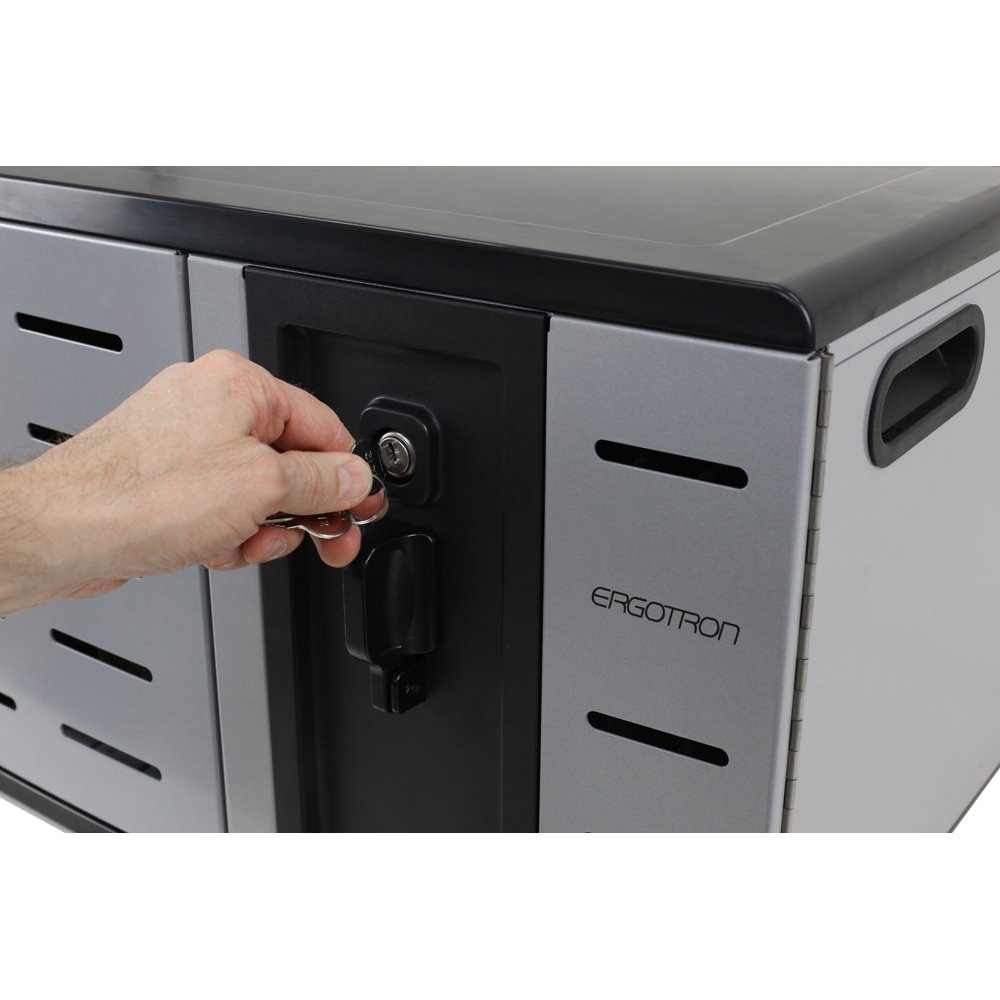

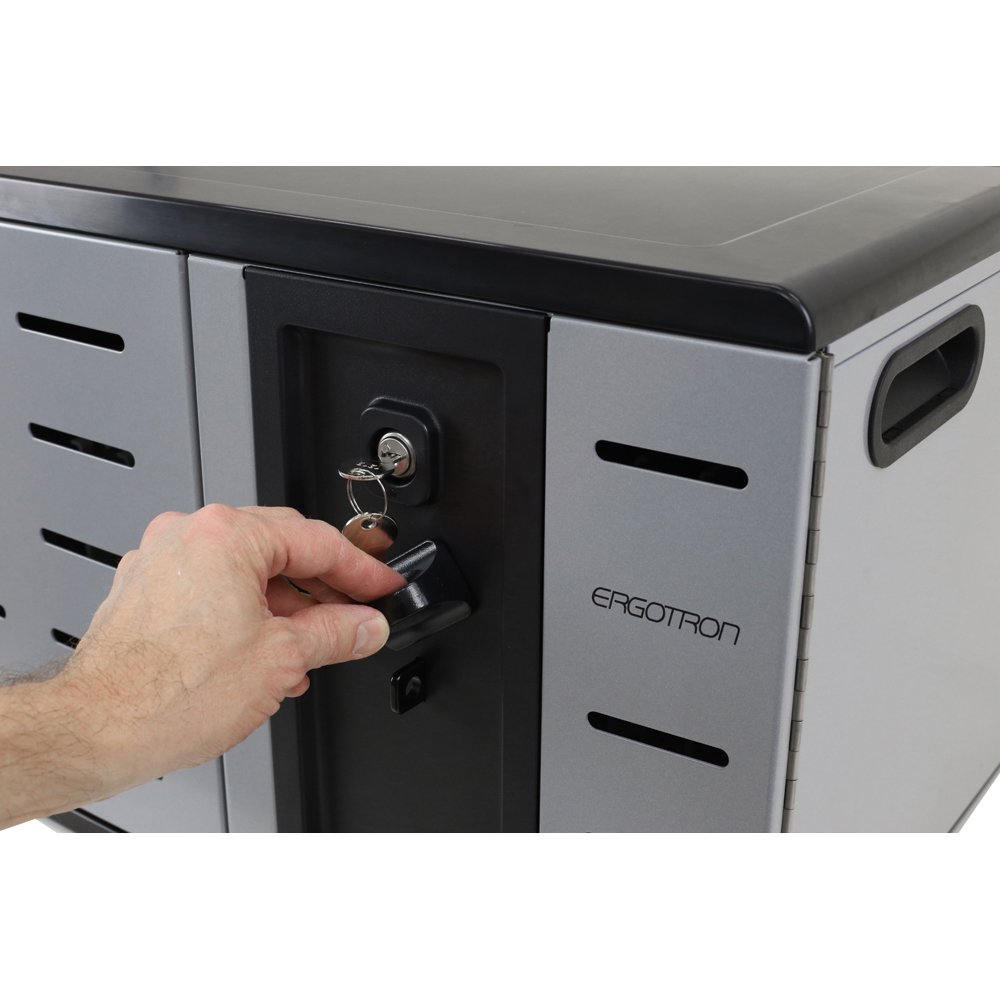

Secure storage - Durable steel doors with three-point key lock. Add a padlock for extra security
Fully assembled - Just plug it in to start charging - saving you time and hassle
Supports safety - For user and equipment safety, entire cabinet is certified to UL/IEC standards
Product Options/Accessories
Model | DM12-1012-1 |
Manufacturer | Ergotron |
Part Number | DM12-1012-1 |
UPC | 698833048094 |
Color | Black/silver |
Monitor Size | Up to 14" |
Weight Capacity | Maximum individual device weight = 5.1 lbs (2.3 kg); top worksurface = 25 lbs (11.3 kg) |
Maximum Device Size | 15.3ʺW x 9.7ʺH (38.9 x 24.6 cm) including case and cord |
Power | Input/output = 100-240V~, 12-10A, 50/60 Hz |
Temperature | Operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F) |
Humidity | Maximum: operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing) |
Altitude | Maximum 2000 m (6,562') |
Dimensions | 22"W x 24.5"D x 14"H (56 x 62 x 35.6 cm) |
Weight | 51.0 lbs |
Shipping Dimensions | 27.2" W x 25.2" D x 17.2" H (69 x 64 x 44 cm) |
Shipping Weight | 59.2 lbs |
Warranty | Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables |
Display Type | Tablet |
