Ergotron 97-872 Telepresence Kit, Back-to-Back, for SV43/44 Cart
Recommended for use with SV43-1310-0, SV44-1311-1 or SV44-1312-1
Description
Ergotron 97-872 kit converts a cart for use in telepresence applications, combining the power of videoconferencing with the benefits of StyleView. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 22" |
Up to 39 lbs 17.7 kg |
17" 43.2 cm |
25° | 24° | 90° | MIS-D |
Product Information
Part Number | 97-872 |
Description | SV Telepresence Kit, Back-to-Back Monitor, for SV43/44 carts |

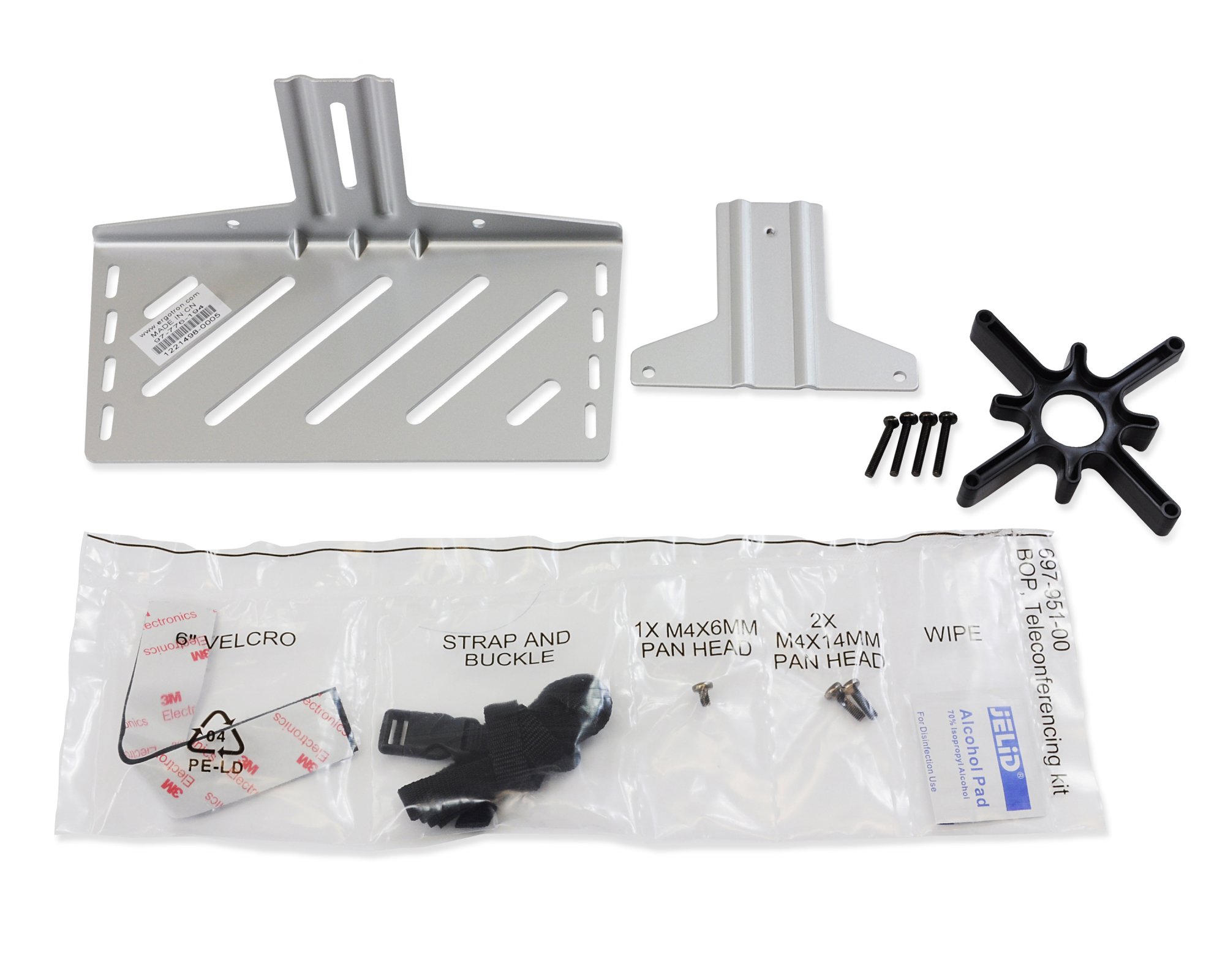

Includes |
|
Not Included | Video camera, monitors, codec, and telepresence and computing equipment not included |
Total Maximum Load on Height-Adjustment Assembly | 39 lbs (17.7 kg). This is the sum of the following components: front LCD pivot = 5–14 lbs (2.3–6.4 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: rear LCD pivot ≤ 23 lbs (10.5 kg); codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg) |
Note | Locking the height of the front LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on front pivot, also include weight of camera. Combined weight of front LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of front LCD, camera and CPU should not exceed 27 lbs (12.3 kg) |

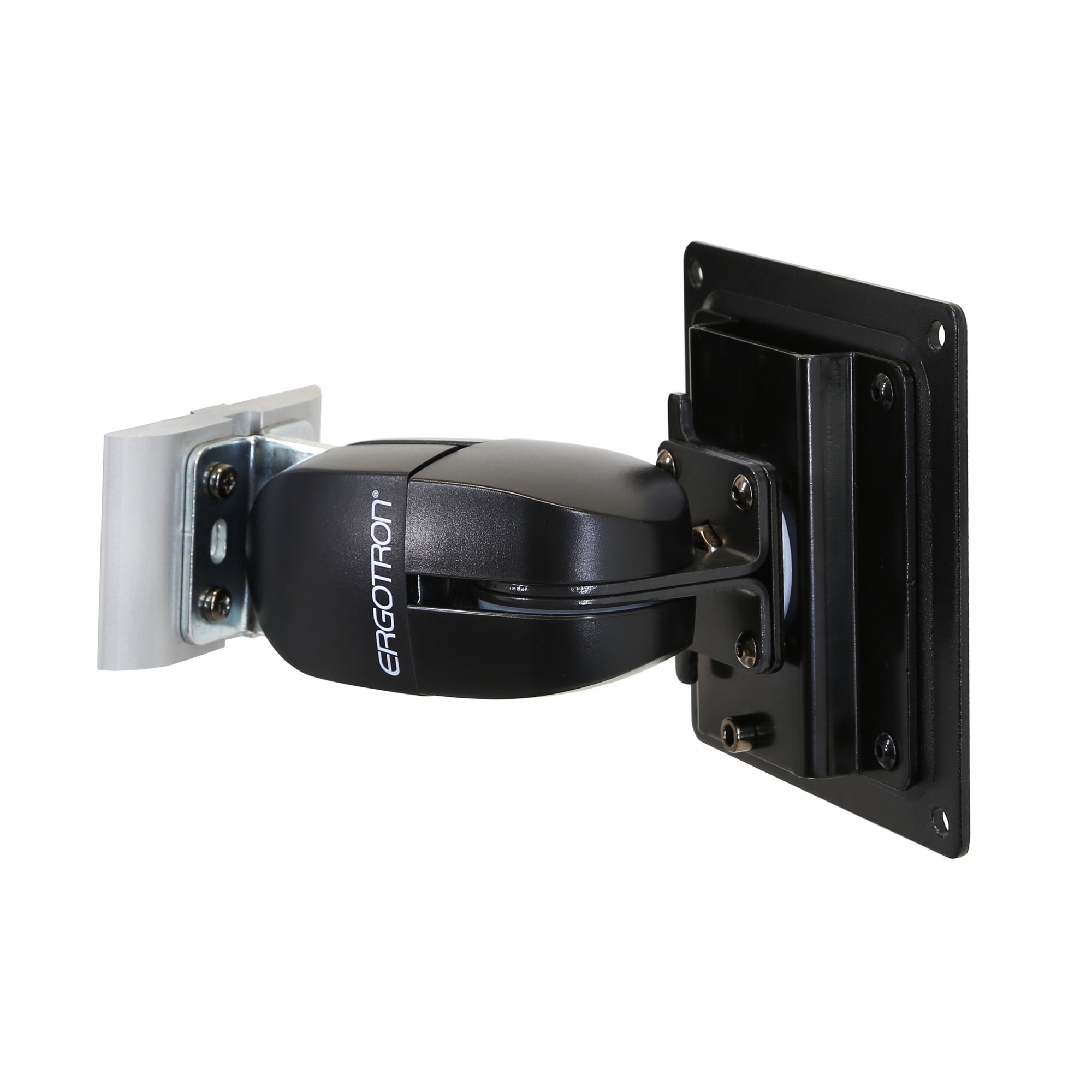

Front LCD and Worksurface | Front LCD and worksurface adjust 12" (30 cm) in tandem; front LCD Pivot adjusts 5" (13 cm) independently; maximum front LCD height adjustment = 17" (43 cm). Rear LCD is not height adjustable; tilt and pan adjustment range of rear LCD = 180° |
Portrait screen Orientation | May be incompatible with widescreen displays > 19" |

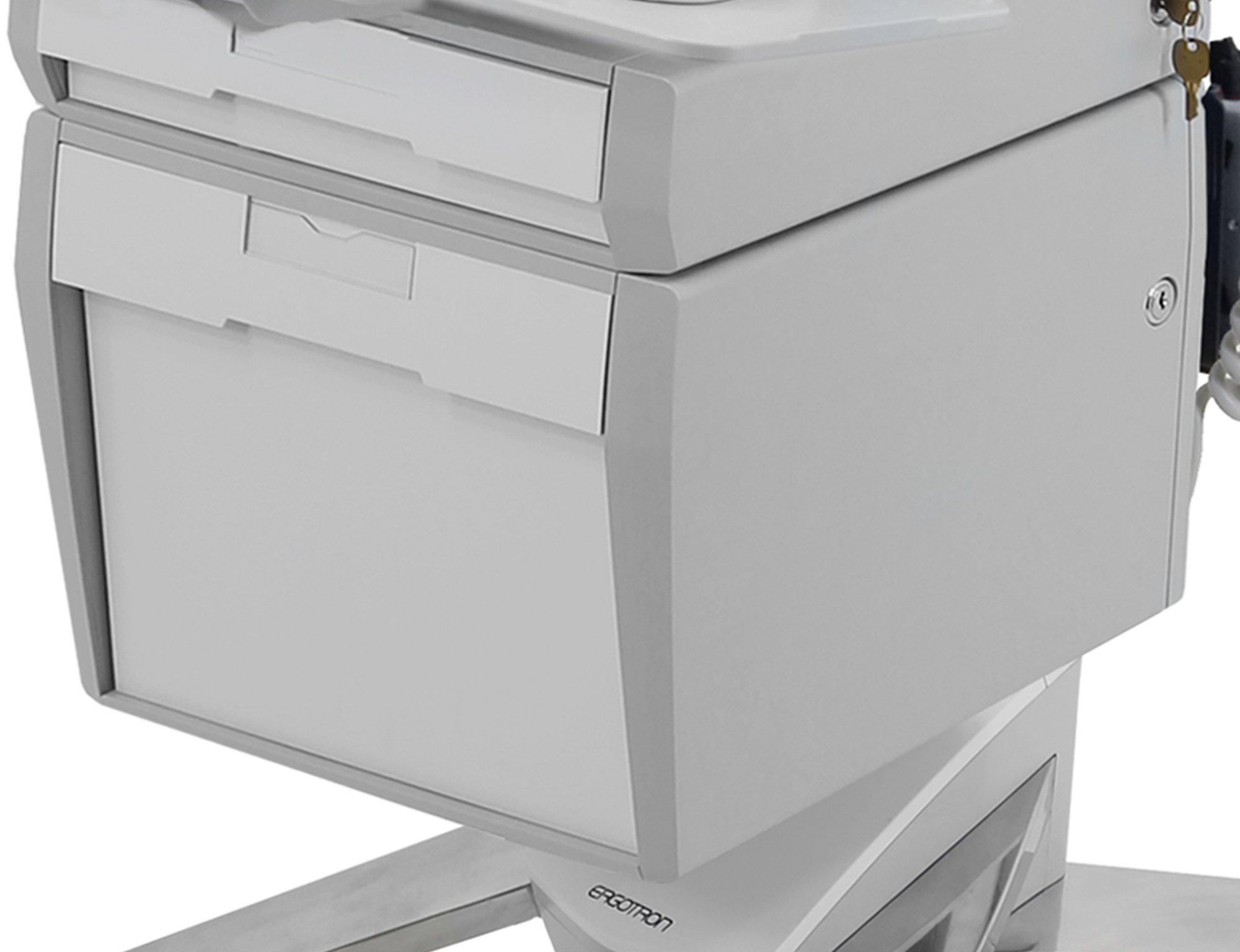

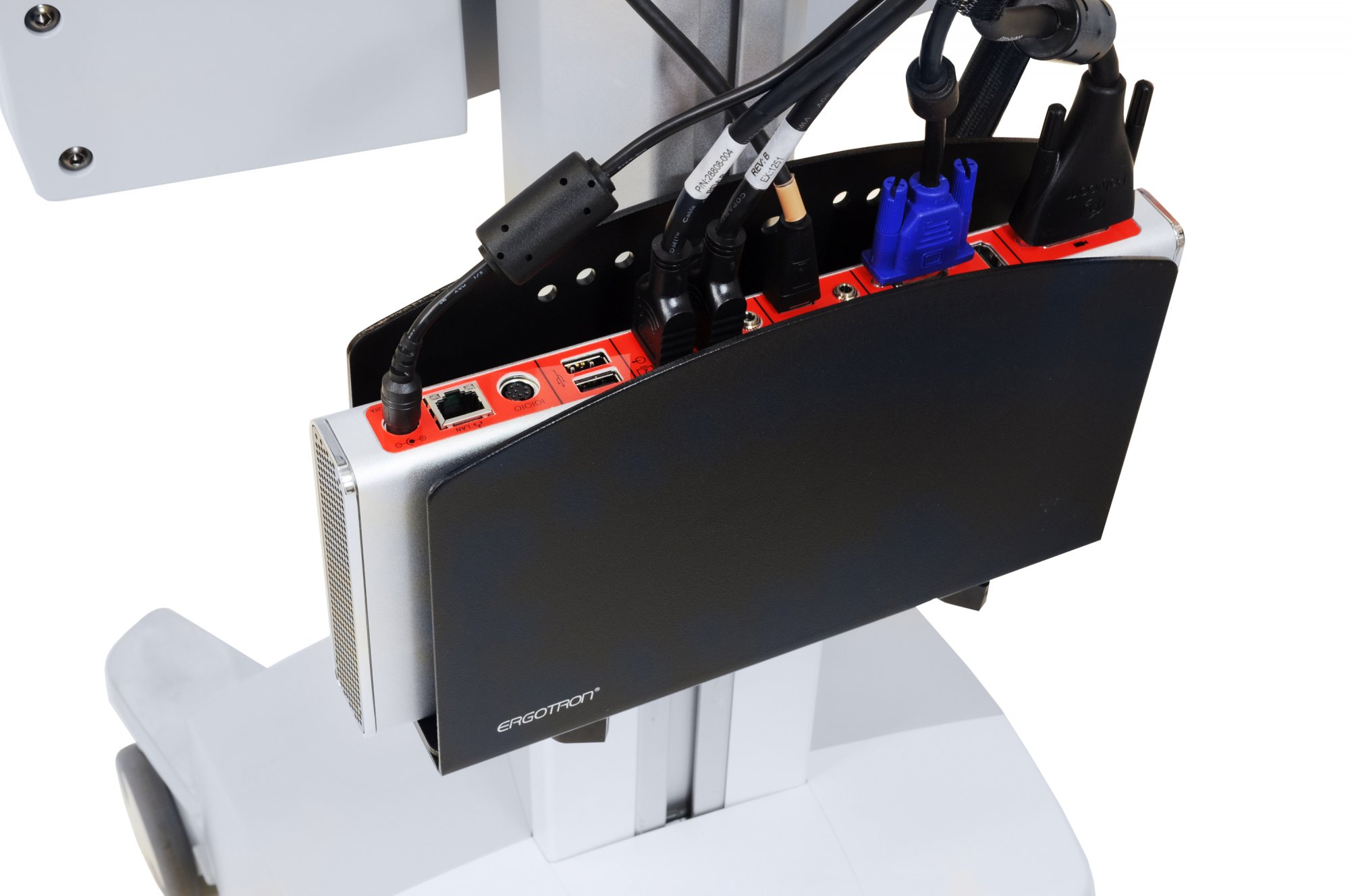

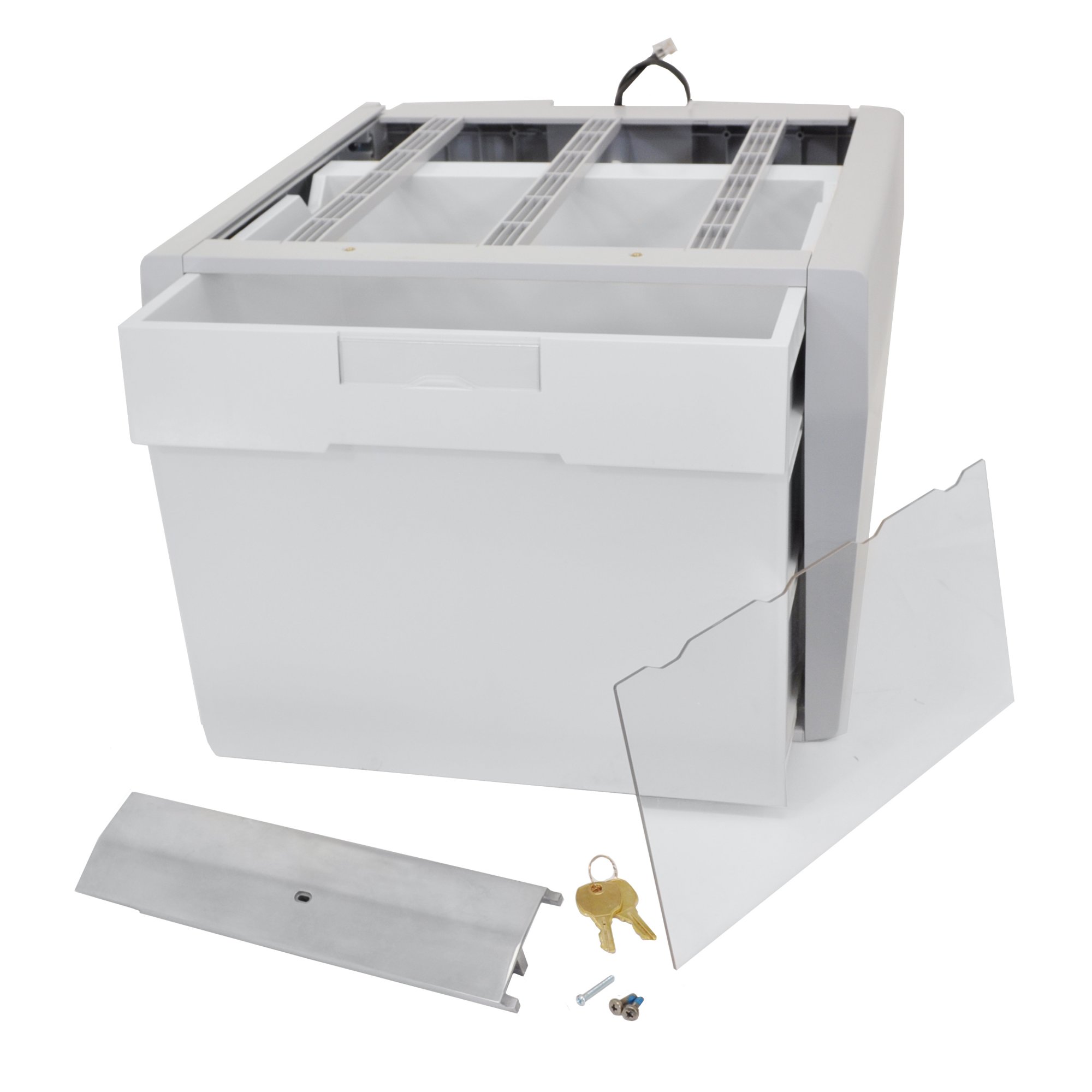

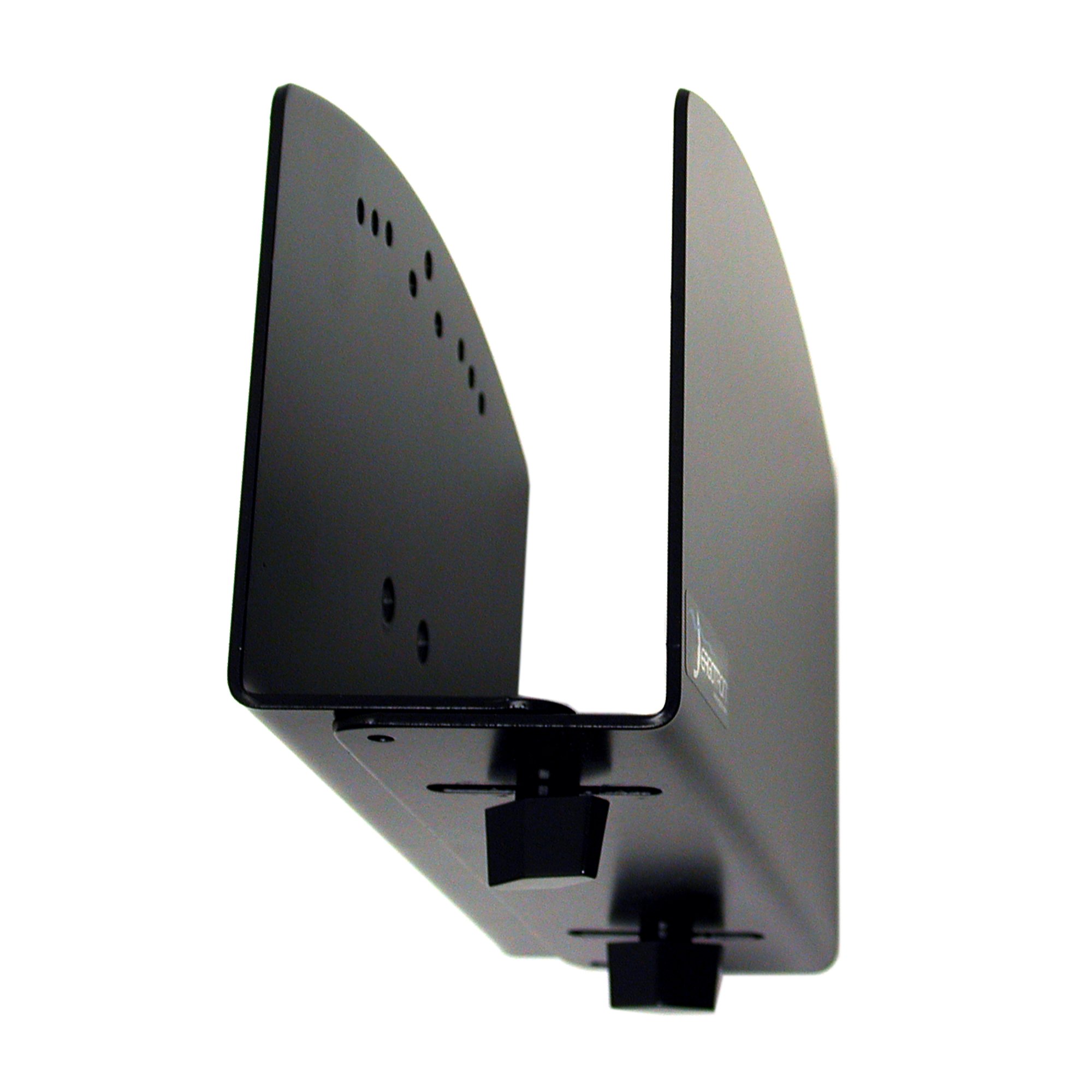

Internal Dimensions | Large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide |
Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Shipping Weight | 26 lbs (11.8 kg) |
Warranty | Five (5) years |
Benefits
Enables remote delivery of specialized care and timely diagnostics
Includes components that, when added to a StyleView cart, allow accommodation of all your telepresence equipment
Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
Low configuration costs
Works with cart’s auto-locking drawers for electronically controlled access to your equipment
Open architecture allows for the integration of most standard computer and mobile communications equipment

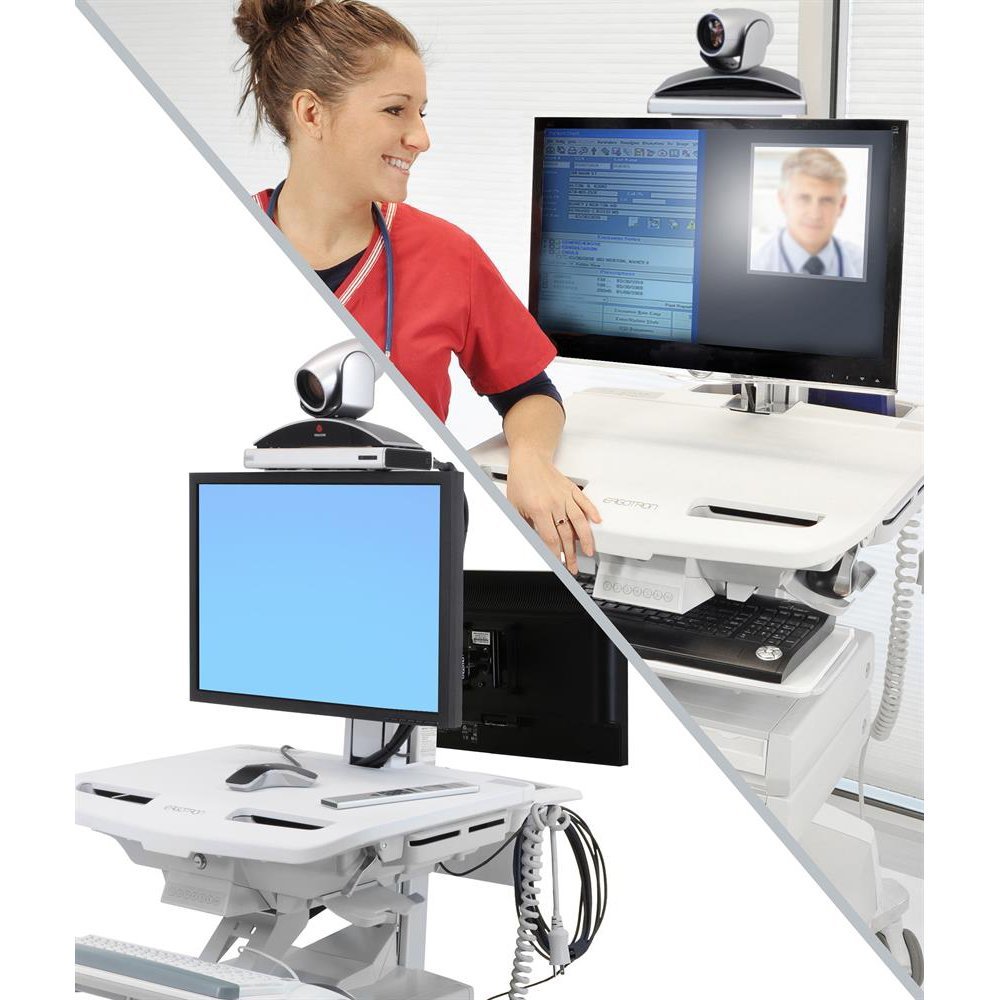

Back-to-back monitor configuration provides separate viewing access for caregiver and patient
Product Options/Accessories
Model | 97-872 |
Manufacturer | Ergotron |
Part Number | 97-872 |
UPC | 698833047257 |
Monitor Size | Up to 22" |
Weight Capacity | Up to 39 lbs (17.7 kg) |
Lift | (43 cm) 17 in |
Tilt | 25 degree |
Pan | 24 degree |
Rotation | 90 degree |
Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Dimensions | Internal: large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide |
Shipping Weight | 26 lbs (11.8 kg) |
Warranty | Five (5) years |
