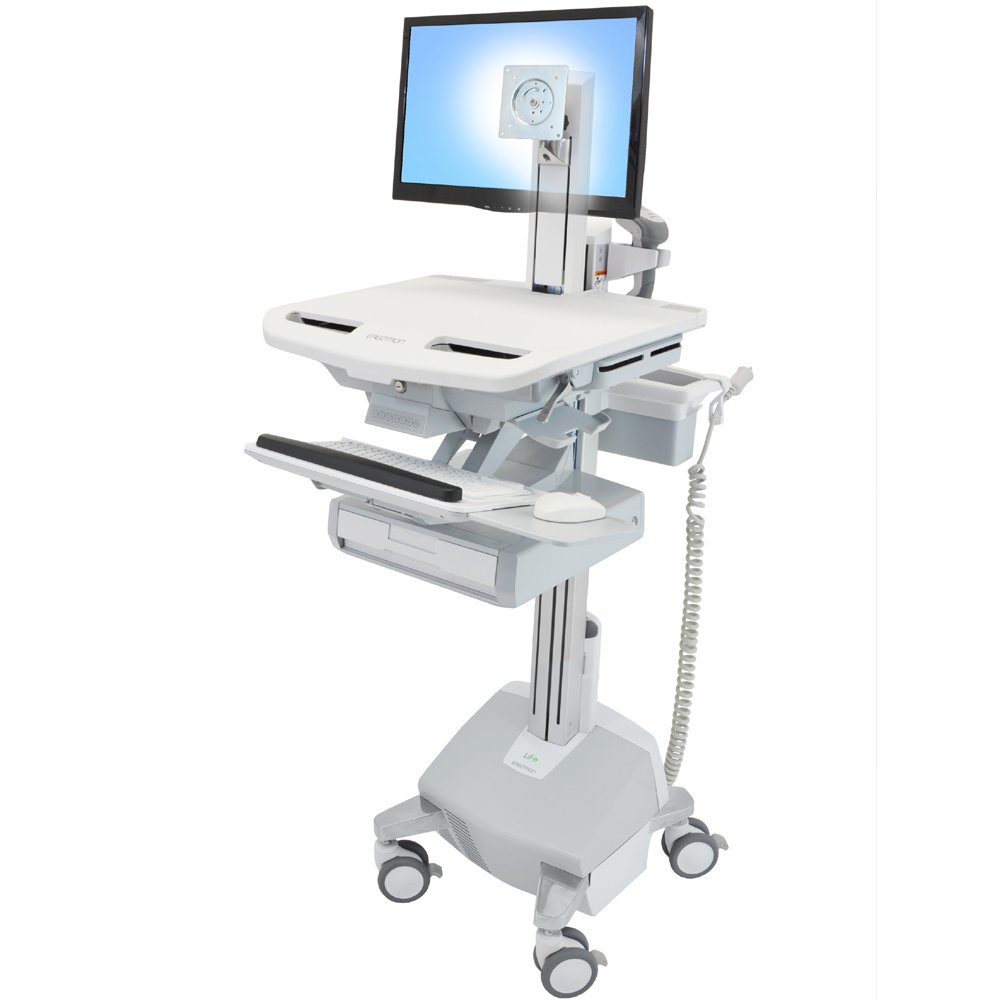

Ergotron SV44-1312-1 SV Cart w/ LCD Pivot, LiFe Powered, 1 Drawer

SV44-1312-1 is non-returnable/non-cancelable.

Product ID 18181
Ergotron SV44-1312-1 SV Cart w/ LCD Pivot, LiFe Powered, 1 Drawer
Brake

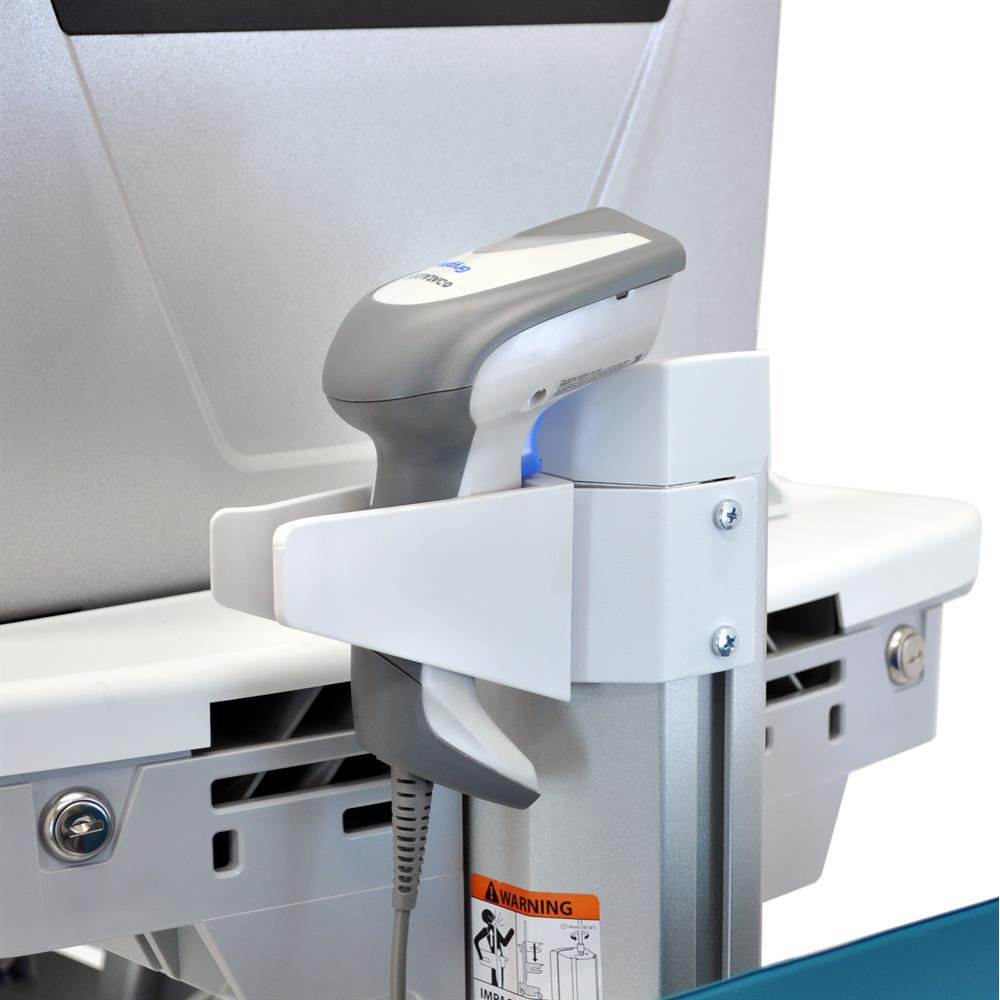

Scanner holder bracket

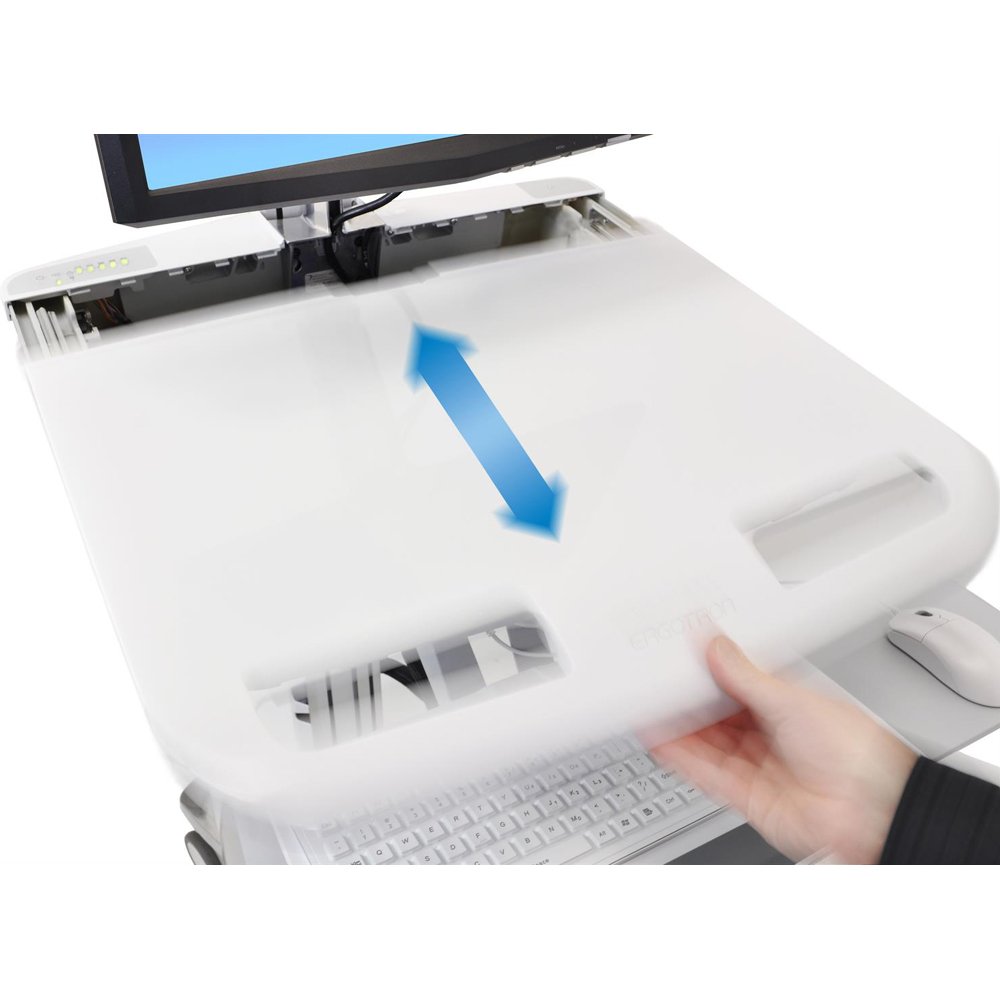

Head slide
Ergotron SV44-1312-1 SV Cart w/ LCD Pivot, LiFe Powered, 1 Drawer
Brake
Scanner holder bracket
Head slide

Description

Ergotron SV44-1312-1 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication. Stay productive and on the go with our LiFe power system.
Order part number that coincides with regional power system requirements. Made in the USA by Ergotron.

Technical Drawing

Technical Drawing for Ergotron SV44-1312-1 SV Cart with LCD Pivot, LiFe Powered, 1 Drawer

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 22"

Up to 33 lbs

15.0 kg

25"

63.5 cm

25° 24° 90° MIS-D

Product Information

Part Numbers
  • North America = SV44-1312-1

  • Europe = SV44-1312-2

  • United Kingdom/Ireland = SV44-1312-3

  • Hong Kong/Malaysia/Singapore = SV44-1312-3

  • Australia/New Zealand = SV44-1312-4

  • China = SV44-1312-5

  • India = SV44-1312-B

  • Switzerland = SV44-1312-C

Description StyleView Cart with LCD Pivot, LiFe Powered, 1 Drawer (1 large drawer x 1 row)
TAA (Trade Agreements Act) compliant
Includes
  • Auto-locking drawer system (ADS)

  • Primary single drawer

  • Drawer dividers

  • LCD pivot

  • Worksurface

  • CPU lock

  • Secure CPU compartment

  • Four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Keyboard lights

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (lockable, 1 tracking function)

  • Single-battery 40 Ah LiFe power system

  • 10-foot (3 m) coiled cord

  • AC outlets

  • Power system user interface

Total Maximum Load on Height Adjustment Assembly 33 lbs (15 kg). This is the sum of the following components: LCD pivot = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg)
Note
  • Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers - contact Ergotron for details

  • If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface LCD and worksurface adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
Portrait Screen Orientation Portrait screen orientation may be incompatible with widescreen displays > 19"
Cart
  • Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm ); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)

  • Cart may be fitted with up to three rows of tall drawers

True Ergonomics
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe
  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large, smooth worksurface; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Locking casters

  • CPU lock provided inside the storage compartment for additional security

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • StyleLink SKY compatible: A cloud-based service that facilitates easy and remote management of your cart fleet

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights is located conveniently on worksurface

  • Rear basket keeps task-related items where they can be quickly accessed

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

  • Four-port USB hub

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • Onboard power strip with three or two receptacles (country dependent)

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions
  • Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments

  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • VAC:
    SV44-1312-1 = 120V/60Hz
    SV44-1312-2 = 230V/50Hz
    SV44-1312-3 = 230V/50Hz
    SV44-1312-4 = 230V/50Hz
    SV44-1312-5 = 220V/50Hz
    SV44-1312-B = 230V/50Hz/60Hz
    SV44-1312-C = 230V/50Hz

  • Grounded Plug:
    SV44-1312-1 = NEMA 5-15P Hospital Grade
    SV44-1312-2 = European CEE 7
    SV44-1312-3 = UK BS 1363
    SV44-1312-4 = AS/NZS 3112
    SV44-1312-5 = GB1002-1; GB2009-1
    SV44-1312-B = BS 546
    SV44-1312-C = SEV 1011

  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 158 lbs (71.7 kg); actual cart weight = 123 lbs (55.8 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module; five (5) years on LiFe battery, including two-year capacity guarantee

Benefits

  • LiFe makes the cart extremely lightweight and easy to move

  • Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours

  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A

  • Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)

  • Drawer system supports "Pharmacy mode," allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication

  • Extra rows of drawers may be added - up to a maximum of 5 rows

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Keyboard pans fully side-to-side for closer access while interacting with clients

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment

Product Options/Accessories

Model SV44-1312-1
Manufacturer Ergotron
Part Number SV44-1312-1
UPC 698833045239
Weight lb(s)
Color White, grey and polished aluminum
Monitor Size Up to 22"
Weight Capacity Up to 33 lbs (15 kg)
Lift (63.5 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Dimensions Internal: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 158 lbs (71.7 kg)
Cart Weight 123 lbs (55.8 kg)
Warranty Five (5) years
Power Type LiFe
Display Type 1 Monitor
Lift Technology Constant Force
Screen Size 17"-23" in
TAA Compliant Yes

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
