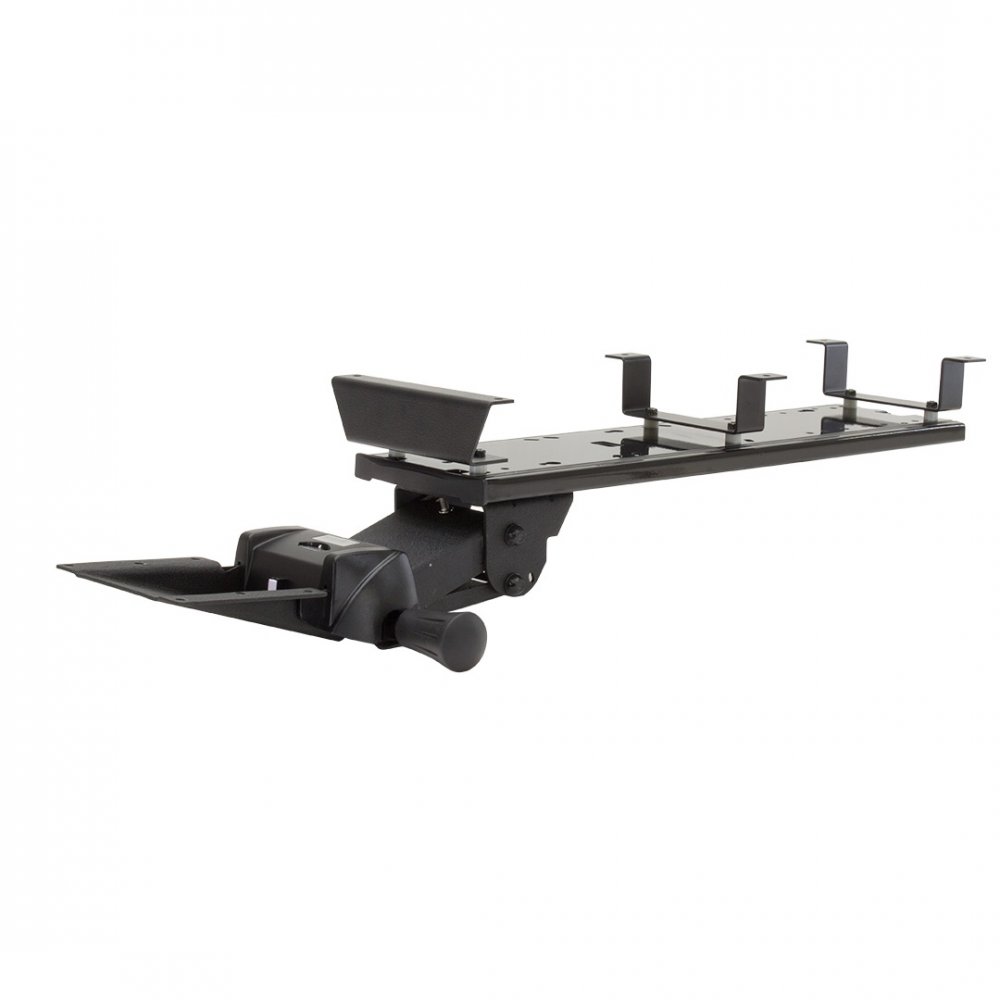

Workrite BMK-1-B or BMK-2-B Bench Mount Kit
Description

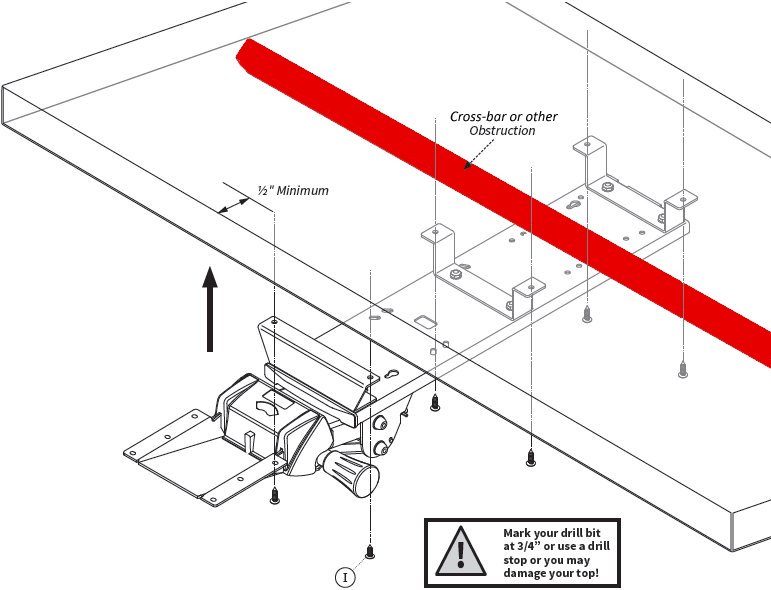

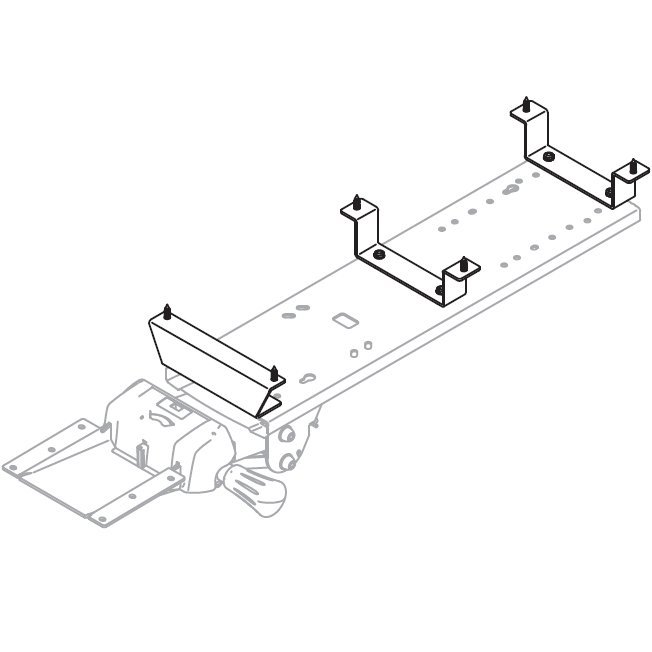

Workrite Bench Mount Kit is designed for mounting keyboard arms and tracks to benching systems or adjustable height workcenters where support beams limit the availability of flat mounting surfaces. Attaches between the underside of the worksurface and the keyboard arm track with installation hardware provided.
Attaches between underside of worksurface and keyboard arm
Fits all Workrite keyboard arms
Powered coated steel construction

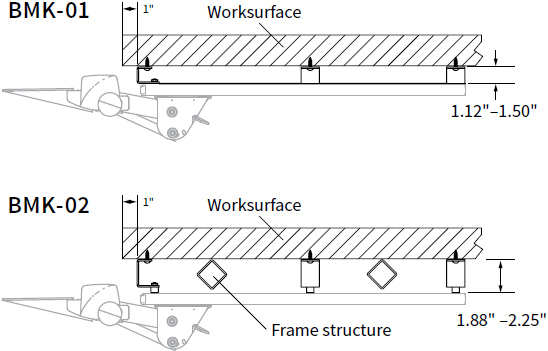

Technical Drawing
Workrite Adjustable Height Workcenters
Once you have selected the appropriate keyboard arm and track for the depth of your worksurface, simply measure the clearance required to drop the keyboard track below the supports of the workcenter.
BMK-1-B should be used for all installations of tracks greater than 17" on Workrite's Sierra HX, and Essentia Electric frame sets
BMK-1-B should also be used for all Sierra HXL crank installations, regardless of track length
BMK-2-B used with Cascade
Benching Systems
Once you have selected the appropriate keyboard arm and track for the depth of your worksurface, simply measure the clearance required to drop the keyboard track below the supports of the benching system.
BMK-1-B can be used for all 1.12" to 1.5" clearance requirements
BMK-2-B can be used for all 1.88" to 2.25" clearance requirements
Product Options/Accessories
| Model | BMK-1-B, BMK-2-B |
| Manufacturer | Workrite Ergonomics |
| Part Number | BMK-1-B, BMK-2-B |
| Height Range | BMK-1-B: 1.12" - 1.5", BMK-2-B: 1.88" - 2.25" |
| Weight | 4 lbs |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
