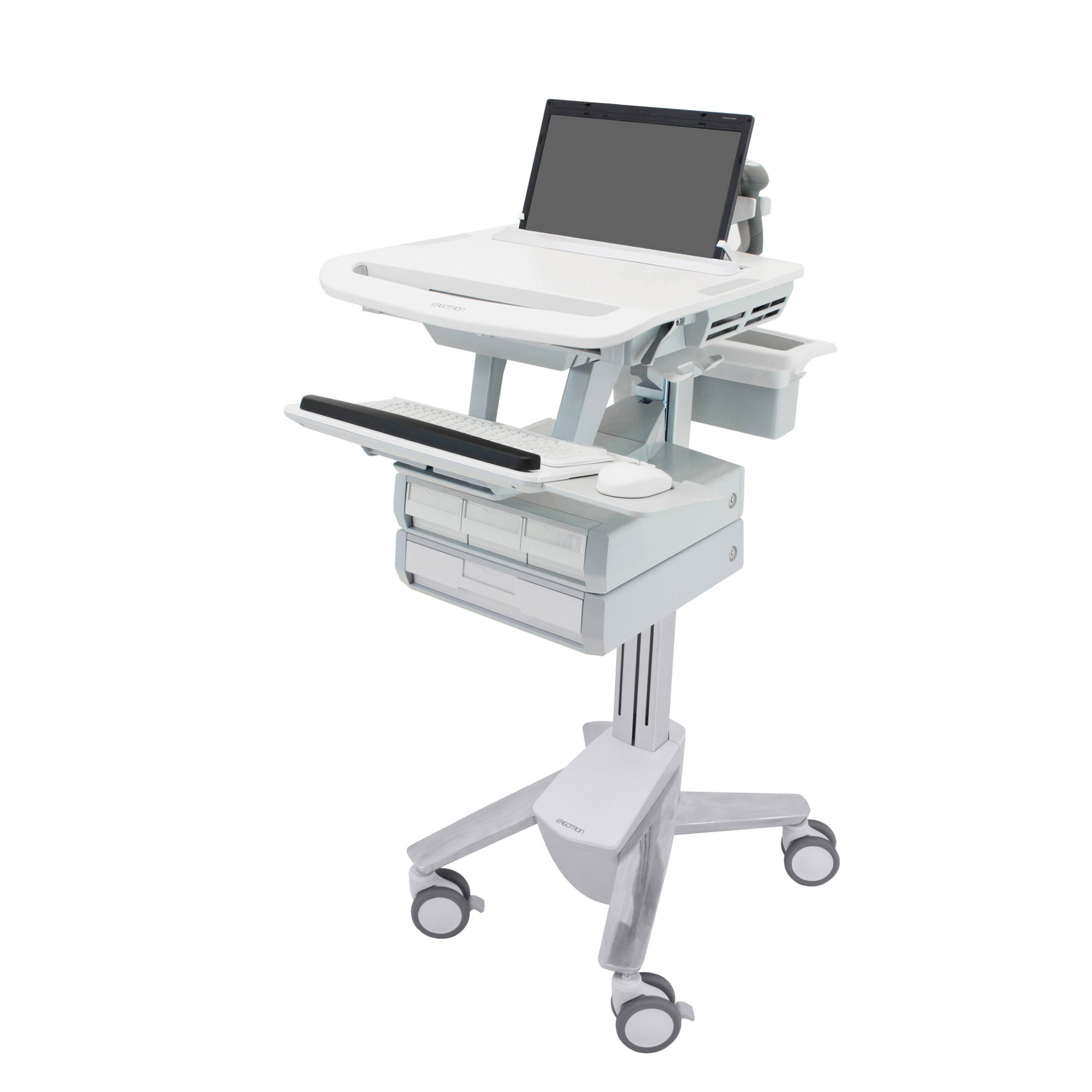

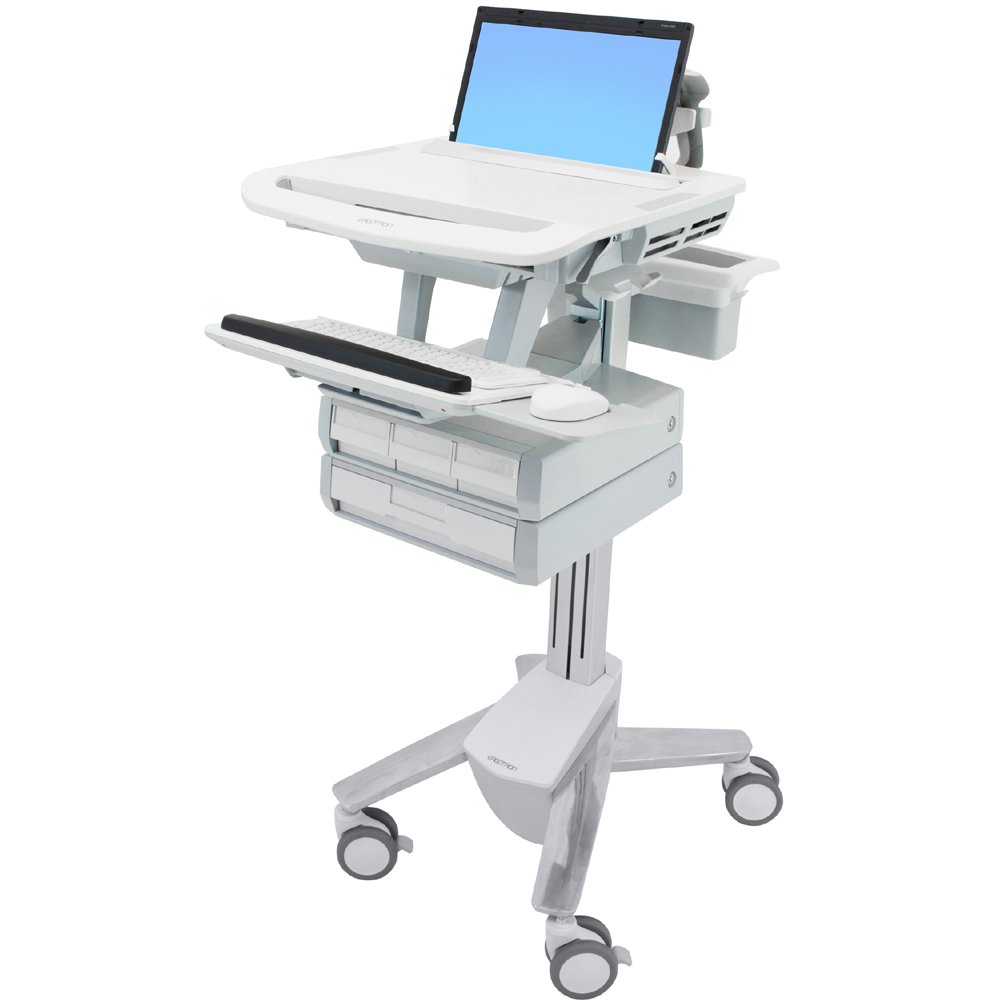

Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers

SV43-1140-0 is non-returnable/non-cancelable.

Product ID 18138
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers

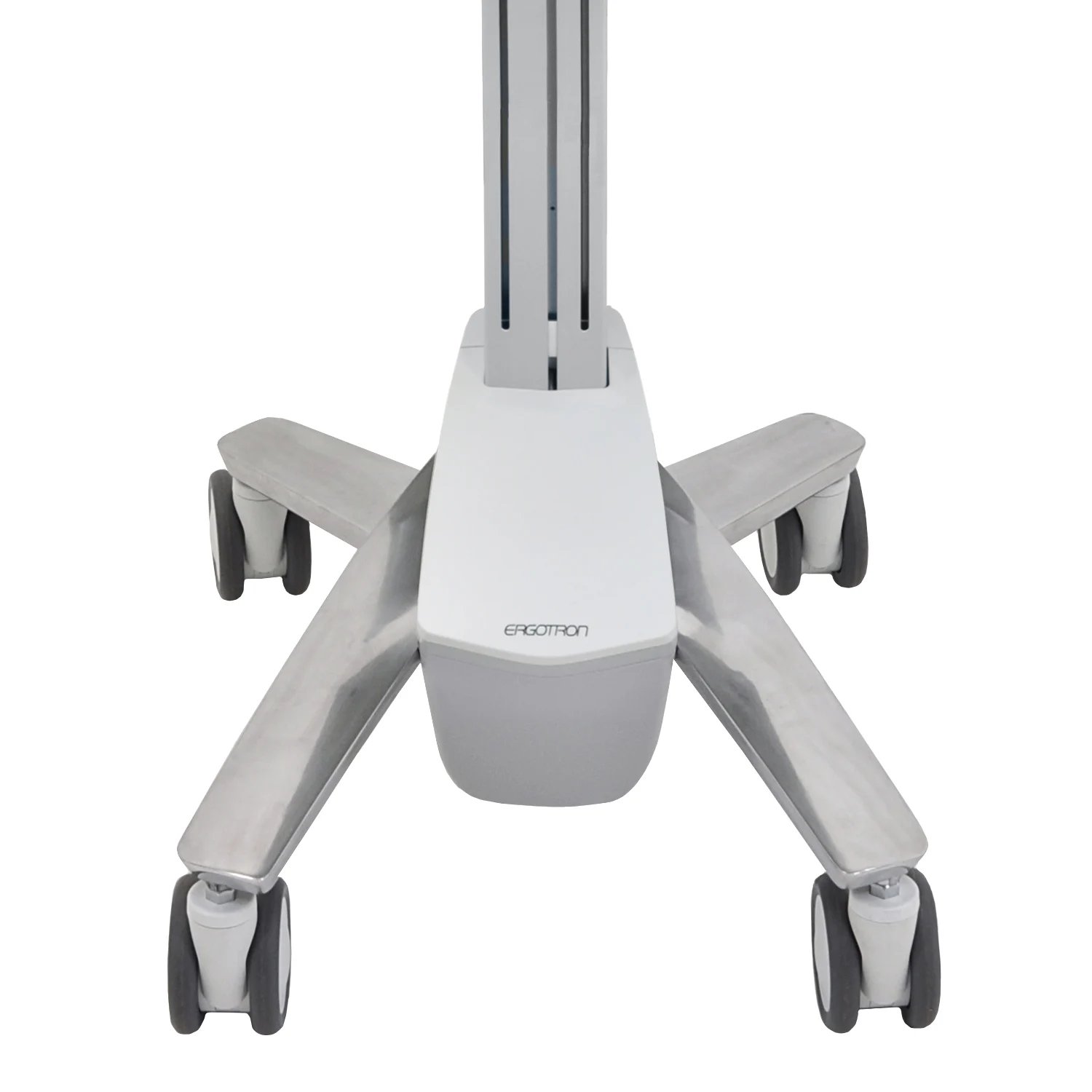

Brake

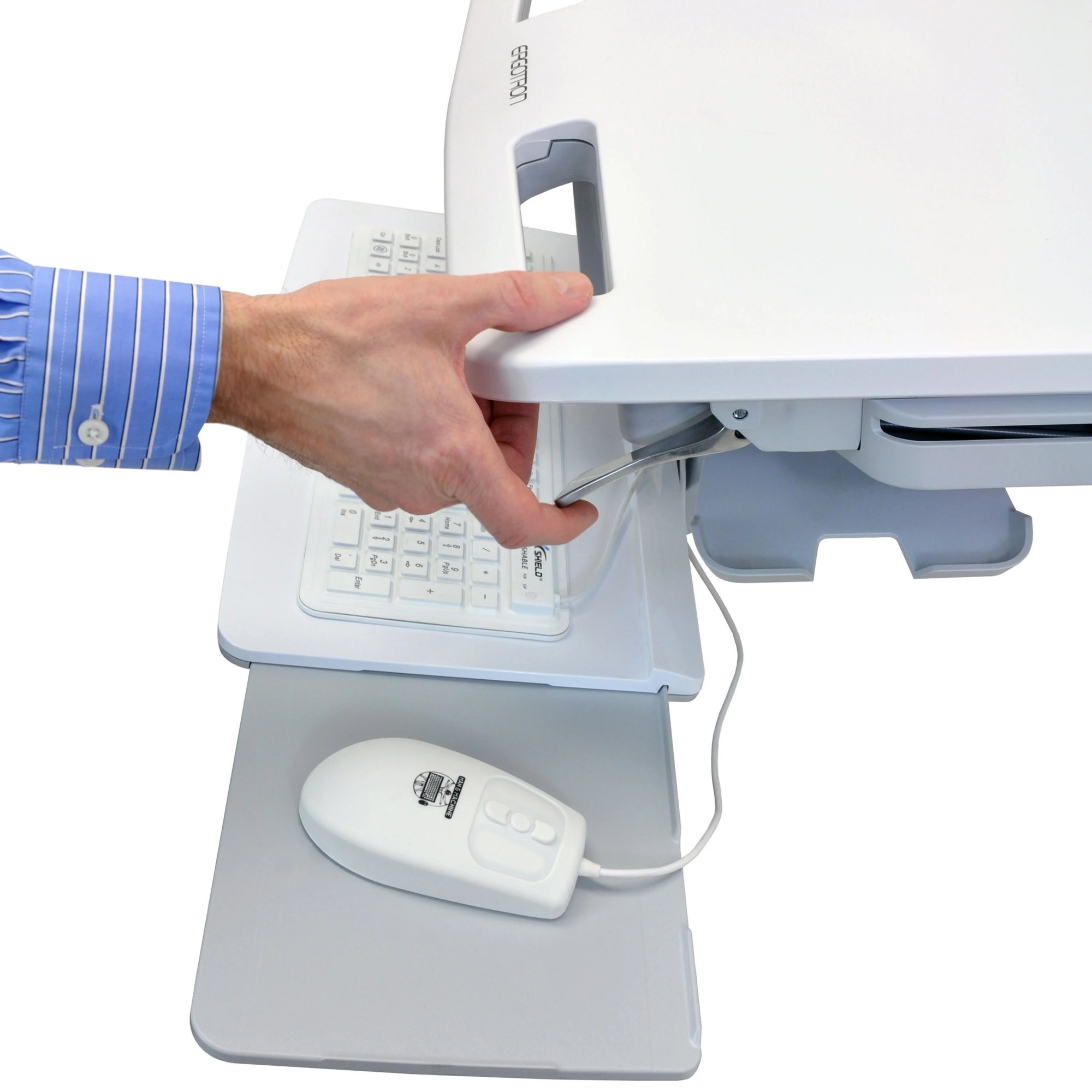

Laptop Guide

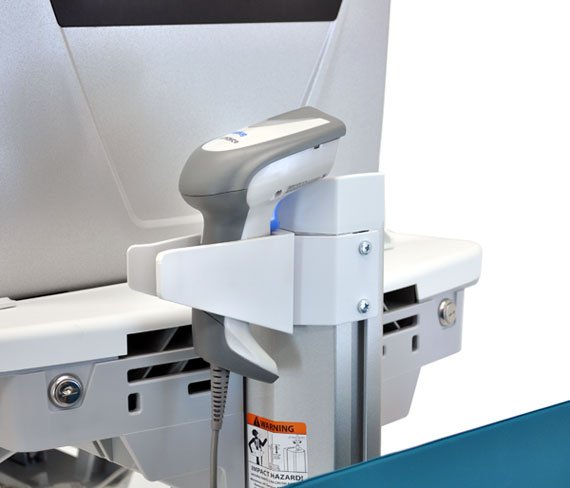

Scanner
Ergotron StyleView: A Cart for Every Need
Ergotron StyleView: Your cart. Your way.
This Is Your StyleView Cart from Ergotron
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers
Brake
Laptop Guide
Scanner
Ergotron StyleView: A Cart for Every Need
Ergotron StyleView: Your cart. Your way.
This Is Your StyleView Cart from Ergotron





Description

Ergotron SV43-1140-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.

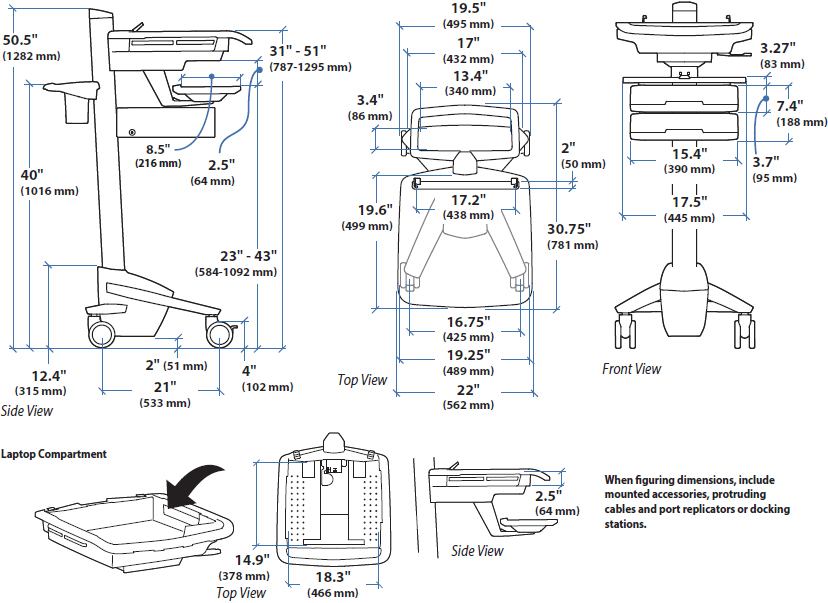

Technical Drawing

Technical Drawing for Ergotron SV43-1140-0 SV Laptop Cart, non-powered, 4 Drawers



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 21 lbs

9.5 kg

20"

51 cm

- - - -



Product Information

Part Number

SV43-1140-0

Description

StyleView Laptop Cart, non-powered, 4 Drawers (white, grey and polished aluminum)

Includes

  • Worksurface
  • CPU lock
  • Secure laptop compartment
  • Primary triple drawer
  • Supplemental single drawer
  • Drawer dividers
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)
  • StyleLink software

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 21 lbs (9.5 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg); small drawer ≤ .25 lbs (.1 kg)

Laptop and Worksurface

Adjust 20" (51 cm) in tandem

Cart

May be fitted with up to five rows of drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20" (51 cm); 3 rows = 16" (41 cm ); 4 rows = 12" (30 cm); 5 rows = 8" (20 cm)

True Ergonomics

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
  • Actual cart weight is just 81 lbs (36.7 kg), making system relocation easy

Safe

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Covered by Global Service Program - 24/7 coverage
  • Includes free StyleLink software with enterprise capabilities for drawer management reporting

All the Details Covered

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface

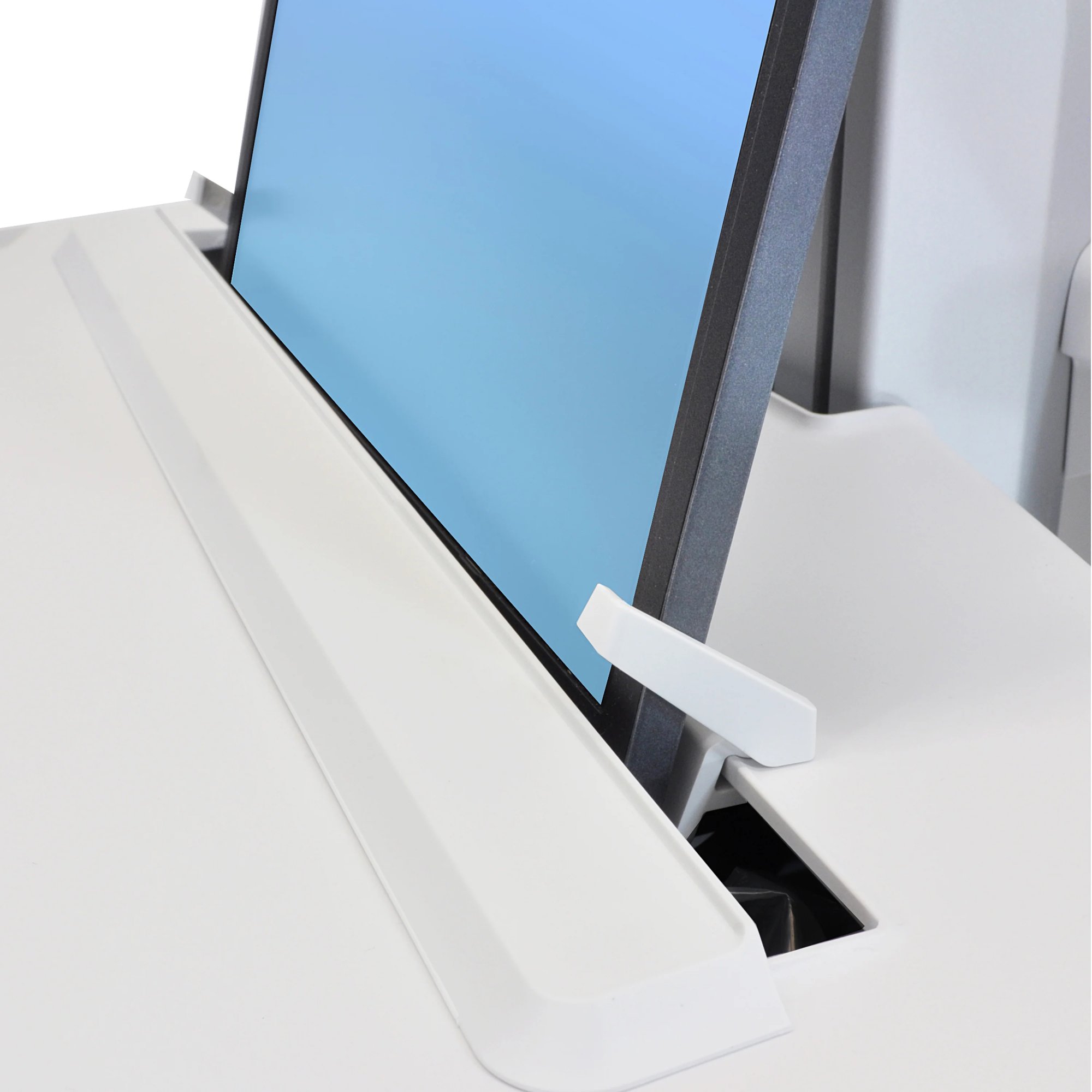

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Universal mounting slot for accessories and equipment
  • Ships fully assembled
  • Four-port USB hub
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
  • Laptop screen slot cover: Protection from large spills on the worksurface while retaining easy access to the laptop’s power button

Compatibility and Dimensions

  • Internal Dimensions: individual small drawer = 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments; large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)


Worksurface Dimensions

22"W x 19.6"D (562 x 498 mm)

Shipping Dimensions

53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight

107 lbs (48.3 kg); actual cart weight = 81 lbs (36.7 kg)

Warranty

Five (5) years



Benefits

  • Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
  • Drawer system supports “Pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
  • Extra rows of drawers may be added - up to a maximum of 5 rows
  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment



Model SV43-1140-0
Manufacturer Ergotron
Part Number SV43-1140-0
UPC 698833043617
Weight lb(s)
Color White, grey and polished aluminum
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Weight Capacity Up to 21 lbs (9.5 kg)
Lift (51 cm) 20 in
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 107 lbs (48.3 kg)
Cart Weight 81 lbs (36.7 kg)
Warranty Five (5) years
Power Type Non-powered
Display Type Laptop
Lift Technology Constant Force
Screen Size 17"-23" in
TAA Compliant No
