Innovative BILD-3/3 Bild 3 Over 3 Monitor Mount
Description
Innovative BILD-3/3 Bild 3 over 3 monitor stand suspends six monitors in two rows above your work surface. This multi-monitor mount, assembled in the USA, features a robust and solid construction for durable performance. Designed for use in a wide range of work settings, the Bild 3 over 3 is a highly adjustable monitor stand, enabling monitors to easily be installed in portrait or landscape orientations with varying tilt up to 200 degrees. Configure your Bild - Quickly and easily go from 2 to 16 plus monitors - all without wasting parts. Our new Bild multi-monitor mount is an easily adjustable monitor mount solution offering an endless number of configurations for installing multiple monitors. Bild enables the user to build, adjust and adapt with ease for their specific application.

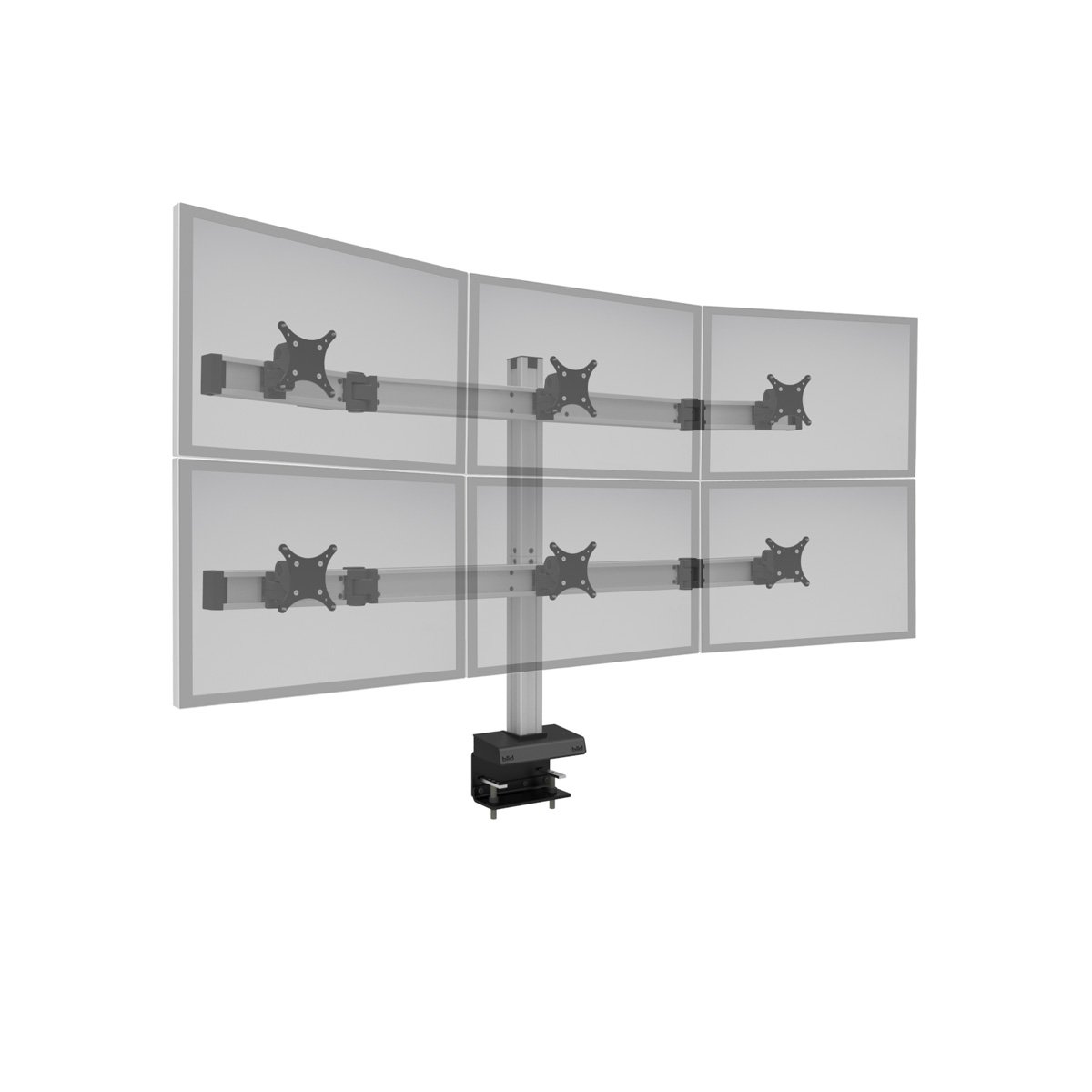

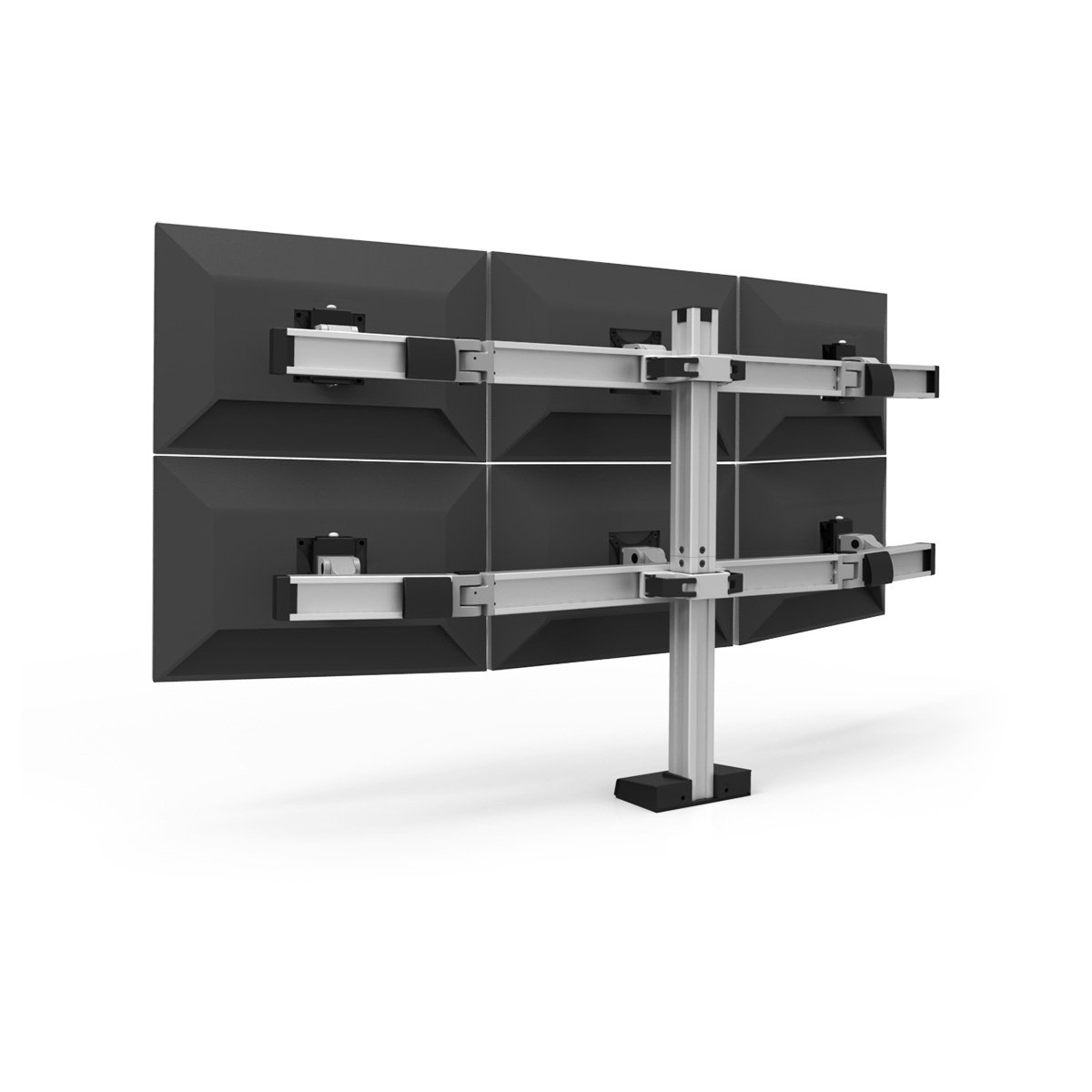

This multi-monitor stand mounts six monitors - two rows of three monitors side-by-side. The 3 over 3 features a robust, solid construction with a clean aesthetic design. Choose from several mounting options.
Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to the desired position. The BILD 3/3 is available with the standard tilter 8336-175 as the default, which works fine with compatible monitors weighing less than 30 lbs. However you have the option to replace the six standard 8336-175 tilters with the 8377-175 spring assisted tilters. Now as you can see in the image below both look very similar.

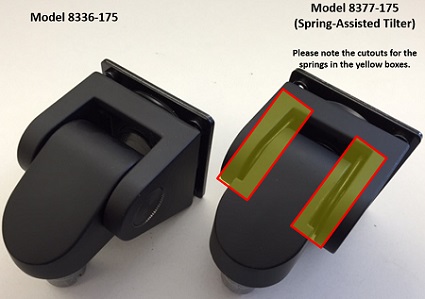

 8377-175 Spring Assisted Tilter |  8336-175 Standard Monitor Tilter |

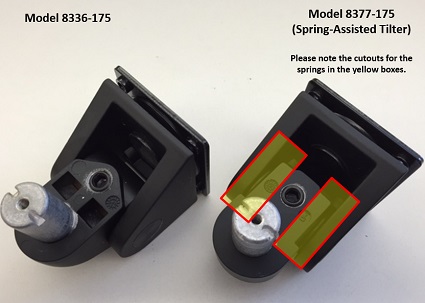

However 8377-175 differs from 8336-175 because of the presence of a spring as you can see in the image below. Technically the 8377-175 has a higher weight capacity (2-55 lbs) than the 8336-175 (2-45 lbs), but the springs in 8377-175 allow for a smoother monitor movement. Less friction force is required to hold the monitor load because of the support from springs and less friction leads to a seamless movement.
 |  |

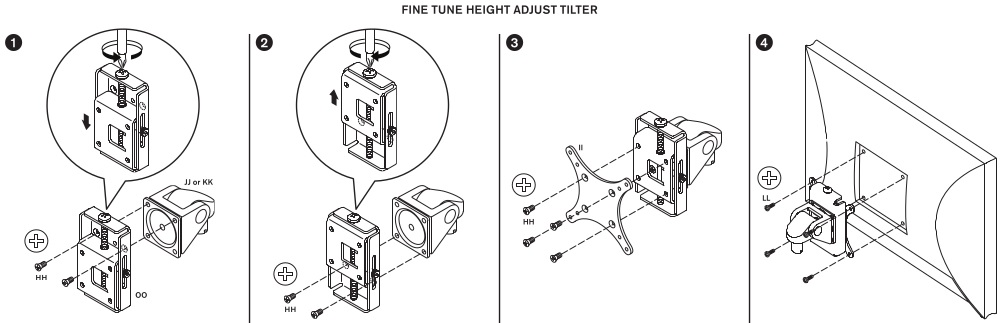

Irrespective of your tilter choice, you can add the 8473 height adjust adapter to adjust each monitor by 1.5 inches. The 8473 adapter gets attached between the tilter and the VESA adapter as shown in the image below.
Technical Drawing
Specifications
| Color | 104 - Vista Black and 124 - Silver |
| Screen Size | Up to 24" |
| Monitor Pivot | Landscape / Portrait |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru Mount (specify when ordering) |
| VESA Compatibility | 75mm, 100mm adapters included |
| Warranty | 10 years |
| Monitor Weight | Up to 30 lbs (13.6 kg) per monitor |
Features
Like all the Bild multi-monitor mounts, the Bild 3 over 3 six monitor mount offers a robust, solid construction with a clean design aesthetic.

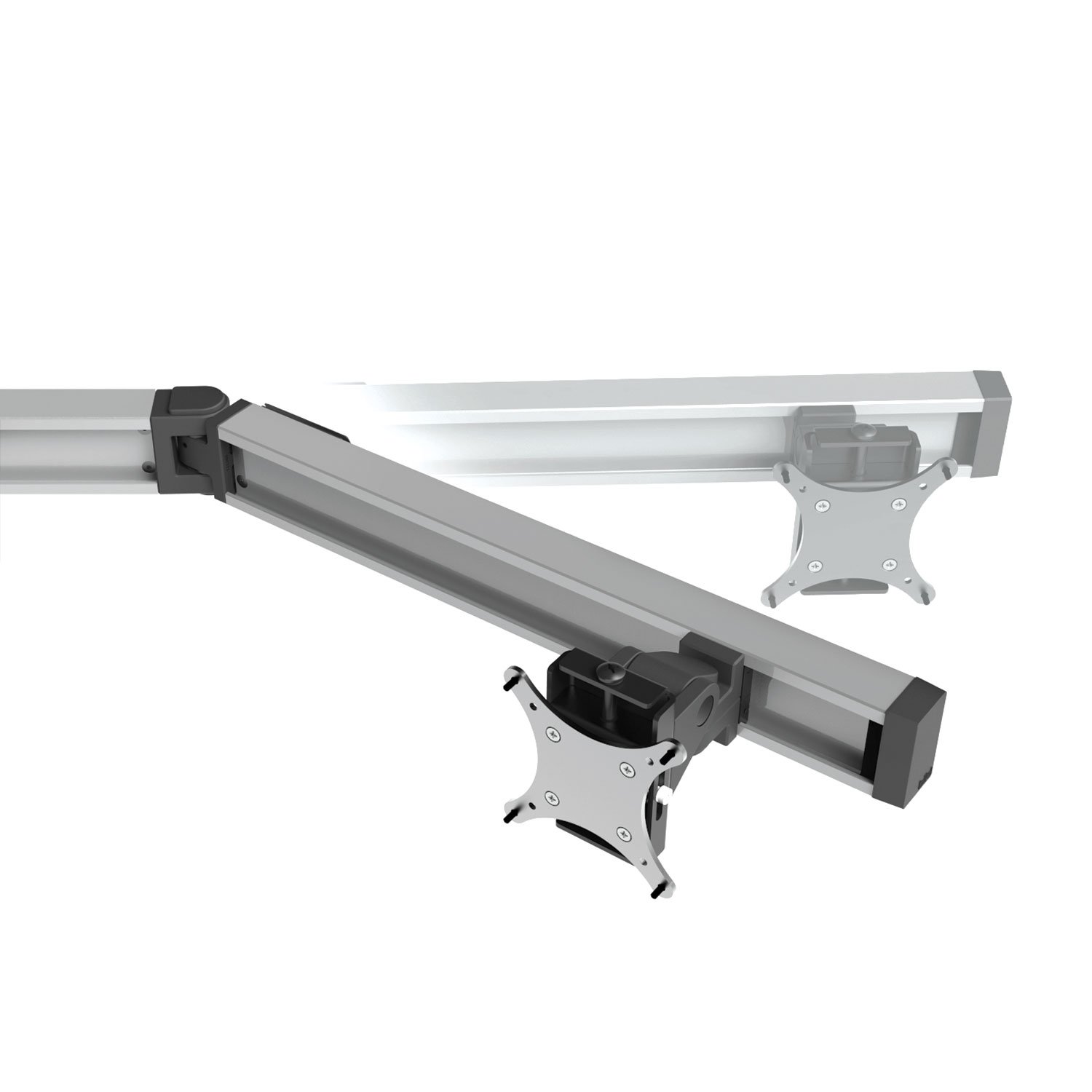

With the Bild 3 over 3 monitor stand, you can position monitors flat or in an arch with easy to adjust hinges.
This multi-monitor mounting system takes the work out of adjusting and replacing monitors. Simply attach, adjust, and remove all at the face of the beam. No need to slide monitors to remove.
The Bild 3 over 3 is a highly adjustable monitor mount. Just loosen and tighten pivot points to the desired rigidity using the tools included. Stored in the beam end cap, they are never out of reach.
For a more streamlined work area, the Bild 3 over 3 multi-monitor mount comes with cable clips in the column and beam that keep cables organized and out of the way.
For ease of installation, the Bild 3 over 3 multi-monitor stand comes with several mounting options: desk clamp, thru-desk.
All Bild multi-monitor mounts are comprised of 99% recyclable content.
The Bild 3 over 3 six monitor stand is assembled in the USA.
VESA-monitor compatible - 75mm, 100mm VESA adapters included.
| Model | BILD-3/3 |
| Manufacturer | Innovative LCD Arms |
| Part Number | BILD-3/3 |
| Color | 104 - Vista Black and 124 - Silver |
| Tilt | Up to 200 degree |
| Monitor Weight | Up to 30 lbs (13.6 kg) per monitor |
| Mounting Options | Desk |
| Number of Monitors | 6 Monitors |
| Monitor Size | Up to 24 |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Warranty | 10 Years |
