Innovative BILD-2 Bild Dual Monitor Mount
Description
Innovative BILD-2 Bild dual monitor mount suspends two monitors side-by-side above your work surface. Monitors can be mounted flat or in an arch; the Bild dual monitor mount, like all our Bild multi-monitor mounts, is a highly configurable solution for multi-monitor applications. Configure your Bild - Quickly and easily go from 2 to 16 plus monitors - all without wasting parts. Our new Bild multi-monitor mount is an easily adjustable monitor mount solution offering an endless number of configurations for installing multiple monitors. Bild enables the user to build, adjust and adapt with ease for their specific application.

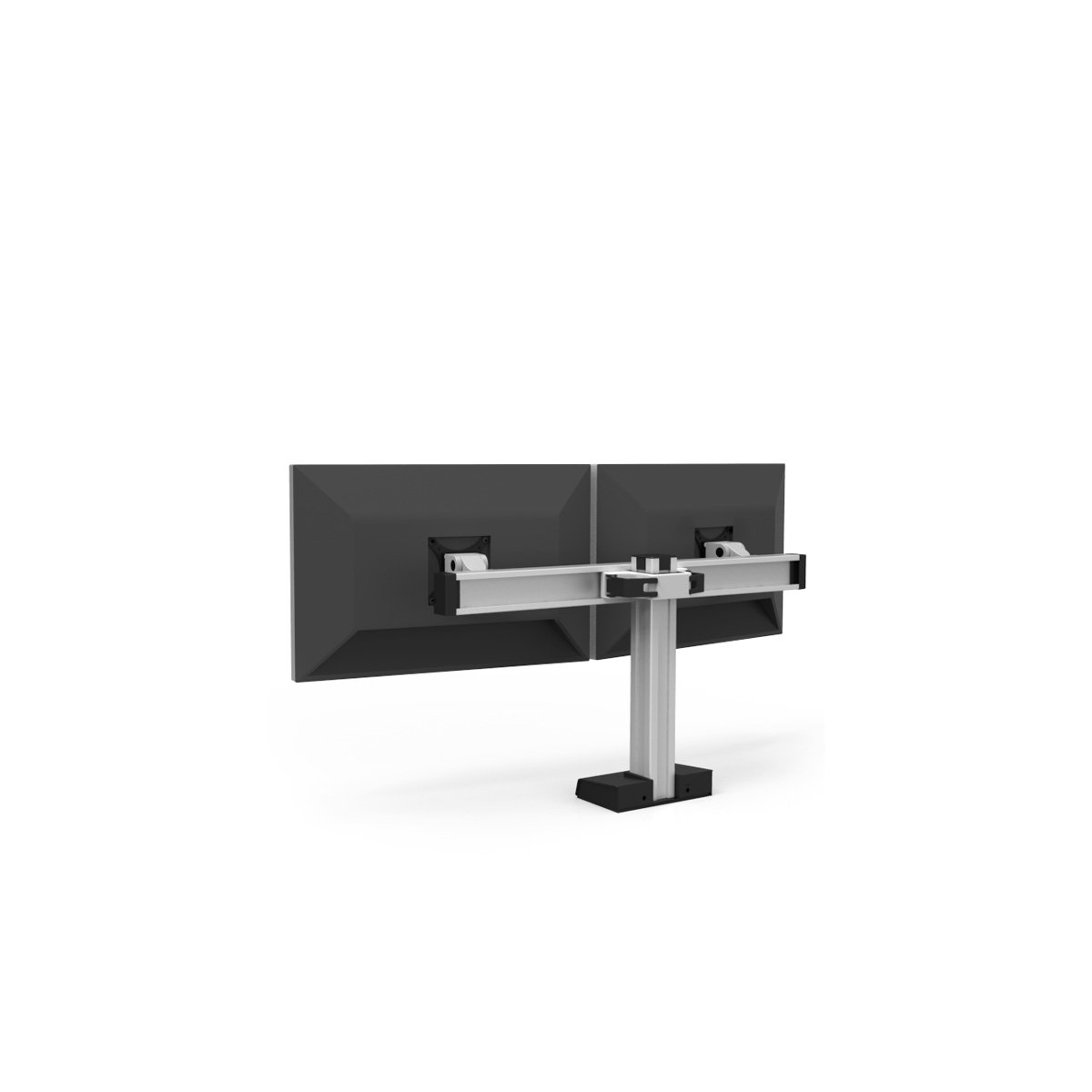

Mount two monitors side-by-side with Bild. This dual monitor stand can support monitors weighing up to 30 lbs. each. The adjustable monitor stand design enables monitors to be positioned for maximum comfort. Choose from several mounting options.

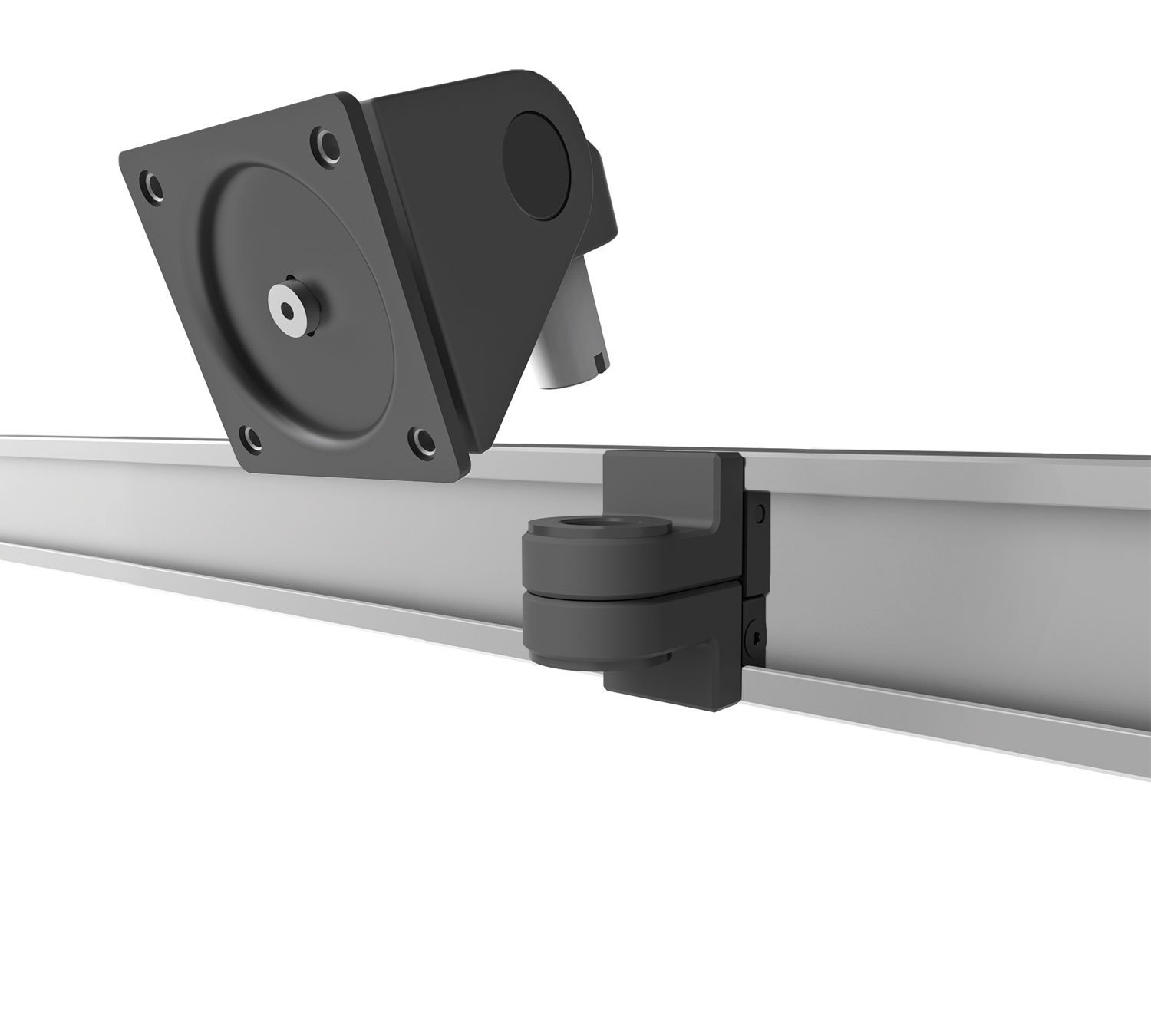

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to the desired position. The BILD-2 is available with the standard tilter 8336-175 as the default, which works fine with compatible monitors weighing less than 30 lbs. However you have the option to replace the two standard 8336-175 tilters with the 8377-175 spring assisted tilters. Now as you can see in the image below both look very similar.
 8377-175 Spring Assisted Tilter |  8336-175 Standard Monitor Tilter |
However 8377-175 differs from 8336-175 because of the presence of a spring as you can see in the image below. Technically the 8377-175 has a higher weight capacity (2-55 lbs) than the 8336-175 (2-45 lbs), but the springs in 8377-175 allow for a smoother monitor movement. Less friction force is required to hold the monitor load because of the support from springs and less friction leads to a seamless movement.
 |  |
Irrespective of your tilter choice, you can add the 8473 height adjust adapter to adjust each monitor by 1.5 inches. The 8473 adapter gets attached between the tilter and the VESA adapter as shown in the image below.
Technical Drawing
Specifications
| Color | 104 - Vista Black and 124 - Silver |
| Screen Size | Up to 30" |
| Monitor Pivot | Landscape / Portrait |
| Mount Configurations | Desk Edge, Thru Mount or Rail (specify when ordering) |
| VESA Compatibility | 75mm, 100mm adapters included |
| Warranty | 10 years |
| Monitor Weight | Up to 30 lbs (13.6 kg) per monitor |

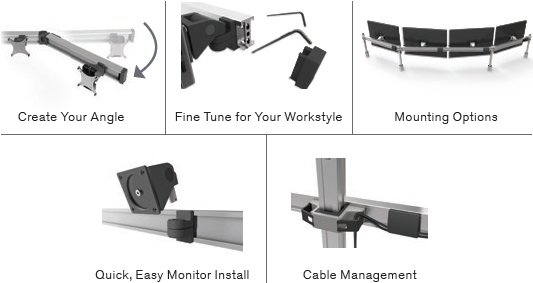

Features
Bild dual monitor mount offers a robust, solid construction with a clean design aesthetic
Quick, easy monitor install - This multi-monitor mount takes the work out of adjusting and replacing monitors. Simply attach, adjust, and remove all at the face of the beam. No need to slide monitors to remove
Fine tune for your workstyle - Monitor mount pivot points loosen and tighten to the desired rigidity using the tools included. Stored in the beam end cap, they are never out of reach
The Bild dual monitor stand cleans up the workspace with cable clips in the column and beam that keeps cables organized and out of the way
The Bild dual monitor stand offers several mounting options: desk clamp, thru-desk and rail
Bild dual is comprised of 99% recyclable content
Bild dual monitor mount is assembled in the USA
VESA-monitor compatible - 75mm, 100mm VESA adapters included
| Model | BILD-2 |
| Manufacturer | Innovative LCD Arms |
| Part Number | BILD-2 |
| Color | 104 - Vista Black and 124 - Silver |
| Monitor Weight | Up to 30 lbs (13.6 kg) per monitor |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Monitor Size | Up to 30 |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75 mm, 100mm |
| Warranty | 10 Years |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
