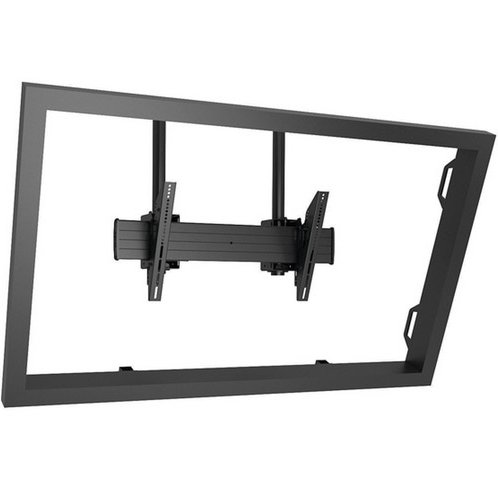

Chief XCM7000 FUSION X-Large Dual Pole Flat Panel Ceiling Mount
More shipping >
Description
Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations. Chief's XCM7000 is a dual pole drop ceiling mount for XL displays over 5" deep. See the Chief XCM1U single pole ceiling mount for lighter and thinner XL displays.
Ceiling Plate and extension column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
CPA ceiling plates and CPA columns for pin connection compatibility
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

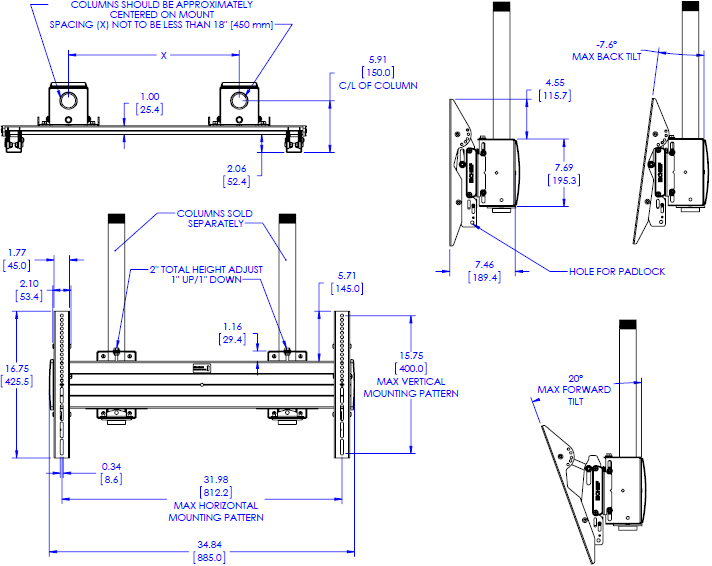

Technical Drawing
Specifications
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 100 mm - 800 x 400 mm |
| Overall Dimensions | 16.8" x 34.8" x 7.9" (423 x 885 x 200mm) |
| Number of Monitors | 1 |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 34 lbs (15.42 kg) |
| Tilt | +7.5 / -20˚ |
| Typical Screen Sizes | 55 - 100" |
| Weight Capacity | 300 lbs (136.1 kg) |
| Orientation | Landscape |
Features
Repeatability - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens
Accessibility - Simple on/off connection for ease of installation and service
Simple & Secure - Tool free screen engagement with optional padlock security
Stability - Dual pole drop along with locking tilt angles provide a more stable system for extremely heavy and deep displays
TAA compliant
Product Options/Accessories
Frequently Asked Questions
| Model | XCM7000 |
| Manufacturer | Chief Mounts |
| Part Number | XCM7000 |
| UPC | 841872159645 |
| Color | Black |
| Mounting Pattern | 200 x 100 mm - 800 x 400 mm |
| Overall Dimensions | 16.8" x 34.8" x 7.9" (423 x 885 x 200mm) |
| Shipping Weight | 34 lbs (15.42 kg) |
| Tilt | + 7.5 degree, - 20 degree |
| Monitor Size | 55 - 100" |
| Weight Capacity | 300 lbs (136.1 kg) |
| Number of Monitors | 1 Monitor |
| Post-Installation Leveling Roll | Yes |
| Orientation | Landscape |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
