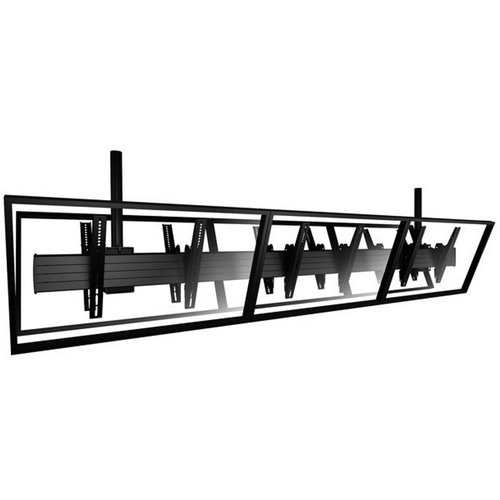

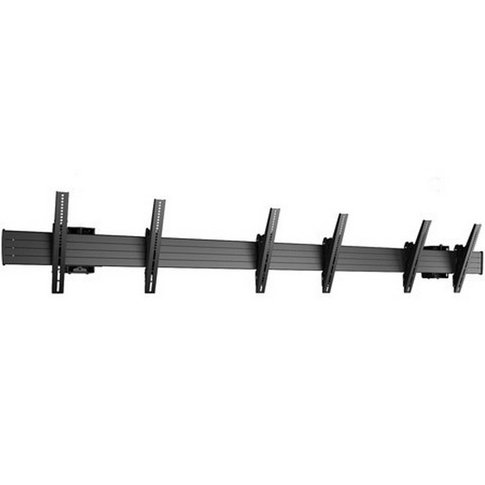

Chief FCAB3X1U Large Ceiling Back-to-Back 3x1 Add on Accessory
Description
Chief's FCAB3X1U Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. The FCAB3X1U can be used to retrofit single sided 3 x 1 ceiling configurations to be back-to-back solutions.
Screen array configuration: screens wide x screens high
Confirm screen compatibility with MountFinder

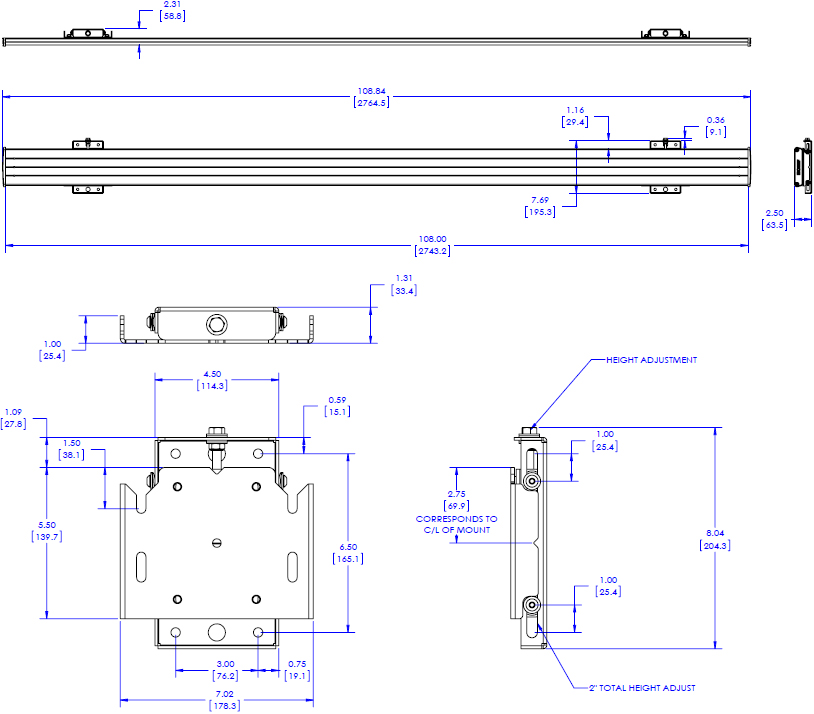

Technical Drawing
Specifications
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Notes | Weight capacity is per display |
| Number of Monitors | 6 |
| Screen Array Configuration | 3 x 1 |
| Shipping Weight | 47 lbs (21.32 kg) |
| Solution Type | Universal |
| Tilt | + 5°, - 20° |
| Typical Screen Sizes | 40 - 55" (up to 65" with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
Transform an LCM3X1U into an LCB3X1U
Single horizontal extrusion keeps screens aligned
Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
Tool-free screen engagement
Security: Add a pad lock to secure screen to mount
Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65"
Product Options/Accessories
| Model | FCAB3X1U |
| Manufacturer | Chief Mounts |
| Part Number | FCAB3X1U |
| UPC | 841872158938 |
| Color | Black |
| Shipping Weight | 47 lbs (21.32 kg) |
| Tilt | + 5 degree, - 20 degree |
| Monitor Size | 40 - 55" (up to 65" with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
