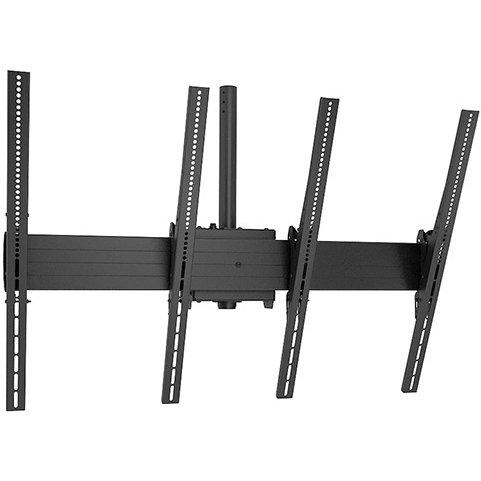

Chief LCM2X1UP FUSION Large Ceiling Mounted 2x1 Portrait Menu Board
Description
Chief's LCM2X1UP Fusion ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

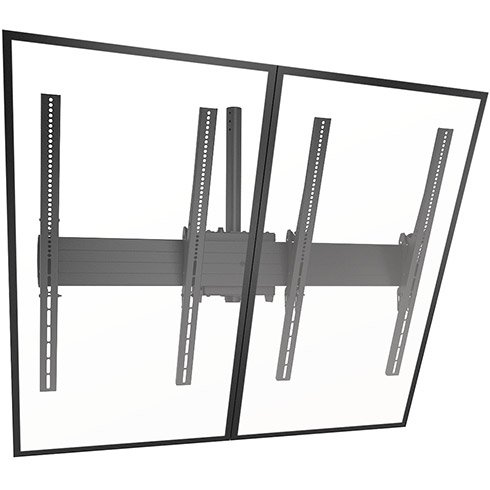

Screen array configuration: screens wide x screens high
Confirm screen compatibility with MountFinder

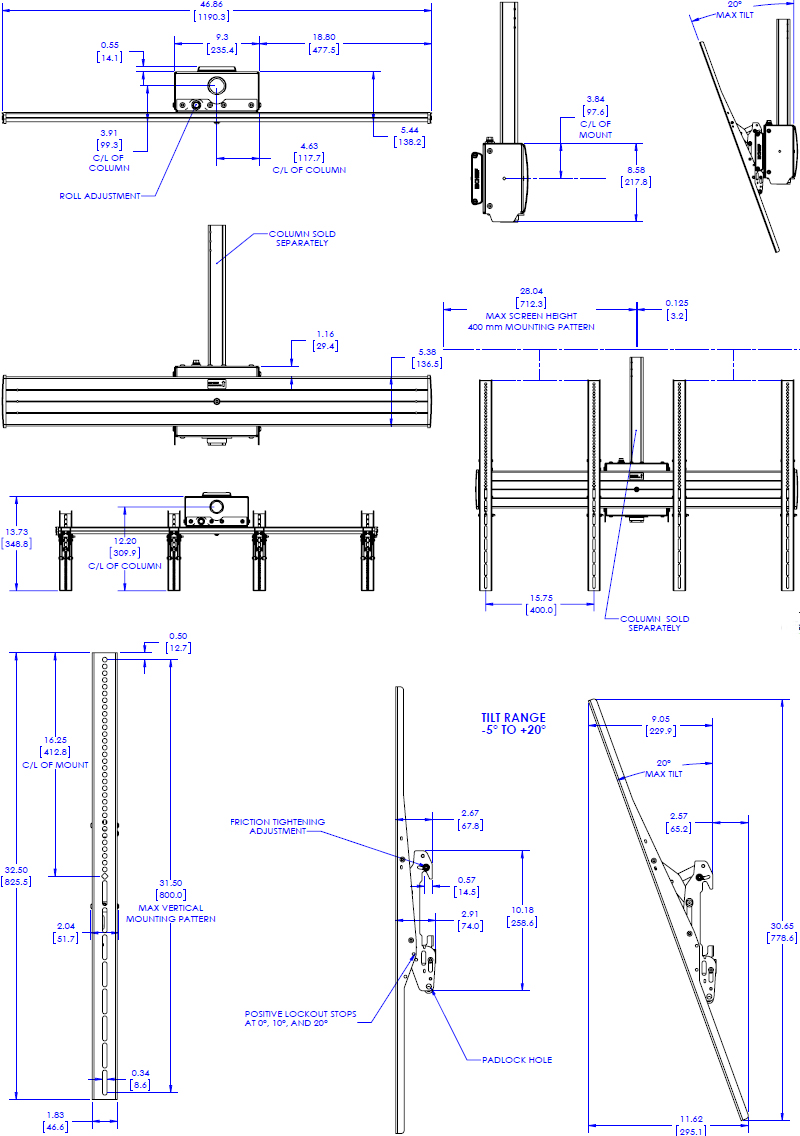

Technical Drawing
Specifications
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 - 800 mm |
| Notes | Weight capacity is per display |
| Number of Monitors | 2 |
| Post-Installation Leveling Roll | +/- 3° |
| Screen Array Configuration | 2 x 1 |
| Shipping Weight | 50 lbs (22.68 kg) |
| Solution Type | Universal |
| Tilt | + 5°, - 20° |
| Typical Screen Sizes | 40 - 55" (up to 65" with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Portrait |
Features
Single drop for fast installation
Micro adjustable roll for perfect leveling +/- 3 degrees
360 degree swivel for optimal viewing angles
Single horizontal extrusion keeps screens aligned
Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
Tool-free screen engagement
Secure displays with optional pad-lock security
Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
Ceiling plate and Extension column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility.
TAA Compliant
Product Options/Accessories
| Model | LCM2X1UP |
| Manufacturer | Chief Mounts |
| Part Number | LCM2X1UP |
| UPC | 841872158846 |
| Color | Black |
| Mounting Pattern | Any width x 100 - 800 mm |
| Roll | +/- 3° |
| Shipping Weight | 50 lbs (22.68 kg) |
| Tilt | + 5 degree, - 20 degree |
| Monitor Size | 40 - 55" (up to 65" with FCAX extension brackets) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Number of Monitors | 2 Monitors |
| Orientation | Portrait |
