Humanscale QuickStand Single Sit Stand Workstation

ErgoDirect is an Authorized Dealer of Humanscale. Humanscale does not honor any warranty for its products sold by Unauthorized Resellers. Please check the Humanscale site for a list of Humanscale Unauthorized Resellers .

Product ID 17994
Humanscale QuickStand Single Sit Stand Workstation
White Finish

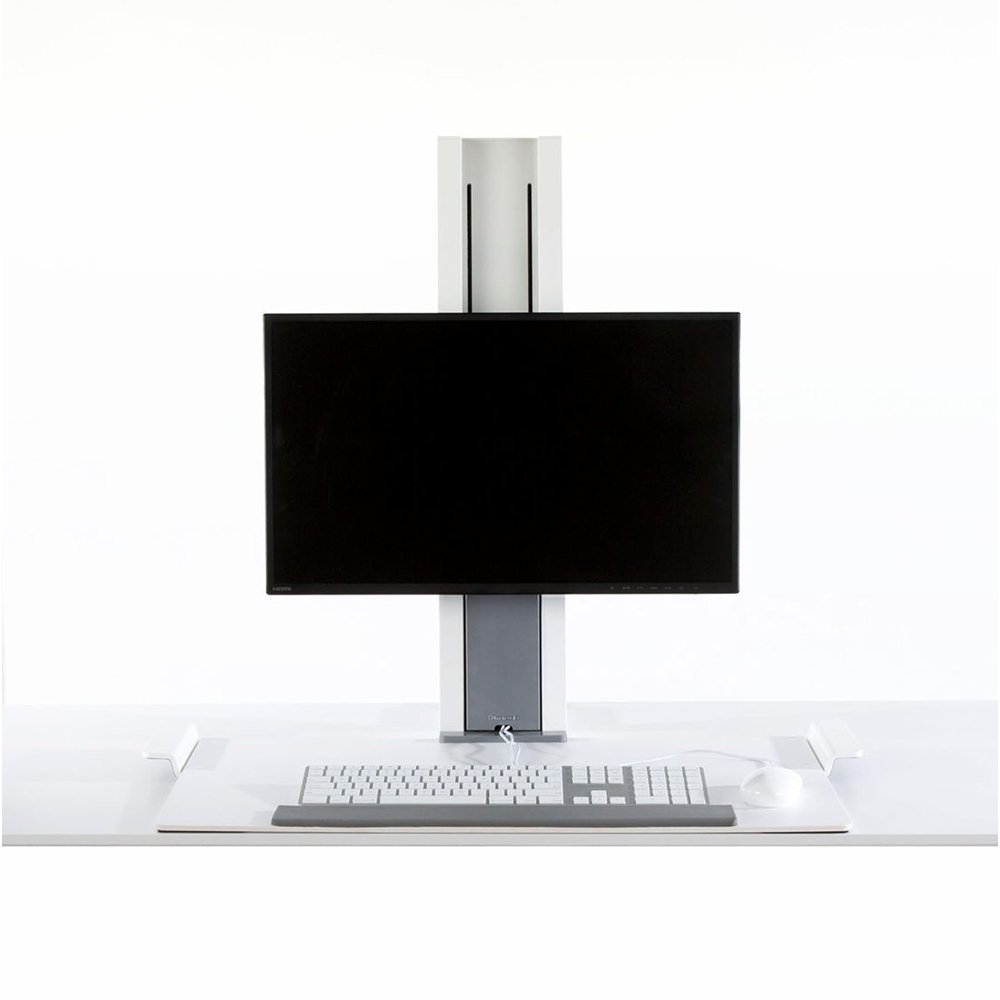

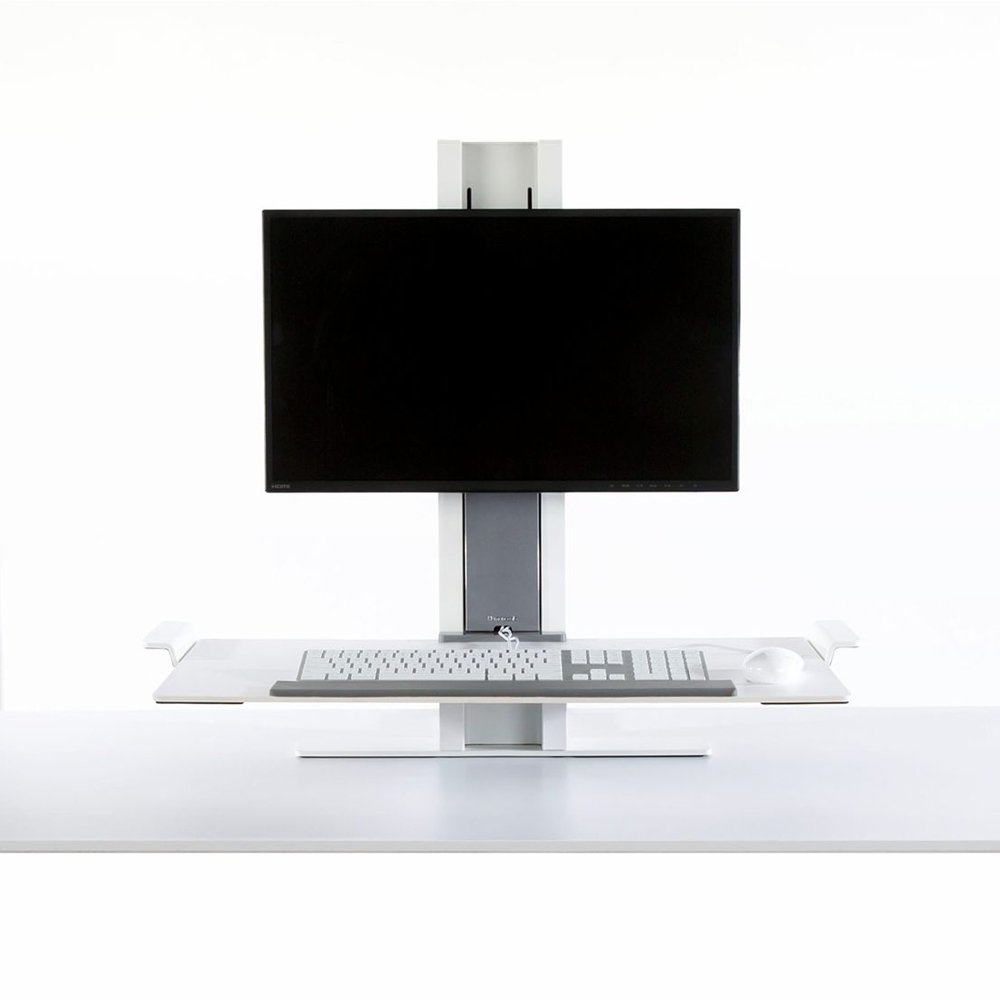

QuickStand Sit/Stand solution - front view mid-height 2

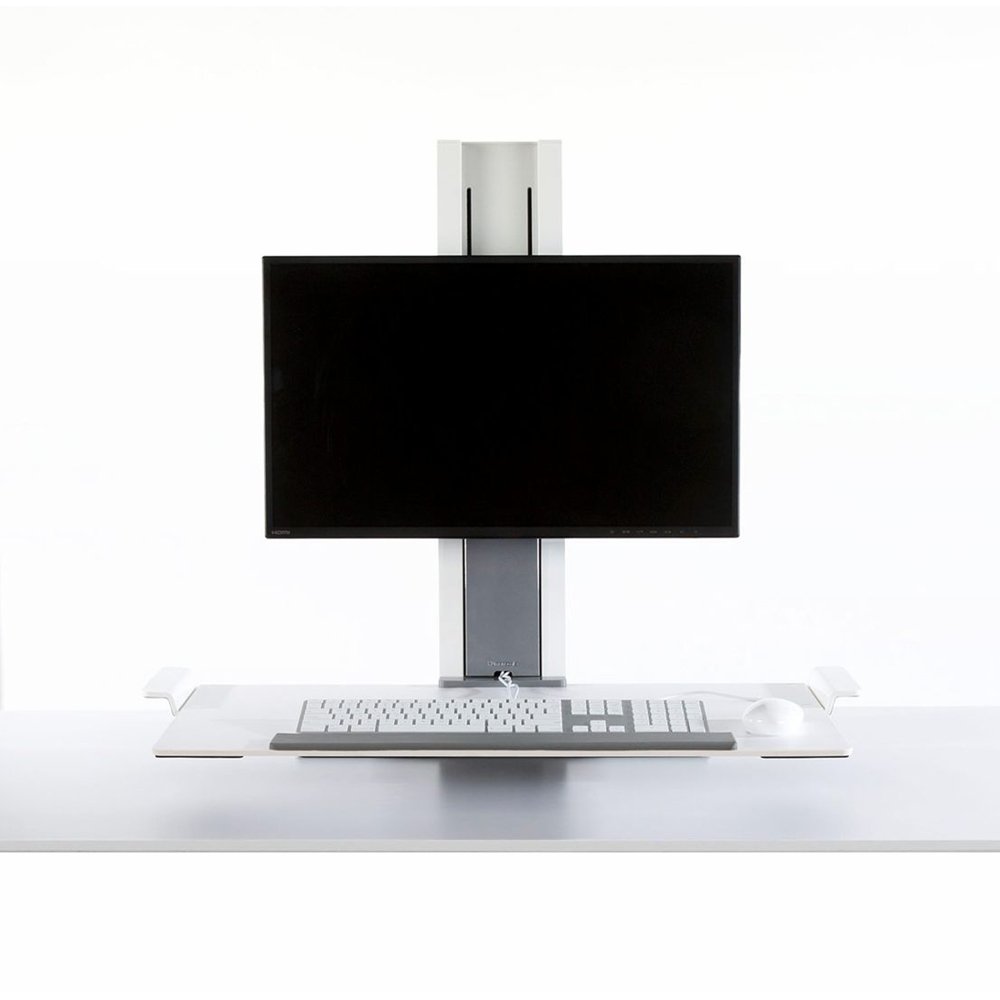

QuickStand Sit/Stand Solution - front view mid-height

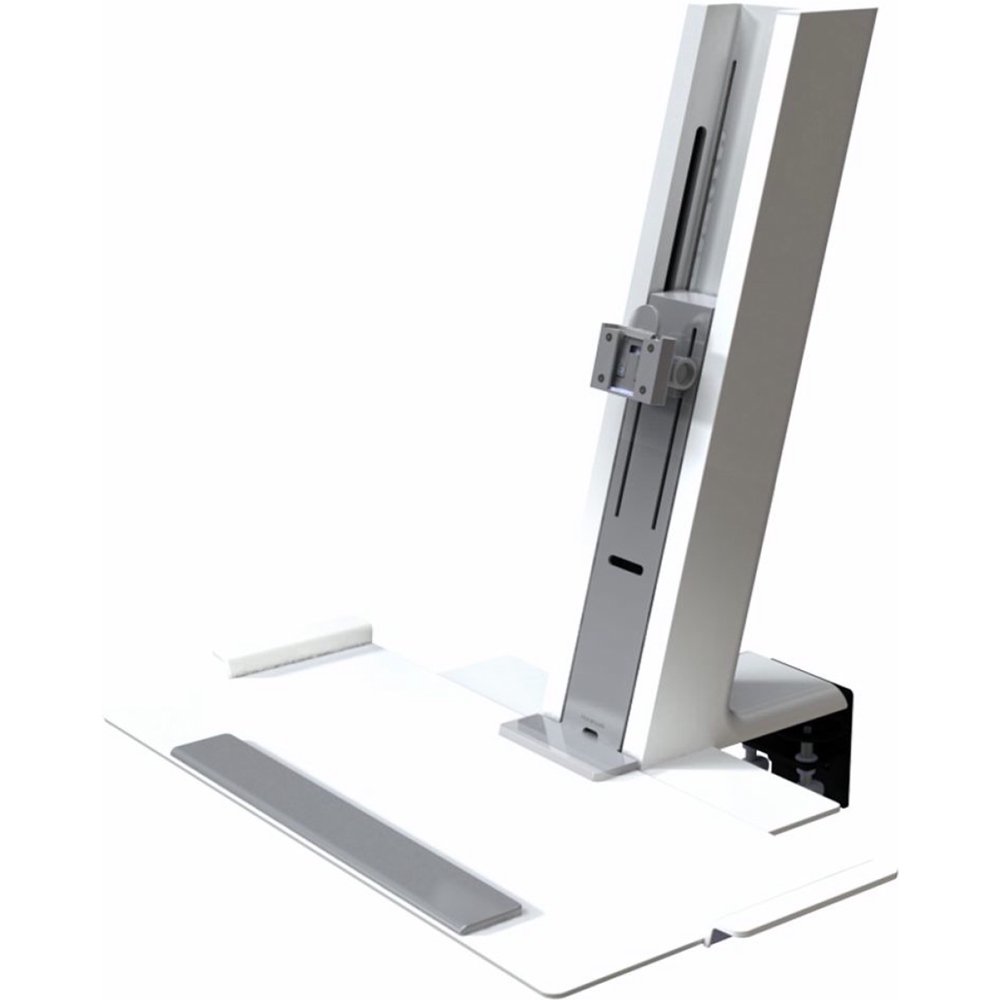

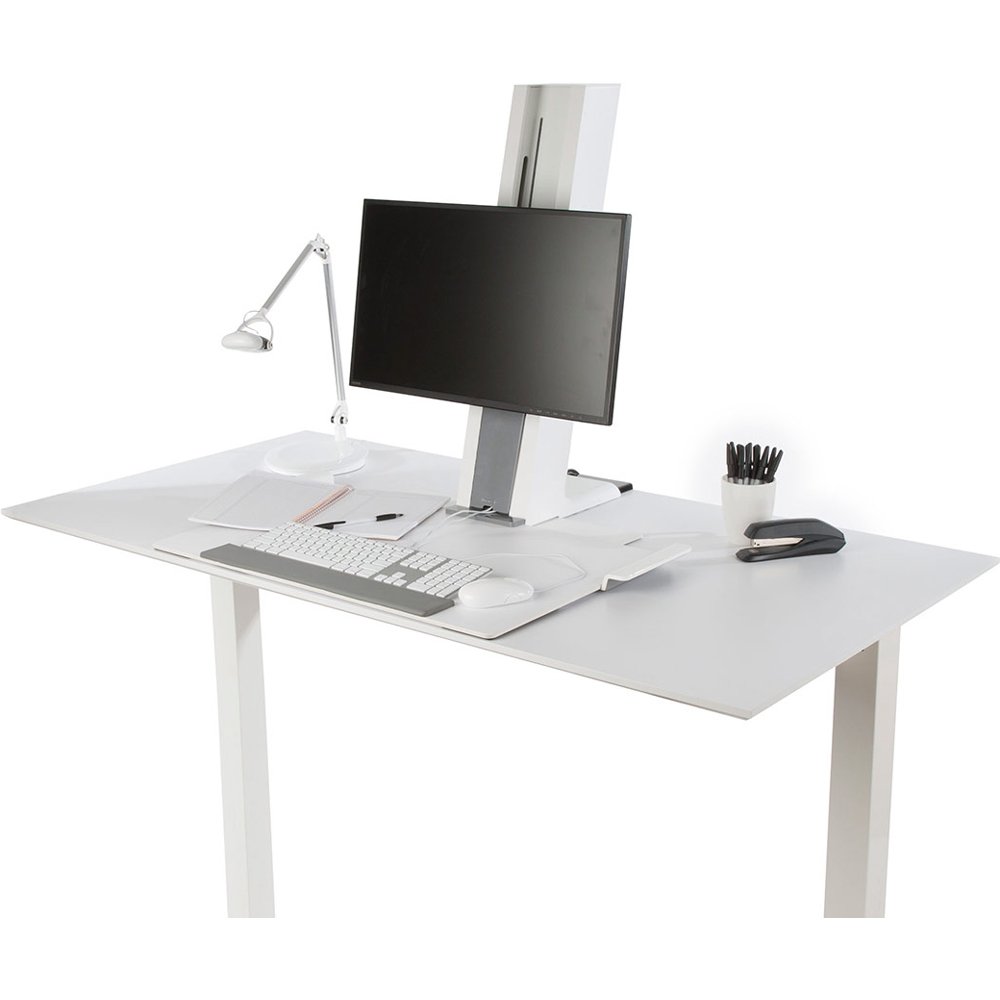

QuickStand Sit/Stand Solution - complete ergonomic solutions, front 3/4 view

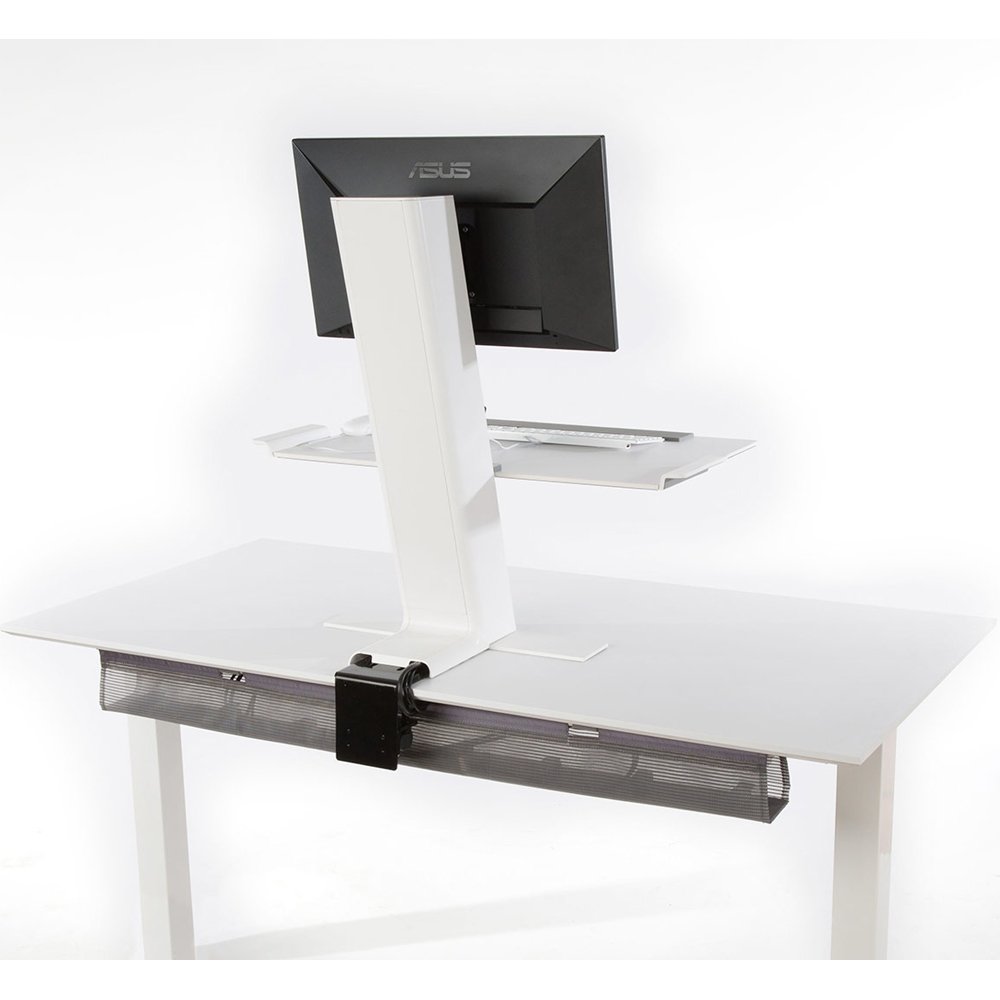

Easy Attachment - Two-piece clamp for clamping or through grommet mount

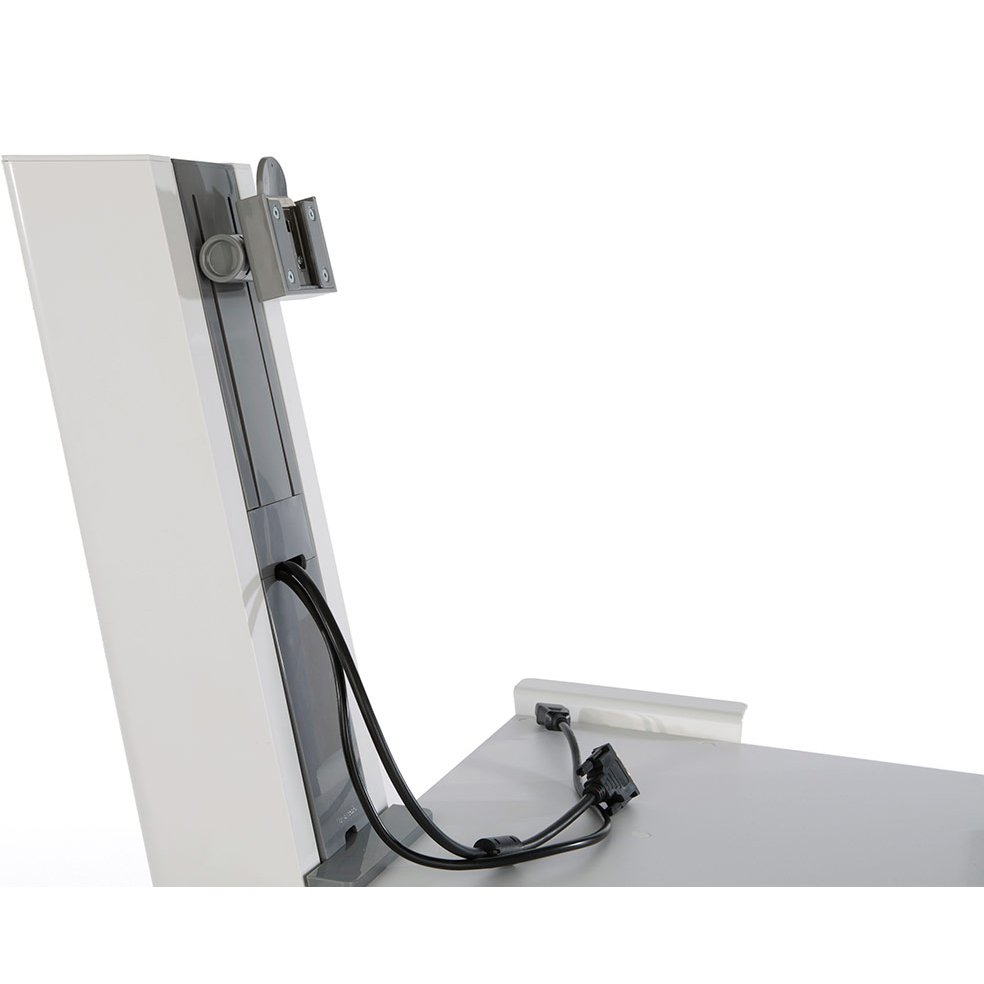

VESA compliant with friction monitor adjustability

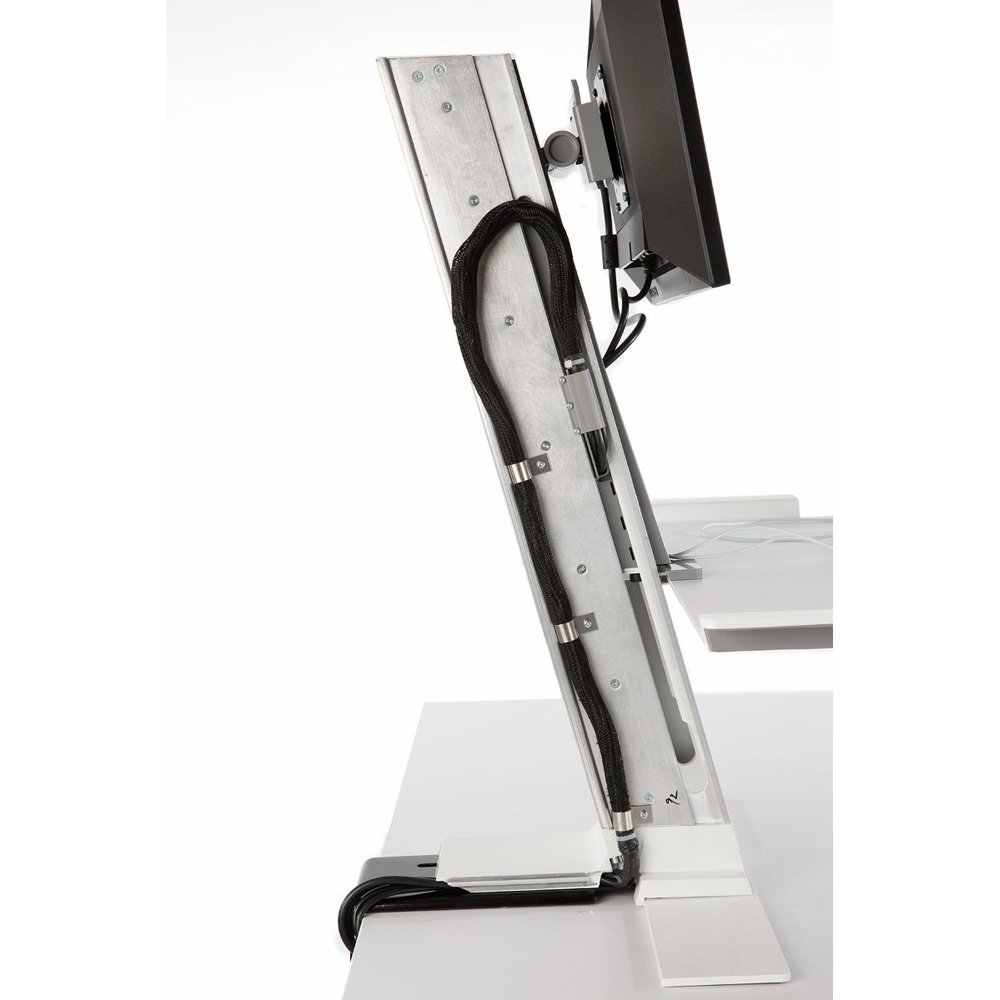

Fully integrated and pre-installed cable management
QuickStand Sit/Stand solution - front view base height
Humanscale QuickStand Single Sit Stand Workstation
White Finish
QuickStand Sit/Stand solution - front view mid-height 2
QuickStand Sit/Stand Solution - front view mid-height
QuickStand Sit/Stand Solution - complete ergonomic solutions, front 3/4 view
Easy Attachment - Two-piece clamp for clamping or through grommet mount
VESA compliant with friction monitor adjustability
Fully integrated and pre-installed cable management
QuickStand Sit/Stand solution - front view base height

Description

Sleek, sturdy and simple to use, QuickStand is the ultimate sit/stand solution for new and existing workstations. Humanscale created QuickStand to encourage users to be active and integrate movement into their days, which is vital to health. For easy installation, QuickStand clamps to any fixed-height work surface like a monitor arm. It is built with all the cables the user needs to simply plug in and go, and these cables are expertly managed for a clean aesthetic. And best of all, QuickStand doesn’t compromise the user’s desktop, leaving space on either side for paper-based work or other items.

A revolution for today’s workspaces, the QuickStand sit/stand workstation is an intuitive solution created by the Humanscale Design Studio. It works by clamping to any existing work surface, instantly transforming a static, or “dumb,” desk into a smart one. Allowing the user to alternate effortlessly between seated and standing postures, the QuickStand sit/stand workstation promotes balanced movement throughout the day, and its clean aesthetic complements any environment. Its sophisticated cable management system saves valuable time by allowing users to simply plug in and go, while its sturdy build makes it a reliable investment in employee health and wellness.

The Importance of Movement - Recent research suggests that sedentary behavior can lead to significant health problems. But standing all day isn’t the answer either, as it can cause discomfort and swelling in the legs and feet. The best way to maintain wellness while working is to alternate between sitting and standing postures and the QuickStand sit/stand workstation encourages such movement.

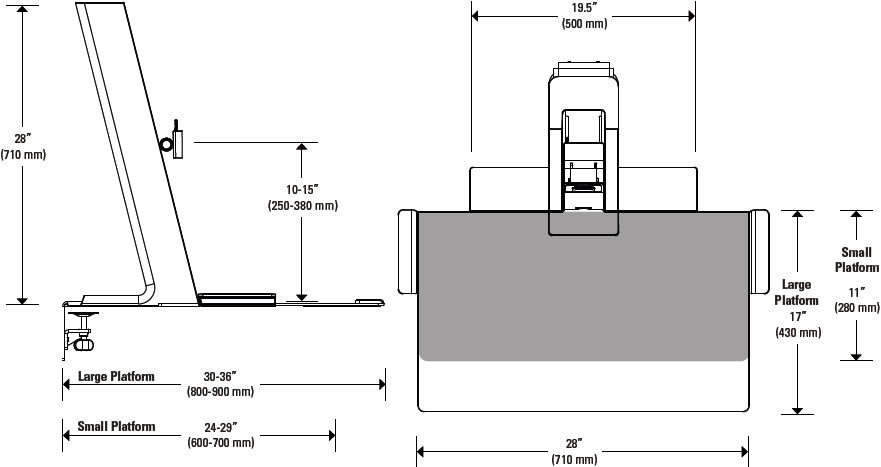

Technical Drawing

Technical drawing for Humanscale QuickStand Light Workstation with Small Platform



Features

  • Dynamic design allows QuickStand to clamp to any fixed-height work surface

  • Adjustable platform enables the work surface to move effortlessly to the user’s desired height

  • Stable build provides reliability to the user

  • Elegant, clean aesthetic complements any environment

  • Available in a number of configurations, including those with dual monitor requirements

  • Able to accommodate nearly any application



Specifications

  • Solid, stable product, Clean, visual aesthetic and Easy to operate

  • Designed with a large platform that seamlessly blends into your work surface

  • Cable harness pre-installed for easy plug in and go

  • Fully integrated cable management

  • Two USB outlets for keyboard/mouse

  • 18" (460 mm) platform height adjustment

  • 5" (127 mm) single/dual monitor display adjustment

  • Work surface clamp has 6" (150 mm) of horizontal adjustment for a 24" (600 mm) up to 36" (900 mm) deep surface

  • Work surface clamp attaches to the back edge of a ½" (13 mm) up to 2¾" (70 mm) thick surface



Technical Specifications

Part Number

QSWL24/QSBL24

QSWL30/QSBL30

QSWC30/QSBC30

Description

Light Duty, Single Monitor, Small Platform

Light Duty, Single Monitor, Large Platform

Heavy Duty with Crossbar, Dual Monitors, Large Platform

Work Surface Size

24" (600 mm) to 29" (700 mm) Deep Work Surface

30" (800 mm) to 36" (900 mm) Deep Work Surface

30" (800 mm) to 36" (900 mm) Deep Work Surface

Color

White & Gray, Black & Gray

White & Gray, Black & Gray

White & Gray, Black & Gray

Package Contents

  • QuickStand Height-Adjustable Column
  • Small Platform
  • Integrated Cable Harness for One Monitor
  • Palm Support
  • Two-Piece Desk Clamp
  • Tool Kit
  • QuickStand Height-Adjustable Column
  • Large Platform
  • Integrated Cable Harness for One Monitor
  • Palm Support
  • Two-Piece Desk Clamp
  • Tool Kit
  • QuickStand Height-Adjustable Column
  • Crossbar
  • Large Platform
  • Integrated Cable Harness for Two Monitors
  • Palm Support
  • Two-Piece Desk Clamp
  • Tool Kit

Clamp Options

Two-Piece Desk Clamp for ½" (13mm) up to 2¾" (70 mm) Thick Work Surfaces

Two-Piece Desk Clamp for ½" (13mm) up to 2¾" (70 mm) Thick Work Surfaces

Two-Piece Desk Clamp for ½" (13mm) up to 2¾" (70 mm) Thick Work Surfaces

Platform Size

28" (710 mm) Wide x 11" (280 mm) Deep

28" (710 mm) Wide x 17" (430 mm) Deep

28" (710 mm) Wide x 17" (430 mm) Deep

Installed Cable Harness

  • 1 x IEC C13 Power Cord 3 m Length
  • 1 x DVI-DUAL Link Cable 3 m Length
  • 2 x USB 2.0 Cable 2 m Length
  • 1 x IEC C13 Power Cord 3 m Length
  • 1 x DVI-DUAL Link Cable 3 m Length
  • 2 x USB 2.0 Cable 2 m Length
  • 2 x IEC C13 Power Cord 3 m Length
  • 2 x DVI-DUAL Link Cable 3 m Length
  • 2 x USB 2.0 Cable 2 m Length

Weight Capacity

  • Monitor Mount Weight - Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg).
  • Maximum Load on QuickStand Assembly - 25 lbs. (11.3 kg).
  • Includes: Monitor Weight and Platform Contents
  • Monitor Mount Weight - Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg).
  • Maximum Load on QuickStand Assembly - 25 lbs. (11.3 kg).
  • Includes: Monitor Weight and Platform Contents
  • Each Monitor Mount Weight - Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg)
  • Maximum Load on QuickStand Assembly - 25 lbs. (11.3 kg).
  • Includes: Monitor Weight, Crossbar and Platform Contents

Height Adjustment

  • 18" (460 mm) Platform Height Adjustment
  • 5" (127 mm) Single/Dual Monitor Adjustment
  • 23" (585 mm) Maximum Height Adjustment
  • 18" (460 mm) Platform Height Adjustment
  • 5" (127 mm) Single/Dual Monitor Adjustment
  • 23" (585 mm) Maximum Height Adjustment
  • 18" (460 mm) Platform Height Adjustment
  • 5" (127 mm) Single/Dual Monitor Adjustment
  • 23" (585 mm) Maximum Height Adjustment

Display Size

≤ 24"

≤ 24"

≤ 24"

Display Tilt

+15°, -5°

+15°, -5°

+15°, -5°

Display Pan

Not Available

Not Available

+/- 15°

Display Rotation

180° Landscape to Portrait Display Rotation

180° Landscape to Portrait Display Rotation

180° Landscape to Portrait Display Rotation

VESA

VESA Compliant

VESA Compliant

VESA Compliant

Shipping Dimensions

38.5" (1000 mm) Wide x 11.5" (300 mm) Deep x 21.5" (550 mm) High

38.5" (1000 mm) Wide x 11.5" (300 mm) Deep x 21.5" (550 mm) High

38.5" (1000 mm) Wide x 11.5" (300 mm) Deep x 21.5" (550 mm) High

Shipping Weight

57 lbs. (26 kg)

57 lbs. (26 kg)

60 lbs. (27 kg)

Warranty

5 years, 24/7

5 years, 24/7

5 years, 24/7



Package Contents
  • Each QuickStand is shipped with the required tools to install and setup the product



Desk Clamp Options
  • Two-piece clamp for clamping to the back of work surfaces
  • Two-piece clamp will fit through the following size grommet hole: 4.5” (115 mm) Wide x 1” (25.5 mm) Deep
  • No through work surface installation option



3 Installed Cable Harness
  • Length of power cord and DVI cables running from the back of QuickStand: 48" (1220 mm)
  • Length of USB cables running from the back of QuickStand: 36" (915 mm)
  • Length of power cord and DVI cables running from the front of QuickStand: 16" (400 mm)
  • Power cord will be different depending on country of sale



4 Typical Monitor Display Size
  • Monitor display size is an approximation. The dimension is a diagonal measurement of screen. Monitor display size may be exceeded as long as weight does not exceed maximum monitor mount weight capacity.

Frequently Asked Questions

q Does the monitor move higher than the worksurface or do they always move in tandem?
a

The monitor and the worksurface move in tandem as well as independently.

Model QSWL24, QSBL24
Manufacturer Humanscale
Part Number QSWL24, QSBL24
Color White & Gray and Black & Gray
Dimensions Overall when in lowest: 31.5” W x 28” H x 24” to 29” D. Overall when in highest: 31.5” W x 35.5” H x 24” to 29” D
Worksurface Dimensions For a 24” (600 mm) to 29” (700 mm) Deep Work Surface
Clamp Range Two-Piece Desk Clamp for ½” (13mm) up to 2 ¾” (70 mm) Thick Work Surfaces
Platform Size 28” (710 mm) Wide x 11” (280 mm) Deep
Weight Capacity Monitor Mount Weight: Mini 4 lbs. (1.8 kg) to Maxi 11 lbs. (5 kg). Maxi Load on QuickStand Assembly: 25 lbs. (11.3 kg). Includes: Monitor Weight and Platform Contents
Height Adjustment Platform: 18” (460 mm). Monitor: 5” (127 mm). Maximum: 23” (585 mm)
Monitor Size Up to 24”
Tilt +15 degree, -5 degree
Rotation Landscape to Portrait 180 degree
Shipping Dimensions 38.5” (1000 mm) W x 11.5” (300 mm) D x 21.5” (550 mm) High
Shipping Weight 57 lbs. (26 kg)
Warranty 5 Years, 24/7
Desk Type Desk Mount
Price $700 - $799
