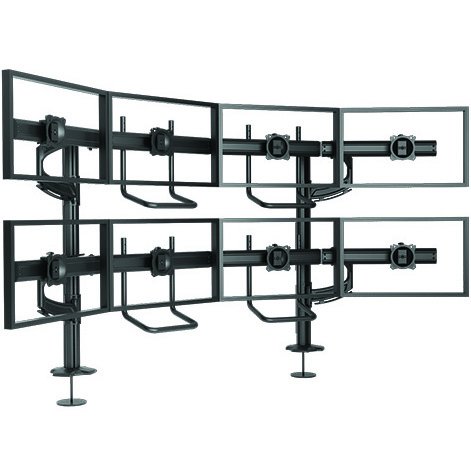

Chief K4G420B KONTOUR K4 4x2 Grommet Mounted Array
Description
Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award
for Best New AV Mount.
Flexibility meets form and function with the Kontour K4 Series of
elegantly designed, Focal Depth Adjustable monitor array mounts from
Chief.
Chief K4G420B provides an aesthetic & easily adjustable solution for
monitor array stations where multiple users will want to re-position the
bank of screens to their preferred viewing distance; such as trading
desks, call centers, security desks, IT, health care, control rooms and
more.
Technical Drawing
Specifications
| Center of Display to Floor Table Range | Upper Row: Up to 43.6" (1107 mm) |
| Certifications | TAA Compliant |
| Color | Black |
| Desktop Thickness Range | 1" - 4.94" (25 - 125.5 mm) |
| Maximum Extension | 12.0" (305 mm) minimum |
| Minimum Depth | 15.6" (396 mm) |
| Mounting Method | Grommet and 1/2" Thru-Hole |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75mm x 75mm & 100mm x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 8 |
| Screen Array Configuration | 4 x 2 |
| Shipping Weight | 108 lbs (48.99 kg) |
| Tilt | +/- 12 degrees |
| TV Width Range | Up to 23.0" (584 mm) max display width |
| Typical Screen Sizes | 19" to 24" diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Articulating Focal Depth Adjustable 4x2 Monitor Array
Integrated handles for quick ergonomic adjustment to fit the user
Great for multi-user settings where fast & easy adjustment is critical
Supports monitors up to 24" in both landscape & portrait
Swivel and Pan adjustment capability
Centris Fingertip Tilt of every monitor
Grommet or 1/2" Thru-Hole mounted
Simple installation
Integrated cable management
Streamlined modern aesthetic
Product Options/Accessories
| Model | K4G420B |
| Manufacturer | Chief Mounts |
| Part Number | K4G420B |
| UPC | 841872162010 |
| Color | Black |
| Center of Display to Floor/Table Range | Upper Row: Up to 43.6 |
| Desktop Thickness Range | 1 |
| Maximum Extension | 12.0 |
| Minimum Depth | 15.6 |
| Mounting Options | Desk |
| Mounting Pattern | VESA 75mm x 75mm & 100mm x 100mm |
| Shipping Weight | 108 lbs (48.99 kg) |
| Tilt | +/- 12 degree |
| TV Width Range | Up to 23.0 |
| Monitor Size | 19 |
| Weight Capacity | Up to 15 lbs (6.8 kg) per monitor |
| Monitor Arm Types | 6+ Monitors |
| Number of Monitors | 6+ Monitors |
| Orientation | Landscape, Portrait |
