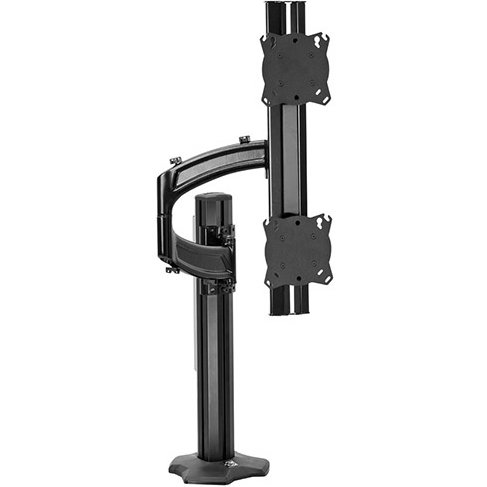

Chief KONTOUR K4 1x2 Vertical Grommet Mounted Array K4G120B
Description
Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award
for Best New AV Mount. Flexibility meets form and function with the
Kontour K4 series of elegantly designed, Focal Depth Adjustable monitor
array mounts from Chief.
Chief Kontour K4G120B provides an aesthetic & easily adjustable solution for monitor
array stations where multiple users will want to re-position the bank of
screens to their preferred viewing distance; such as trading desks, call
centers, security desks, IT, health care, control rooms and more.

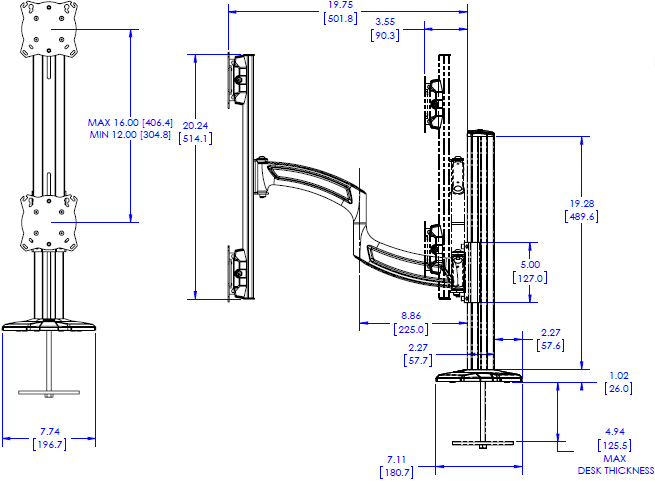

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black |
| Desktop Thickness Range | Up to 4.94" (125.5 mm) |
| Extension | 16.2" (411.5 mm) |
| Minimum Depth | 8.09" (205.5 mm) |
| Mounting Method | Grommet Hole |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor, Screen Center-to-Center Distance Range of 12" to 16" (304.8 mm to 406.4 mm) |
| Number of Monitors | 2 |
| Pole Length | 19.28" (489.6 mm) |
| Screen Array Configuration | 1 x 2 |
| Shipping Weight | 24.2 lbs (10.98 kg) |
| Tilt | +/- 10° vertical |
| TV Width Range | Up to 23.0" (584 mm) max |
| Typical Screen Sizes | 19" to 24" diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Articulating Focal Depth Adjust
Great for multi-user settings where fast & easy adjustment is critical!
Supports up to 24" monitors
Swivel and Pan adjustment capability
Heads feature Centris Vertical Tilt of +/- 10°
Wall or Desk Grommet mounting styles
Simple installation
Tool-free, integrated cable management
Streamlined, modern aesthetic
Product Options/Accessories
| Model | K4G120B |
| Manufacturer | Chief Mounts |
| Part Number | K4G120B |
| UPC | 841872157900 |
| Color | Black |
| Desktop Thickness Range | Up to 4.94 |
| Extension | 16.2 |
| Minimum Depth | 8.09 |
| Mounting Options | Desk |
| Mounting Pattern | VESA 75mm x 75mm & 100mm x 100mm |
| Pole Length | 19.28 |
| Shipping Weight | 24.2 lbs (10.98 kg) |
| Tilt | Vertical +/- 10 degree |
| TV Width Range | Up to 23.0 |
| Monitor Size | 19 |
| Weight Capacity | 15 lbs (6.8 kg) per monitor |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 24 |
| Monitor Placement | Stacked One Over the Other |
