Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM

Product ID 17973
Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM
Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM
A Wall Mount Laptop Arm that lets you sit or stand while working
Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM
Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM
A Wall Mount Laptop Arm that lets you sit or stand while working

Description

Ergodirect ED-NB-LX2WM is an adjustable sit-stand laptop arm that can mount a laptop up to 12 lbs on the wall. Vertical adjustment of 20" and 33" of horizontal reach make this arm great for alternating between sitting and standing. This laptop lifting arm is ideal for shared or public areas where multiple users need to access the laptop from different directions, angles, or heights. Its 62" of side-to-side movement and fold-back ability make it easy to maneuver for each user. To help reduce back and neck strain, this mountable laptop arm brings the screen close to the user and allows ample adjustments to accommodate unique user heights.

Technical Drawing

Technical Drawing for Sit-Stand Wall Mount Laptop Arm, ErgoDirect ED-NB-LX2WM

Technical Specifications

Capacity Lift Tilt Pan Rotation VESA
Capacity Lift Tilt Pan Rotation VESA
7 - 12 lbs

20"

51 cm

75° 360° 360° MIS-D/E/F

Product Information

Description LX Sit-Stand Wall Mount LCD Arm (polished aluminum) and Notebook Tray (black)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Rotation Stop on Wall-mount Base Limits turn of extension-base connection to 180°, preventing extension from contacting wall
Locking Connections Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

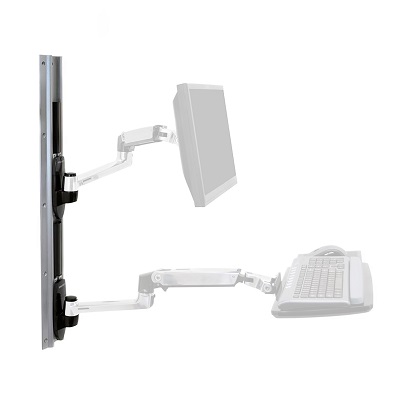

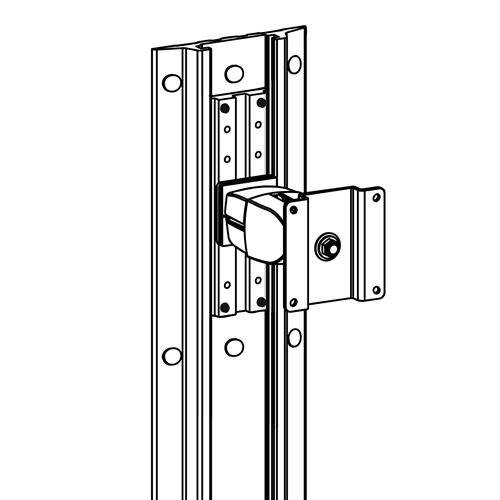

Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
Base Includes theft-deterrent anchor holes for cable locks
Note Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight 11 lbs (5 kg)
Shipping Dimensions 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
Shipping Weight 12.6 lbs (5.7 kg)
Warranty Five (5) years

Description Notebook Tray for laptops and convertible notebooks (black)
Includes
  • Non-slip pad and clips to hold notebook in place

  • Screws for tray attachment to mount

Weight Capacity When combined with the LX LCD Arm, the arm will hold notebooks weighing 2.5–12 lbs (1.1–5.4 kg); when combined with other arms or pivots, contact Ergotron regarding load limitations.
Attachment To a separate LCD mount requires a VESA MIS-D 75 x 75 mm hole pattern interface on the mount. Recommended mounts include LX LCD Arms, 200 Series Arms, 100 Series Pivots and Ergotron carts utilizing an LCD monitor pivot
Shipping Weight 3 lbs (1.4 kg)
Warranty Five (5) years

Benefits

  • 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display

  • Extends LCD up to 33" (84 cm); push your display out of the way when not in use

  • Increase viewing comfort - help reduce eye, back and neck strain

  • Upgrade LCD monitors and TVs with improved ergonomic adjustment

  • Patented CF motion technology provides premium ease-of-use adjustment

  • Cable management feature routes cables under the arm, out of the way

  • Ideal for space-constrained spaces - folds to within 4.5" (12 cm) of wall in storage position

  • Secure installation - locking connections between arm, extension and base

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment


  • Creates an ergonomic workstation for your notebook computer.

  • Adjustable, open-sided mounting plate accommodates the size of virtually all notebooks

  • Can be used with or without docking stations

  • Easy attachment

Product Options/Accessories

Frequently Asked Questions

q Is the 33" extension from the front of the laptop to the wall?
a

The 33" extension is from the wall to the back of the laptop.

Model ED-NB-LX2WM
Manufacturer Ergotron
Part Number ED-NB-LX2WM
Color Silver
Weight Capacity 7 to 12 lbs (3.18 to 5.45 kg)
Lift (51 cm) 20 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Adjustments 20" (51 cm) of vertical adjustment and 62" (157 cm) of side-to-side adjustment
Weight 11 lbs (5 kg)
Warranty Five (5) years
Mounting Options Wall
Monitor Arm Types Laptop/Notebook

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 3
(5 out of 3)
Laptop Arm

by Rob Cannon, Vicksburg, Mississippi, Jul 26, 2023

Best product I could find for my needs in my medical clinic!

provides multiple use of limited desk space

by Yvonne S, Arizona, May 26, 2016

This allowed multiple use for my desk area, as I can move the screen up out of the way when I need to spread out on my desk. In addition, I can access my screen in the standing position, to avoid sitting for too long of a time

Very Versatile Product

by Southeast's #1 Ford Dealer, Florida, Feb 23, 2016

Purchased for an automotive shop. We mounted these to the side of the lifts so the technicians can use the laptop while diagnosing the vehicle's issues, Very convenient to swing around to the car and then move out of the way when not in use. The arm is very sturdy and well built, very smooth and aptly adjustable. We have purchased two so far and will probably buy more.
