Cotytech KGB-5A Fully Adjustable Keyboard Mouse Tray
More shipping >

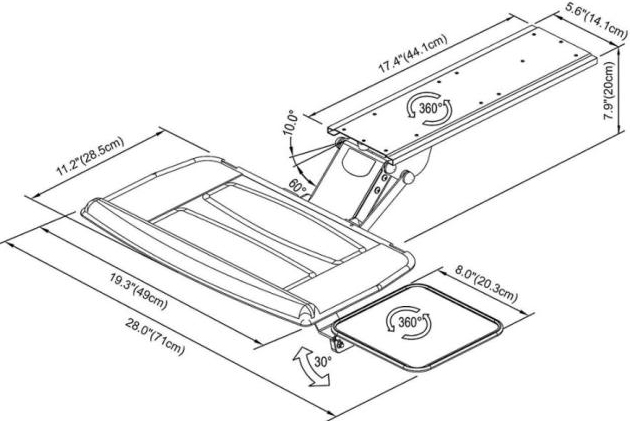

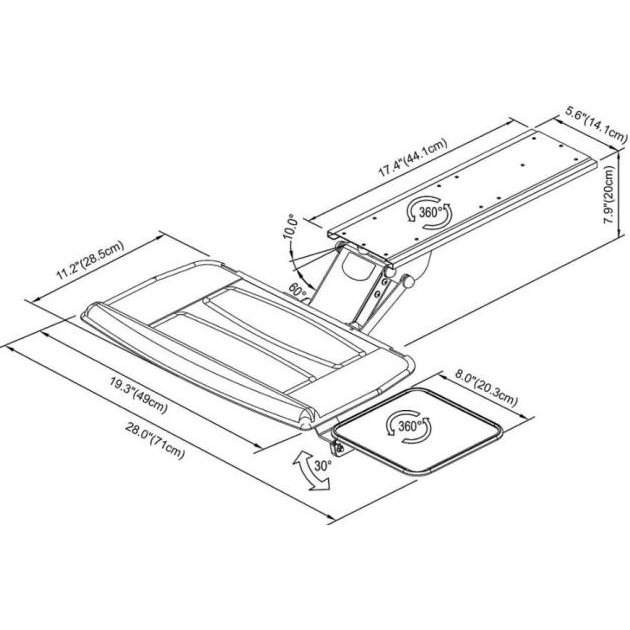

Technical Drawing
Specifications
|
Dimensions |
19.3" (L) x 11.2" (W) |
|
Arm Adjust Tilting Angle |
10° up / 60° down |
|
Mouse Tray Rotation |
360° |
|
Height Adjustment |
5.9" (150mm) |
|
Loading Area Depth |
4.9"-7.5" (125-190mm) (distance from bottom surface of desk to this unit after being installed) |
Product Options/Accessories
Frequently Asked Questions
This keyboard does not adjust into a negative tilt position. However all WorkRite Keyboard Arms/Mechanisms as well as Humanscale Keyboard Arms/Mechanisms adjust for a negative tilt.
The wrist rest is removable but not recommended as it is screwed into the tray and removing it would expose screw holes and a metal channel where the wrist rest is attached.
The keyboard tray is 19.3" long and 11.2" deep. If you add the mouse tray, length increases to 28". So you need 28" of space to push the keyboard along with the mouse tray under the desk. The track to install the tray is 17.4" long so you need at least 17.4" depth under the surface of the desk to install it.
| Model | KGB-5A |
| Manufacturer | Cotytech |
| Part Number | KGB-5A |
| Dimensions | 19.3" (L) x 11.2" (W) |
| Tilt | Up 10 degree/down 60 degree |
| Rotation | 360 degree |
| Height Adjustment | 5.9" (150mm) |
| Loading Area Depth | 4.9"-7.5" (125-190mm) (distance from bottom surface of desk to this unit after being installed) |
| Material | Metal & Foam |
