$906.00

Chief Kontour Dynamic Pole Mount, Dual Monitor Array K1P22HB or K1P22HS

Pole not included (purchase separately)

Product ID 17951

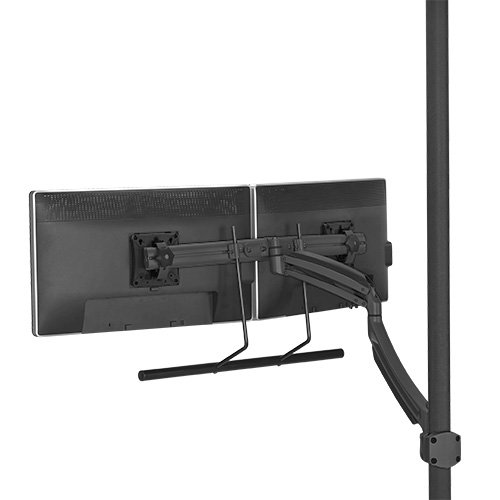

Chief Kontour Dynamic Pole Mount, Dual Monitor Array K1P22HB or K1P22HS
Black color

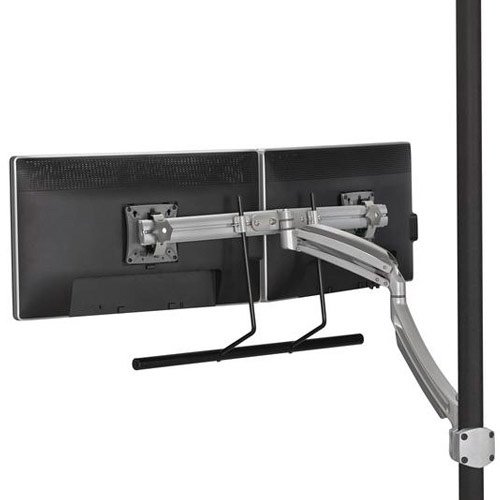

Chief Kontour Dynamic Pole Mount, Dual Monitor Array K1P22HB or K1P22HS
Black color

Description

Chief K1P22H enhanced Kontour K1P Dynamic Height-Adjustable Pole Mounts are the perfect monitor mount solutions for the office, public spaces, healthcare facilities, or home; with the Pole Mount offering extended manual height adjustment using Chief KTA pole accessories. Best-in-class weight capacity range makes specification simple.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position to create a more productive and comfortable work space.

Note: Pole not included; see KTA Pole Accessories on Accessories tab.

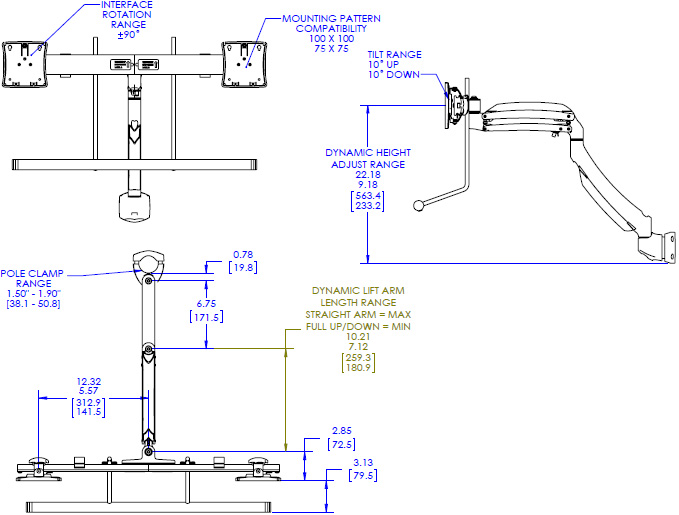

Technical Drawing

Technical Drawing for Chief Kontour Dynamic Pole Mount, Dual Monitor Array K1P22HB or K1P22HS

Specifications

Certifications TAA Compliant
Color Black, Silver
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 20.21" (513.3 mm)
Minimum Depth 3.10" (78.7 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Pole Diameter Range 1.50 - 1.90" (38.1 - 48.3 mm)
Shipping Weight 20.76 lbs (9.42 kg)
Tilt +10°, -10°
TV Width Range Up to 24.90" (632.5 mm)
Typical Screen Sizes 10 - 24" (254 - 609.6 mm) diagonals
Weight Capacity 2 - 9 lbs (0.9 - 4.1 kg)
Orientation Landscape, Portrait

Features

  • New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment

  • Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance

  • Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

  • Most Kontour K1 products are TAA-compliant - see respective product pages for details

Model K1P22HB, K1P22HS
Manufacturer Chief Mounts
Part Number K1P22HB, K1P22HS
UPC 841872160313
Color Black, Silver
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 20.21" (513.3 mm)
Minimum Depth 3.10" (78.7 mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Pole Diameter 1.50 - 1.90" (38.1 - 48.3 mm)
Shipping Weight 20.76 lbs (9.42 kg)
Tilt +10 degree, -10 degree
TV Width Range Up to 24.90" (632.5 mm)
Monitor Size 10 - 24" (254 - 609.6 mm) diagonals
Weight Capacity 2 - 9 lbs (0.9 - 4.1 kg) per monitor
Mounting Options Pole
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Orientation Landscape, Portrait
Maximum Monitor Size 24"
Monitor Placement Side-by-Side

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
