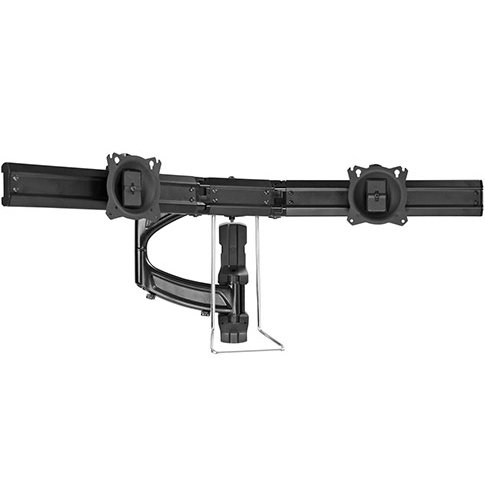

Chief Kontour 2x1 Horizontal Focal Depth-Adjustable Wall Mounted Array - K4W210B
Description
Chief kontour K4W210B is designed to hold two monitors mounted
horizontally on the wall. Focal depth adjustable array provides an easy
readjustment of the monitors to achieve the optimal viewing angle.
It provides an aesthetic & easily adjustable solution for monitor array
stations where multiple users will want to re-position the bank of
screens to their preferred viewing distance; such as trading desks, call
centers, security desks, IT, health care, control rooms and more.
Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for
Best New AV Mount.

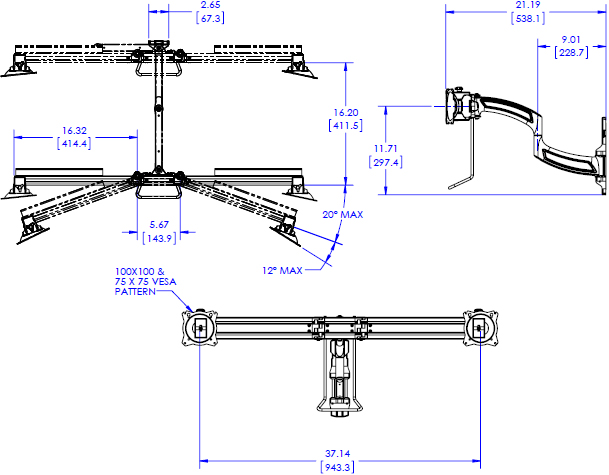

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black |
| Equipment Width Range | 37.13" (943.2 mm) max distance between monitor centers (when flat) |
| Extension | 16.2" (411.5 mm) |
| Minimum Depth | 4.25" (108 mm) |
| Mounting Method | Wall Mount |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75mm x 75mm & 100mm x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Shipping Weight | 19.6 lbs (8.89 kg) |
| Tilt | +/- 12° |
| Typical Screen Sizes | 10 - 27" (254 - 686 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Articulating Focal Depth Adjust
Integrated handle for quick ergonomic adjustment to fit the user
Great for multi-user settings where fast & easy adjustment is critical
Supports monitors up to 24" in both landscape & portrait
Swivel and Pan adjustment capability
Centris Fingertip Tilt
Simple installation
Tool-free, integrated cable management
Streamlined, modern aesthetic
Product Options/Accessories
| Model | K4W210B |
| Manufacturer | Chief Mounts |
| Part Number | K4W210B |
| UPC | 841872157924 |
| Color | Black |
| Equipment Width Range | 37.13" (943.2 mm) max distance between monitor centers (when flat) |
| Extension | 16.2" (411.5 mm) |
| Minimum Depth | 4.25" (108 mm) |
| Mounting Pattern | VESA 75mm x 75mm & 100mm x 100mm |
| Shipping Weight | 19.6 lbs (8.89 kg) |
| Tilt | +/- 12 degree |
| Monitor Size | 10 - 27" (254 - 686 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) per monitor |
| Mounting Options | Wall |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 27" |
| Monitor Placement | Side-by-Side |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
