Cotytech MW-GSA Apple Monitor Single Spring Arm Wall Mount

Product ID 17910
Cotytech MW-GSA Apple Monitor Single Spring Arm Wall Mount

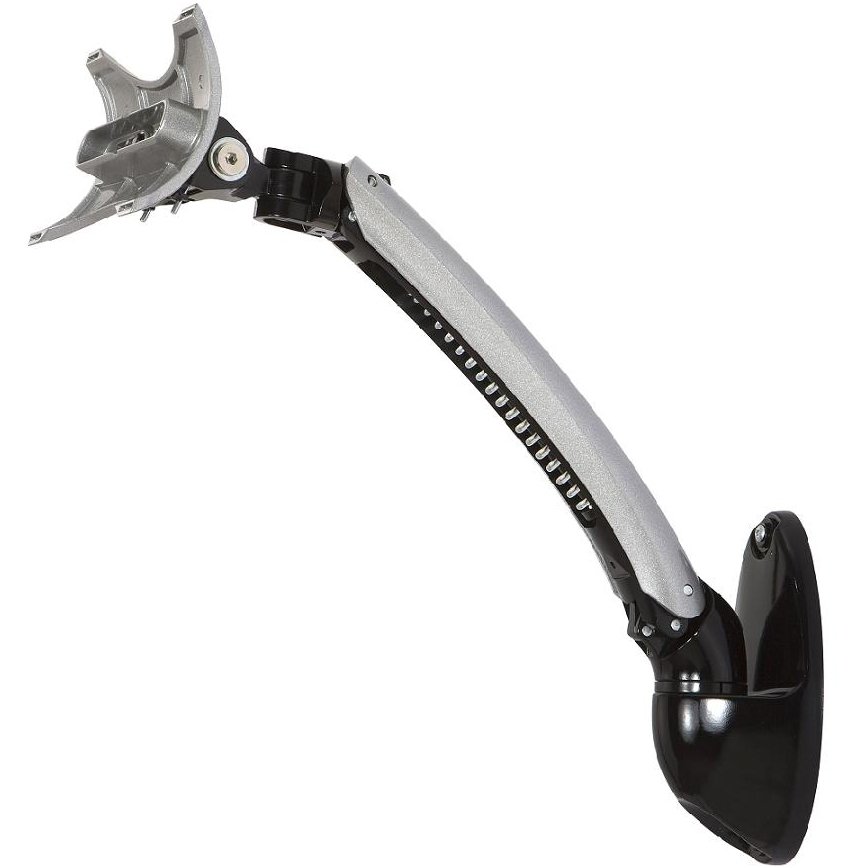

Front view
Technical drawing
Cotytech MW-GSA Apple Monitor Single Spring Arm Wall Mount

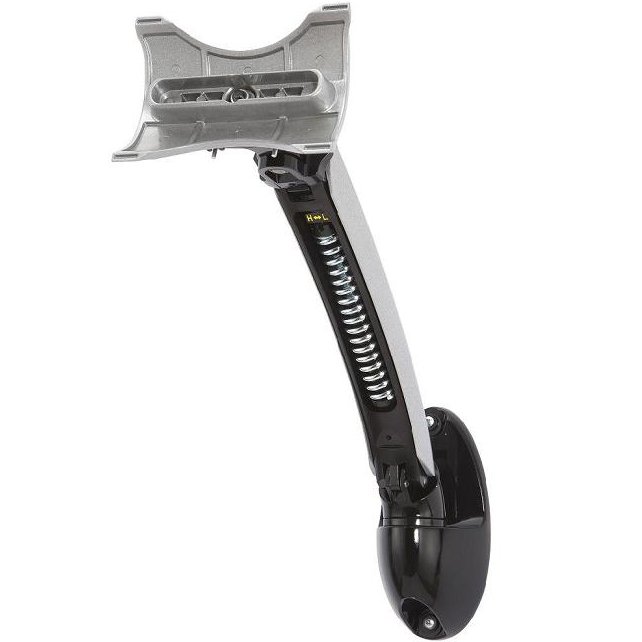

Front view
Technical drawing

Description

Cotytech MW-GSA Apple Monitor Single Spring Arm Wall Mount - Silver is a stylish wall mount that is perfect for your Apple LCD monitor. With a 360° swivel function and a weight capacity of 30.8lbs (14kg), this wall mount is ideal for offices, classrooms, private homes and public areas. It’s the perfect accessory for the busy individual; and can fit neatly into any home office space. This wall mount has a 105° tilt action to ensure perfect viewing at any angle. The convenient wall arm features robust cable management; ensuring a neat and tidy space with no visible cables.

This convenient and stylish LCD wall mount offers perfect flexibility and is maneuverable to suit any viewing angle. It has a modern look; which fit in perfectly with Apple’s stylish looks. The monitor mount has been designed with the latest engineering technologies in mind; to ensure durability and strength. These quality mounts are manufactured in our offshore manufacturing plant; adhering to strict quality guidelines that enable us to deliver value to our customers. This handy Cotytech monitor mount has been manufactured with the end-user in mind; and ensures easy installation features while simultaneously offering intuitive, practical and functional designs.

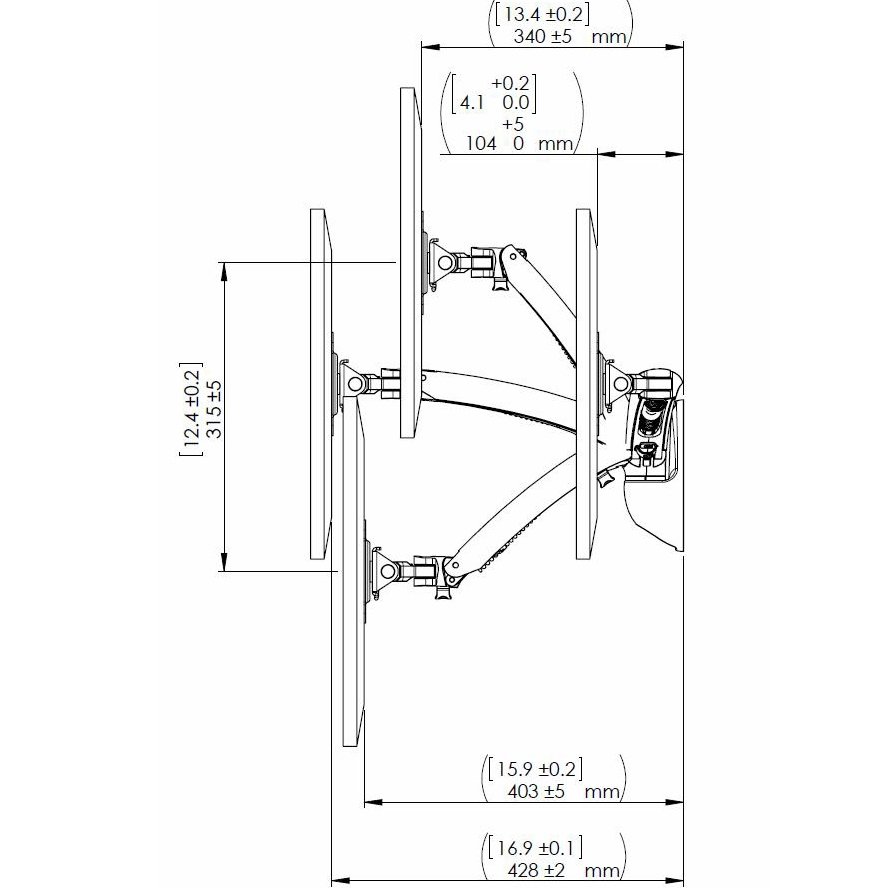

Technical Drawing

Technical drawing for Cotytech MW-GSA Apple Monitor Single Spring Arm Wall Mount



Specifications

Weight Capacity

Supports 17.6 - 30.8lbs (8 - 14kgs)

Tilt

+90° / -45°

Rotation

180°

Swivel

Max 180°

Mounting Pattern

VESA compliant: 75x75 and 100x100

Maximum Extension

16.9" (428mm)



Features

  • Wall-mountable; Designed for the following Apple Monitors:
    24-inch iMac (aluminum and glass)
    27-inch iMac
    24-inch LED Cinema Display
    27-inch LED Cinema Display
    27-inch Thunderbolt Display
    21.5" or 27" iMac with Built-in VESA Mount Adapter early 2013 please be sure to choose the option of 'iMac Early 2013'
    If your Apple monitor is not listed above, please contact us for solutions.
  • Spring arm design makes extension, retraction and height adjustments dynamically and easily
  • Maximum adjustment rendered by tilting, swiveling, rotation and dynamic height adjustment
  • Swift and easy movements and adjustments
  • 12.4" Height adjustment
  • Solid Aluminum die-cast construction
  • Space saving with its compact design
  • Smooth extension (up to 16.9") to achieve ideal viewing angles
  • Clean look with minimal hardware visible from underside of work surface
  • Rotation 180° and side-to-side pivot
  • Neat and efficient cable management
  • Maximum productivity and supreme ergonomic comfort
  • Easy installation and dis-installation
  • Color: Metallic Silver (please contact us for special order of white, dark gray or red color)

Product Options/Accessories

Model MW-GSA
Manufacturer Cotytech
Part Number MW-GSA
Color Metallic Silver
Tilt +90 degree / -45 degree
Weight Capacity 17.6 - 30.8lbs (8 - 14kgs)
Rotation 180 degree
Swivel Max 180 degree
Mounting Pattern VESA 75x75 and 100x100
Maximum Extension 16.9" (428mm)
Height Adjustment 12.4"
Monitor Size 24" iMac (aluminum and glass). 27" iMac. 24" LED Cinema Display. 27" LED Cinema Display. 27" Thunderbolt Display
