$192.00

Ergotron 61-143-003 TM Tilting TV Wall Mount

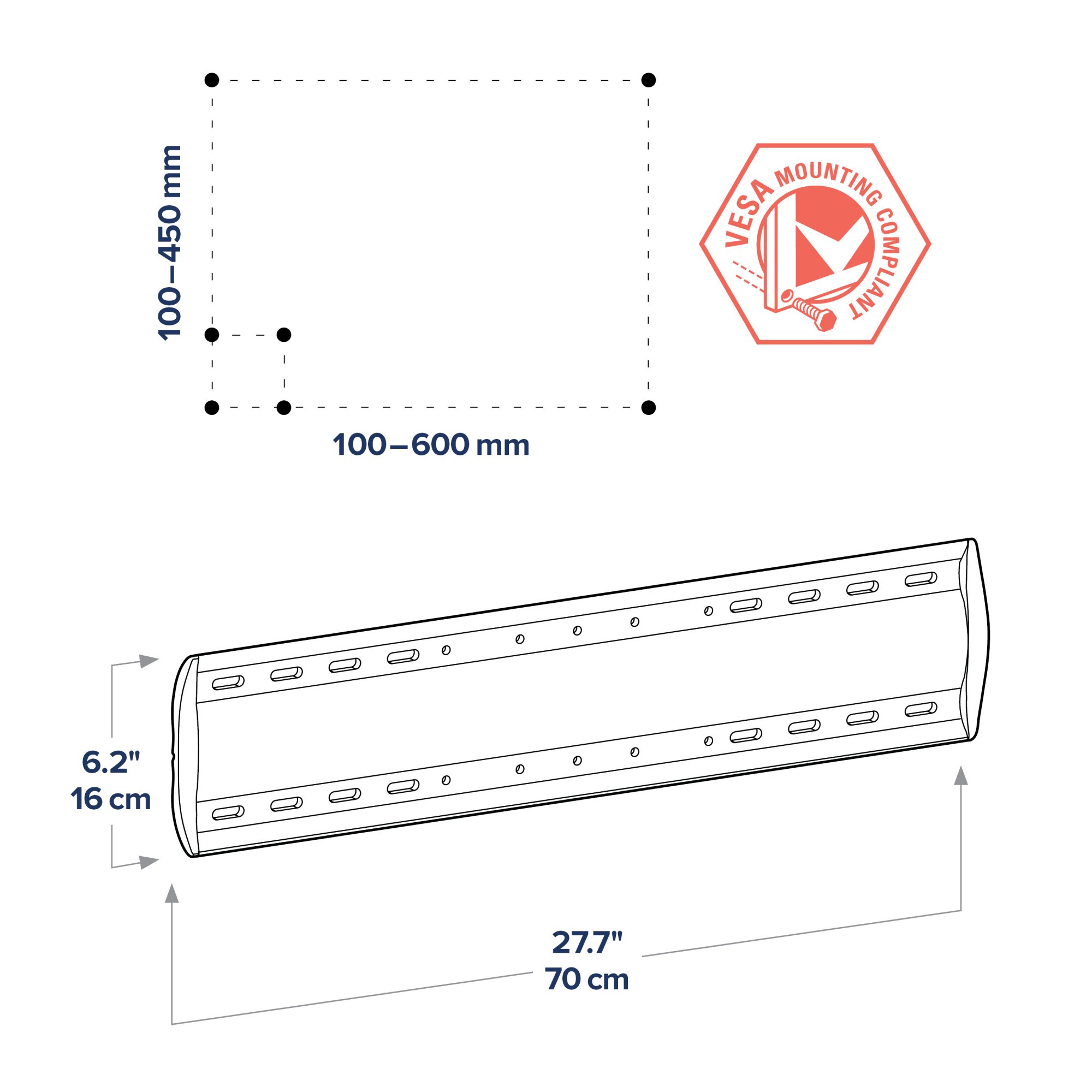

Fits most displays above 32" in size and weighing up to 175 lbs as long as the displays have hole pattern in the range horizontal = 100mm to 600 mm, vertical = 100mm to 450 mm

Product ID 17899
Ergotron 61-143-003 TM Tilting TV Wall Mount

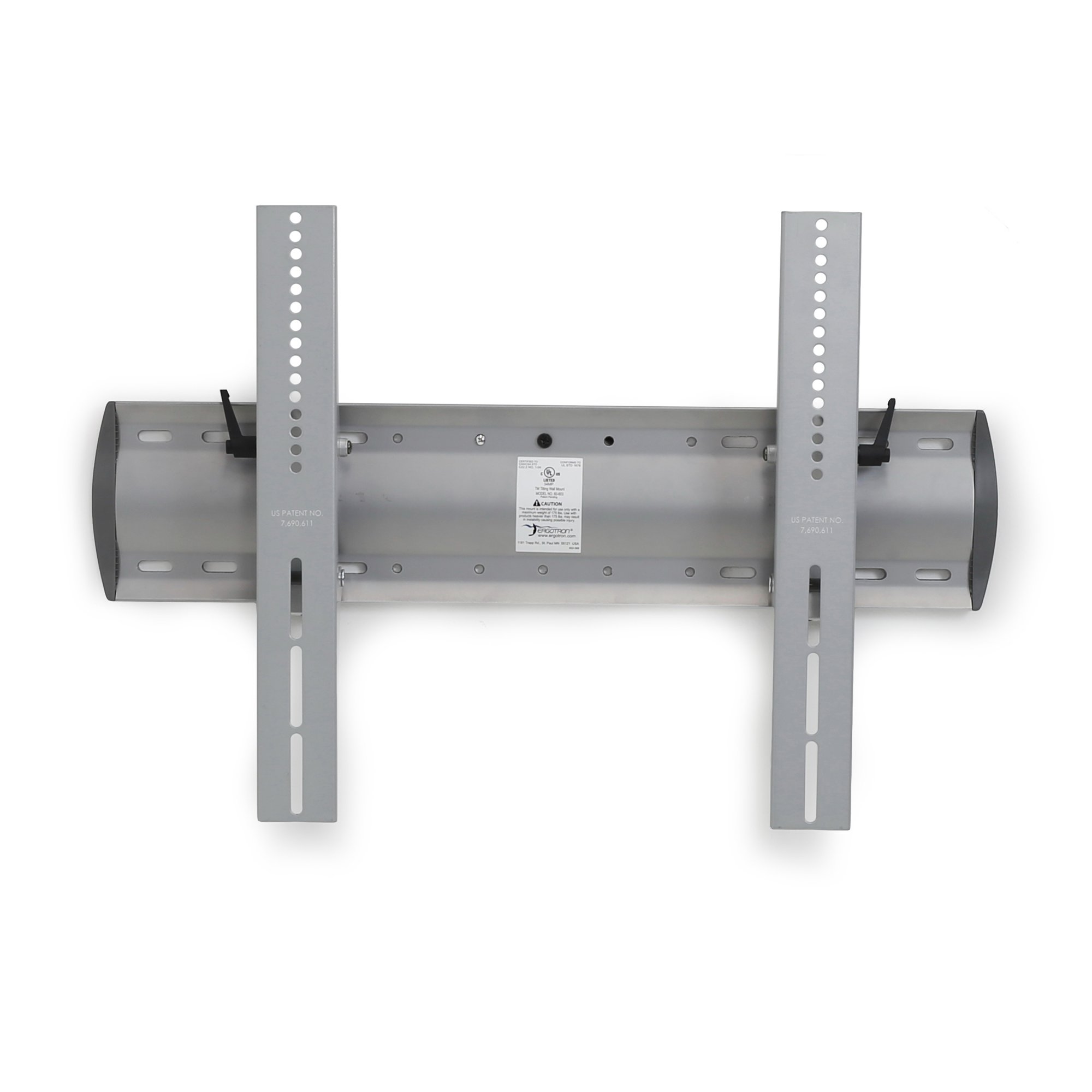

Front view
Ergotron 61-143-003 TM Tilting TV Wall Mount

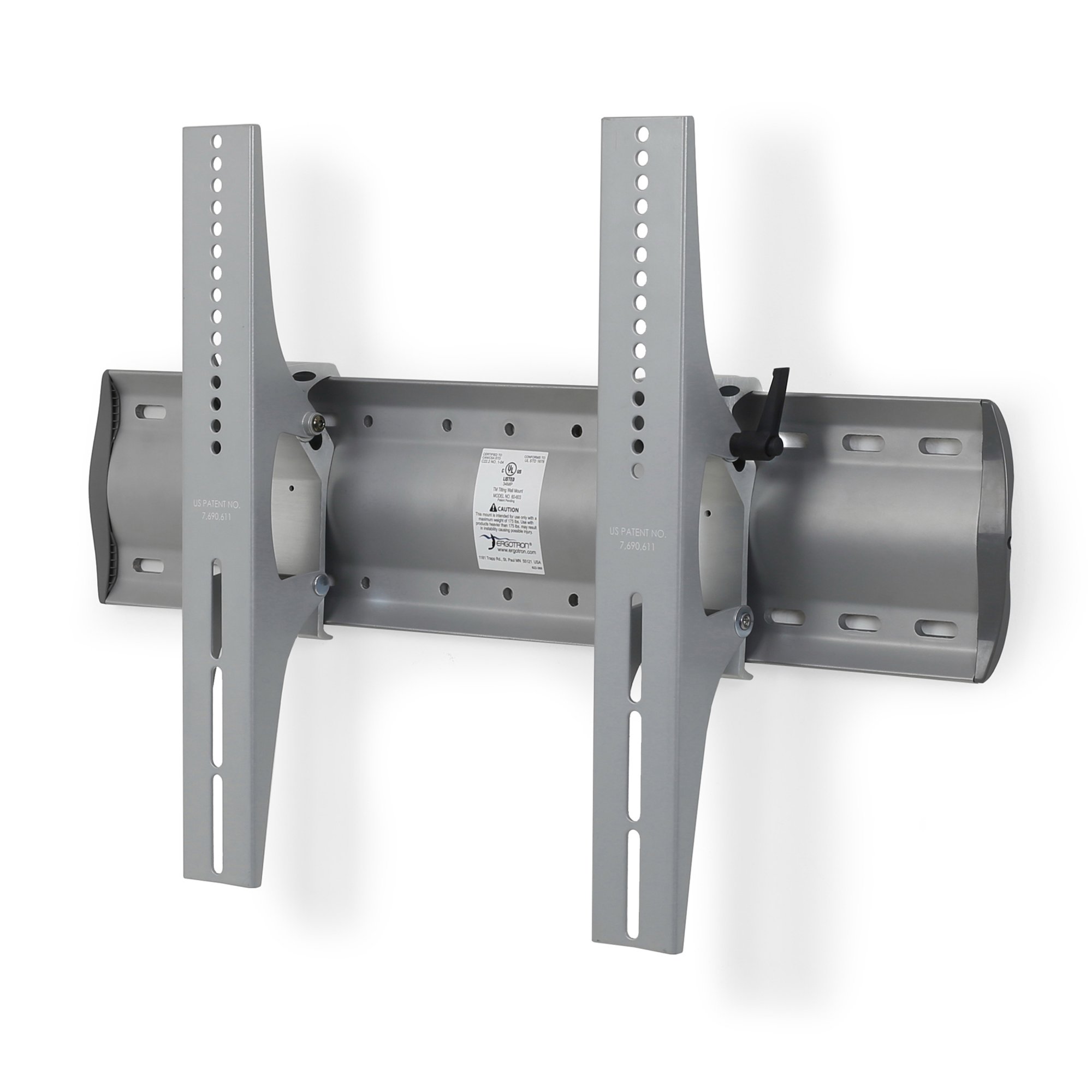

Side view

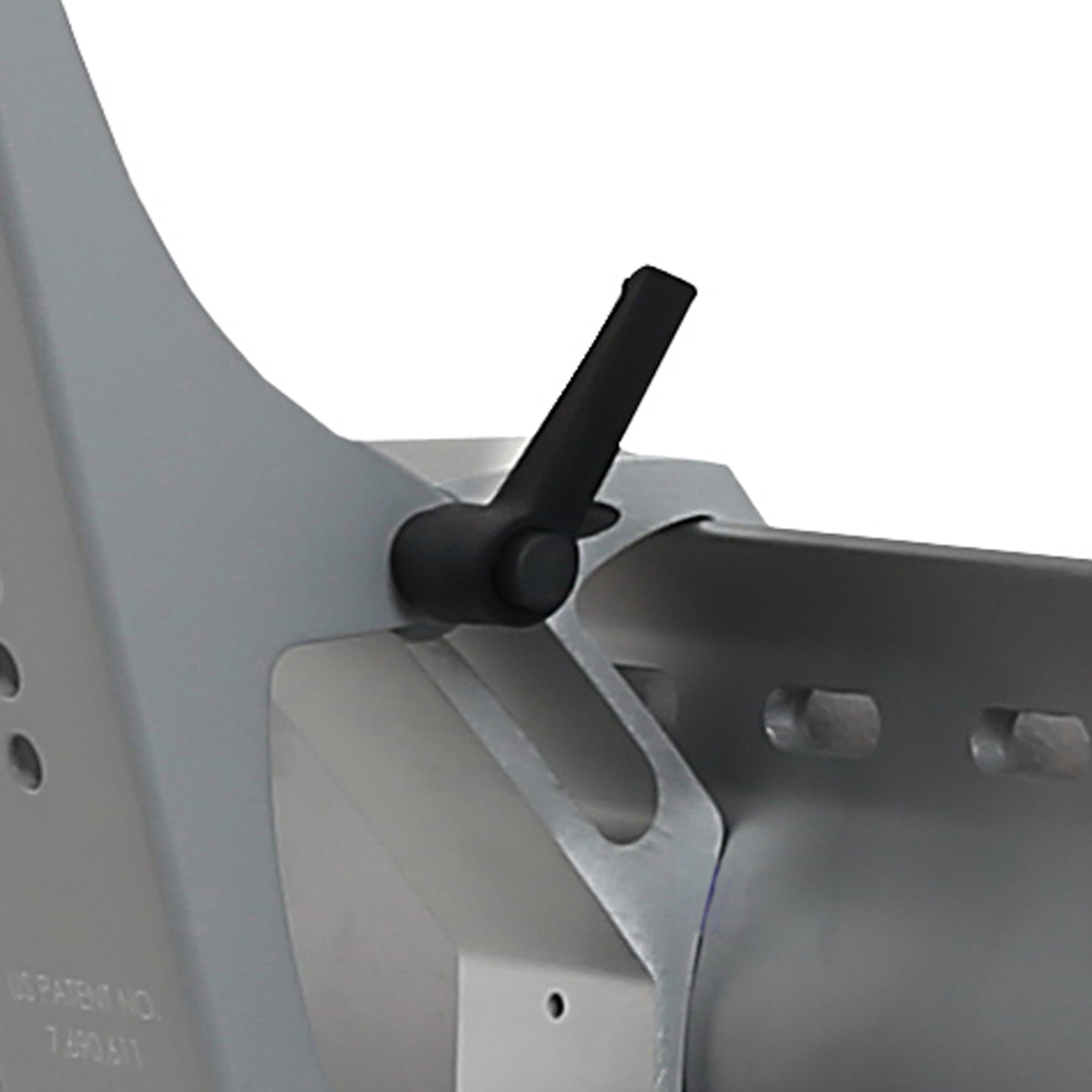

With tilt-lock levers
Ergotron 61-143-003 TM Tilting TV Wall Mount
Inused image
Ergotron 61-143-003 TM Tilting TV Wall Mount
Inused image
Inused image
Ergotron 61-143-003 TM Tilting TV Wall Mount
Front view
Ergotron 61-143-003 TM Tilting TV Wall Mount

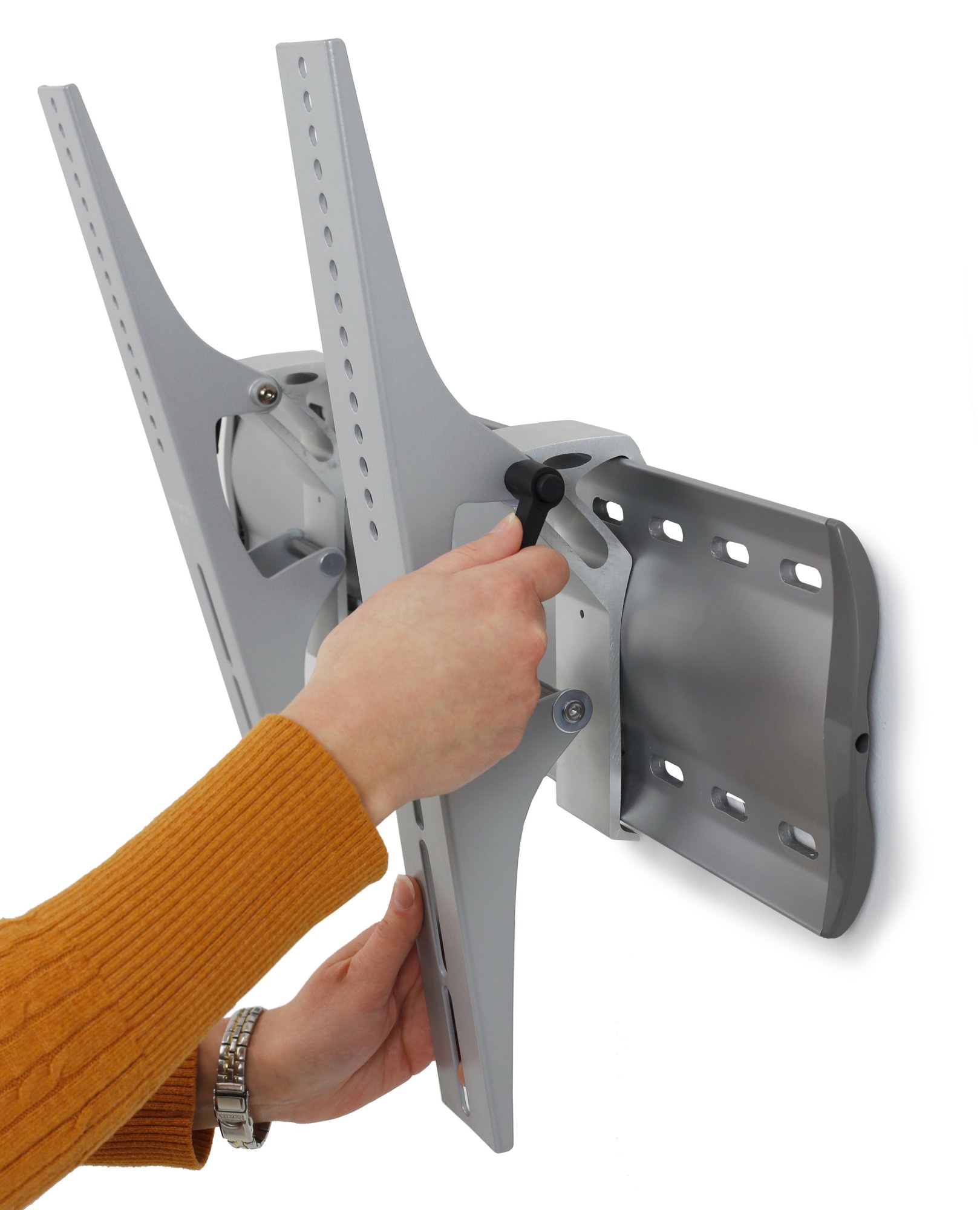

Side view
With tilt-lock levers
Ergotron 61-143-003 TM Tilting TV Wall Mount
Inused image
Ergotron 61-143-003 TM Tilting TV Wall Mount
Inused image
Inused image

Description

Ergotron 61-143-003 TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF motion technology, anyone can effortlessly tilt the screen to the perfect angle.

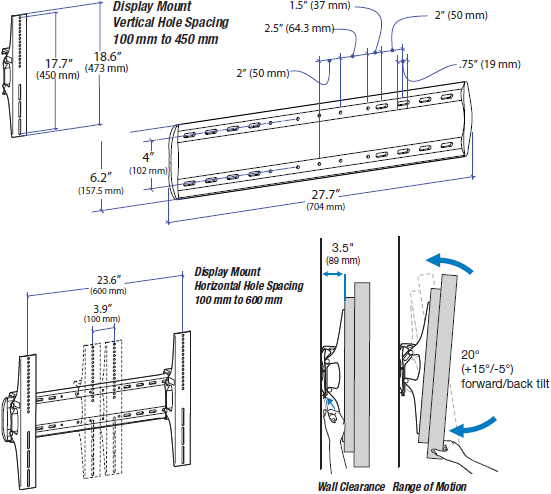

Technical Drawing

Technical Drawing for Ergotron 61-143-003 TM Tilting TV Wall Mount

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
32" and larger

Up to 175 lbs

79.4 kg

- 20° - - MIS-D/E/F

Product Information

Part Number 61-143-003
Description TM Tilting Wall Mount (silver)
Includes
  • Wall plate

  • Two display brackets with tilt-lock levers

  • Hardware fastener kit

Mounting Holes Must fit within spacing range below: horizontal = 100 mm (min.) to 600 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)
TM, XL Version For displays with horizontal hole pattern of 601–800 mm, order TM, XL version (pt. # 61-142-003)
Premium Construction Composed of extruded aluminum and steel
Mounting Options Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" centered studs) or concrete walls
TM, XL version If mounting to wall using 24" centered studs, order TM, XL version (pt. # 61-142-003)
Profile off the Wall 3.5" (89 mm)
UL Certified and Listed UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Shipping Dimensions 34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)
Shipping Weight 14 lbs (6.3 kg)
Warranty Five (5) years

Benefits

  • Tilt your screen with just a light touch or use the integrated tilt lock-down feature to hold it in position

  • Simple three-step installation

  • Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display

  • View in comfort: Cut glare while improving sight lines

  • Fits most ≥ 32" displays up to 175 lbs (79 kg)

  • Includes fasteners for mounting to wood studs or concrete walls

Model 61-143-003
Manufacturer Ergotron
Part Number 61-143-003
UPC 698833041217
Color Silver
Weight Capacity Up to 175 lbs (79.4 kg)
Tilt 20 degree
Mounting Pattern MIS-D/E/F. Horizontal = 100 mm (min.) to 600 mm (max.). Vertical = 100 mm (min.) to 450 mm (max.)
Profile off the Wall 3.5" (89 mm)
Shipping Dimensions 34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)
Shipping Weight 14 lbs (6.3 kg)
Warranty Five (5) years
Monitor Size 32" and above
