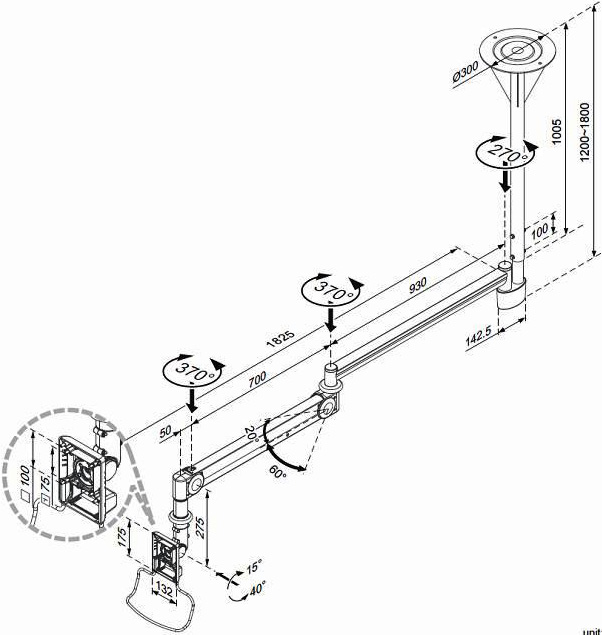

<p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <h2> Technical Drawing</h2> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <p style="text-align: center;"> <img src="/images/Cotytech/Medical_Arms/cotytech-CM-M125N-long-reach-ceiling-mount-medical-arm-drawing.jpg" alt="Technical drawing for Cotytech CM-M125N Long Reach Ceiling Mount Medical Arm" /></p> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <h2> Specifications</h2> <table class="table table-striped"> <tbody> <tr> <td> <p> Part Number</p> </td> <td> <p dir="ltr">CM-M125N</p></td> </tr> <tr> <td> <p> Weight Capacity</p> </td> <td> <p>Supports 13.2 - 26.4 lb (6 - 12 kg)</p></td> </tr> <tr> <td> <p> Tilt</p> </td> <td> <p>15°/- 40° (display) and 20°/- 60° (arm)</p></td> </tr> <tr> <td> <p>Maximum Extension</p></td> <td> <p>72" (182.5cm)</p></td> </tr> <tr> <td> <p>Rotation</p></td> <td> <p>270° & 370° (arms); 370° (display)</p></td> </tr> <tr> <td> <p>Mounting Pattern</p></td> <td> <p>VESA compliant: 75x75 to 100x100</p></td> </tr> <tr> <td> <p>Color</p></td> <td> <p>White</p></td> </tr> </tbody> </table> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <h2> Features</h2> <ul> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Long reach arm extends up to 72" with ease and smoothness</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Ceiling mount type for flat panel ranges 13.2 lb to 26.4 lb</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Built-in gas pneumatic spring design for extreme ease of operation and movements</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Instantly and effortlessly float flat screen from position to position</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Maximum adjustment rendered by tilting, swiveling and rotation</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Covers can be opened to put in cables (cables not included)</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Concealed cable management for neatness and secure performance</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Monitor back cable cover is included</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Sturdy construction made of aluminum alloy with outside plastic covers</p> </li> <li><p style="margin-top: 0pt; margin-bottom: 0pt;"> Easy installation and dis-installation</p> </li></ul> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <h2> Mounting Pattern</h2> <p>You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!</p> <p style="text-align: center;"> <img src="/images/Cotytech/Medical_Arms/VESA_Mounting_Pattern.jpg" alt="VESA Mounting Pattern" /></p> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <h2 style="margin-top: 0pt; margin-bottom: 0pt;"> Comparison Chart</h2> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p> <table class="table table-striped"> <tbody> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Model</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Ceiling</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Wall</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Weight Capacity</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Keyboard Holder</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Monitor Back Cable Cover</strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong>Wall Box</strong></p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17879"> MW-M123PN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17893">MW-M23PKN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px">-</p></td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17880">MW-M123WBN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17894">MW-M23WBKN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17881">MW-M125PN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17895">MW-M25PKN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17882">MW-M125WBN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px">-</p></td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17896">MW-M25WBKN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17897">MW-M16P</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 15.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17883">CM-M123N</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px">Yes</p></td> <td> <p style="margin-top: 4px; margin-bottom: 4px">-</p></td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> N/A</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17885">CM-M23KN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 13.2 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> N/A</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17881">MW-M125PN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Optional</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> N/A</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=17886">CM-M25KN</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px">Yes</p></td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> N/A</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=16889"> MW-M25WB</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px">Optional</p></td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> <tr> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> <strong><a href="/product_info.php?products_id=16890">MW-M25WBK</a></strong></p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> -</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> 26.4 lbs</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> <td> <p style="margin-top: 4px; margin-bottom: 4px;"> Yes</p> </td> </tr> </tbody> </table> <p style="margin-top: 0pt; margin-bottom: 0pt;">  </p>
