Cotytech MW-M125PN Long Reach Medical Arm Wall Mount
Description

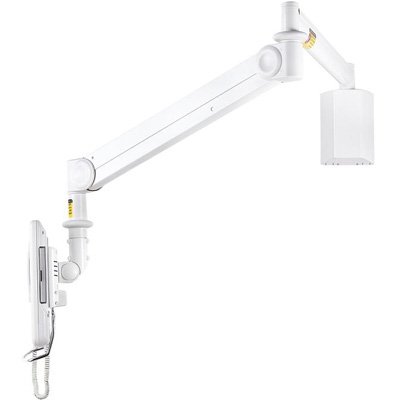

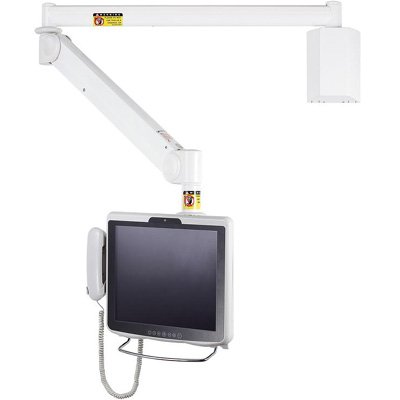

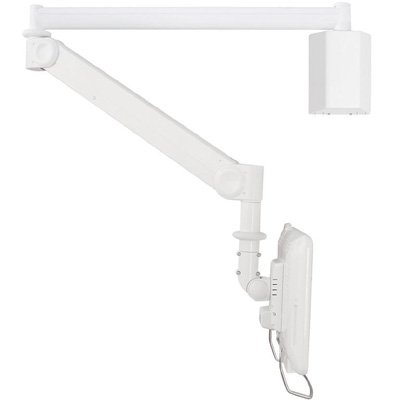

Our new Long Reach LCD Monitor Arm MW-M125PN features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides maximum of 72" (182.5cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.
The wall mount solution can be rotated 370° at arm, 370° at monitor end and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Handle design facilitates easy operation and movement. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the LCD wall mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories. Please note that monitor is not included.

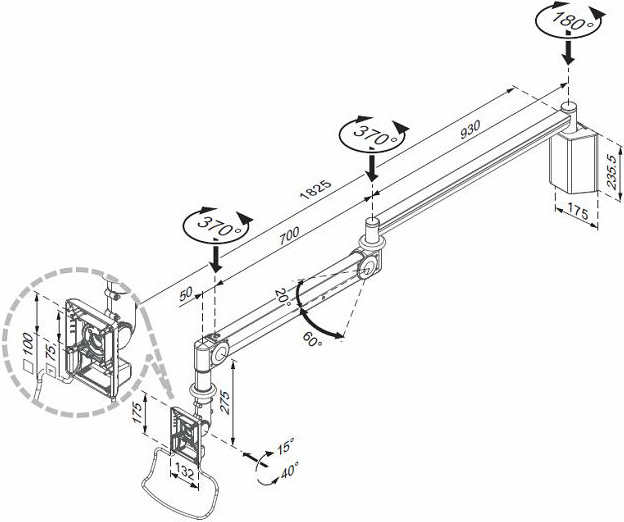

Technical Drawing
Specifications
|
Part Number |
MW-M125PN |
|
Weight Capacity |
Supports 13.2 - 26.4 lb (6 - 12 kg) |
|
Tilt |
15°/- 40° (display) and 20°/- 60° (arm) |
|
Maximum Extension |
72" (182.5cm) |
|
Rotation |
370° (arm); 370° (display); 180° (wall) |
|
Mounting Pattern |
VESA compliant: 75x75 to 100x100 |
|
Color |
White |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!
Comparison Chart
|
Model |
Ceiling |
Wall |
Weight Capacity |
Keyboard Holder |
Monitor Back Cable Cover |
Wall Box |
|
- |
Yes |
13.2 lbs |
Optional |
Yes |
- |
|
|
- |
Yes |
13.2 lbs |
Yes |
Yes |
- |
|
|
- |
Yes |
13.2 lbs |
Optional |
Yes |
Yes |
|
|
- |
Yes |
13.2 lbs |
Yes |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
- |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
- |
|
|
- |
Yes |
26.4 lbs |
- |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
Yes |
|
|
- |
Yes |
15.4 lbs |
Optional |
Yes |
- |
|
|
Yes |
- |
13.2 lbs |
Optional |
Yes |
N/A |
|
|
Yes |
- |
13.2 lbs |
Yes |
Yes |
N/A |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
N/A |
|
|
Yes |
- |
26.4 lbs |
Yes |
Yes |
N/A |
|
|
- |
Yes |
26.4 lbs |
Optional |
Yes |
Yes |
|
|
- |
Yes |
26.4 lbs |
Yes |
Yes |
Yes |
Product Options/Accessories
Frequently Asked Questions
The maximum monitor size compatible with this arm is 27" and it would need to have a VESA pattern 75x75 or 100x100. The finished product is white glossy in color.
Please take a look at these two models geared for dental offices. There is a minimal difference between them. The first one is with no wall box. The second one is with wall box, where you can hide the cables.
| Model | MW-M125PN |
| Manufacturer | Cotytech |
| Part Number | MW-M125PN |
| Color | White |
| Weight Capacity | 13.2 - 26.4 lb (6 - 12 kg) |
| Tilt | (display) 15 / -40 degree & (arm) 20 / -60 degree |
| Maximum Extension | 72" (182.5 cm) |
| Rotation | (arm) 370 degree; (display) 370 degree ; (wall) 180 degree |
| Mounting Pattern | VESA 75x75 to 100x100 |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
