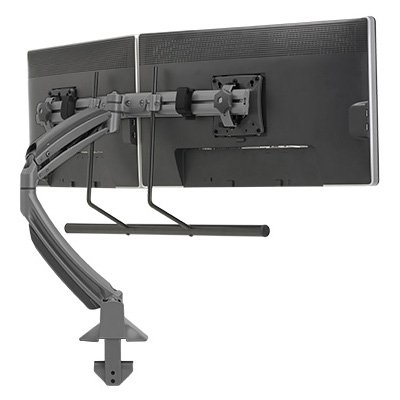

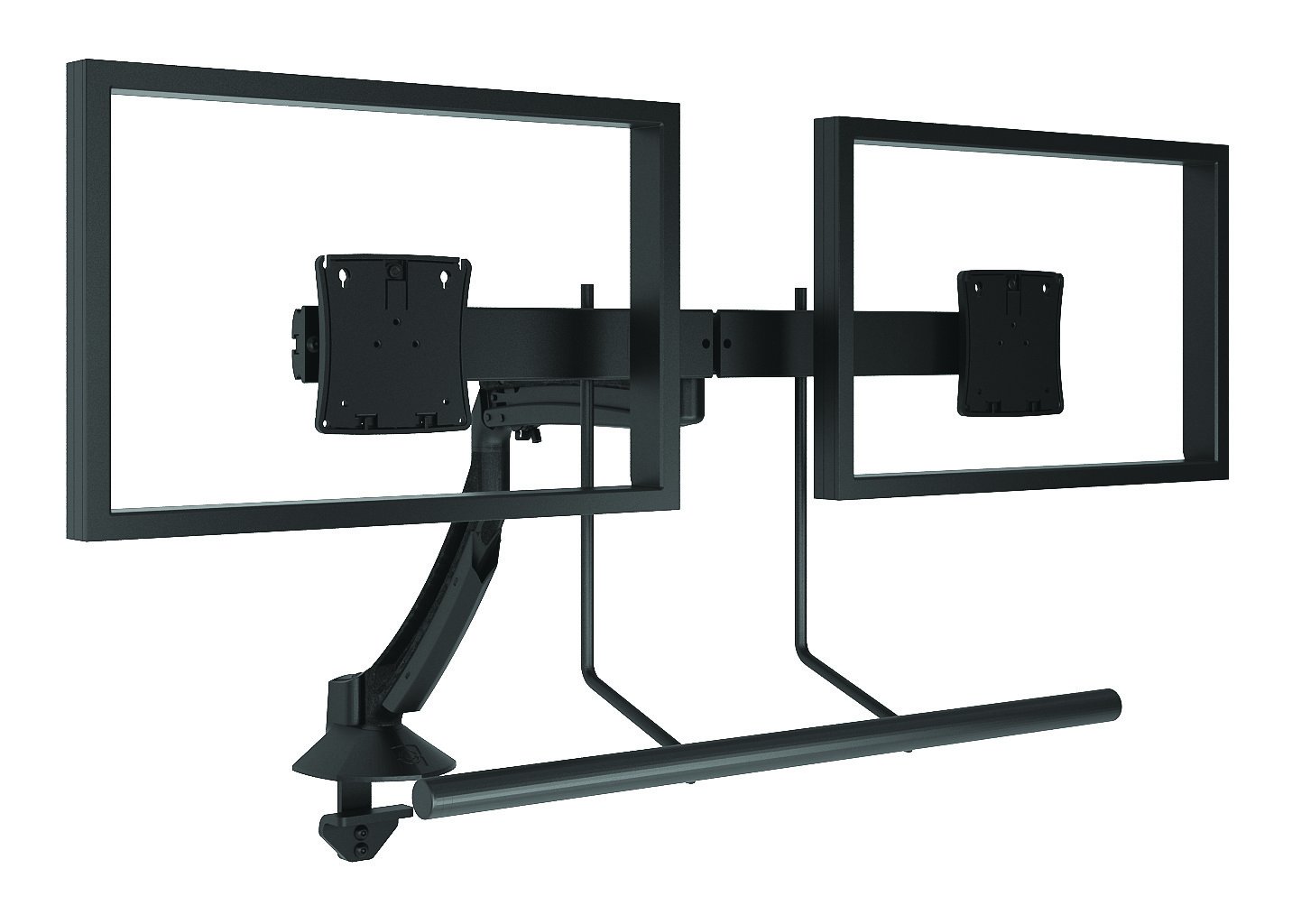

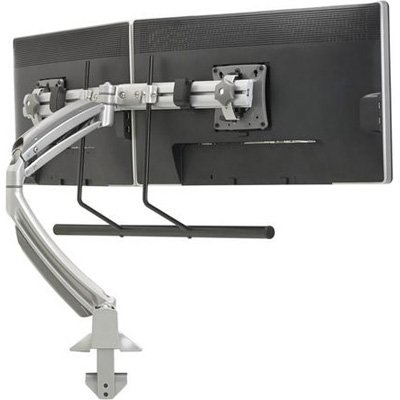

Chief Kontour Dynamic Desk Clamp Mount, Dual Monitor Array - K1D22H
Description
The enhanced Chief K1D22H Kontour K1D Dynamic Height-Adjustable Desk
Clamp Mounts are the perfect monitor mount solutions for the office,
healthcare facilities or home. Best-in-class weight capacity range makes
specification simple.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work space.

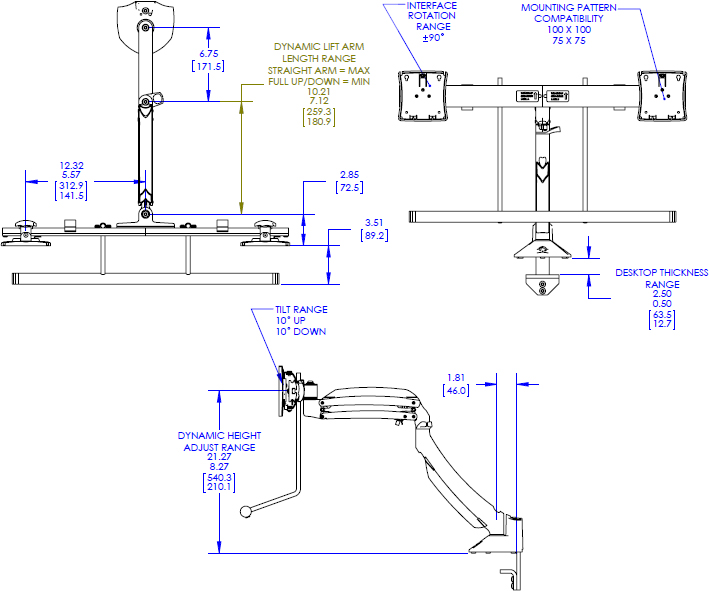

Technical Drawing
Specifications
| Color | Black and Silver |
| Certifications | TAA Compliant |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 13.0" (330 mm) |
| Maximum Extension | 21.2" (538 mm) |
| Minimum Depth | 4.3" (109 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Shipping Weight | 20.76 lbs (9.42 kg) |
| Tilt | +/- 10° |
| TV Width Range | Up to 24.9" (633 mm) |
| Typical Screen Sizes | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Orientation | Landscape, Portrait |
Features
New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Product Options/Accessories
| Model | K1D22HB, K1D22HS |
| Manufacturer | Chief Mounts |
| Part Number | K1D22HB, K1D22HS |
| UPC | 841872160238 |
| Color | Black, Silver |
| Desktop Thickness Range | 0.5 - 2.5 |
| Dynamic Height Adjustment | 13.0 |
| Maximum Extension | 21.2 |
| Minimum Depth | 4.3 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 20.76 lbs (9.42 kg) |
| Tilt | +/- 10 degree |
| TV Width Range | Up to 24.9 |
| Monitor Size | 10 - 24 |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Maximum Monitor Size | 24 |
| Monitor Placement | Side-by-Side |
