Chief Kontour Articulating Column Mount, Dual Monitor Array - K2C22H
Description
Chief K2C22H, the enhanced Kontour K2C Manual Height-Adjustable
Column Mount Articulating Arms are a great solutions for the office,
healthcare facilities or home. K2C mounts provide manual height
adjustment on the Column for optimal ergonomic positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work environment.

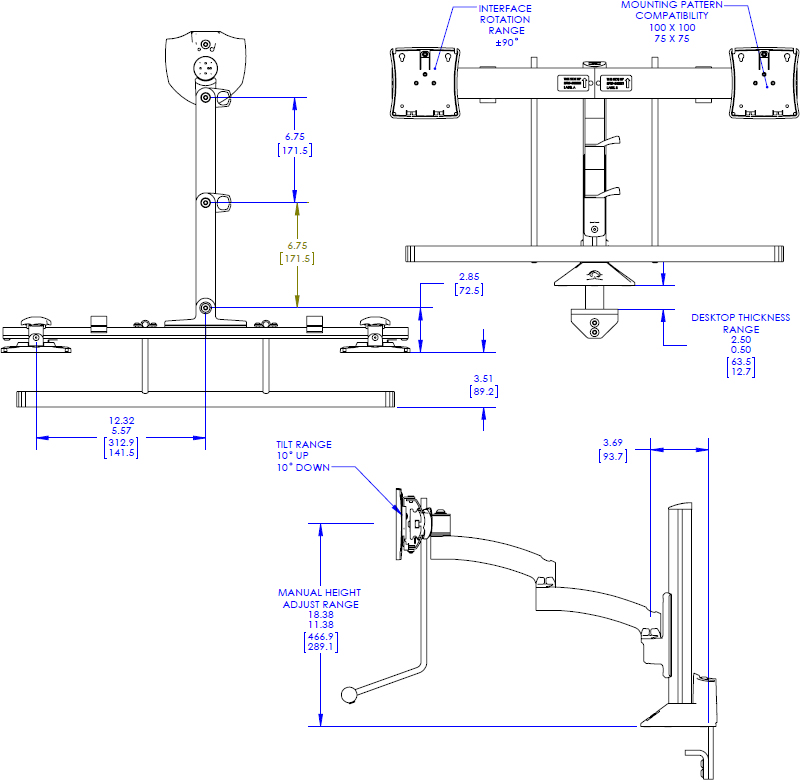

Technical Drawing
Specifications
| Color | Black and Silver |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 19.66" (499.4 mm) |
| Minimum Depth | 6.16" (156.5 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Shipping Weight | 18 lbs (8.16 kg) |
| Tilt | +/- 10° |
| TV Width Range | Up to 24.90" (632.5 mm) |
| Typical Screen Sizes | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment
Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes
Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
7" (178 mm) of manual height adjustment on the column for optimizing screen position
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management clips provide a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Product Options/Accessories
| Model | K2C22HB, K2C22HS |
| Manufacturer | Chief Mounts |
| Part Number | K2C22HB, K2C22HS |
| UPC | 841872160559 |
| Color | Black, Silver |
| Desktop Thickness Range | 0.50 - 2.50 |
| Manual Height Adjustment | 7.0 |
| Maximum Extension | 19.66 |
| Minimum Depth | 6.16 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 18 lbs (8.16 kg) |
| Tilt | +/- 10 degree |
| TV Width Range | Up to 24.90 |
| Monitor Size | 10 - 24 |
| Weight Capacity | Up to 15 lbs (6.8 kg) per monitor |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Maximum Monitor Size | 24 |
| Monitor Placement | Side-by-Side |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
