Chief Kontour K2P Pole Mount Articulating Arm, 2 Monitors - K2P220
Description
Chief K2P220 enhanced Kontour K2P Manual Height-Adjustable Pole Mount
Articulating Arms are a great solutions for the office, healthcare
facilities or public spaces. The K2P mounts provide unlimited manual
height adjustment on the Pole for optimal ergonomic positioning for any
application.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work environment.

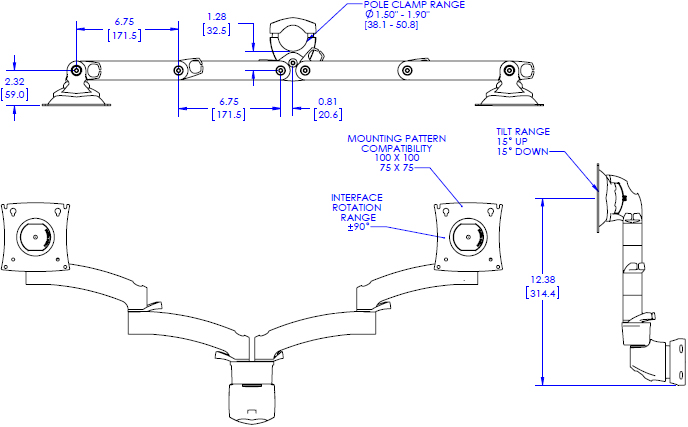

Technical Drawing
Specifications
| Color | Black, Silver |
| Maximum Extension | 17.1" (434 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor, Pole not included; see KTA pole accessories |
| Number of Monitors | 2 |
| Pole Diameter Range | 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 14 lbs (6.35 kg) |
| Tilt | +/- 15° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 25 lbs (11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes
Patented Centris Head provides +/- 15° of effortless tilt, for optimal viewing comfort whether sitting or standing
Infinite manual height adjustment on the Pole for optimizing screen position
Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance
Tool-free cable management clips provide a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Product Options/Accessories
| Model | K2P220B, K2P220S |
| Manufacturer | Chief Mounts |
| Part Number | K2P220B, K2P220S |
| UPC | 841872160627 |
| Color | Black, Silver |
| Maximum Extension | 17.1" (434 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Pole Diameter | Range: 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 14 lbs (6.35 kg) |
| Tilt | +/- 15 degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | Up to 25 lbs (11.3 kg) per monitor |
| Mounting Options | Pole |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 30" |
| Monitor Placement | Side-by-Side |
