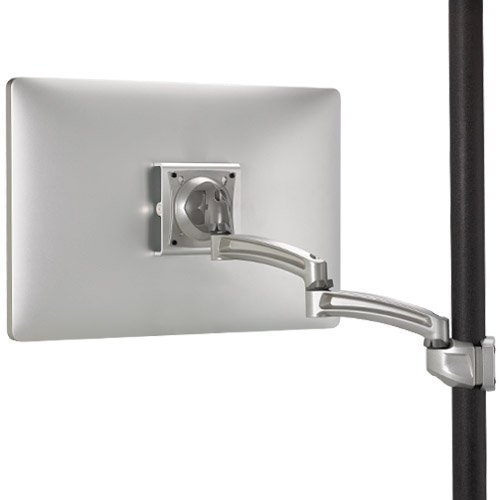

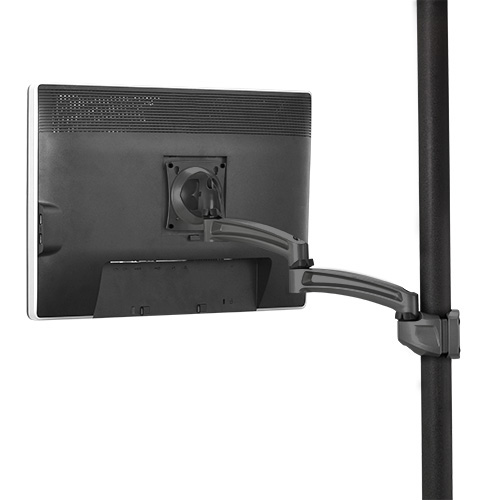

Chief Kontour Pole Mount Articulating Arm, 1 Monitor - K2P120B or K2P120S
Pole not included (purchase separately)
Description
Chief K2P120 enhanced Kontour K2P Manual Height-Adjustable Pole Mount
Articulating Arms are a great solutions for the office, healthcare
facilities or public spaces. The K2P mounts provide unlimited manual
height adjustment on the Pole for optimal ergonomic positioning for any
application.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work environment.

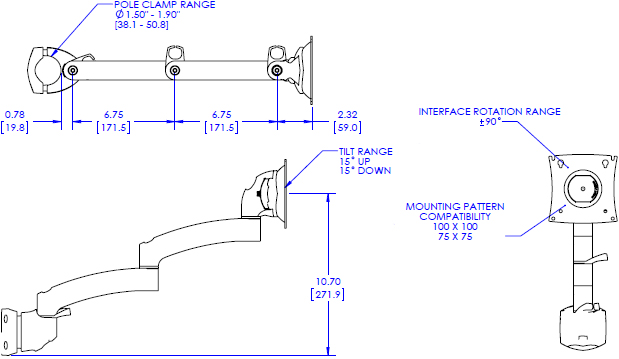

Technical Drawing
Specifications
| Color | Black, Silver |
| Maximum Extension | 16.6" (422 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor, Pole not included; see KTA pole accessories |
| Number of Monitors | 1 |
| Pole Diameter Range | 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 6 lbs (2.72 kg) |
| Tilt | +/- 15° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 40 lbs (18.1 kg) |
| Orientation | Landscape, Portrait |
Features
Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes
Patented Centris Head provides +/- 15° of effortless tilt, for optimal viewing comfort whether sitting or standing
Infinite manual height adjustment on the Pole for optimizing screen position
Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance
Tool-free cable management clips provide a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

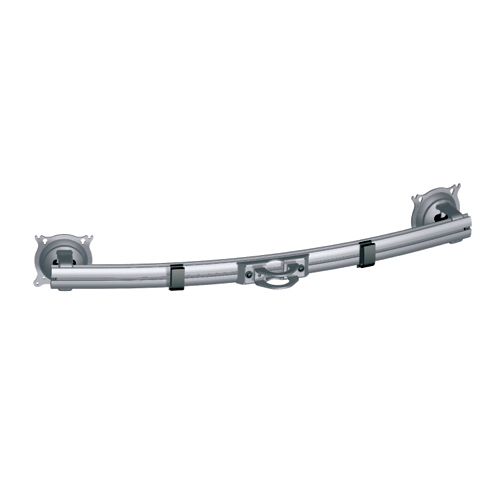

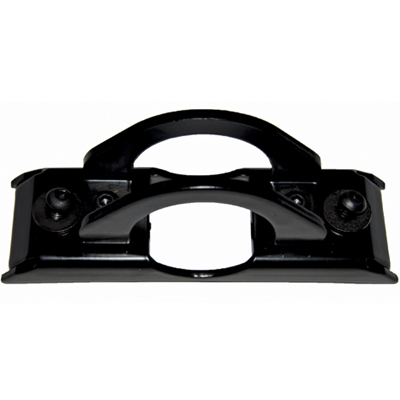

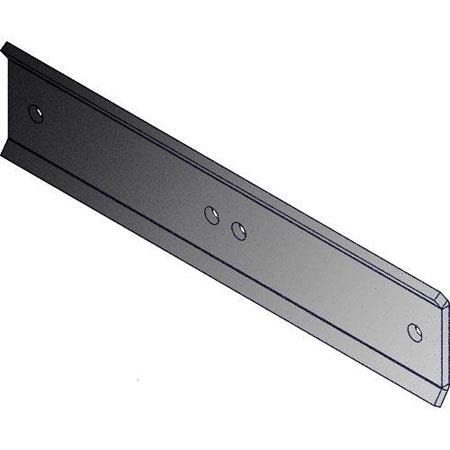

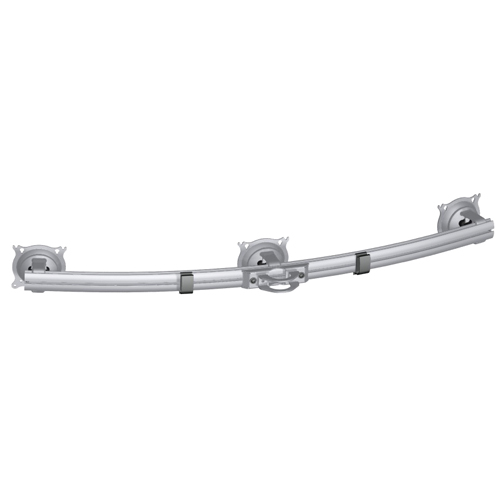

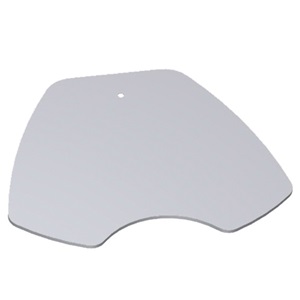

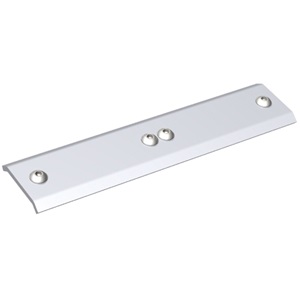

Product Options/Accessories
| Model | K2P120B, K2P120S |
| Manufacturer | Chief Mounts |
| Part Number | K2P120B, K2P120S |
| UPC | 841872160603 |
| Color | Black, Silver |
| Maximum Extension | 16.6" (422 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Pole Diameter | Range: 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 6 lbs (2.72 kg) |
| Tilt | +/- 15 degree degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | Up to 40 lbs (18.1 kg) |
| Mounting Options | Pole |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape, Portrait |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 2
by G. Uy, Illinois, May 07, 2018
I bought this arm as part of a setup to stack a 34” ultrawide over my main monitor. It does the job wonderfully - everything has the heft and fit that you might expect from a quality product.
The adjustment ball is easy to maneuver yet stays put where you leave it (I’m sure I could tighten the adjustment head dial more to keep it locked in tighter but I personally don’t mind)
The cable routing clips on the arm are sturdy and very useful. Overall, it’s well worth the price tag over investing in something cheaper that you’d find on Amazon.
by Jackie C, Georgia, Aug 06, 2015
This item worked great when we installed the monitor for our employee. It was easy to install and looks great at her desk.
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
