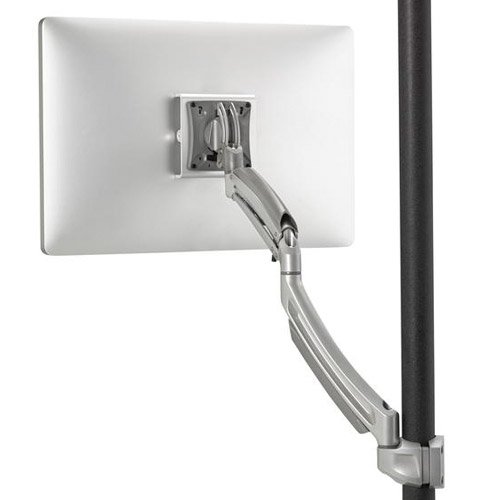

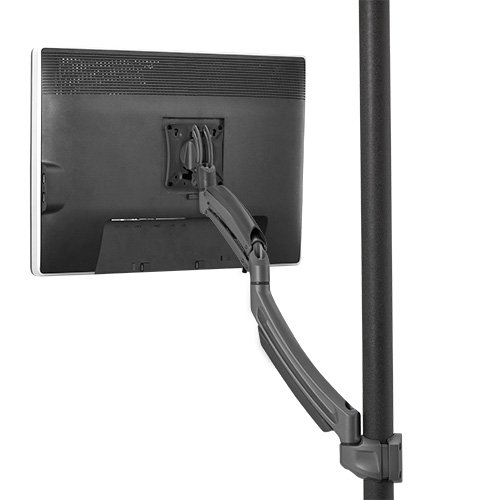

Chief Kontour Dynamic Pole Mount, 1 Monitor - K1P120B or K1P120S
Pole not included (purchase separately). K1P120S is silver finished with grey accents.
Description
Chief K1P120 enhanced Kontour K1P Dynamic Height-Adjustable Pole
Mounts are the perfect monitor mount solutions for the office, public
spaces, healthcare facilities, or home; with the Pole Mount offering
extended manual height adjustment using Chief KTA pole accessories.
Best-in-class weight capacity range makes specification simple.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position to create a more productive and comfortable work space.
Note: Pole not included; see KTA Pole Accessories on Accessories tab.

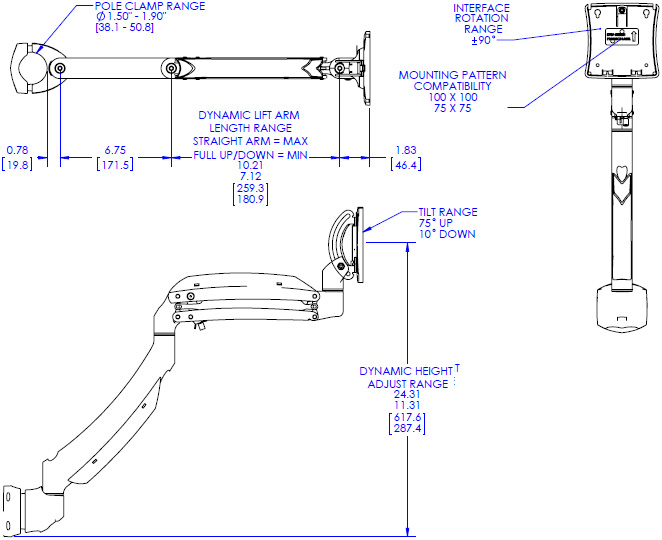

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black, Silver |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 19.44" (493.8 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 1 |
| Pole Diameter Range | 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 10.4 lbs (4.72 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Infinite manual height adjustment on the Pole for optimizing screen position
Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Most Kontour K1 products are TAA-compliant - see respective product pages for details

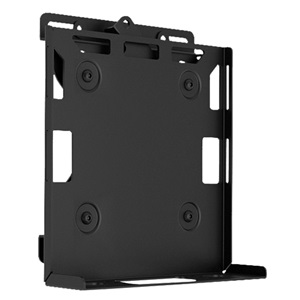

Product Options/Accessories
| Model | K1P120B, K1P120S |
| Manufacturer | Chief Mounts |
| Part Number | K1P120B, K1P120S |
| UPC | 841872160276 |
| Color | Black, Silver |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 19.44" (493.8 mm) |
| Minimum Depth | 2.45" (62.2 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Pole Diameter | Range: 1.50 - 1.90" (38.1 - 48.3 mm) |
| Shipping Weight | 10.4 lbs (4.72 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Mounting Options | Pole |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape, Portrait |
