Chief Kontour K1S Dynamic Slat-Wall Mount, 1 Monitor - K1S120
Description
Chief K1S120 enhanced Kontour K1S Dynamic Height-Adjustable Slatwall
Mounts are perfect solutions for the office, healthcare facilities, and
public spaces.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology, for the ultimate in effortless fingertip monitor
positioning. Kontour monitor mounts float your displays in the optimal
ergonomic position to create a more productive and comfortable work
environment.
Note: Slatwall is not included

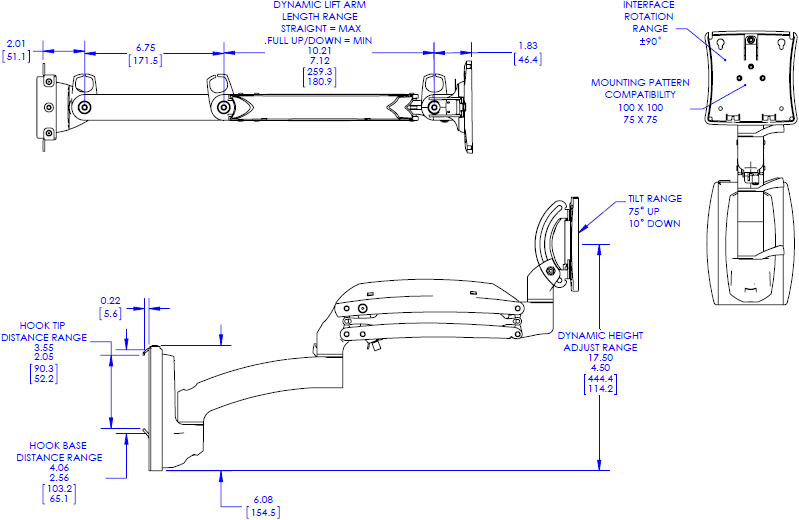

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black, Silver, White |
| Compatible With OFB Furniture Brackets | Yes |
| Dynamic Height Adjustments | 13" (330.2 mm) |
| Maximum Extension | 20.08" (510.0 mm) |
| Minimum Depth | 2.45" (62.2 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 1 |
| Shipping Weight | 9 lbs (4.08 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
Enhanced fingertip positioning of monitor(s) for optimal viewing comfort, whether sitting or standing
13" of dynamic height adjustment using smooth motion gas-spring technology
Enhanced Patented Centris Extreme Tilt provides +75°, -10° of effortless tilt
Tool-free cable management covers for a clean, professional look
Slatwall Mounts easily connect to most Slat-Wall products using the included OFBLU universal slat wall interface bracket
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Kontour K1 products are all TAA-compliant
Product Options/Accessories
| Model | K1S120B, K1S120S, K1S120W |
| Manufacturer | Chief Mounts |
| Part Number | K1S120B, K1S120S, K1S120W |
| UPC | 841872160337 |
| Color | Black, Silver and White |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 20.08" (510.0 mm) |
| Minimum Depth | 2.45" (62.2 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm VESA |
| Shipping Weight | 9 lbs (4.08 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Mounting Options | Slatwall |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Orientation | Landscape, Portrait |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
