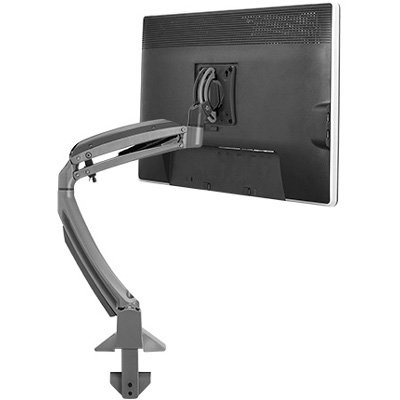

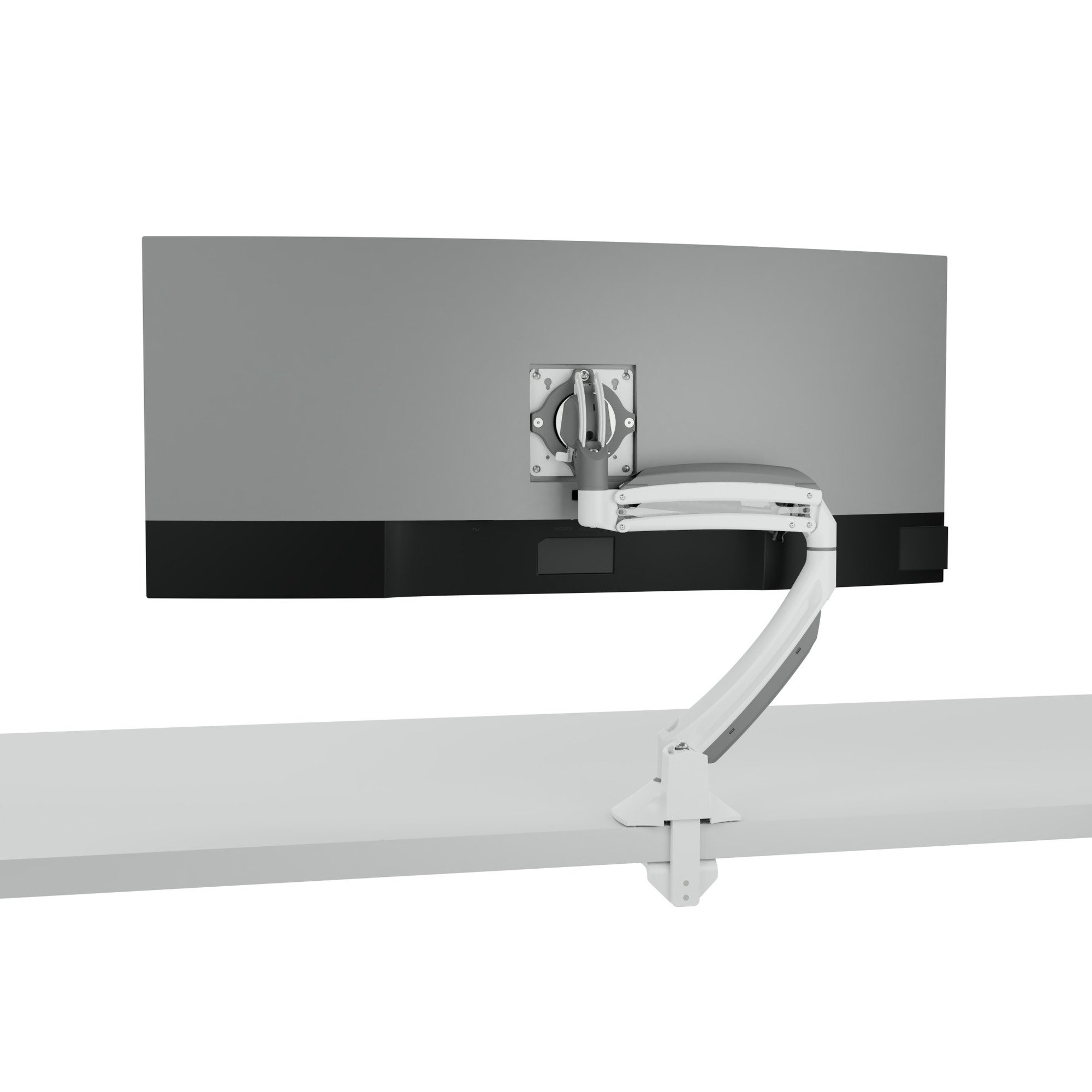

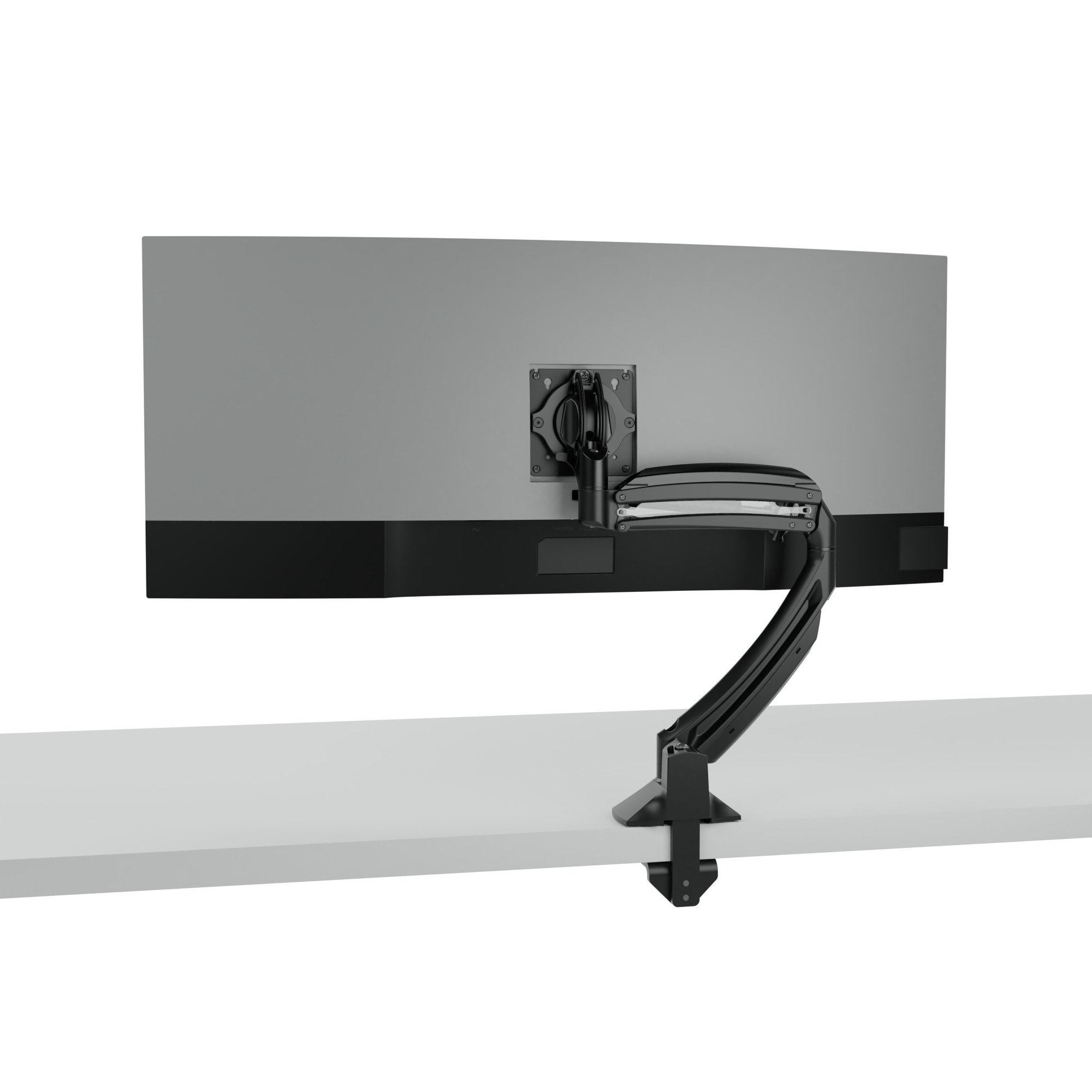

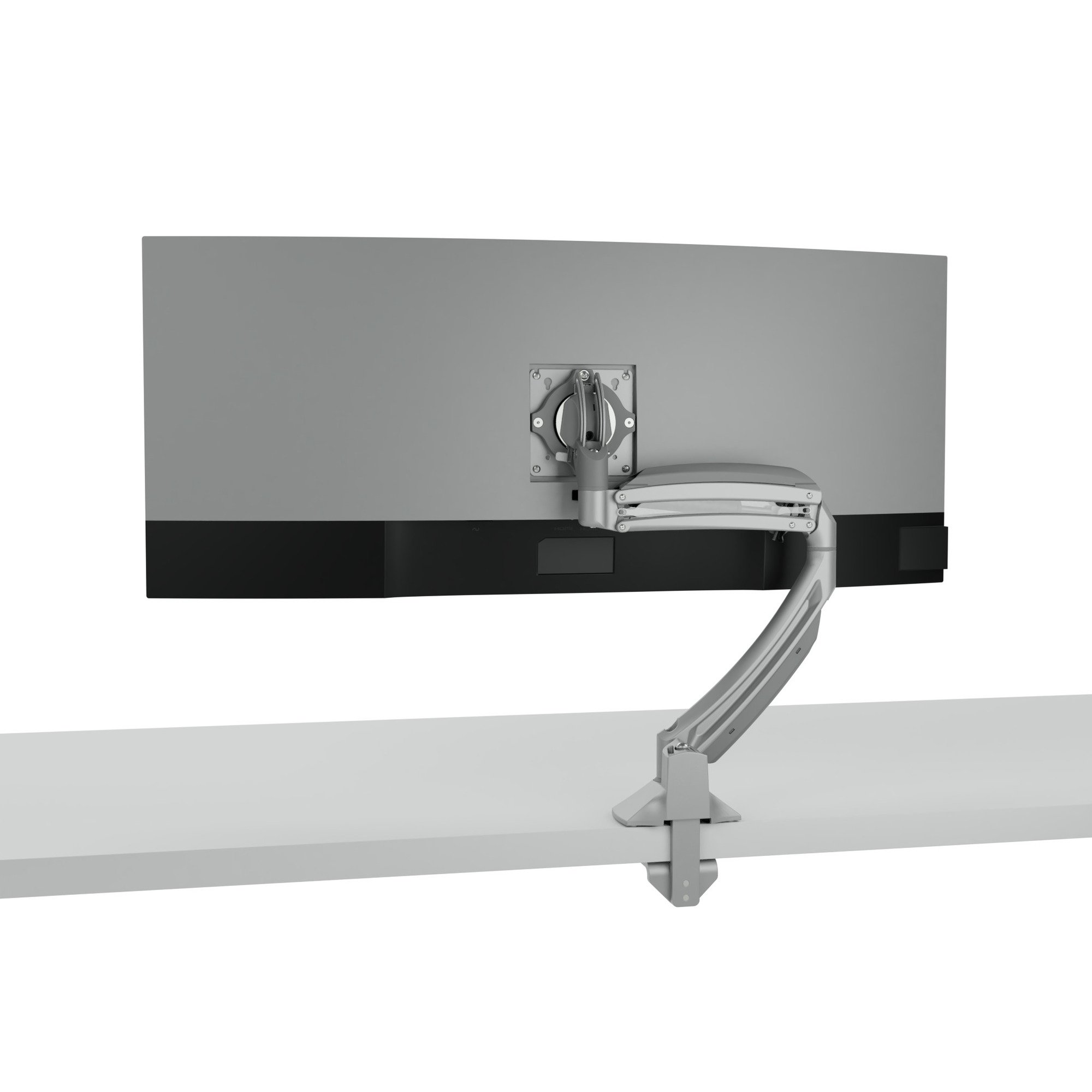

Chief Kontour K1D Dynamic Single Monitor Desk Clamp Mount - K1D120
Description
The enhanced Chief K1D120 Kontour K1D Dynamic Height-Adjustable Desk
Clamp Mounts are the perfect monitor mount solutions for the office,
healthcare facilities or home. Best-in-class weight capacity range makes
specification simple.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work space.

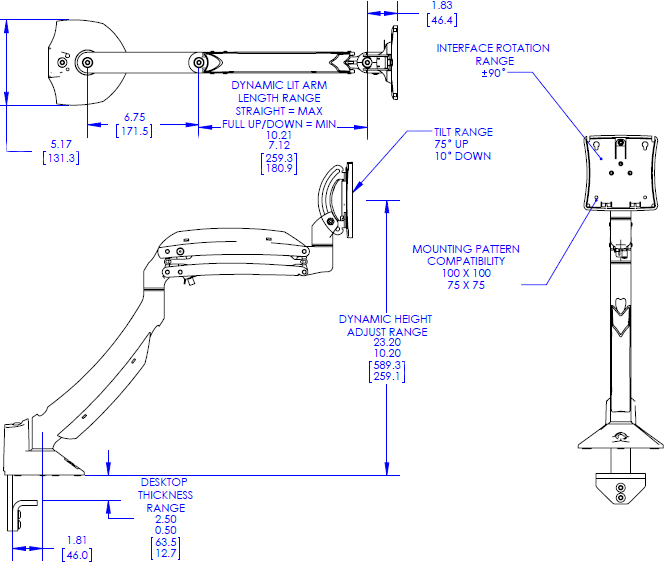

Technical Drawing
Specifications
| Color | Black, Silver and White |
| Certifications | TAA Compliant |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 13.0" (330 mm) |
| Maximum Extension | 20.6" (523 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 1 |
| Shipping Weight | 11.7 lbs (5.31 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Most Kontour K1 products are TAA-compliant - see respective product pages for details
Product Options/Accessories
| Model | K1D120B, K1D120S, K1D120W |
| Manufacturer | Chief Mounts |
| Part Number | K1D120B, K1D120S, K1D120W |
| UPC | 841872160146 |
| Color | Black, Silver and White |
| Desktop Thickness Range | 0.5 - 2.5 |
| Dynamic Height Adjustment | 13.0 |
| Maximum Extension | 20.6 |
| Minimum Depth | 2.45 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 11.7 lbs (5.31 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 30 |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
