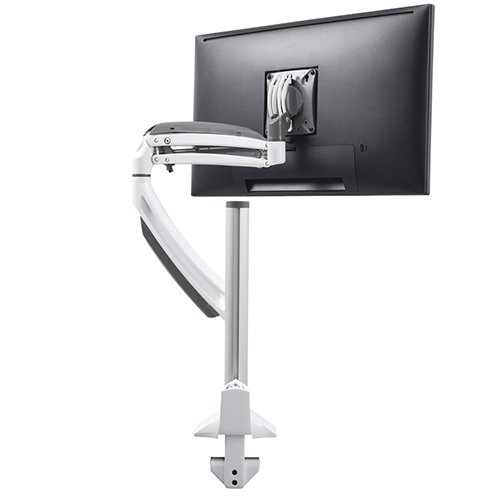

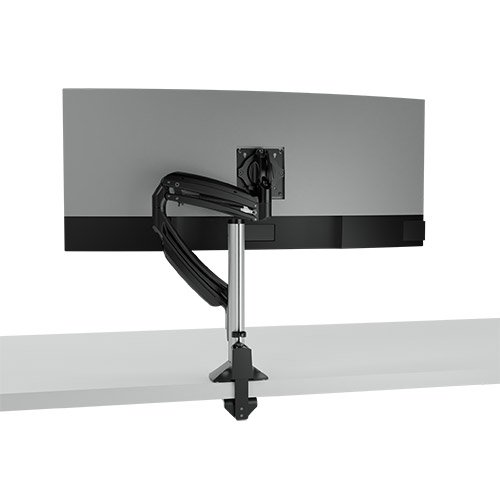

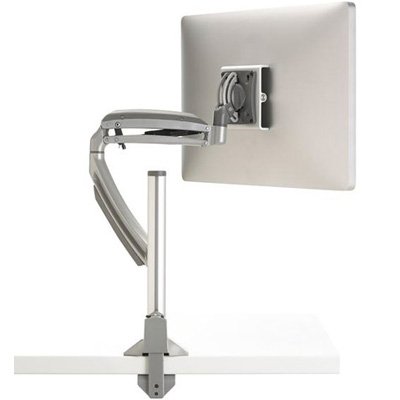

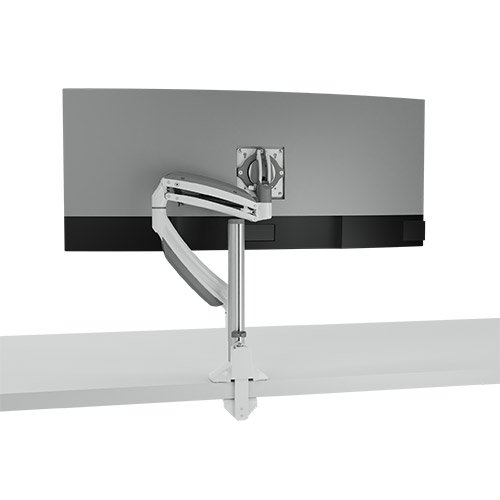

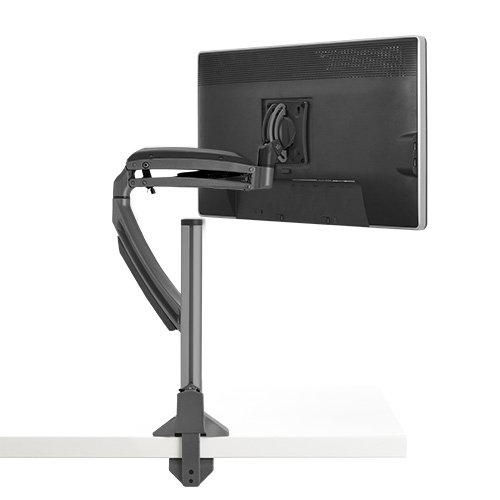

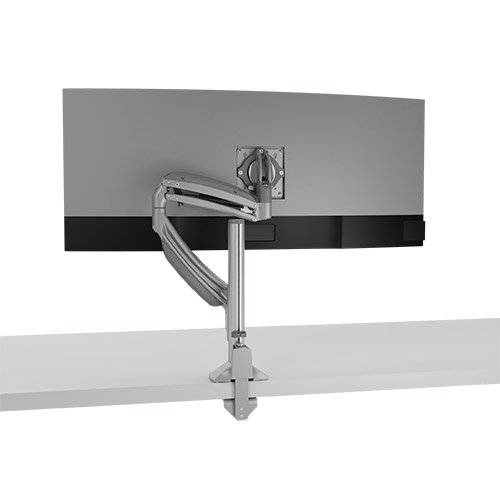

Chief Kontour K1C Dynamic Column Mount, 1 Monitor - K1C120
Description
Chief K1C120 enhanced Kontour K1C Dynamic Height-Adjustable Column
Mounts are the perfect solutions for the office, healthcare facilities
or home. K1C mounts provide the maximum amount of both dynamic and
manual height adjustment for the ultimate ergonomic solution. And
best-in-class weight capacity range makes specification simple.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for effortless fingertip monitor positioning. Kontour monitor
mounts float your displays in the optimal ergonomic position above your
work surface to create a more productive and comfortable work
environment.

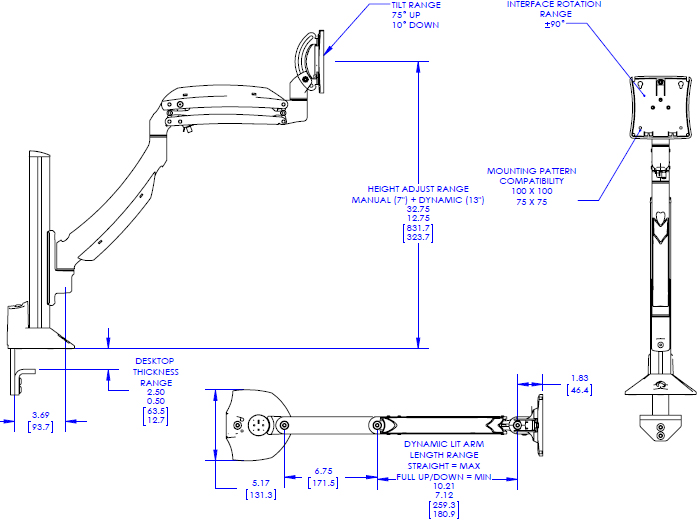

Technical Drawing
Specifications
| Color | Black, Silver and White |
| Certifications | TAA Compliant |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 22.5" (571.0 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 1 |
| Shipping Weight | 13.1 lbs (5.94 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One
Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
20" (508 mm) of total height adjustment range
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Additional 7" (178 mm) of manual height adjustment on the column
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Most Kontour K1 products are TAA-compliant - see respective product pages for details
Product Options/Accessories
| Model | K1C120B, K1C120S, K1C120W |
| Manufacturer | Chief Mounts |
| Part Number | K1C120B, K1C120S, K1C120W |
| UPC | 841872160016 |
| Color | Black, Silver and White |
| Desktop Thickness Range | 0.50 - 2.50 |
| Dynamic Height Adjustment | 13 |
| Manual Height Adjustment | 7.0 |
| Maximum Extension | 22.5 |
| Minimum Depth | 2.45 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 13.1 lbs (5.94 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 30 |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
