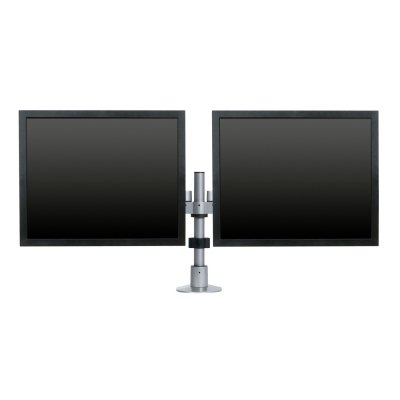

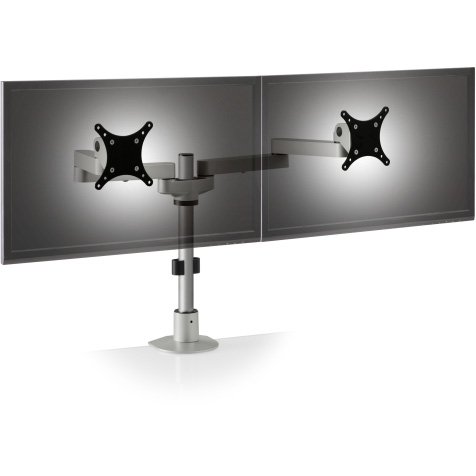

Innovative 9163-S-14 Side-by-Side Dual Mount (oversized LCDs)
Ideal for large (20"+) monitors
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description
Ideal for a dual large flat panel monitor setup, the 9163-S-14 places
20"+ monitors side by side in a space saving pole mount. Easily position
each monitor independently, and quickly adjust pivot and placement.

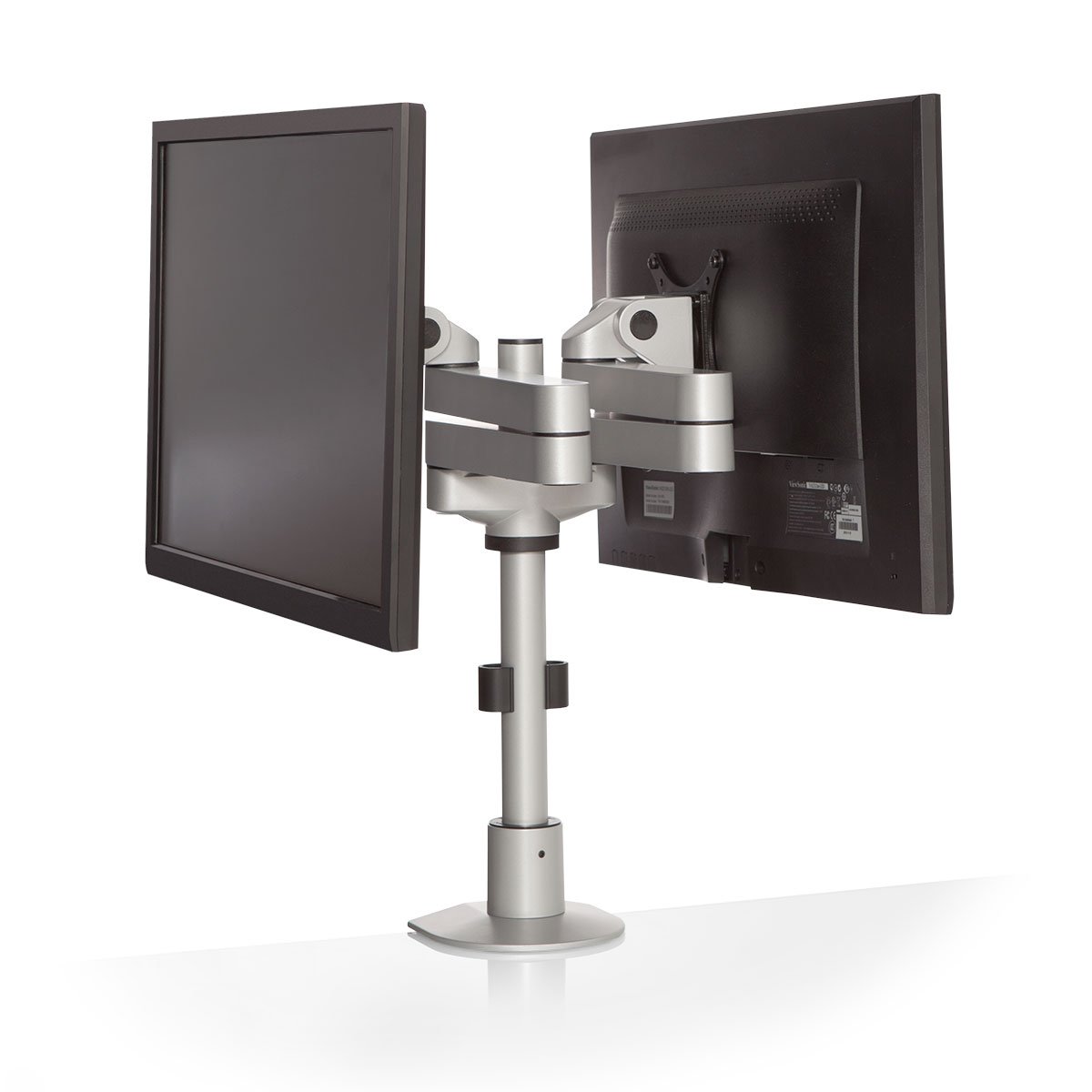

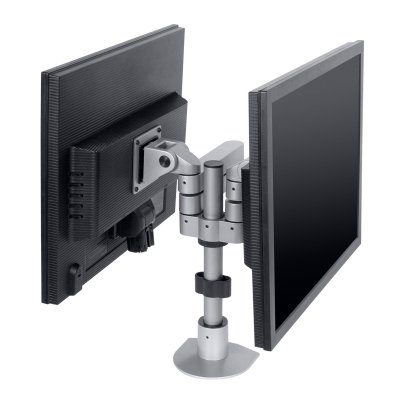

Innovative 9163-S-14 dual monitor pole mount positions two large flat

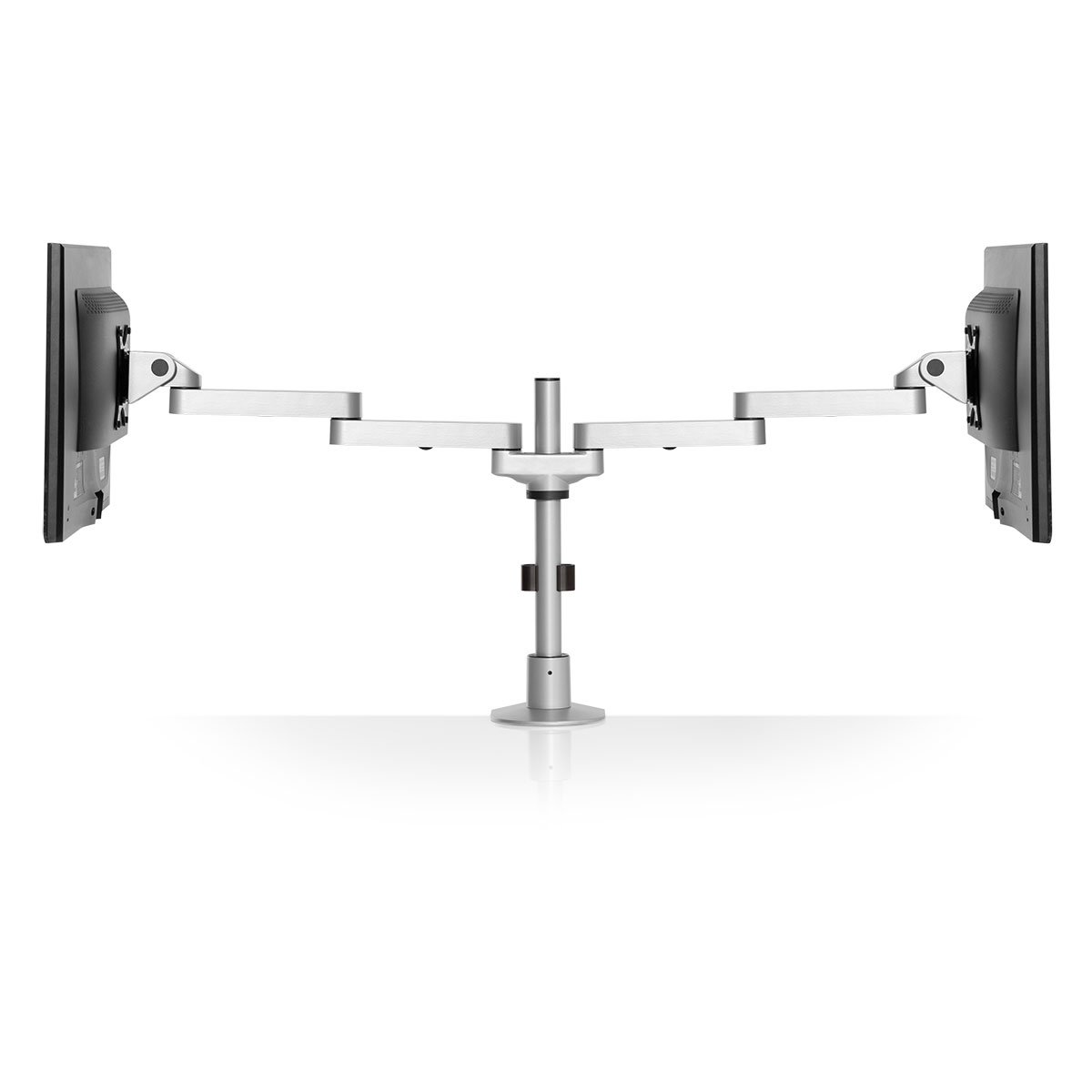

paneled monitors side by side while saving space. The extra-long dual
articulating arms make this mount ideal for large monitors (20 inches or
more). Each monitor can be positioned independently, allowing for quick
adjustment, pivot, and placement. Set the height of the dual monitors at
any desired positioned along the included 14" pole mount.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |

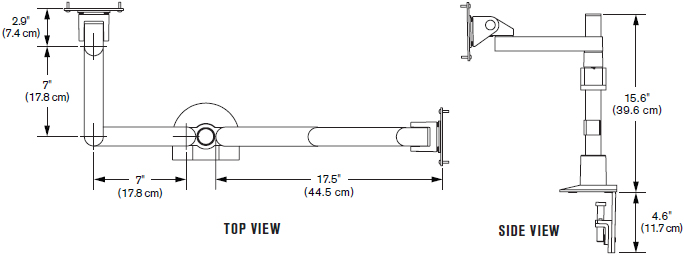

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Screen Size | Up to 30" |
| Extension Range | 17.5" (44.5 cm) |
| Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Pole Height | 14" (36 cm) |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 75mm, 100mm adapters included |
| Weight Capacity | Up to 30 lbs (13.61 kgs) per monitor |
| Warranty | 10 years |
Features

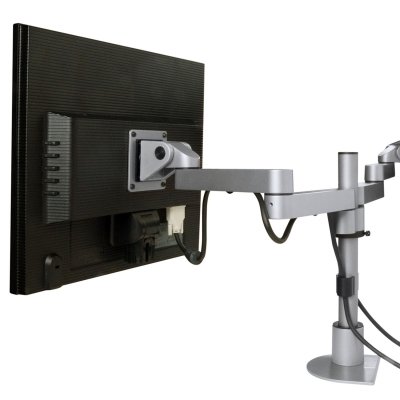

Extra-long dual monitor arms enable proper positioning of large and widescreen LCD monitors (20" or more)
FLEXmount with six mounting options is available
Includes at 14" standard pole mount; custom pole mount lengths are also available
Provides 200 degrees of monitor rotation at two pivot points

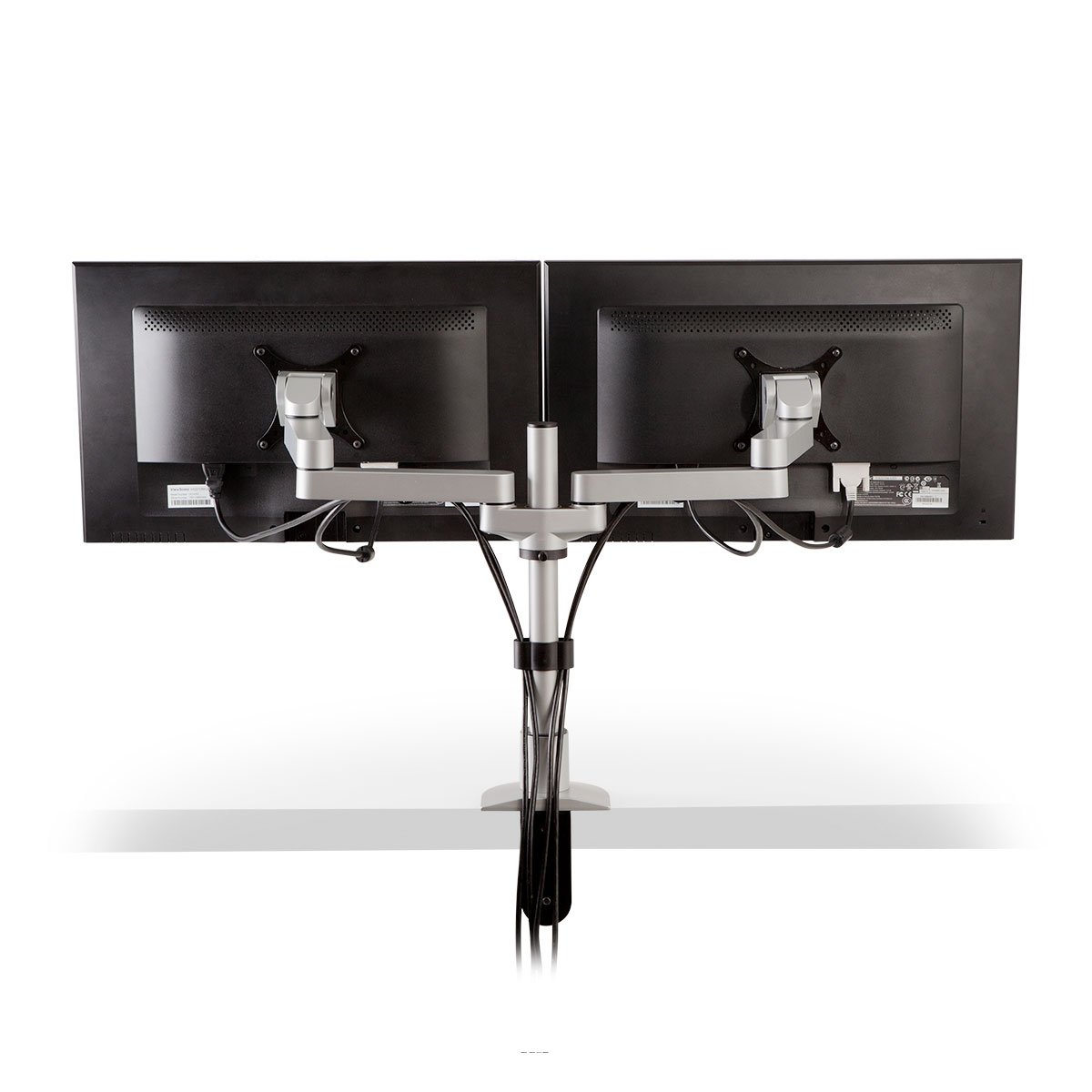

Space saving monitor desk mount design allows approximately three inches of space behind the dual monitors
Friction control system provides smooth adjustment while adjusting the position of the dual monitor arms
Able to adjust each monitor independently
VESA monitor stand compatible - 75mm, 100mm VESA adapters included; please call for non-VESA options
The 9163-S-14 Oversized LCD Dual Monitor Mount can be combined with all Innovative monitor mounting options (sold separately)
Optional upgrade to quick install/release monitor mount bracket; please consult your sales rep for details.
Product Options/Accessories
| Model | 9163-S-14 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9163-S-14 |

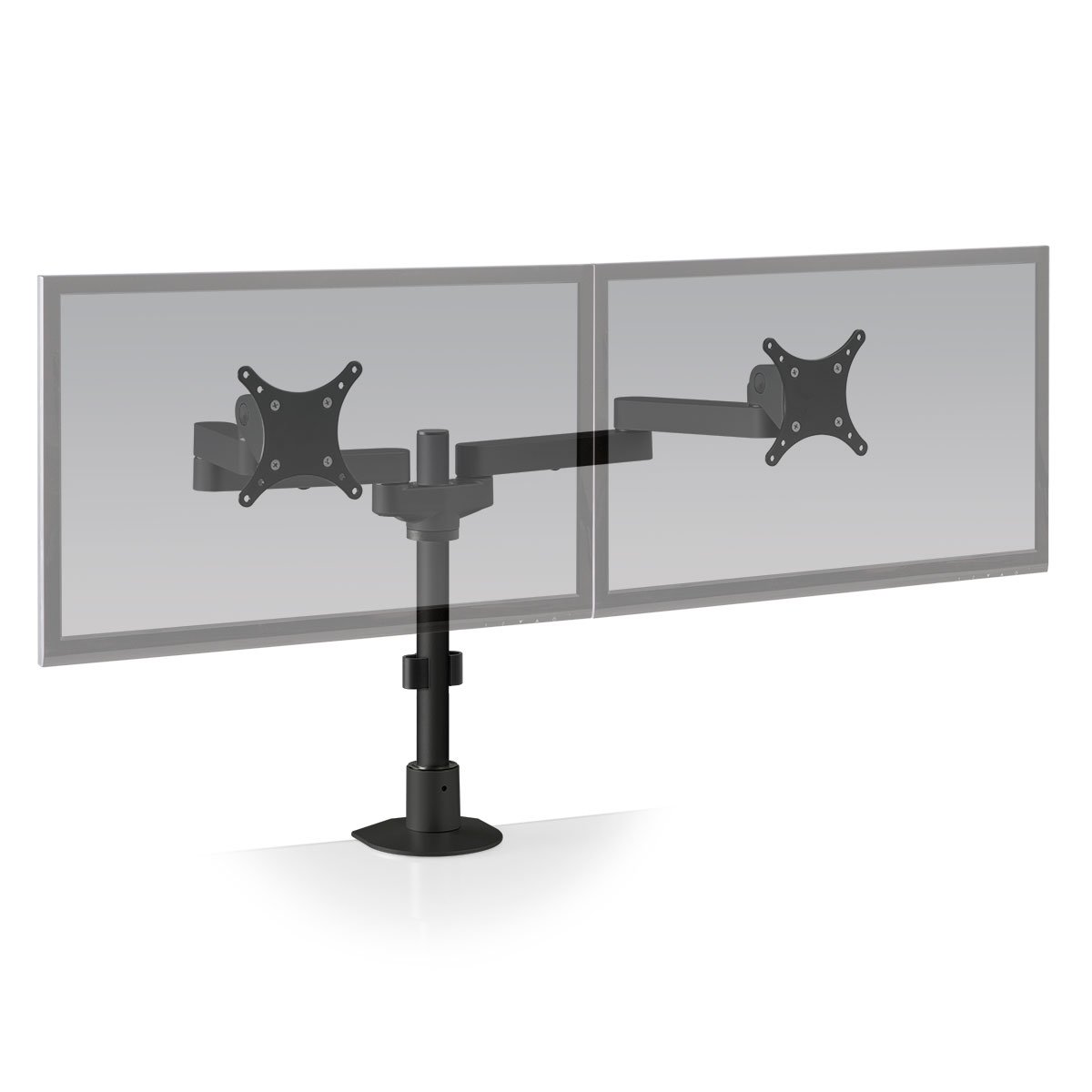

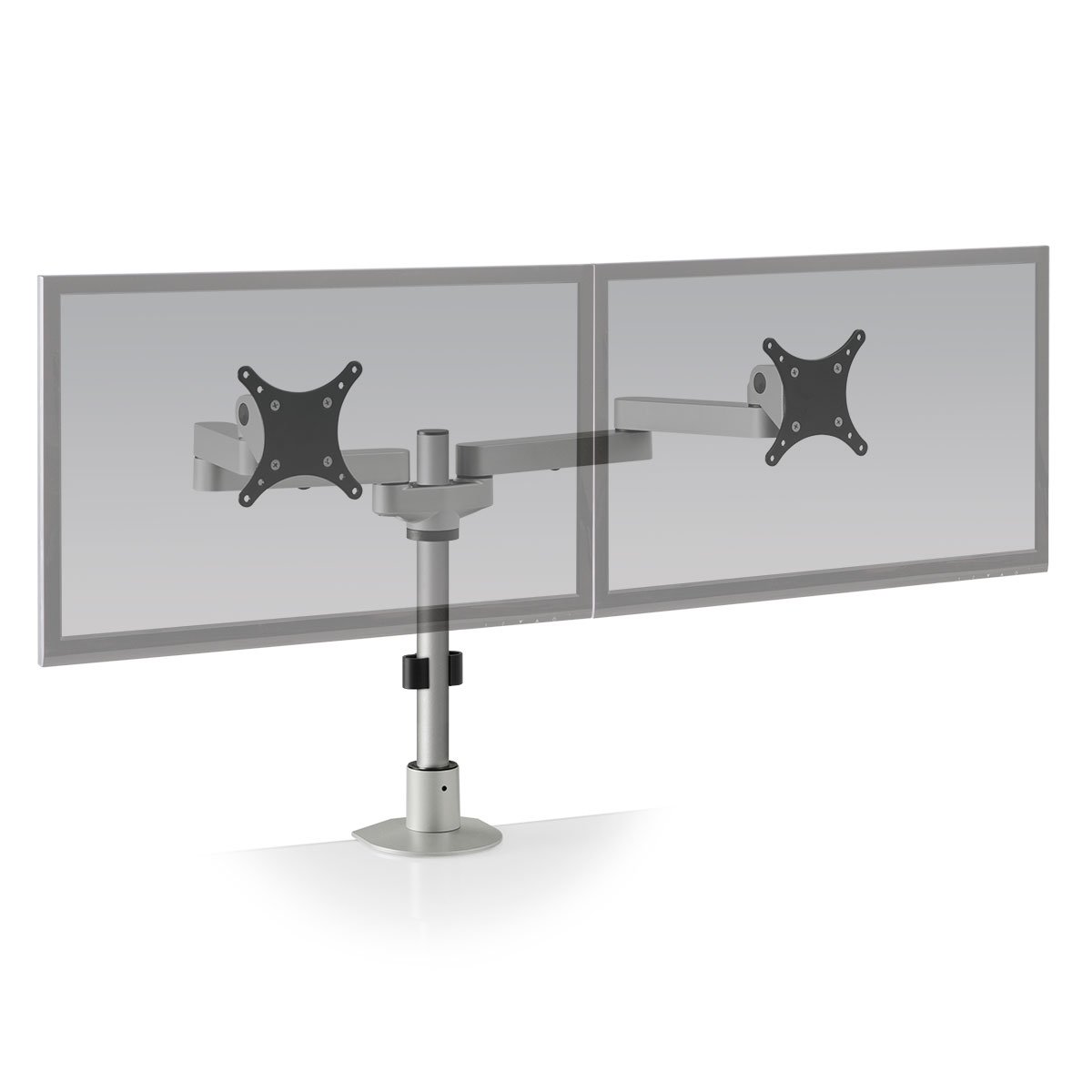

| Color | 104 - Vista Black, 124 - Silver |
| Horizontal Range | 17.5 |
| Pole Length | 14 |
| Tilt | 200 degree |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Monitor Weight | Up to 30 lbs (13.61 kgs) per monitor |
| Rotation | 360 degree |
| Monitor Size | Up to 30 |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Warranty | 10 Years |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
