Innovative 9120-S-14 Side-by-Side Dual Monitor Mount - 14" Pole
Description

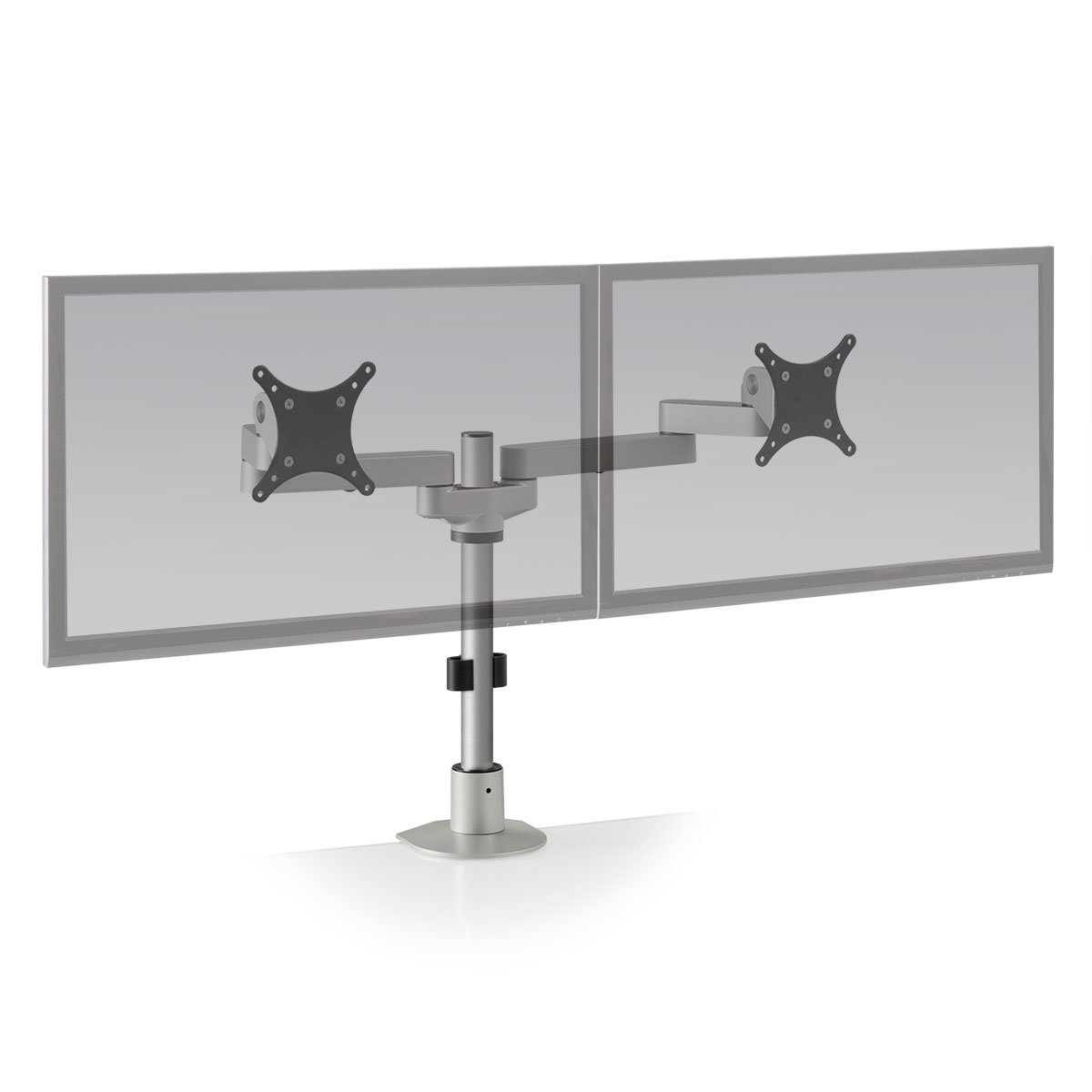

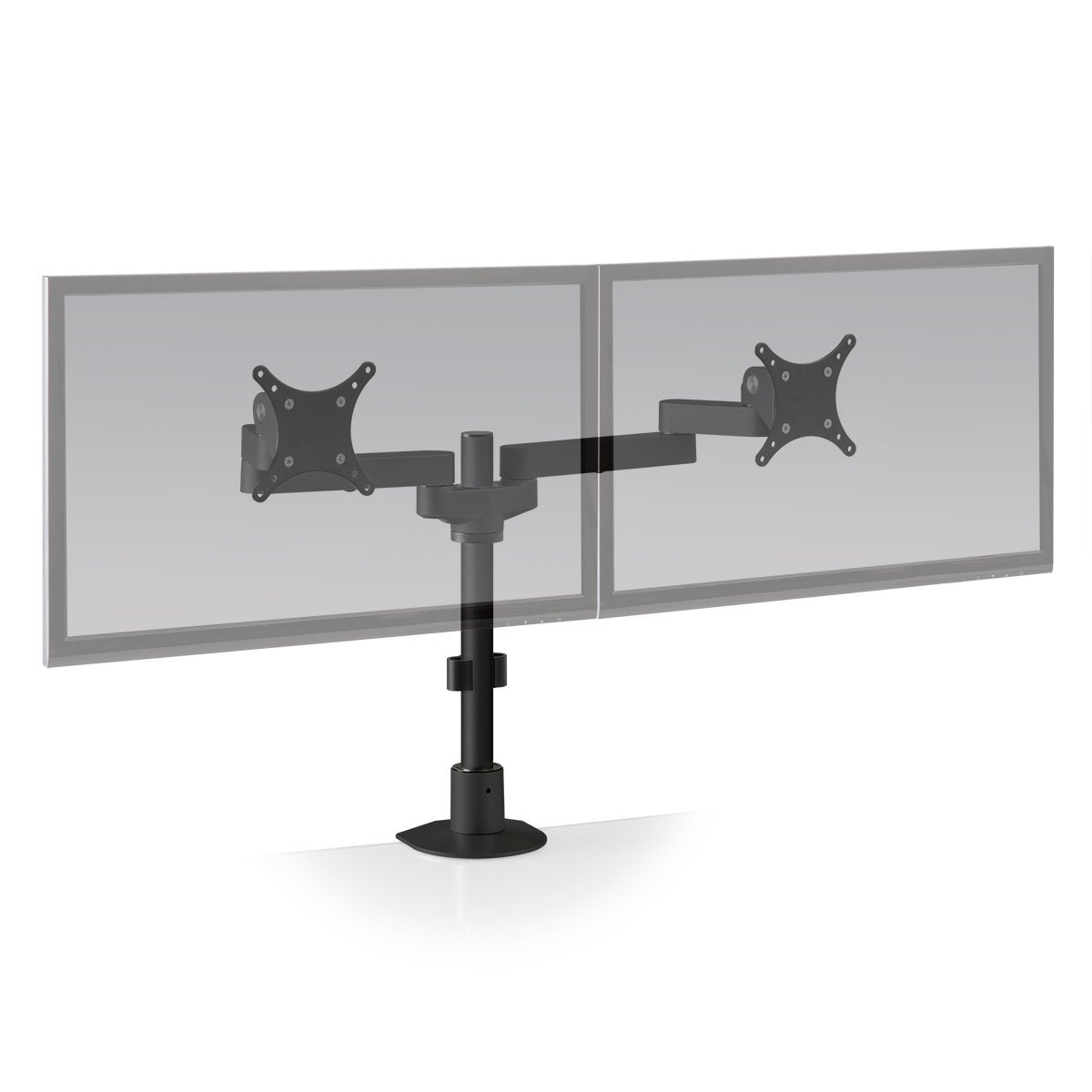

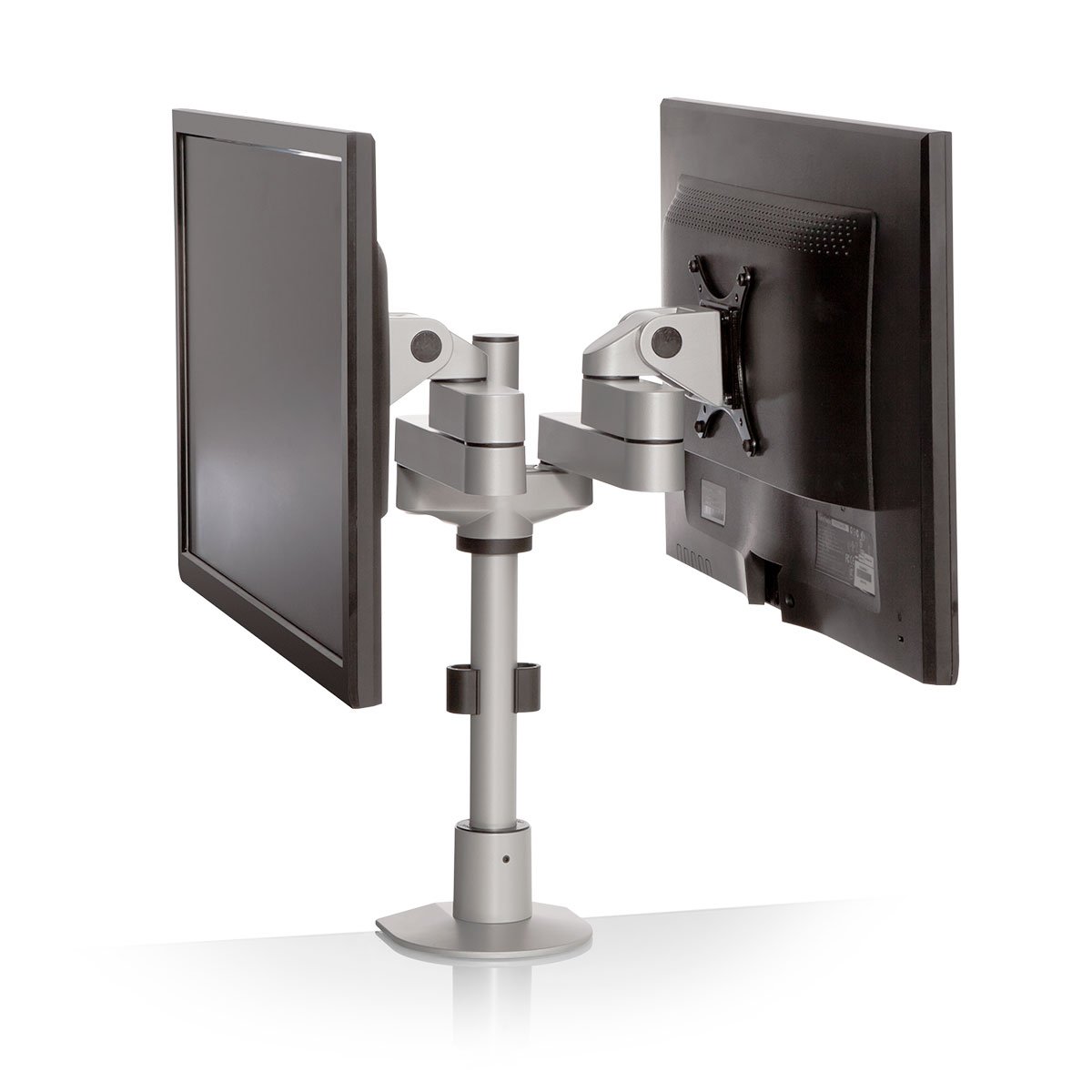

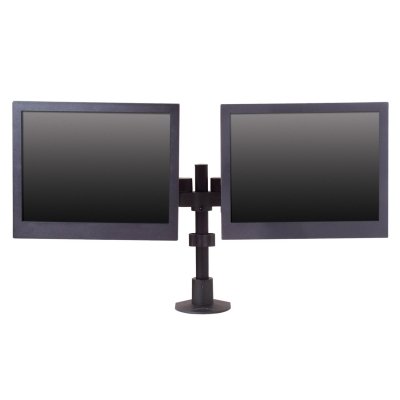

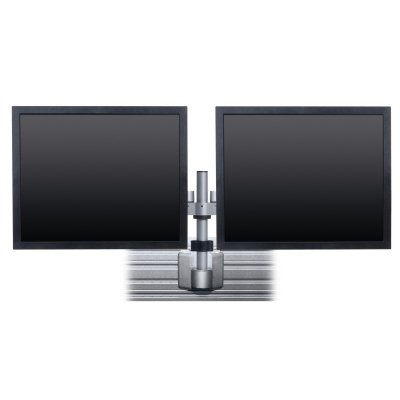

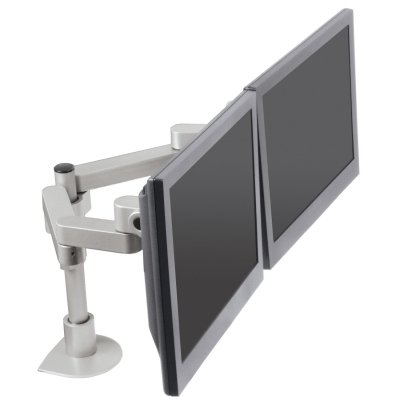

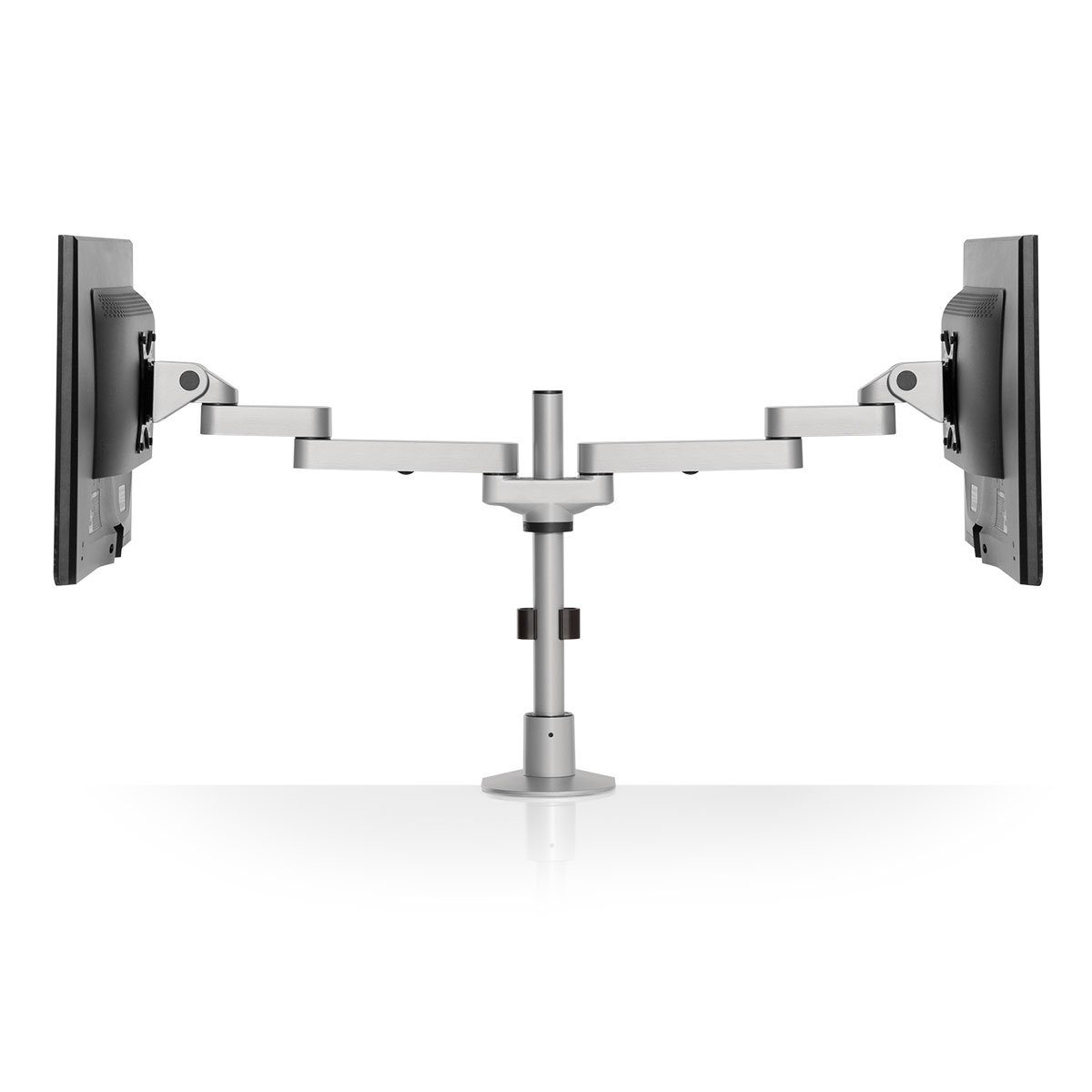

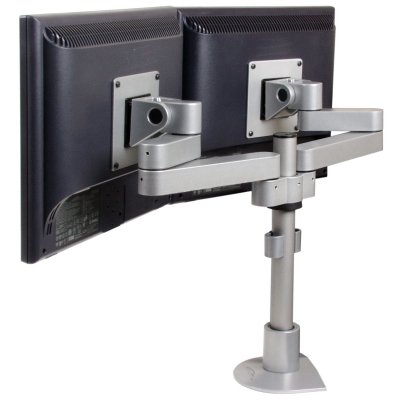

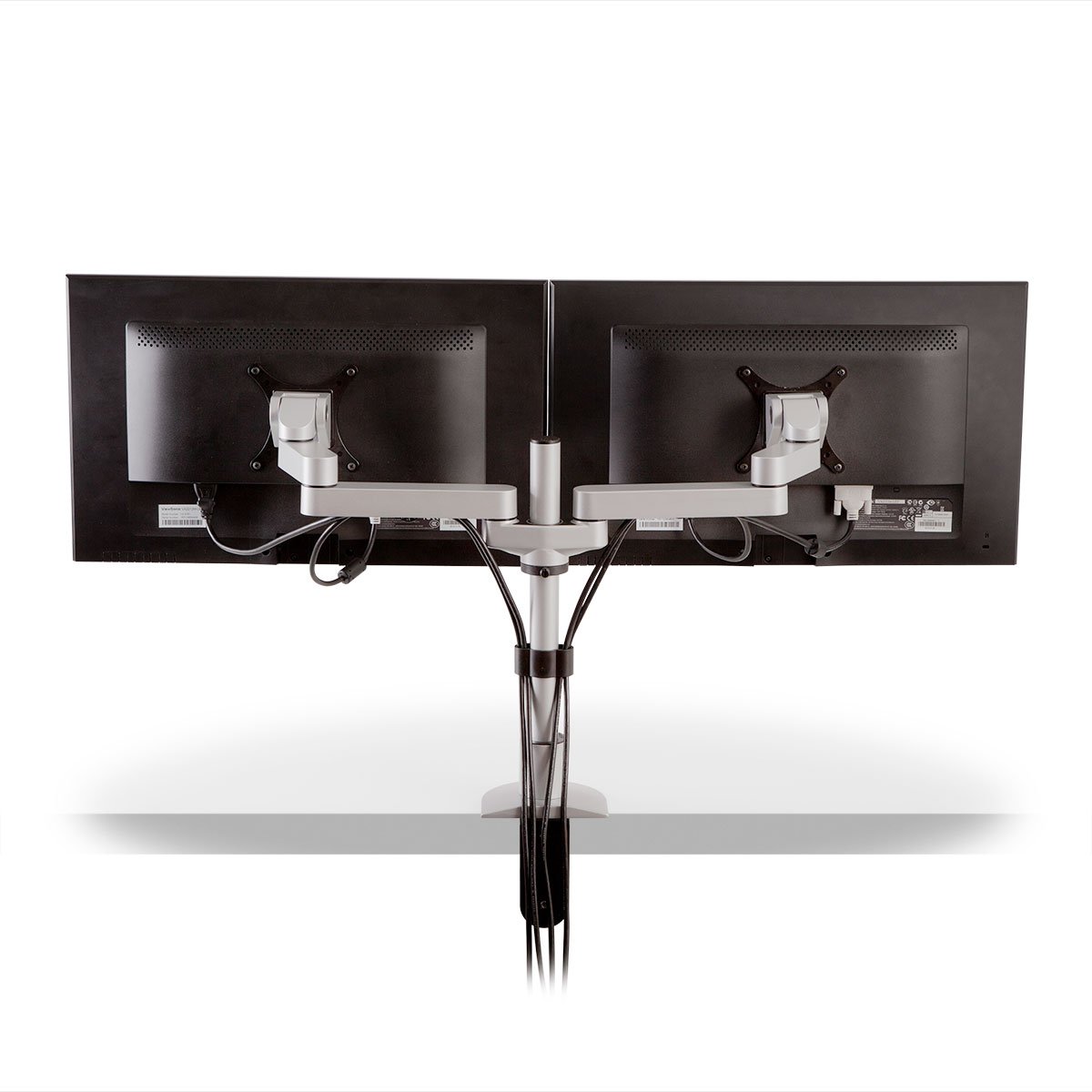

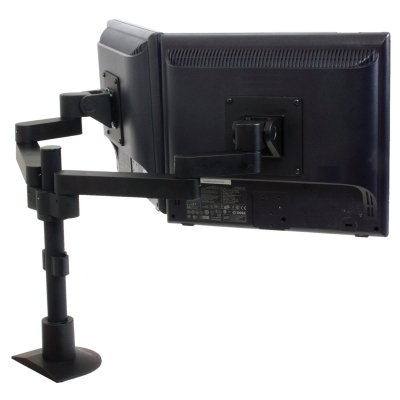

Innovative 9120-S-14 dual monitor mount displays two flat panel monitors side-by-side on independent articulating monitor arms from one point on the desk. Save space and adjust each monitor arm for ergonomic comfort. The articulating monitor arms allows users to position each monitor independently of the other, and quickly adjust, pivot, and place as needs change. The included 14″ pole mount enables users to set the height at any desired position.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |

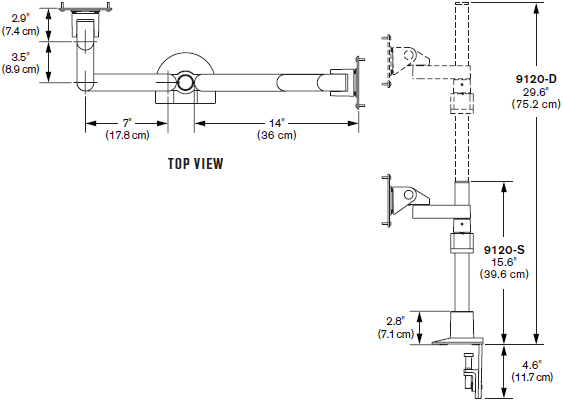

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Screen Size | Up to 24" |
| Extension Range | 13.4" (34 cm) |
| Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Pole Height | 14" (36 cm) |
| Monitor Tilt | 190 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 75mm and 100mm adapters included |
| Weight Capacity | Up to 30 lbs (13.61 kgs) per monitor |
| Warranty | 10 years |
Features

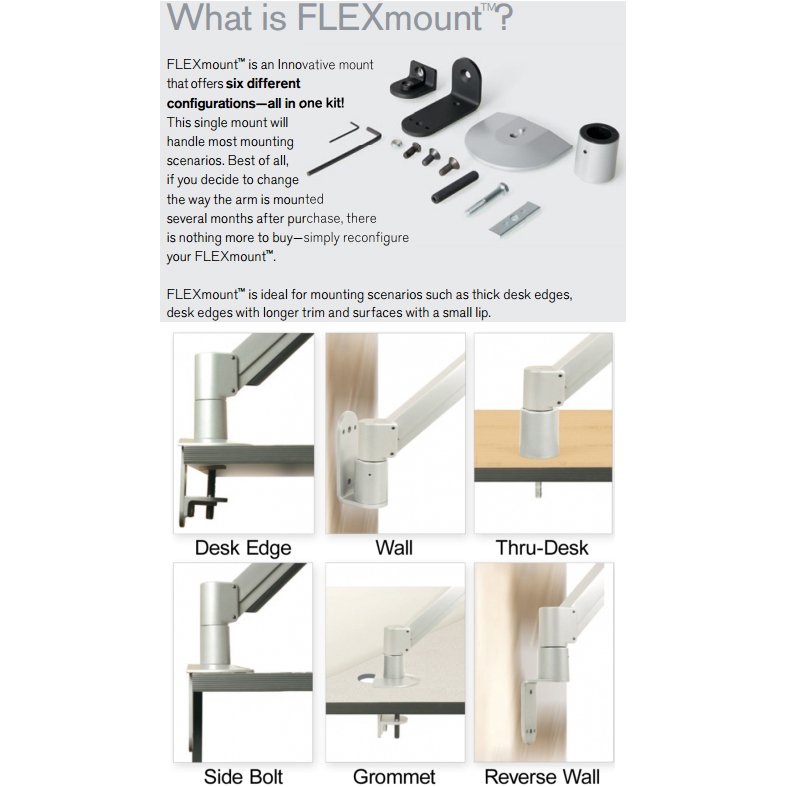

FLEXmount with six mounting options is available
Includes at 14" standard pole mount; custom pole mount lengths are also available
Provides 190 degrees of monitor rotation at two pivot points
Space saving monitor desk mount design allows approximately 3" of space behind the dual monitors
Friction control system provides smooth adjustment while adjusting the position of the dual monitor arms
Able to adjust each monitor independently
VESA monitor stand compatible - 75mm and 100mm VESA adapters included. Please call for non-VESA options
The 9120-FM Dual Monitor Mount can be combined with all Innovative mounting options (sold separately)
Optional upgrade to quick install/release monitor mount bracket; please consult your sales rep for details
Product Options/Accessories
| Model | 9120-S-14 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9120-S-14 |
| Number of Monitors | 2 Monitors |
| Monitor Weight | Up to 30 lbs (13.61 kg) per monitor |
| Monitor Size | Up to 24 |
| Monitor Placement | Side-by-Side |
| Color | 104 - Vista Black, 124 - Silver |
| Pole Length | 14 |
| Tilt | 190 degree |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Mounting Options | Desk, Wall, Thru-Desk, Grommet, side bolt, reverse wall |
| Extension | 13.4" |
| Rotation | 360 degree |
| Warranty | 10 Years |
