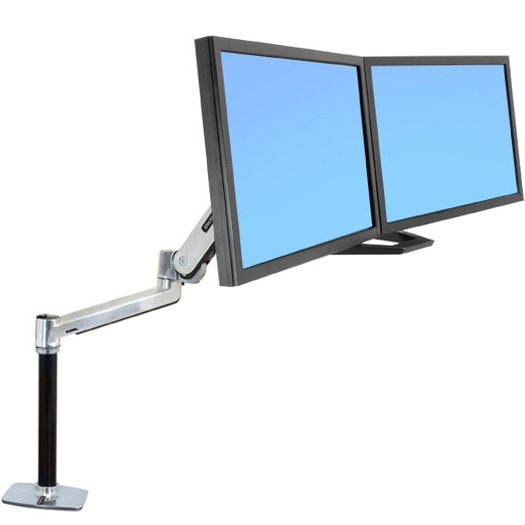

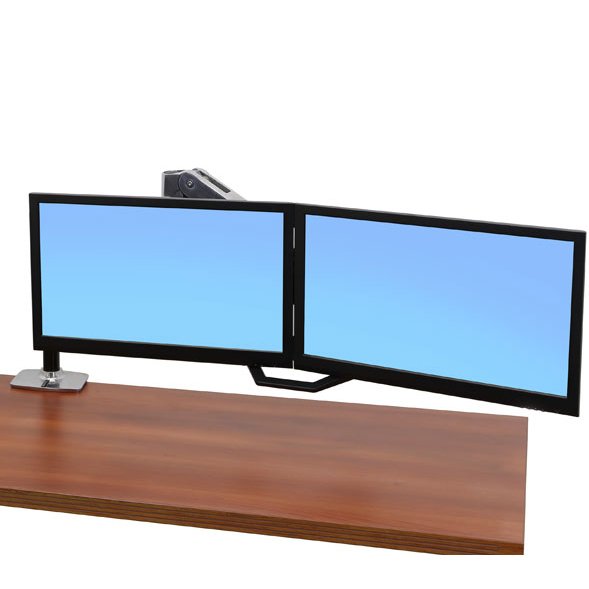

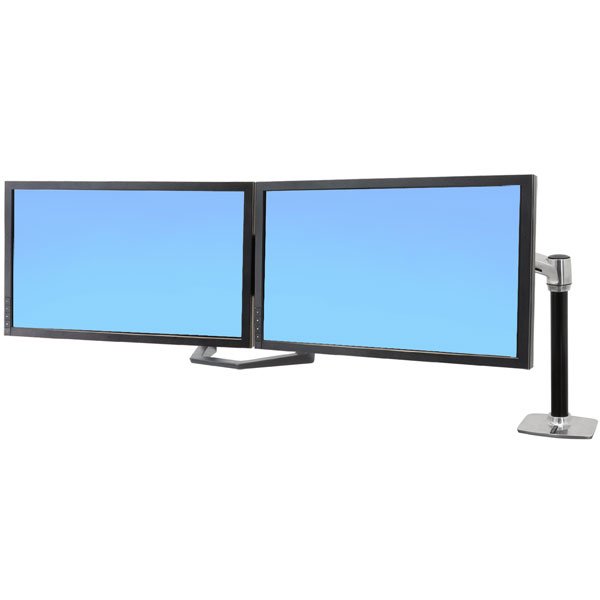

ErgoDirect Dual Monitor/Keyboard Sit-Stand Workstation, ED-2KLXS
Description
The Standing Workstation with a keyboard is a versatile and ergonomic solution for anyone who spends long hours working on a computer. With the ability to operate the monitors and keyboard arm independently, users can customize their workspace to their preferred height and position. The keyboard tray stays at the desktop level, making it more comfortable for taller users.
This adjustable-height workstation can carry two monitors, each between 14" to 24.5" wide. The ED-2KLXS has a weight capacity of 8.5lbs per monitor while the ED-2KHXS supports monitors up to 11lbs. The 20" height adjustability allows users to adjust the monitors and keyboard to their ideal height, reducing strain on the neck and back.
The small footprint of this workstation allows it to be installed at the side or back of the desk, freeing up space on the desk for other items. The flexibility of this standing computer desk allows users to easily move the keyboard and monitor arm out of the way to speak across their table. And most importantly, no need to swap your existing desk. The ED-2KLXS and ED-2KHXS convert your fixed-height desk to a standing desk.
Overall, the Dual Monitor Sit-Stand workstation with a keyboard is a practical and efficient solution for anyone looking for an ergonomic workspace that can help alleviate discomfort and strain caused by prolonged computer use.
Technical Drawing
|
Description |
LX HD Sit-Stand Desk Mount LCD Arm (polished aluminum) |
|
Includes |
|
|
Quality Tested |
10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
|
Monitor Tilts |
70° up and 5° down |
|
Mounting Standards |
VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
|
Locking Connections |
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
|
Desk Clamp |
Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick |
|
Cable Management |
Clips on the under side of the arm route and hide cords |
|
Keyboard Arm |
To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused |
|
Note |
Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
|
Product Weight |
17.5 lbs (8 kg) |
|
Shipping Dimensions |
25" x 14.75" x 7.5" (64 x 38 x 19 cm) |
|
Shipping Weight |
20 lbs (9.1 kg) |
|
Warranty |
Five (5) years |
|
Description |
LX Sit-Stand Wall Mount Keyboard Arm (polished aluminum) |
| Includes |
|
|
Arm |
Can be used with or without the extension |
|
Quality Tested |
10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
|
Tilt |
When in down position, tray features a back-tilt of 5°; folds upright 90° in storage position |
|
Rotation Stop |
On wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall |
|
Mounting Options |
Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately) |
|
Fasteners |
For direct attachment to wood/metal studs or concrete surface are not included - customer supplied |
|
Base |
Includes theft-deterrent anchor holes for cable locks |
|
Note |
Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
|
Product Weight |
14.4 lbs (6.5 kg) |
|
Shipping Dimensions |
22.4" x 13.7" x 7.8" (57 x 35 x 20 cm) |
|
Shipping Weight |
17.1 lbs (7.8 kg) |
|
Warranty |
Five (5) years |
|
Description |
Dual Monitor & Handle Kit (black) |
|
Includes |
|
|
Display Size |
Outside width of monitor should be 14" to 24.5" (35 to 62 cm). This range accommodates most 17" to 24" displays as well as some displays as large as 26". If the outside width is less than 14" (35 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5" (62 cm) are not compatible. |
|
Attaches |
To mounts with four-hole interface of 50 x 50 mm or 100 x 100 mm |
|
Mounting Standards |
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
|
Installed & Used |
This kit can be installed and used without the included handle |
|
Product Dimensions |
4"H x 29.1"W x 1.5"D (10 x 74 x 38 cm) |
|
Shipping Dimensions |
31" x 13.5" x 7" (79 x 34 x 17.5 cm) |
|
Shipping Weight |
8.4 lbs (3.8 kg) |
|
Warranty |
Five (5) years |
Benefits
20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
Extends LCD up to 33" (84 cm); push your display out of the way when not in use
Increase viewing comfort - help reduce eye, back and neck strain
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use adjustment
Cable management clips on the under side of the arm route and hide cords
Ideal for space-constrained spaces - folds to within 4.5" (12 cm) of back of desk in storage position
Secure installation - locking connections between arm, extension and base
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
- 20-inch (51 cm) height range allows users to move between sitting and standing positions during data entry
- Extends keyboard up to 42" (107 cm); fold the keyboard back out of the way when not in use
- Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
- Mouse tray slides out to left or right, depending on user preference
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management feature routes cables under the arm, out of the way
- Ideal for space-constrained spaces - folds to within 5.8" (15 cm) of wall in storage position
- Secure installation - locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
- Perfect dual-mounting solution for monitors with screen sizes of 17" to 24"
- Attaches to wide variety of mounts using a 50 x 50 mm or 100 x 100 mm hole pattern
- Robust design ensures many years of service
- Conceal and organize cables: Display cables can be neatly routed behind displays
Product Options/Accessories
| Model | ErgoDirect ED-2KLXS |
| Manufacturer | Ergotron |
| Part Number | ED-2KLXS |
| Color | Polished aluminum |
| Monitor Size | Up to 46" |
| Lift | (51 cm) 20 in |
| Tilt | 80 degree |
| Pan | 360 degree |
| Rotation | 90 degree |
| Mounting Pattern | VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Extension | Extends LCD up to 33" (84 cm), Extends keyboard up to 42" (107 cm) |
| Weight Capacity | 45-384-026: 14 to 30 lbs (6.3 to 13.6 kg), 45-354-026: up to 5 lbs (2.2 kg) |
| Weight | 45-384-026: 17.5 lbs (8 kg), 45-354-026: 14.4 lbs (6.5 kg) |
| Shipping Dimensions | 45-384-026: 25" x 14.75" x 7.5" (64 x 38 x 19 cm), 45-354-026: 22.4" x 13.7" x 7.8" (57 x 35 x 20 cm) |
| Shipping Weight | 45-384-026: 20 lbs (9.1 kg), 45-354-026: 17.1 lbs (7.8 kg) |
| Warranty | Five (5) years |
| Monitor Arm Types | 2 Monitors |
| Monitor Arm Types | Sit-Stand Workstation |
| Price | $600 - $699 |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 1
by GSH, Los Angeles, California, Nov 08, 2017
I've tried other computer ergonomic products and so far this is the one that met all my needs to make my work station user friendly. The keyboard being independent from the monitor arms make this product easier to use. I highly recommend this product.
