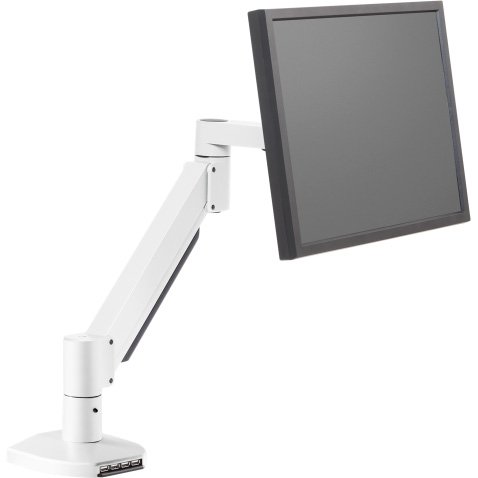

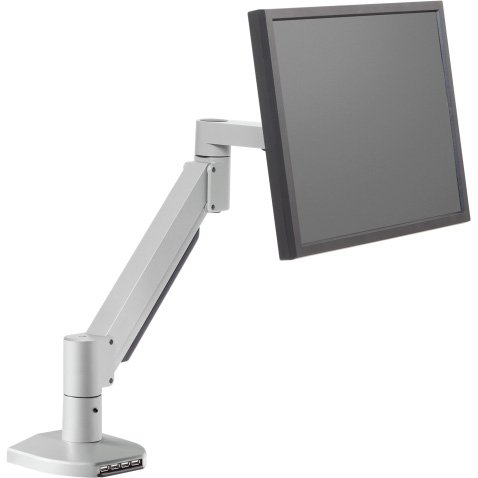

Innovative 7000-Busby Monitor Arm with Integrated USB Hub
This product has a lead time of 20 business days. Busby must be connected to a computer and a power outlet to enable devices to be charged. Busby may not charge devices while they are in use.
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description
The best-selling 7000 monitor arm is combined with Busby, an integrated USB hub for your desktop, so USB ports are at your fingertips and integrated into the articulating monitor arm.

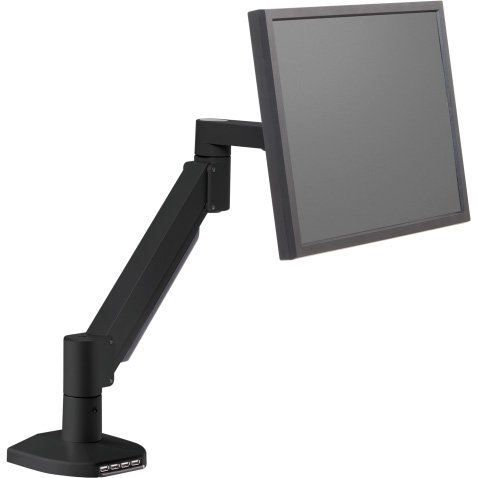

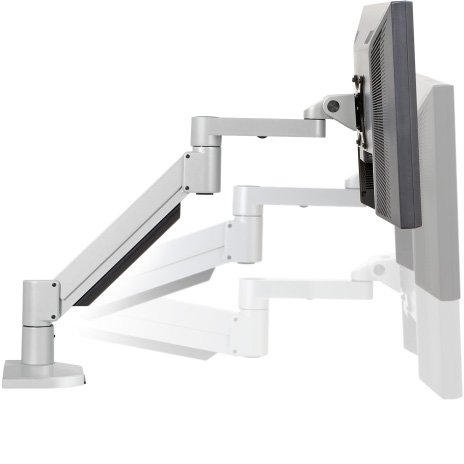

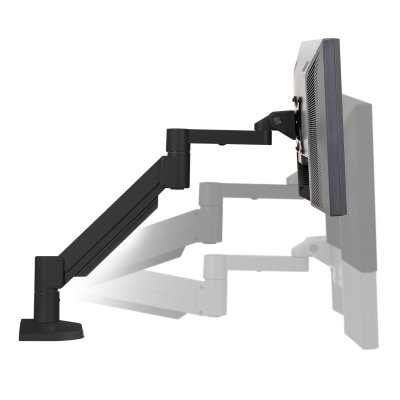

Our best-selling 7000 monitor arm suspends your flat panel monitor above your desk. Users are able to quickly raise and lower the monitor with just one hand for ergonomic viewing comfort. The monitor arm also eliminates the monitor footprint on your desk, allowing you to reclaim your desk top.

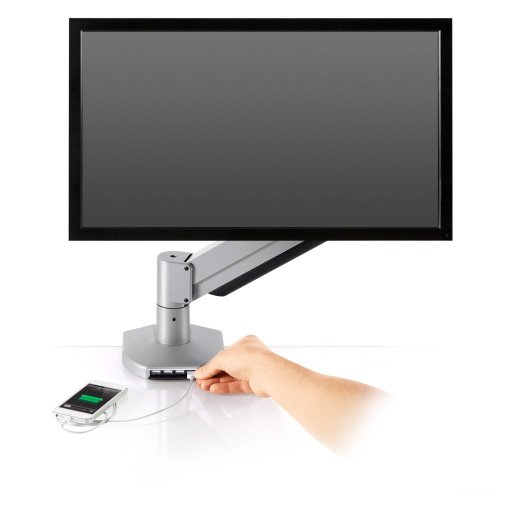

Innovative 7000-Busby combines the 7000 monitor arm with our Busby USB hub. With Busby, you no longer have to crawl under your desk to reach your PC’s USB port. Busby places USB ports right at your fingertips, where they are integrated into your flat panel monitor mount. Busby provides convenient access to charge and power all of your USB-enabled devices without consuming additional desk space.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |
 8336 Standard Monitor Tilter |

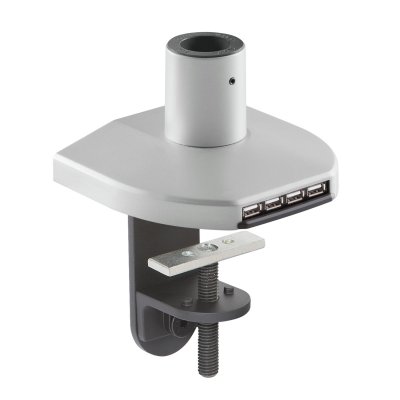

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount

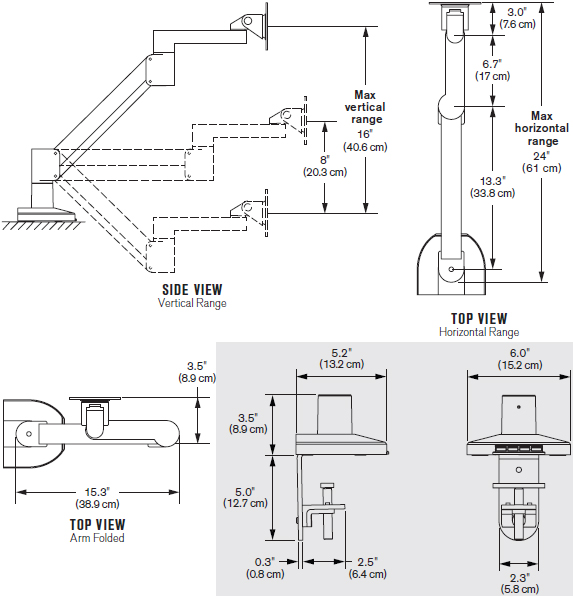

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Screen Size | Up to 30" |
| Height Adjustment | 16" (40.6 cm) |
| Extension Range | 24" (61 cm) |
| Monitor Pivot | Landscape / Portrait |
| Rotation | 360 degrees at three joints |
| Monitor Tilt | 180 degrees |
| VESA Compatibility | 75mm, 100mm adapters included |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| Warranty | 10 Years |
| Cable Management | Cables are concealed in arm |
| Monitor Weight |
|
Features
Monitor arm offers convenient access to charge and power all of your USB-enabled devices
Features four USB 2.0 ports
The monitor arm offers 24" of horizontal range and 16" of vertical range (8" up and down from horizontal)
Clamp the monitor arm to the desk edge, through grommet hole, or bolt through desk
VESA-monitor compatible - 75mm, 100mm VESA adapters included
Product Options/Accessories
| Model | 7000-Busby |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7000-Busby |
| Color | 104 - Vista Black, 124 - Silver, 248 - Flat White |
| Rotation | At three joints 360 degree |
| Tilt | 180 degree |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm,100mm |
| Monitor Weight | 7000-500-Busby: 2-13 lbs (0.9-5.9 kg); 7000-800-Busby: 7.5-25 lbs (3.4-11.3 kg); 7000-1000-Busby: 12-30 lbs (5.4-13.61 kg) |
| Mounting Options | Desk |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Height Adjustment | 16 |
| Extension | 24 |
| Mounting Options | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| Warranty | 10 Years |
| Monitor Size | Up to 30 |
