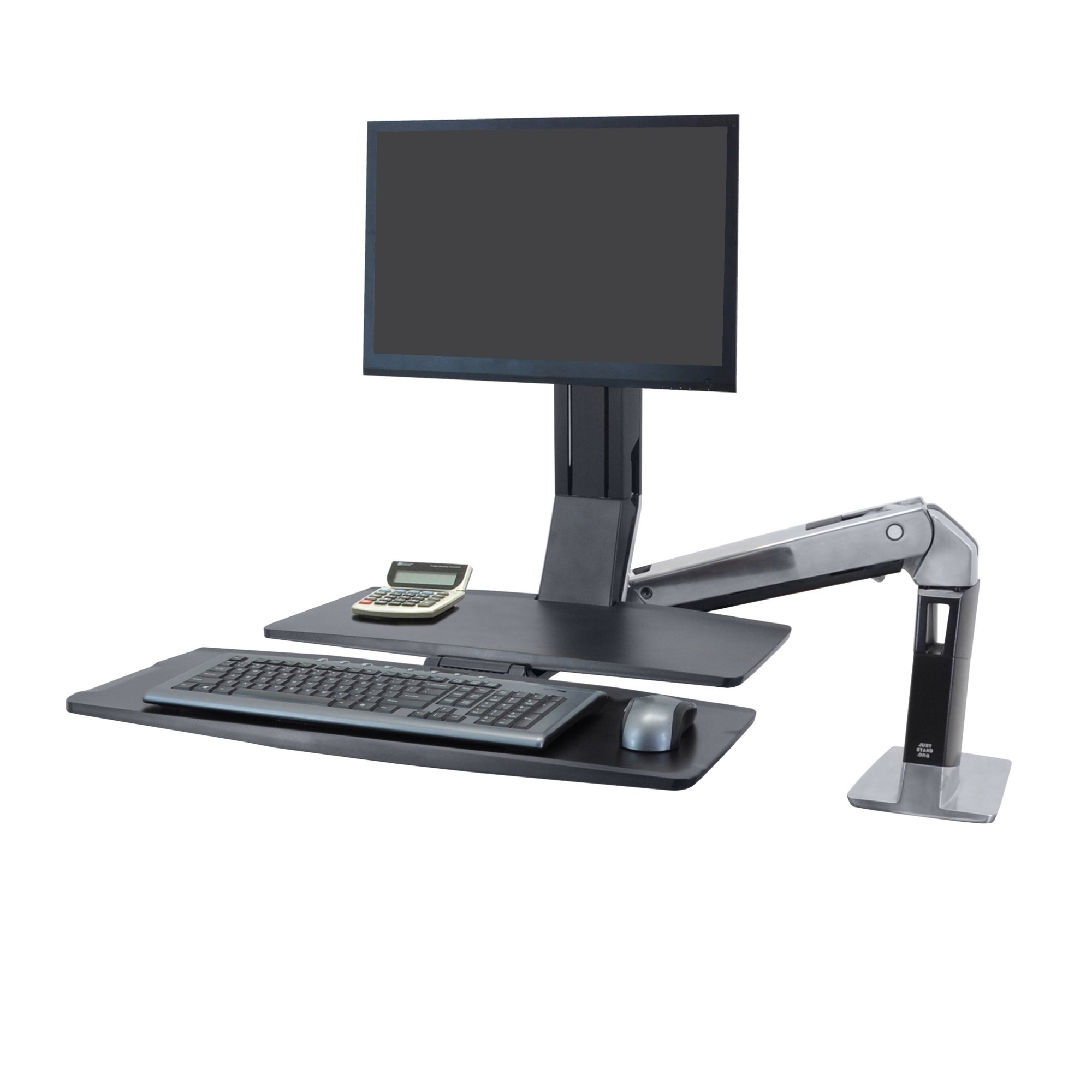

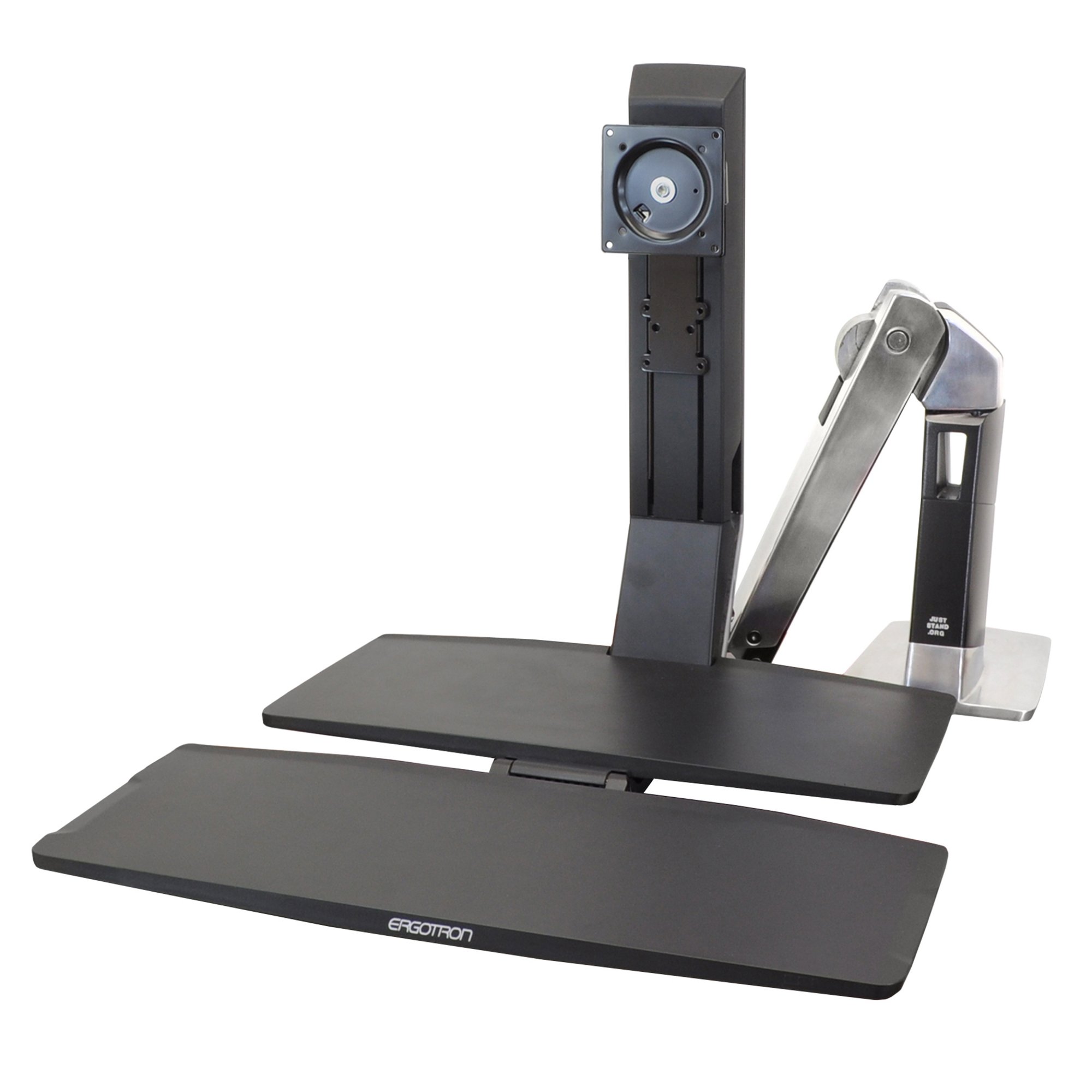

Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface

Product ID 17653
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Technical drawing

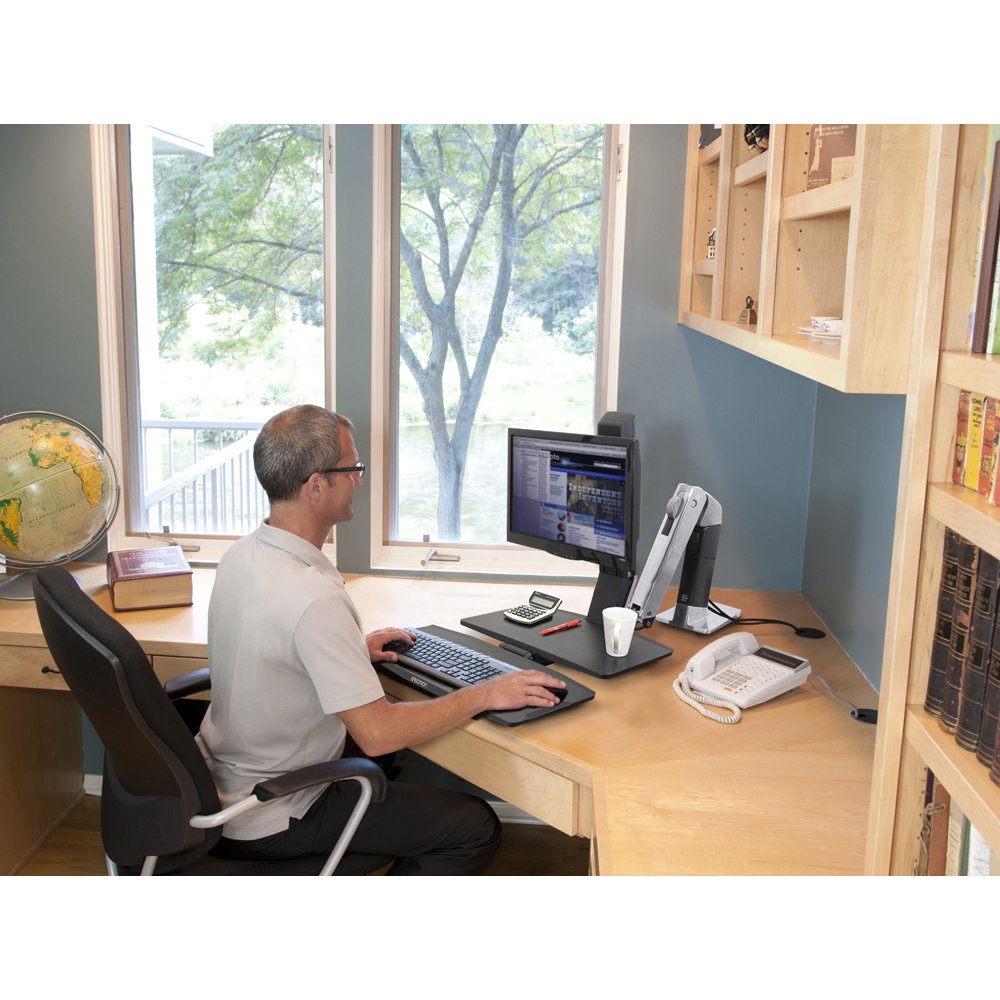

Sit and work with Ergotron 24-317-026 WorkFit-A

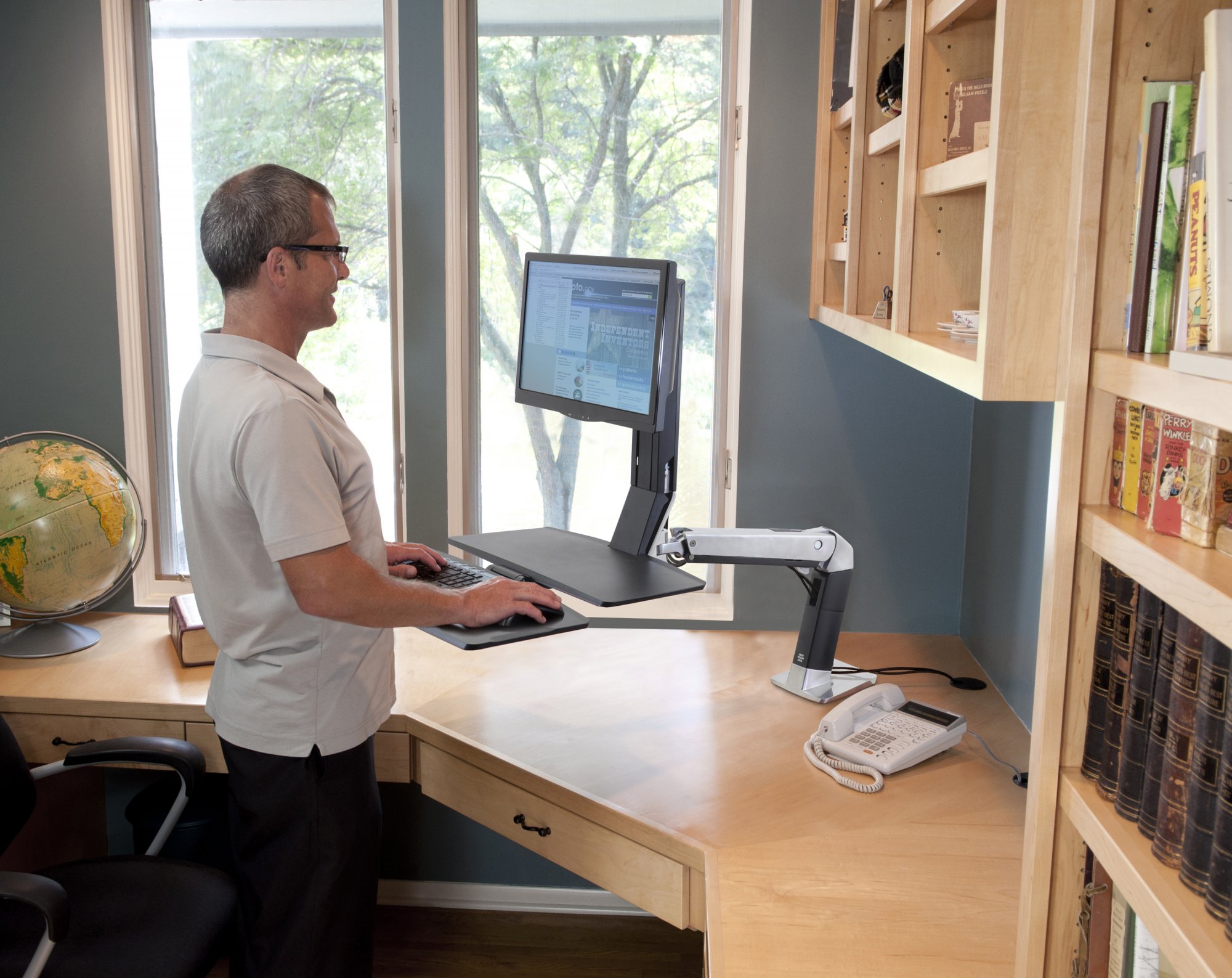

Stand and work with Ergotron 24-317-026 WorkFit-A

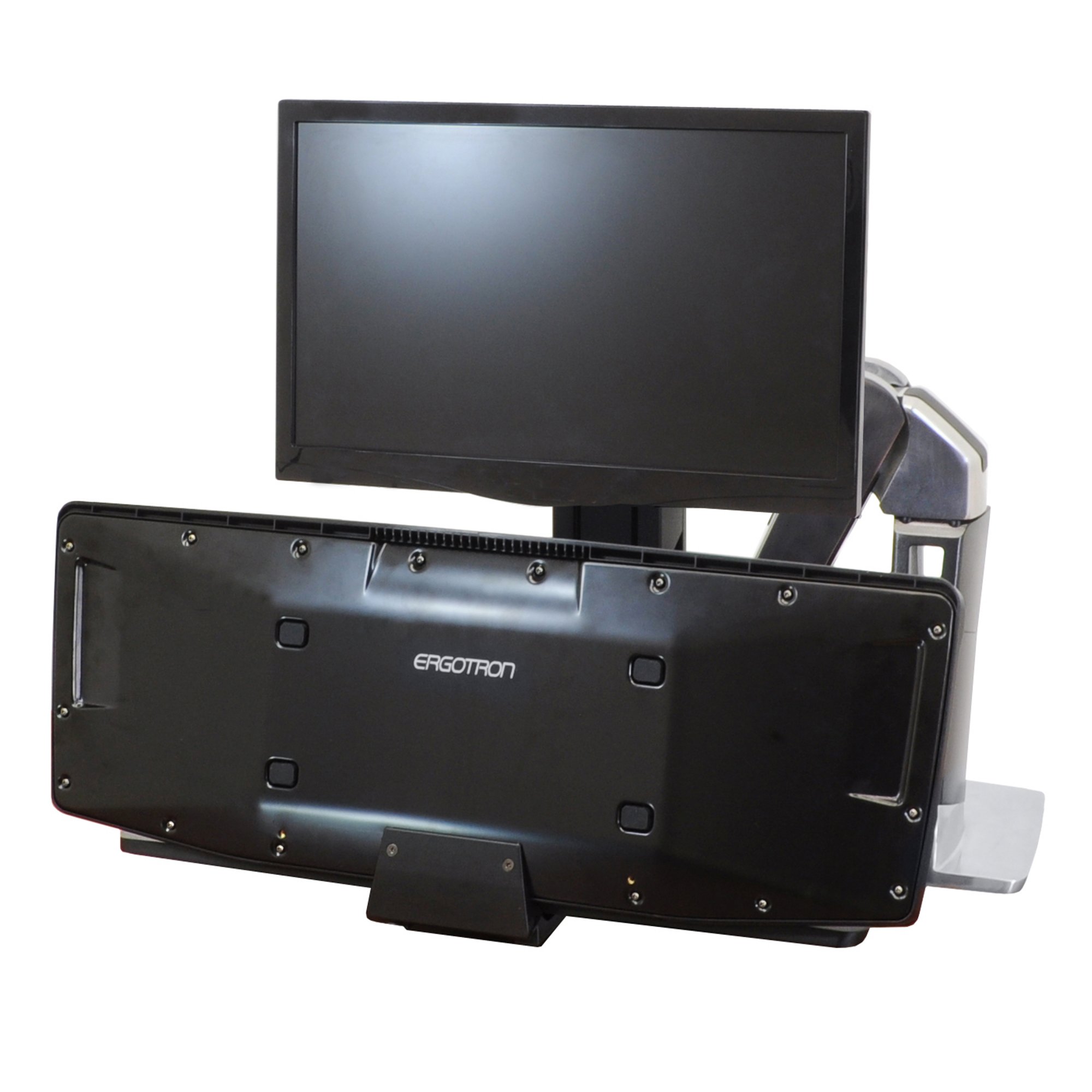

Folded view of Ergotron 24-317-026
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface
Technical drawing
Sit and work with Ergotron 24-317-026 WorkFit-A
Stand and work with Ergotron 24-317-026 WorkFit-A
Folded view of Ergotron 24-317-026

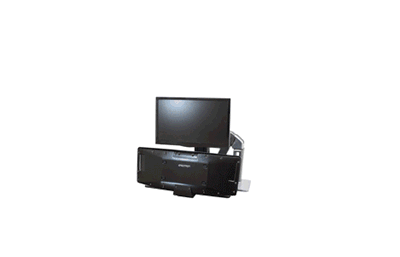

Animation of Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface

Description

Ergotron 24-317-026 is most appropriate for corner workstations. It attaches to the rear of the desk, clearing space in the front for non-computer work. The 42" arm extension allows for the monitor to be pushed to the the side when not in use. This workstation also has an extra worksurface that holds writing materials, phone or a tablet.

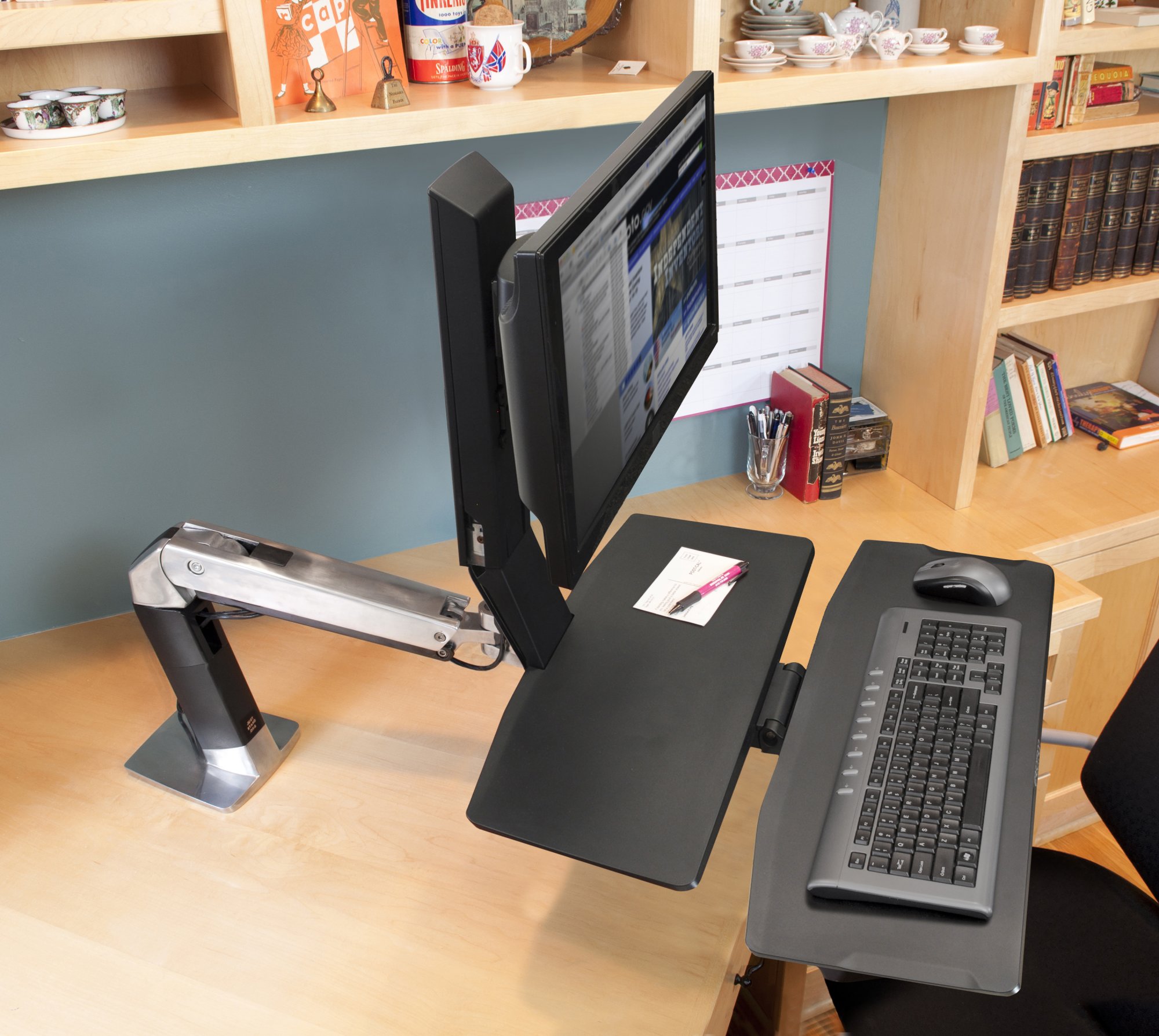

Ideal for corner workstations or confined areas, WorkFit-A attaches to the rear or side of most surfaces while keeping the keyboard upon the desktop when sitting. Featuring an unprecedented range of motion for a standing desk solution, you can swing your system left, right, up or down.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. With its extra vertical reach, this model is well suited for taller users.

Technical Drawing

Technical Drawing for Ergotron 24-317-026 WorkFit-A, Single LD with Worksurface

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 20 lbs

9.1 kg

25"

63.5 cm

30° 180° 360° MIS-D

Product Information

Part Number 24-317-026
Description WorkFit-A, Single LD LCD Monitor Sit-Stand Workstation, with Worksurface (polished aluminum/black)
Includes
  • Arm

  • LCD pivot

  • Worksurface

  • Keyboard tray

  • Desk clamp

  • Complete hardware kit

Weight Capacity
  • Maximum total load on height-adjustment assembly ≤ 20 lbs (9.1 kg). LCD weight range = 5–15 lbs (2.3–6.8 kg), work surface (external weight) ≤ 5 lbs (2.3 kg), keyboard tray accessories ≤ 2 lbs (.9 kg).

  • For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg)

Lift Range LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently

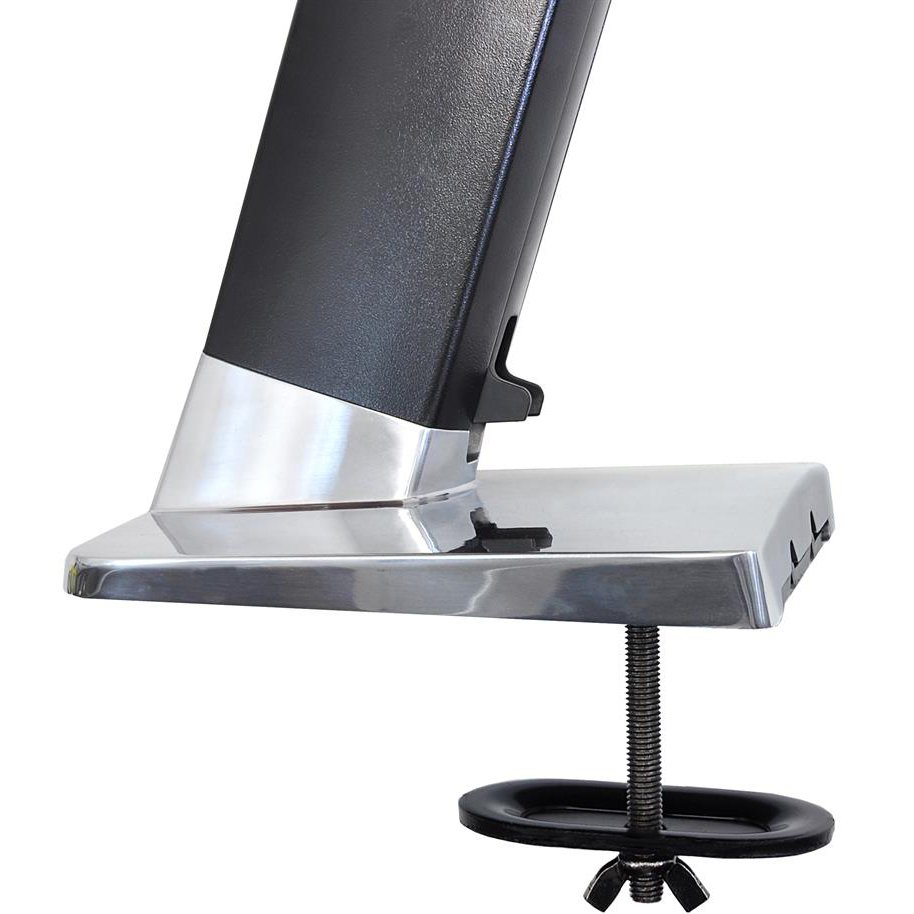

Desk Clamp Attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
Note
  • Extra-long cables may be required to span between standing and sitting heights

  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment

Worksurface Dimensions 22.63" x 9.75" (57.5 x 24.8 cm)
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Keyboard Tray Can be installed in 3 different positions: centered, offset right or offset left
Cable Management Routes and hides cords
Arm Extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

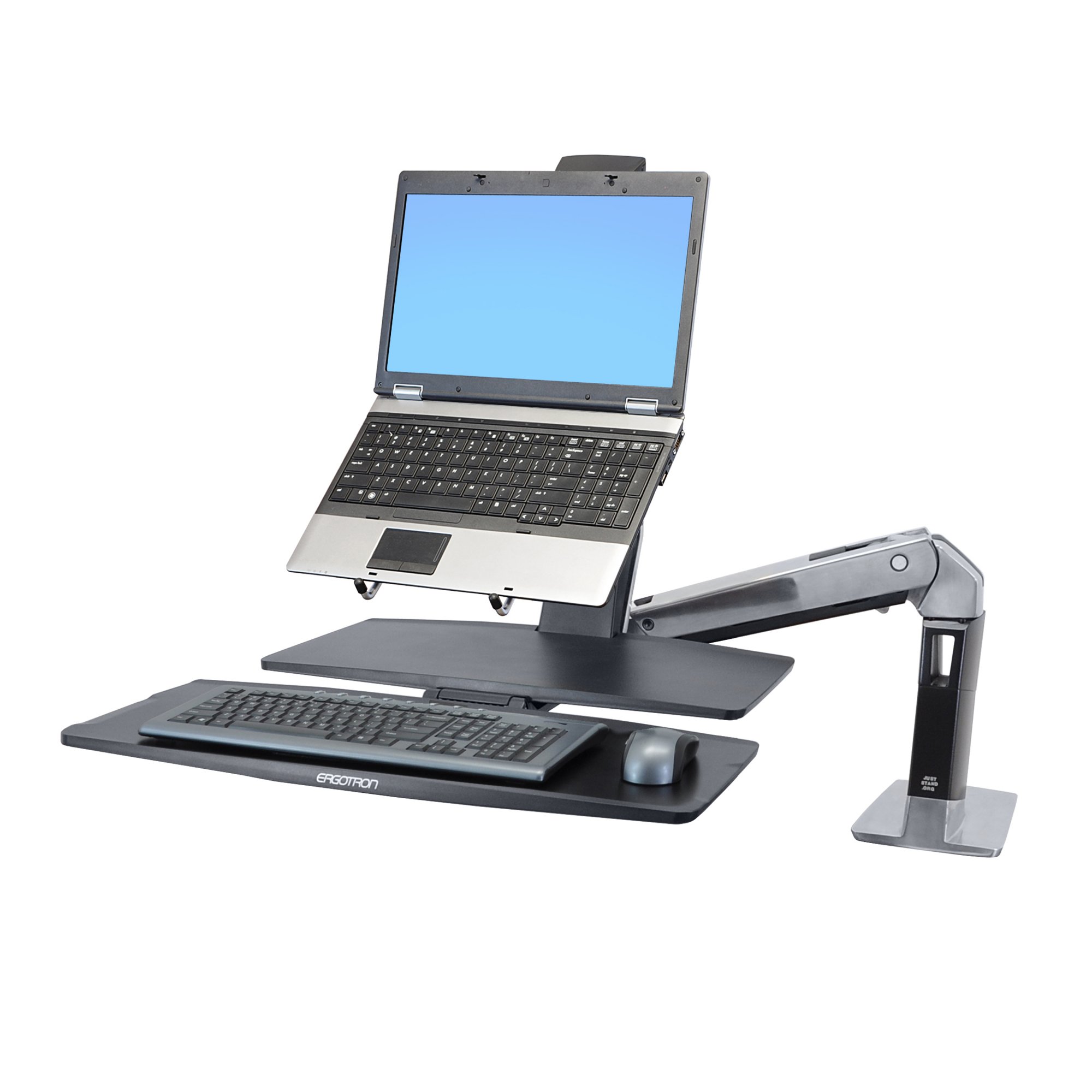

Notebook Tray Can be configured to hold a laptop in place of monitor: order accessory Notebook Tray (50-193-200)
Washington State Analysis A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 47 lbs (21.4 kg)
Warranty Five (5) years

Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism

  • Safe, easy to use - simple installation and effortless operation

  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort

  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor

  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface

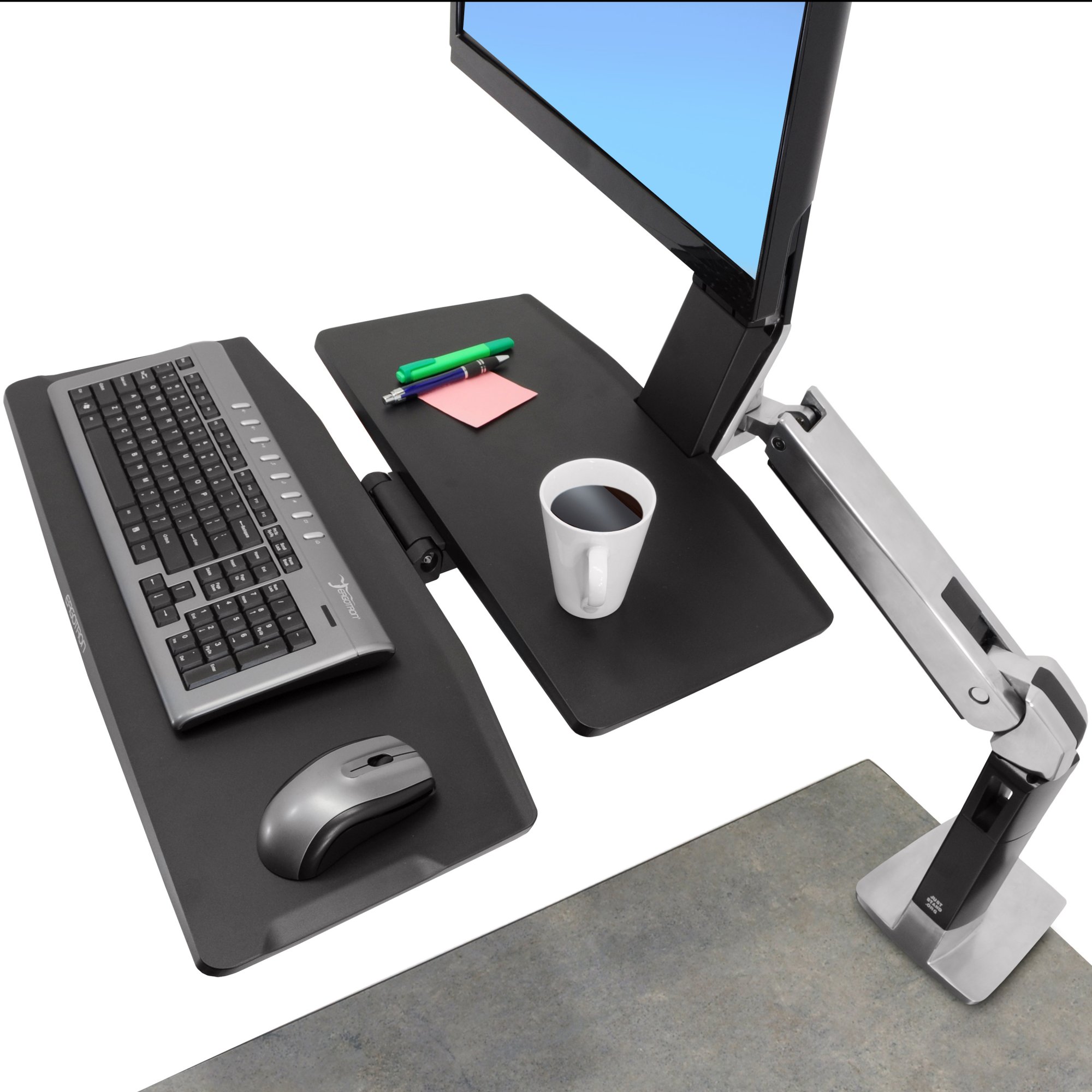

  • Included worksurface provides ample space and quick access to a tablet computer, phone, cup of java or task-related items


For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment

  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers

  • Safe and neat routing of cables

  • For HR/Risk Management and Company Cost Savings


Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases of 12%-18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q I am interested in the Workfit A, single LD. Do I need extra hardware to add the Notebook Tray? Does the arm attach to the back of the desk via clamp or screws?
a

You can certainly replace the LCD bracket on this WorkFit-A with a notebook tray and convert this unit to a sit-stand latop workstation. But if you want to add laptop display to an LCD and have a dual display workstation, please consider WorkFit-A Single HD. Then you can instal a WorkFit Conversion Kit to convert a single LCD workstation to a LCD, laptop workstation.

Model 24-317-026
Manufacturer Ergotron
Part Number 24-317-026
UPC 698833025705
Color Polished aluminum/black
Weight Capacity Up to 20 lbs (9.1 kg)
Lift (64 cm) 25 in
Tilt 30 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
Worksurface Dimensions 22.63" x 9.75" (57.5 x 24.8 cm)
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Extend/Retract Range Arm extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 47 lbs (21.4 kg)
Warranty Five (5) years
Screen Size Up to 24 in
Monitor Weight 5–15 lbs (2.3–6.8 kg)
Suspended Keyboard No
Worksurface Yes
Mounting Options Desk
Monitor Arm Types Sit-Stand Workstation
Monitor Arm Types Laptop/Notebook
Price $400 - $499
