Peerless MOD-CPC Cathedral Ceiling Plate

Package contents: Cathedral ceiling plate and mounting hardware. Max load capacity: 264 lbs (119.7kg)

Product ID 17640
Peerless MOD-CPC Cathedral Ceiling Plate
Peerless MOD-CPC Cathedral Ceiling Plate

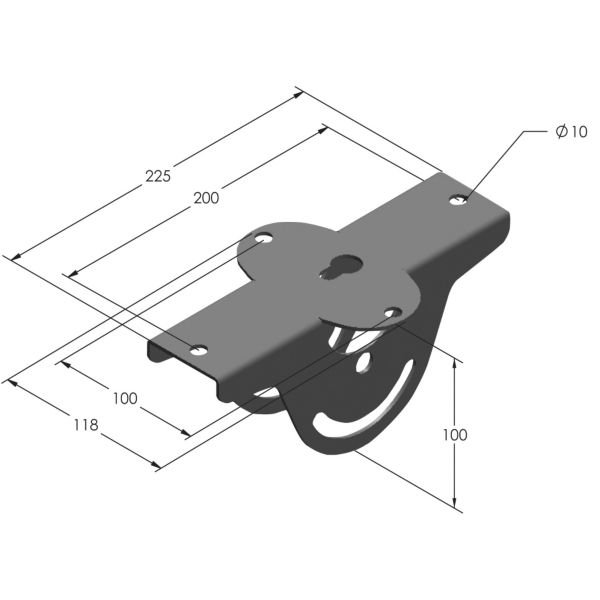

With dimensions
Peerless MOD-CPC Cathedral Ceiling Plate
Peerless MOD-CPC Cathedral Ceiling Plate
With dimensions
Shipping:
$12.98

More shipping >

Our Price:
Qty:

Description

The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations.
Peerless MOD-CPC provides a solution for mounting direct to concrete and wood joists, accommodating for angled ceiling installations.

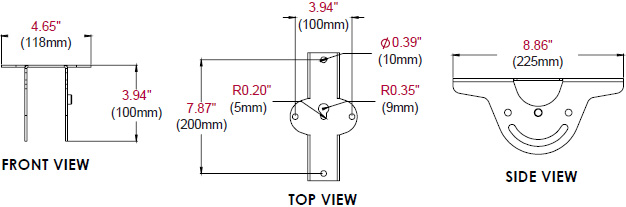

Technical Drawing

Technical drawing for
Peerless MOD-CPC Cathedral Ceiling Plate

Specifications

Color Black and White
Finish Powder Coat
Security Features Non-Security Hardware
Dimensions 8.85" x 4.64" x 3.93" (225 x 118 x 100mm)
Weight 1.5 lbs (0.6kg)
Weight Capacity 264 lbs (119.7kg)
Shipping Dimensions 9.62" x 6.25" x 6.00" (244 x 158 x 152mm)
Shipping Weight 2.5 lbs (1.1kg)
Package Contents
  • Cathedral ceiling plate
  • Mounting hardware
UPC Code MOD-CPC: 735029269946
MOD-CPC-W: 735029270102

Features

  • 264 lbs (119.7kg) max weight capacity

  • Mounts to concrete and wood joist ceilings

  • Cathedral ceiling plate can be angled up to ±60° for use with vaulted or sloping ceilings

Frequently Asked Questions

Model MOD-CPC
Manufacturer Peerless Mounts
Part Number MOD-CPC
UPC 735029269946
Color Black and White
Dimensions 8.85" x 4.64" x 3.93" (225 x 118 x 100mm)
Weight 1.5 lbs (0.6kg)
Weight Capacity 264 lbs (119.7kg)
Finish Powder coat
Shipping Dimensions 9.62" x 6.25" x 6.00" (244 x 158 x 152mm)
Shipping Weight 2.5 lbs (1.1kg)
Warranty Limited 5 year
