Peerless MOD-AUB U-Bolt Adapter for MOD-CPF & MOD-CPC Ceiling Plate

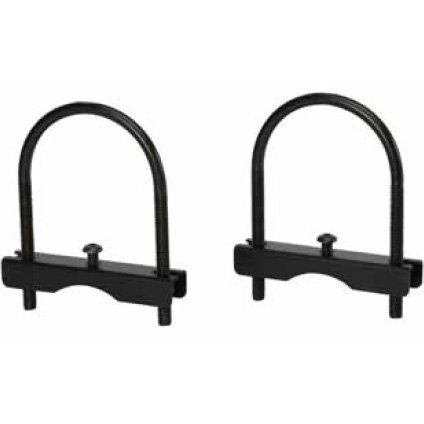

Package contents: U-Bolt clamp and nuts. Max load capacity: 264 lbs (119.7kg)
Description
The Peerless-AV Modular Mounts Line features a full range of products that can
fulfill multiple requirements from a limited number of SKUs. With the
universality of the components, configure your own perfect custom flat-panel
display or projector mounting solution for any application.
The Modular Mount Line was developed with the professional AV installer in mind.
Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as
well as for upgrading existing installations.

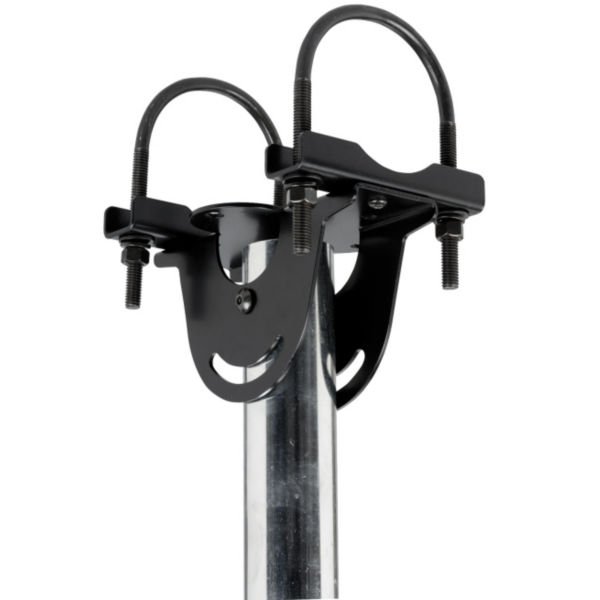

Peerless MOD-AUB serves as an accessory for installing to pipes, trusses, mini
I-beams and other construction materials.

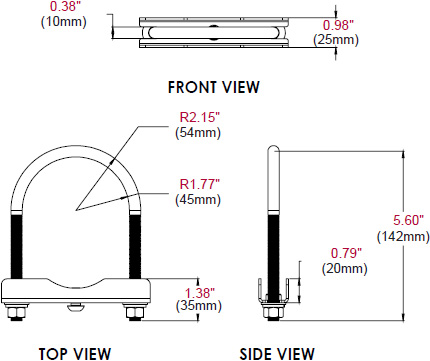

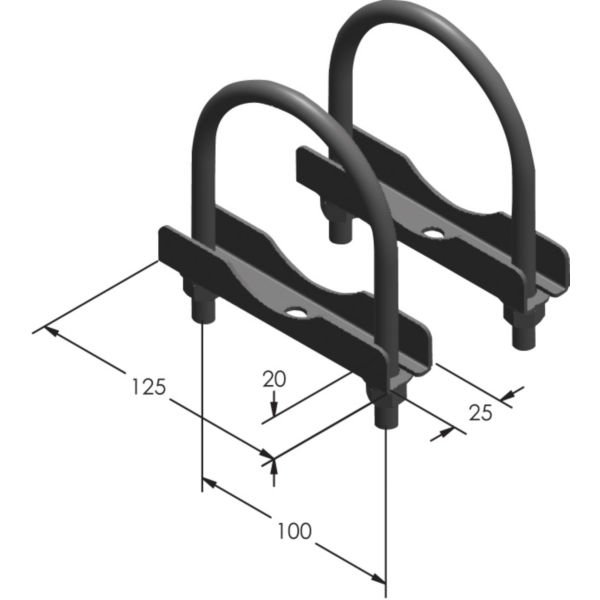

Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Security Features | Non-Security Hardware |
| Dimensions | 1.96" x 5.00" x 4.92" (50 x 127 x 125mm) |
| Weight | 0.65 lbs (0.29kg) |
| Weight Capacity | 264.0 lbs (119.7kg) |
| Shipping Dimensions | 6.25" x 9.62" x 6.00" (158 x 244 x 152mm) |
| Shipping Weight | 1.6 lbs (0.75kg) |
| Package Contents |
|
| UPC Code | 735029269908 |
Features
Clamps around 1.5"-3.3" (40-85mm) diameter pipes, trusses, mini I-beams, and other construction materials
Adapts to MOD-CPC and MOD-CPF
Product Options/Accessories
| Model | MOD-AUB |
| Manufacturer | Peerless Mounts |
| Part Number | MOD-AUB |
| UPC | 735029269908 |
| Color | Black |
| Dimensions | 1.96" x 5.00" x 4.92" (50 x 127 x 125mm) |
| Weight | 0.65 lbs (0.29kg) |
| Weight Capacity | 264 lbs (119.7kg) |
| Finish | Powder coat |
| Shipping Dimensions | 6.25" x 9.62" x 6.00" (158 x 244 x 152mm) |
| Shipping Weight | 1.6 lbs (0.75kg) |
| Warranty | Limited 5 year |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranties and Returns
Limited Warranty
Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of
Peerless-AV products that Peerless-AV products will be free from defects in
material and workmanship, under normal use, for the periods listed below, from
the date of purchase by the original end-user. At its option, Peerless-AV will
repair or replace with new or refurbished products or parts, or refund the
purchase price of, any Peerless-AV product which fails to conform with this
warranty.
In no event shall the duration of any implied warranty of merchantability or
fitness for a particular purpose be longer than the period of the applicable
express warranty set forth above. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the
customer or a person who is not authorized for such service or repairs by
Peerless-AV, (b) the failure to utilize proper packing when returning the
product, (c) incorrect installation or the failure to follow Peerless-AV’s
instructions or warnings when installing, using or storing the product, or (d)
misuse or accident, in transit or otherwise, including in cases of third-party
actions and force majeure. This warranty also does not cover corrosion or rust
resulting from damaged, scratched or chipped paint or other surfaces.
In no event shall Peerless-AV be liable for incidental or consequential damages
or damages arising from the theft of any product, whether or not secured by a
security device which may be included with the Peerless-AV product. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, express or implied, and is the
sole remedy with respect to product defects. No dealer, distributor, installer
or other person is authorized to modify or extend this Limited Warranty or
impose any obligation on Peerless-AV in connection with the sale of any
Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights
which vary from state to state.
| Product | Warranty Period |
| Mounts | 5 years |
| Kiosk Enclosures | 5 years |
| Furniture | 1 year |
| Cables | 25 years |
| Cleaning Products | 1 year |
| Power Products | 1 year |
| Electronic Products and Components | 1 year |
| Xtreme Displays, Ultra View TVs | 2 years |
| Interactive | 1 year |
